Diagnostic Start-Up/Finish

DIAGNOSTIC START-UP/FINISH

HINT:
- Illustrations may differ from the actual vehicle depending on the device settings and options.
- Turn the engine switch on (ACC), and then check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

a. There are 2 methods to start diagnostic mode.




b. Method 1
1. Start the engine.

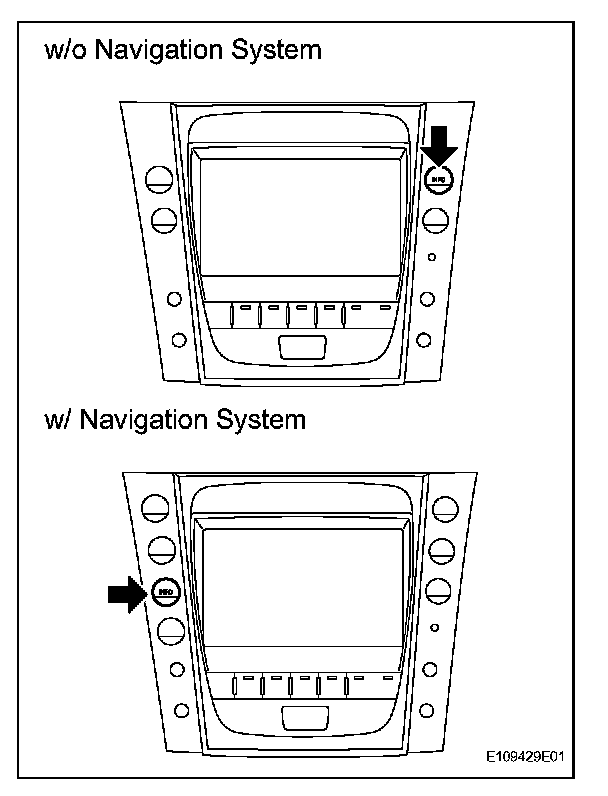

2. While pressing and holding the "INFO" switch, turn the light control switch as follows: TAIL -> OFF -> TAIL -> OFF -> TAIL -> OFF.
3. The diagnostic mode starts and the "System Check Mode" screen will be displayed. Service inspection starts automatically and the result will be displayed.




c. Method 2
1. Start the engine.

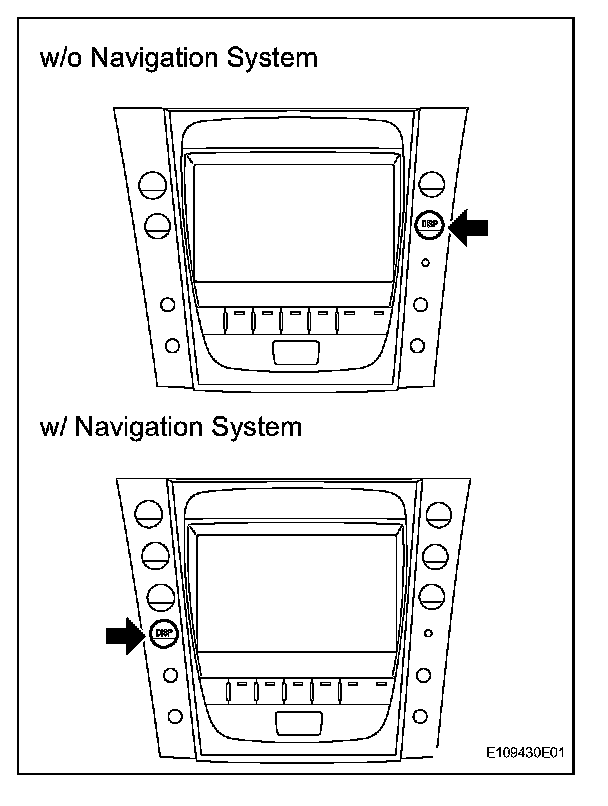

2. Press the "DISP" switch.

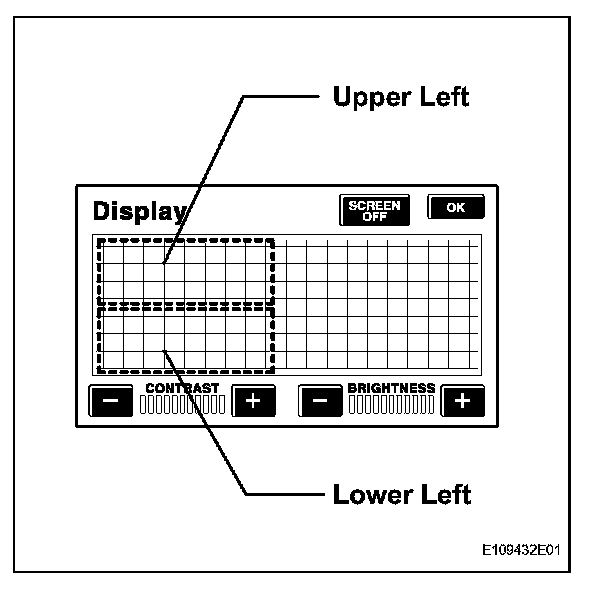

3. Touch the corners of the screen in the given order: upper left -> lower left -> upper left -> lower left-> upper left -> lower left.
4. The diagnostic mode starts and the "System Check Mode" screen will be displayed. Service inspection starts automatically and the result will be displayed.

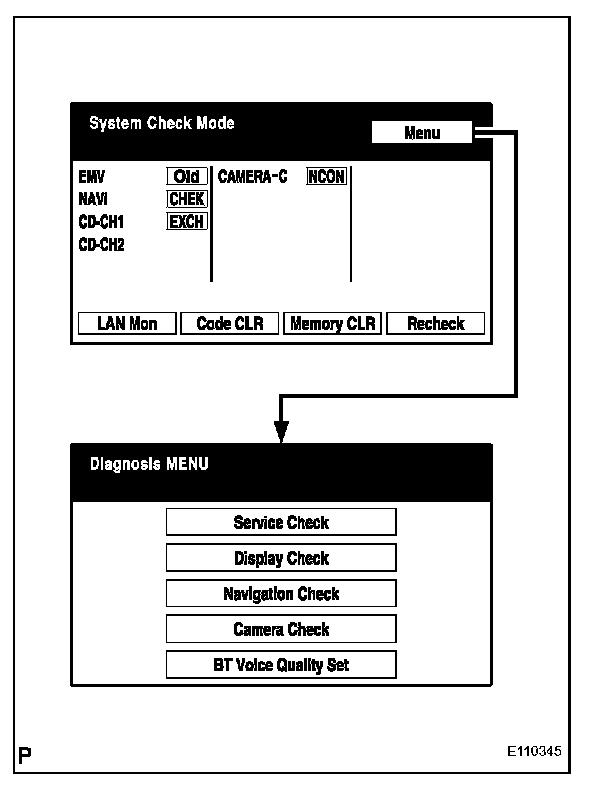

d. Diagnosis MENU
1. The "Diagnosis MENU" screen will be displayed by pressing Menu on the "System Check Mode" screen.

FINISH DIAGNOSTIC MODE

a. There are 2 methods to end diagnostic mode.
1. Turn the engine switch off.
2. Press and hold the "DISP" switch for 3 seconds.
