Description of On-Board Diagnostics

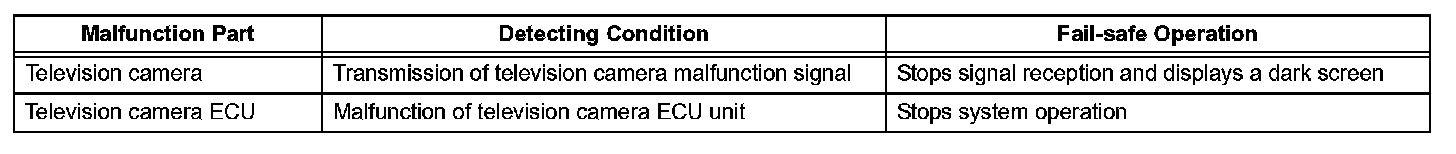

FAIL-SAFE CHART

If the television camera ECU detects a malfunction, the fail-safe functions shown in the table are activated.
