Display Signal Circuit Between Television Camera ECU and Multidisplay

Display Signal Circuit between Television Camera ECU and Multi-display

DESCRIPTION
This is the display signal circuit from the television camera ECU to the multi-display.

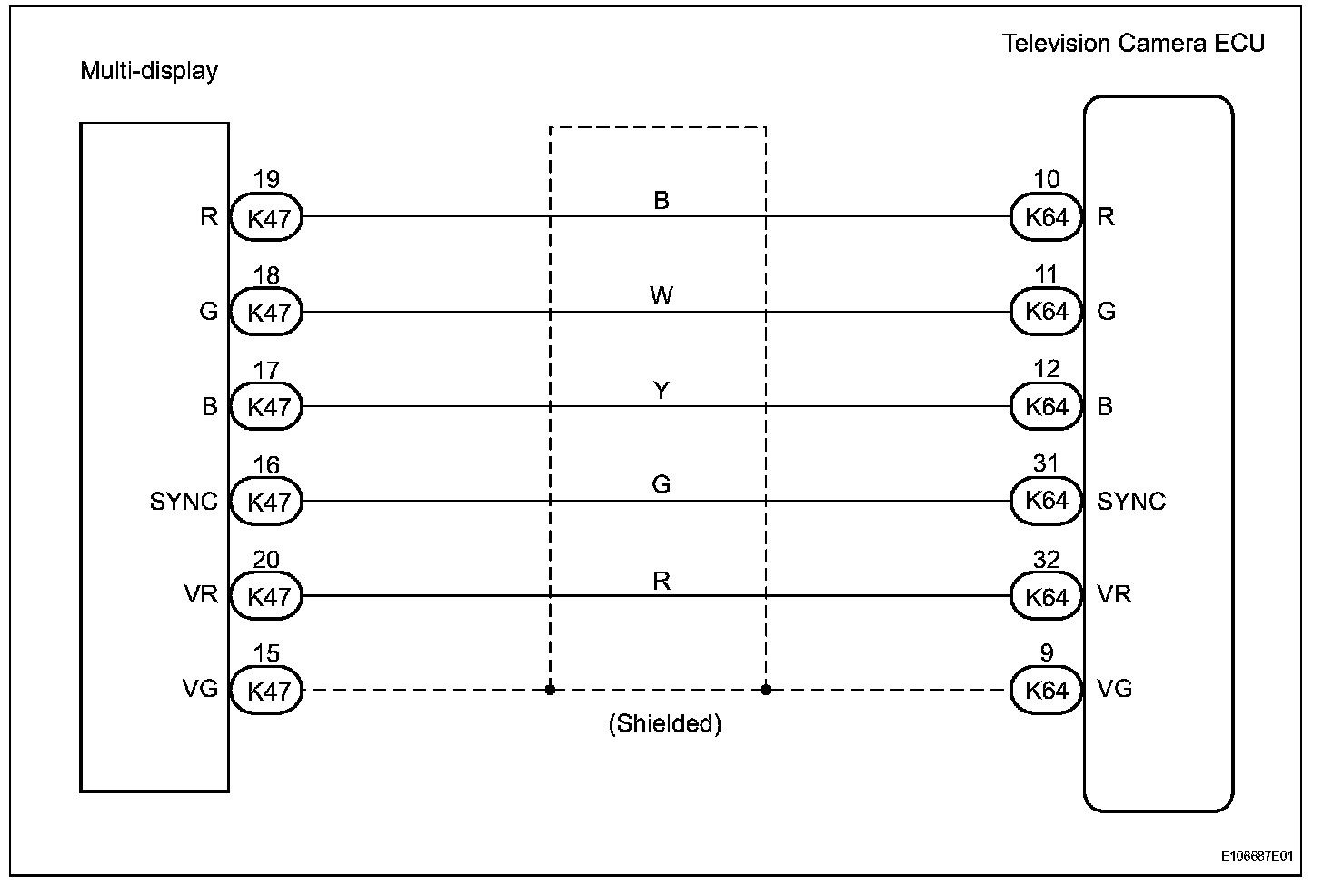

Wiring Diagram:

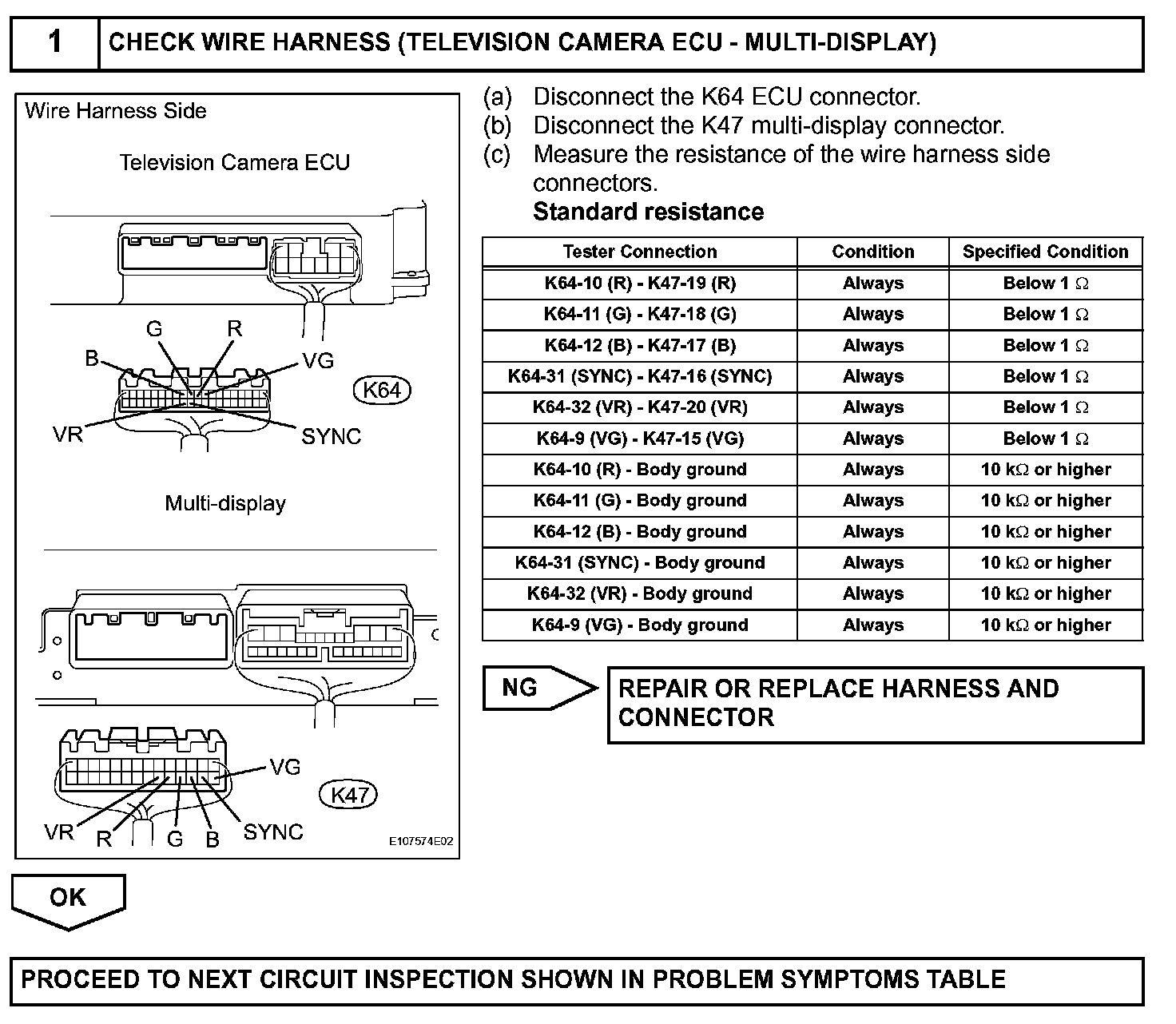

Step 1:




INSPECTION PROCEDURE
