AVC-LAN Circuit Between Multi-Display and Television Camera ECU

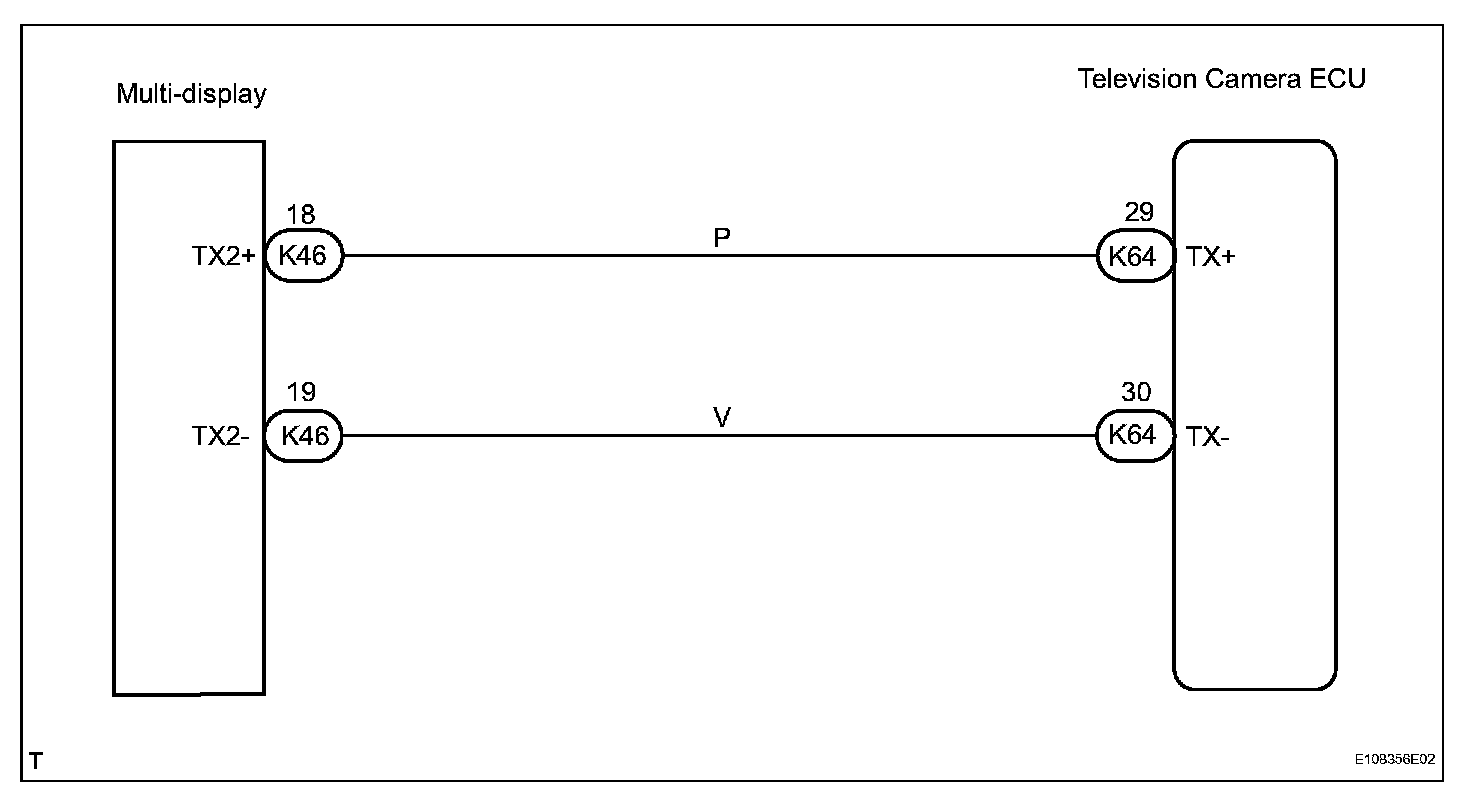

AVC-LAN Circuit between Multi-display and Television Camera ECU

DESCRIPTION
Each unit of the rear view monitor system connected with the AVC-LAN (communication) transfers the signal of each switch.
When a short to +B or short to ground occurs in the AVC-LAN, this system will not function normally as the communication is discontinued.
