Clearance Warning Buzzer
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
3. REMOVE CONSOLE UPPER PANEL ASSEMBLY
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
6. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY

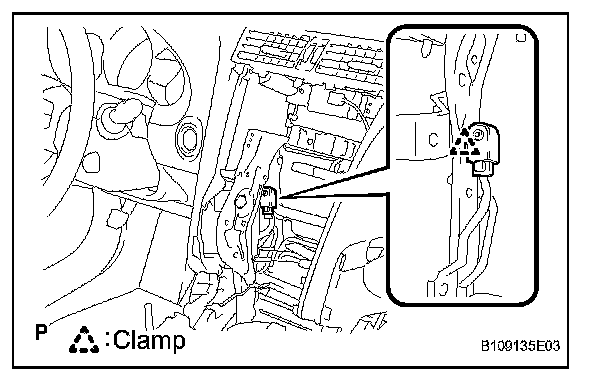

7. REMOVE NO. 1 CLEARANCE WARNING BUZZER
a. Disconnect the buzzer connector.
b. Detach the clamp and remove the buzzer.
INSTALLATION

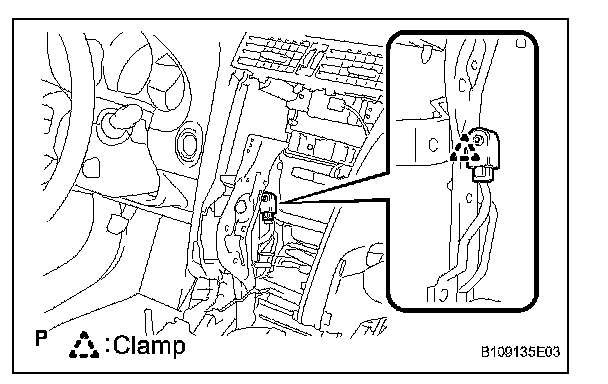

1. INSTALL NO. 1 CLEARANCE WARNING BUZZER
a. Attach the clamp to install the clearance warning buzzer.
b. Connect the connector.
2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
3. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
5. INSTALL CONSOLE UPPER PANEL ASSEMBLY
6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
a. Perform initialization
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
