Television Camera ECU
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE FRONT DOOR OPENING TRIM COVER RH
4. REMOVE INSTRUMENT SIDE PANEL RH
5. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
6. REMOVE CONSOLE UPPER PANEL ASSEMBLY
7. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
8. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
9. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
10. REMOVE GLOVE COMPARTMENT DOOR SUBASSEMBLY
11. REMOVE TELEVISION CAMERA CONTROLLER
a. Disconnect the 2 controller connectors.

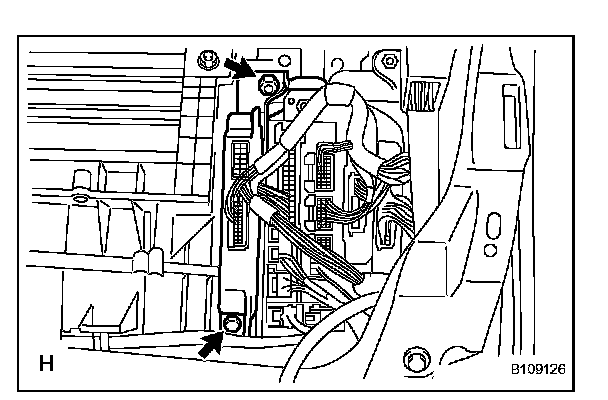

b. Remove the nut, bolt and television camera controller.
INSTALLATION
1. INSTALL TELEVISION CAMERA CONTROLLER

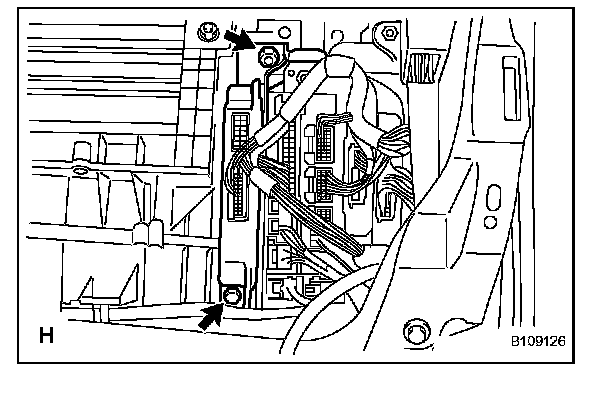

a. Install the controller with the nut and bolt.
b. Connect the 2 controller connectors.
2. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY
3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
6. INSTALL CONSOLE UPPER PANEL ASSEMBLY
7. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
8. INSTALL INSTRUMENT SIDE PANEL RH
9. INSTALL FRONT DOOR OPENING TRIM COVER RH
10. INSTALL FRONT DOOR SCUFF PLATE RH
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
