Immobilizer Code ECU Power Source Circuit

Immobilizer Code ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the immobilizer code ECU.

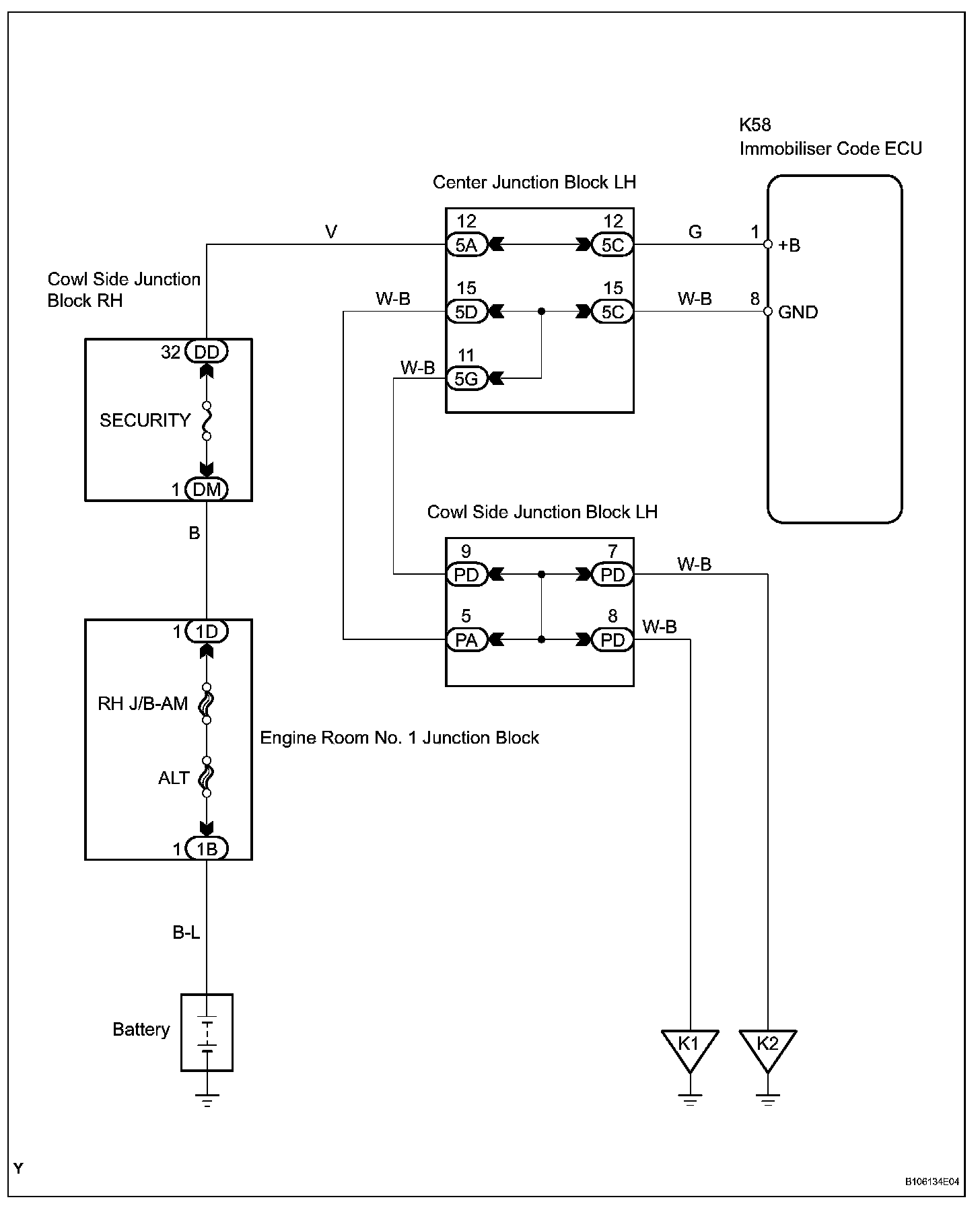

Wiring Diagram:

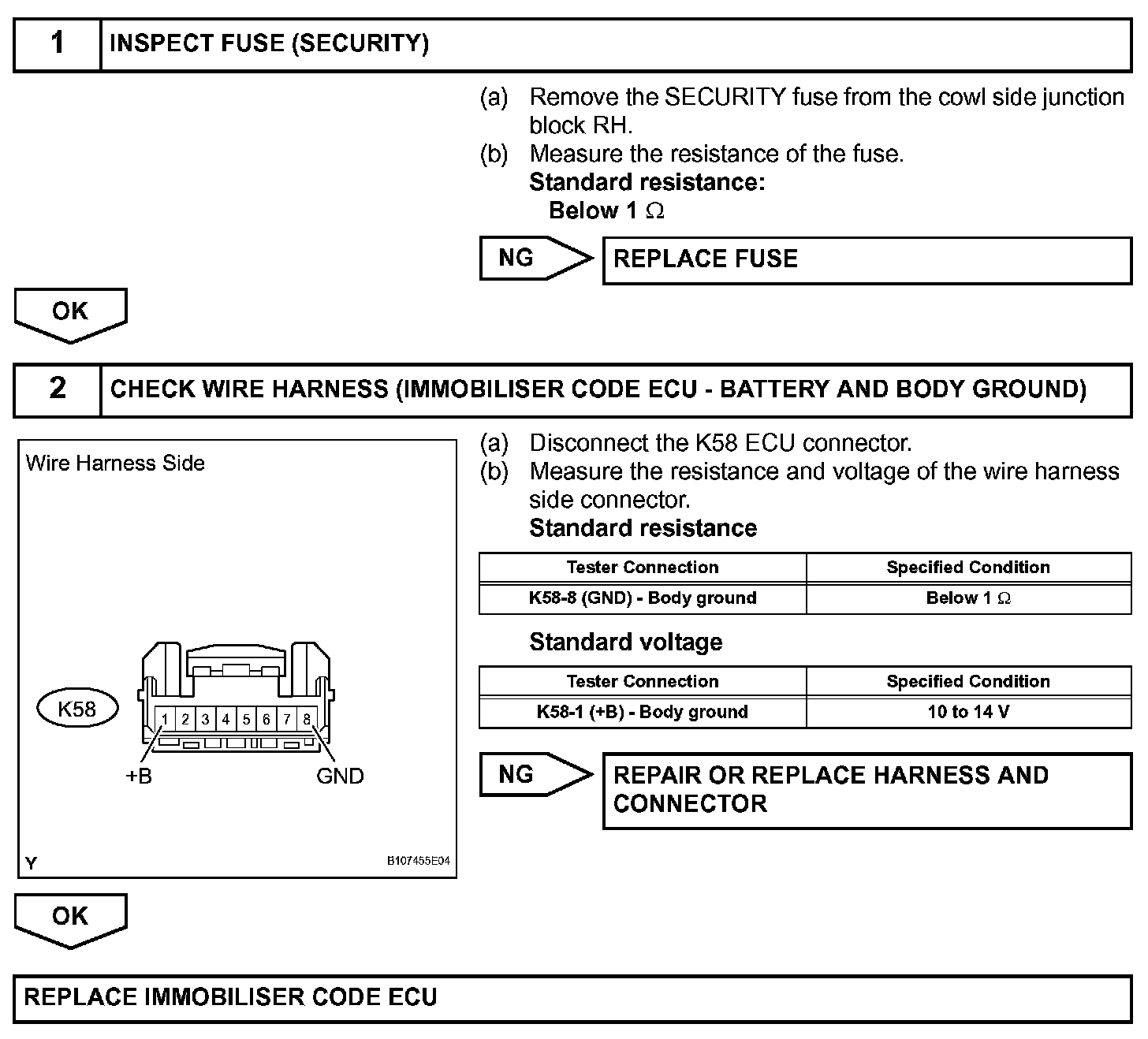

Step 1-2:




INSPECTION PROCEDURE
