Entry Lock and Unlock Functions do not Operate on Rear Door RH
Entry Lock and Unlock Functions do not Operate on Rear Door RHDESCRIPTION
Both the entry lock and unlock functions do not operate when: 1) nothing is output from the door electrical key oscillator rear RH, 2) the smart access system with push-button start is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

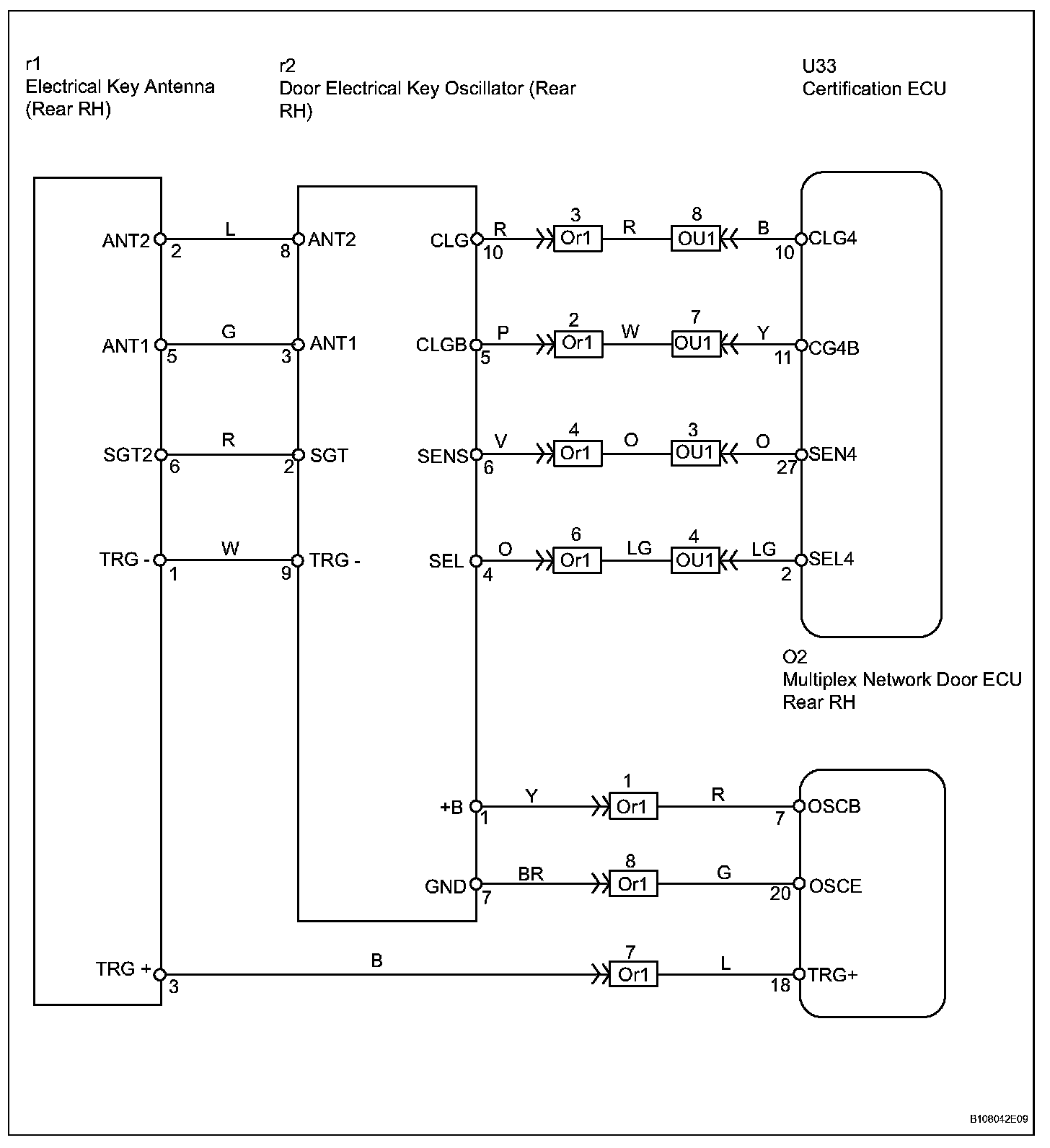

Wiring Diagram:

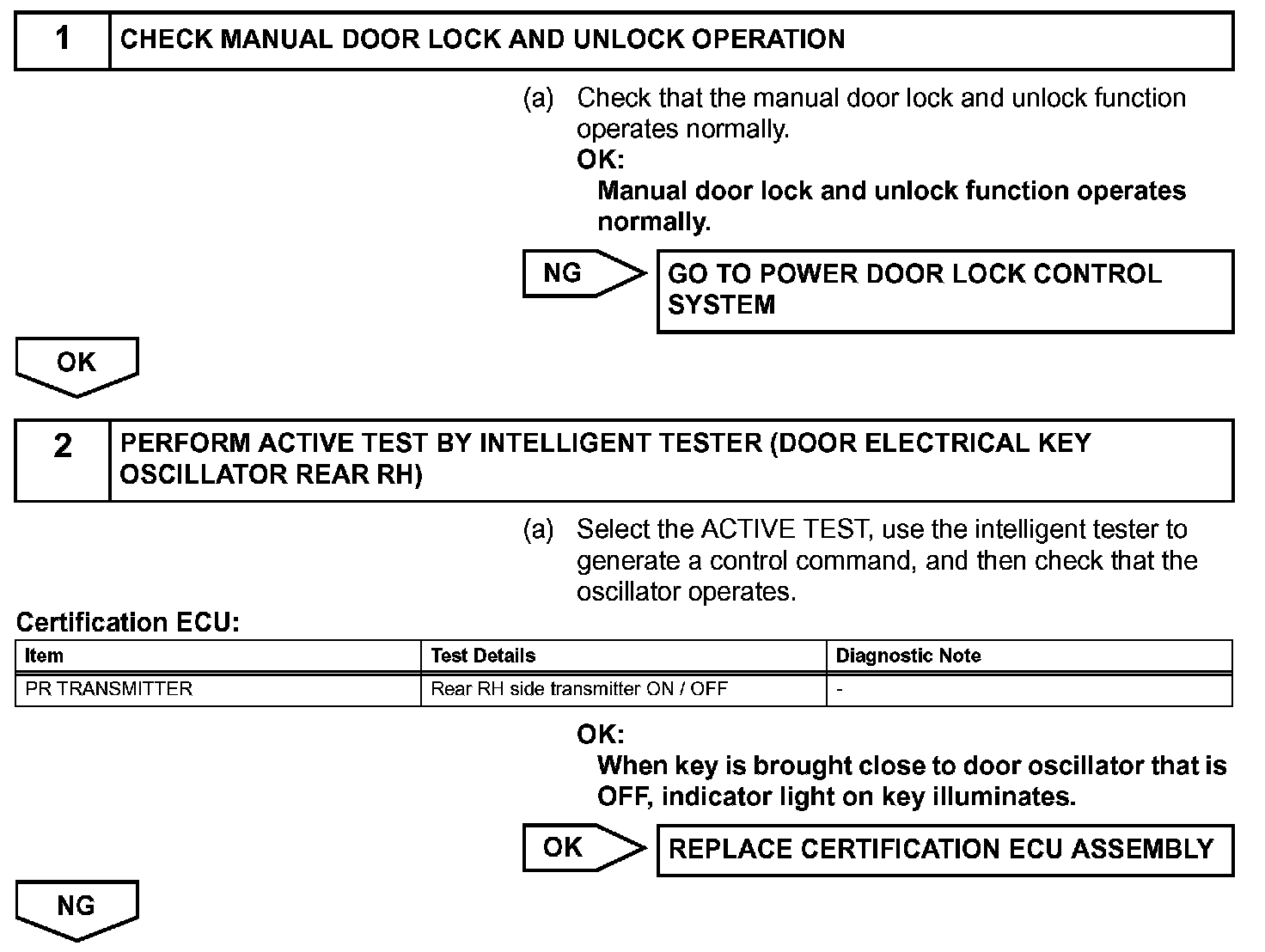

Step 1-2:

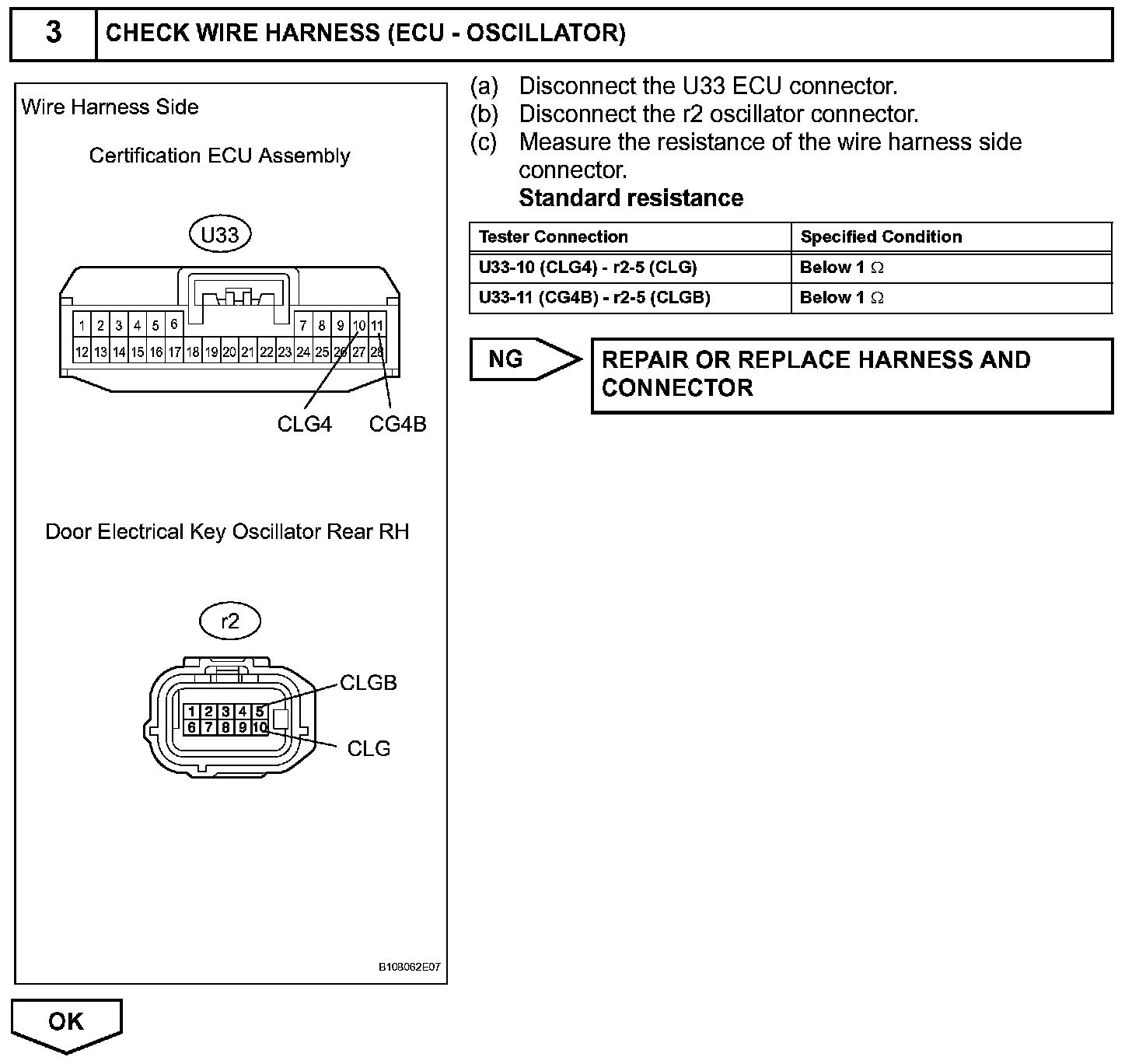

Step 3:

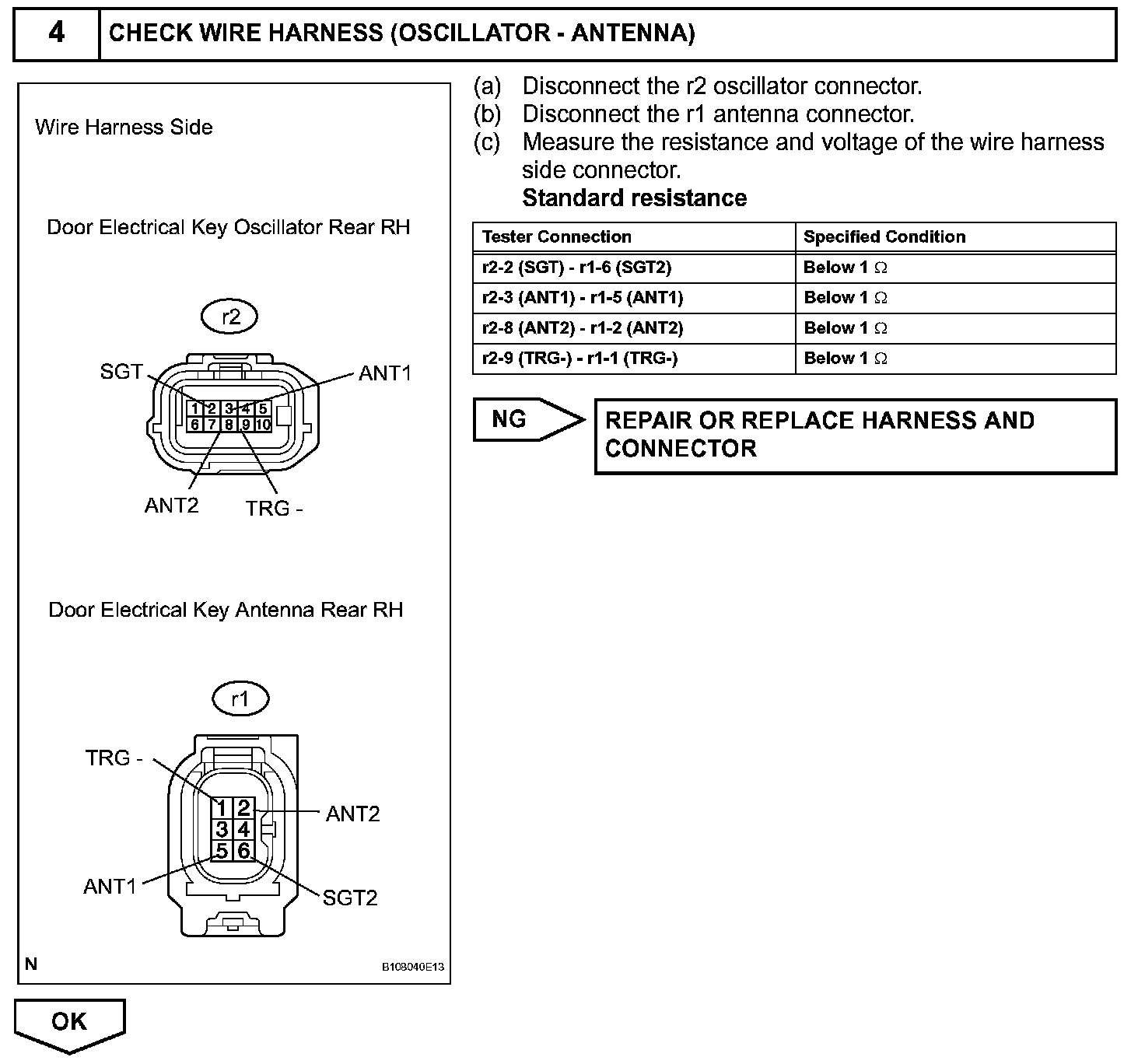

Step 4:

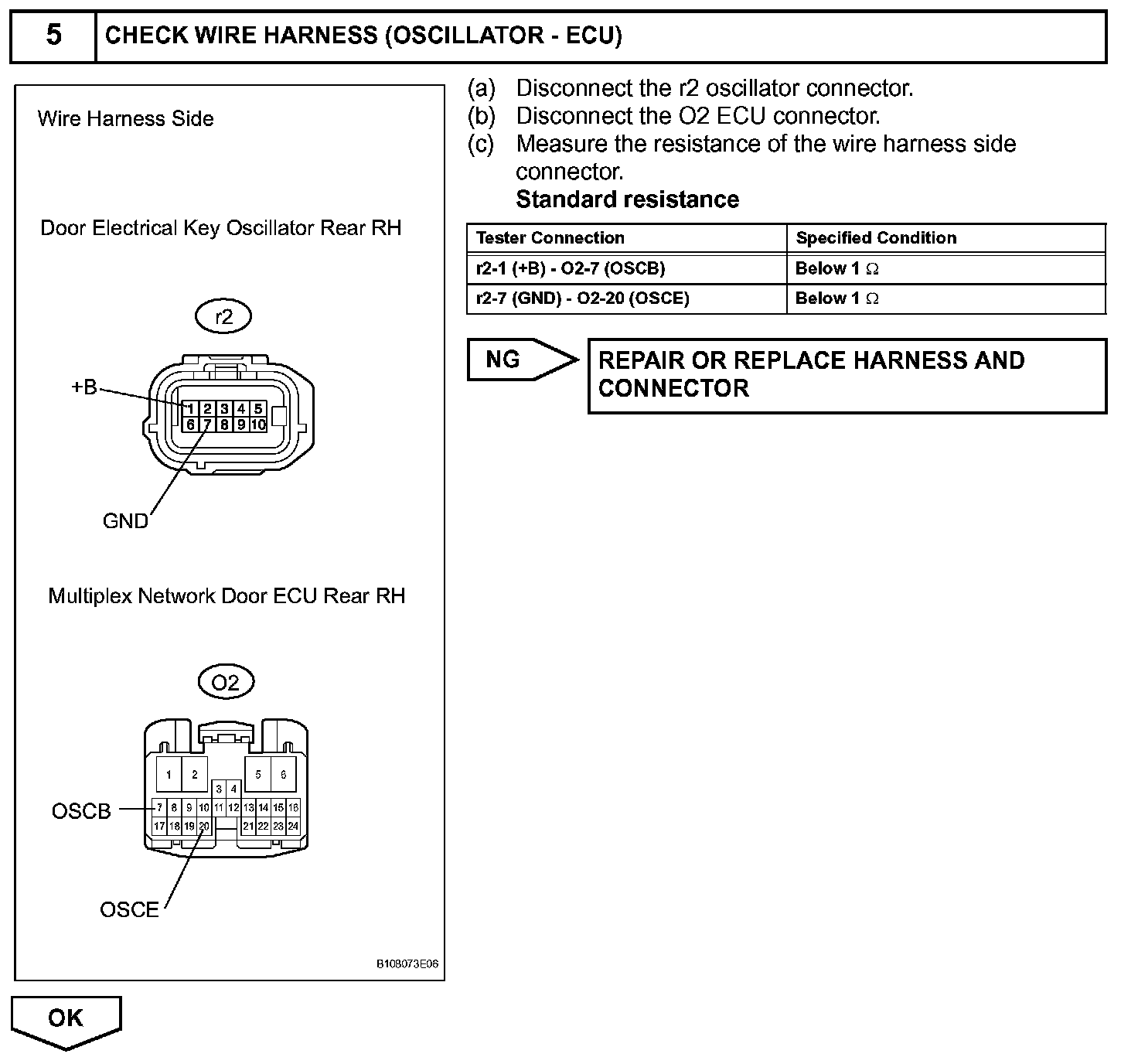

Step 5:

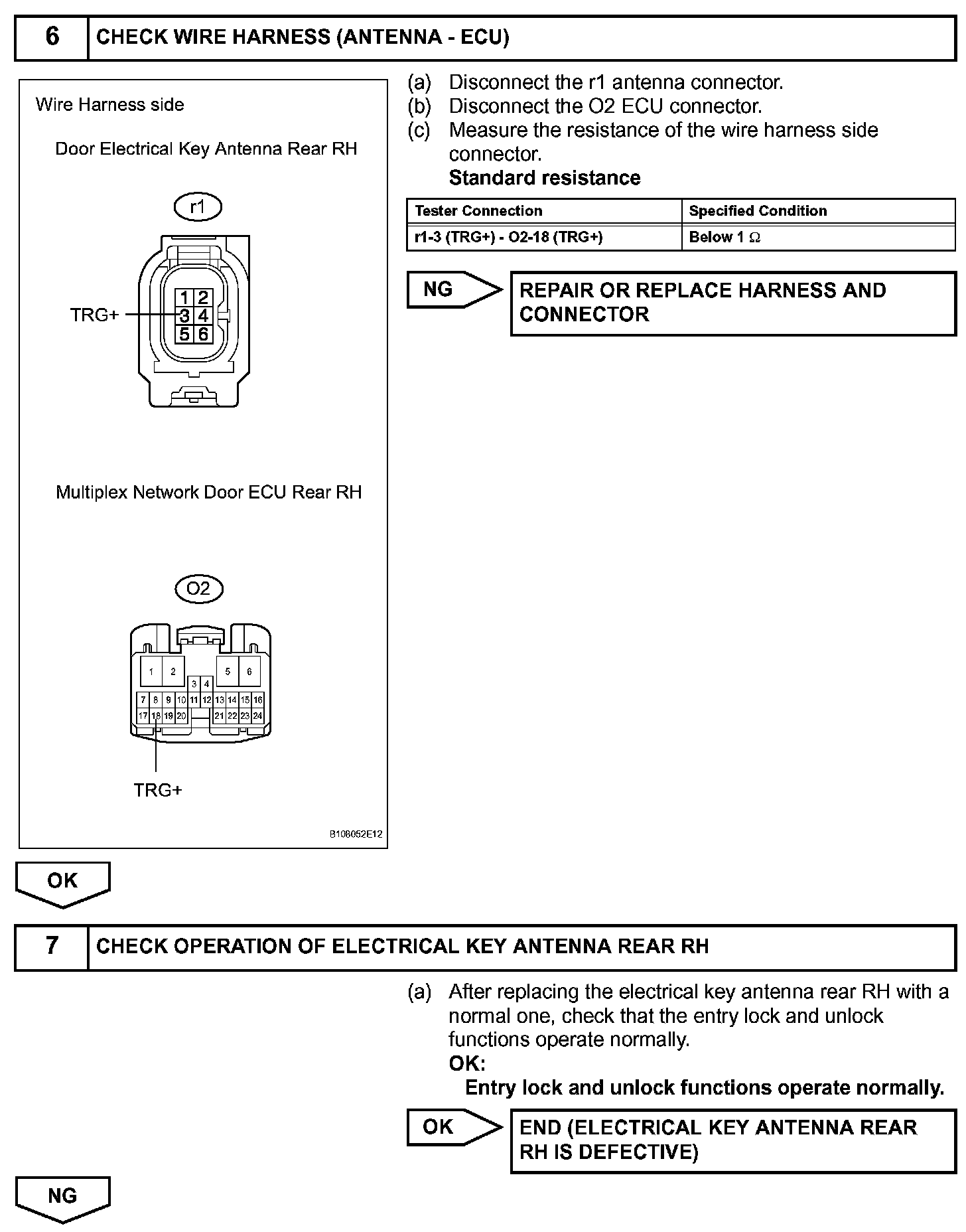

Step 6-7:

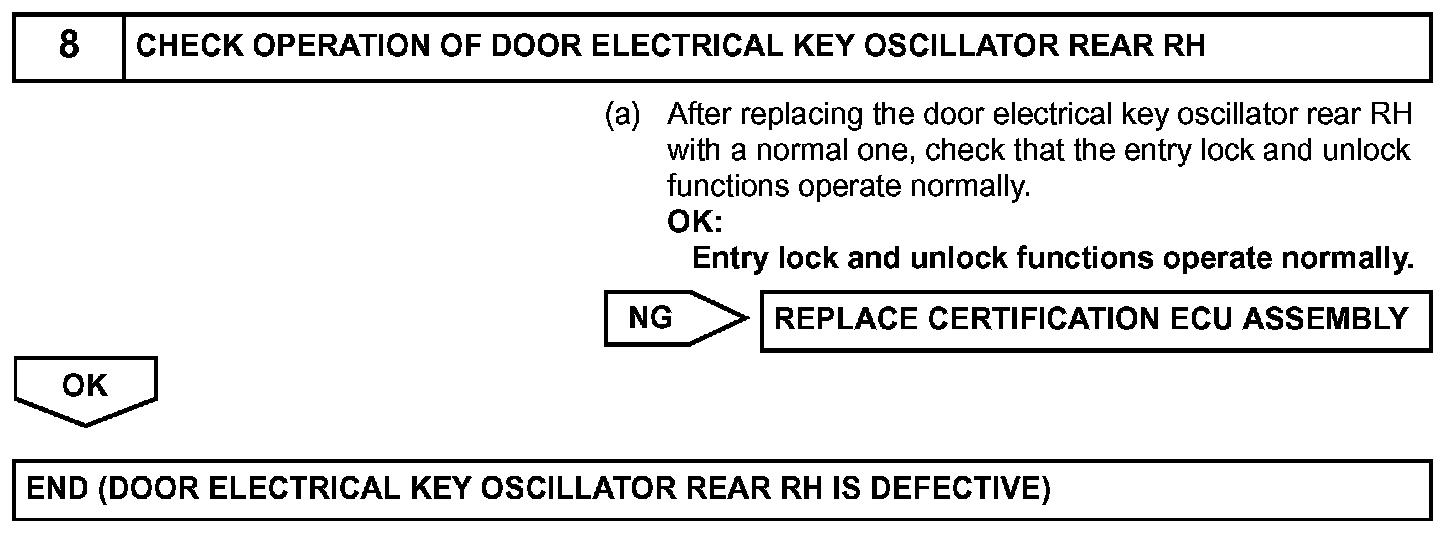

Step 8:
INSPECTION PROCEDURE
