Entry Lock and Unlock Functions do not Operate on Rear Door LH

Entry Lock and Unlock Functions do not Operate on Rear Door LH

DESCRIPTION
Both the entry lock and unlock functions do not operate when: 1) nothing is output from the door electrical key oscillator rear LH, 2) the smart access system with push-button start is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

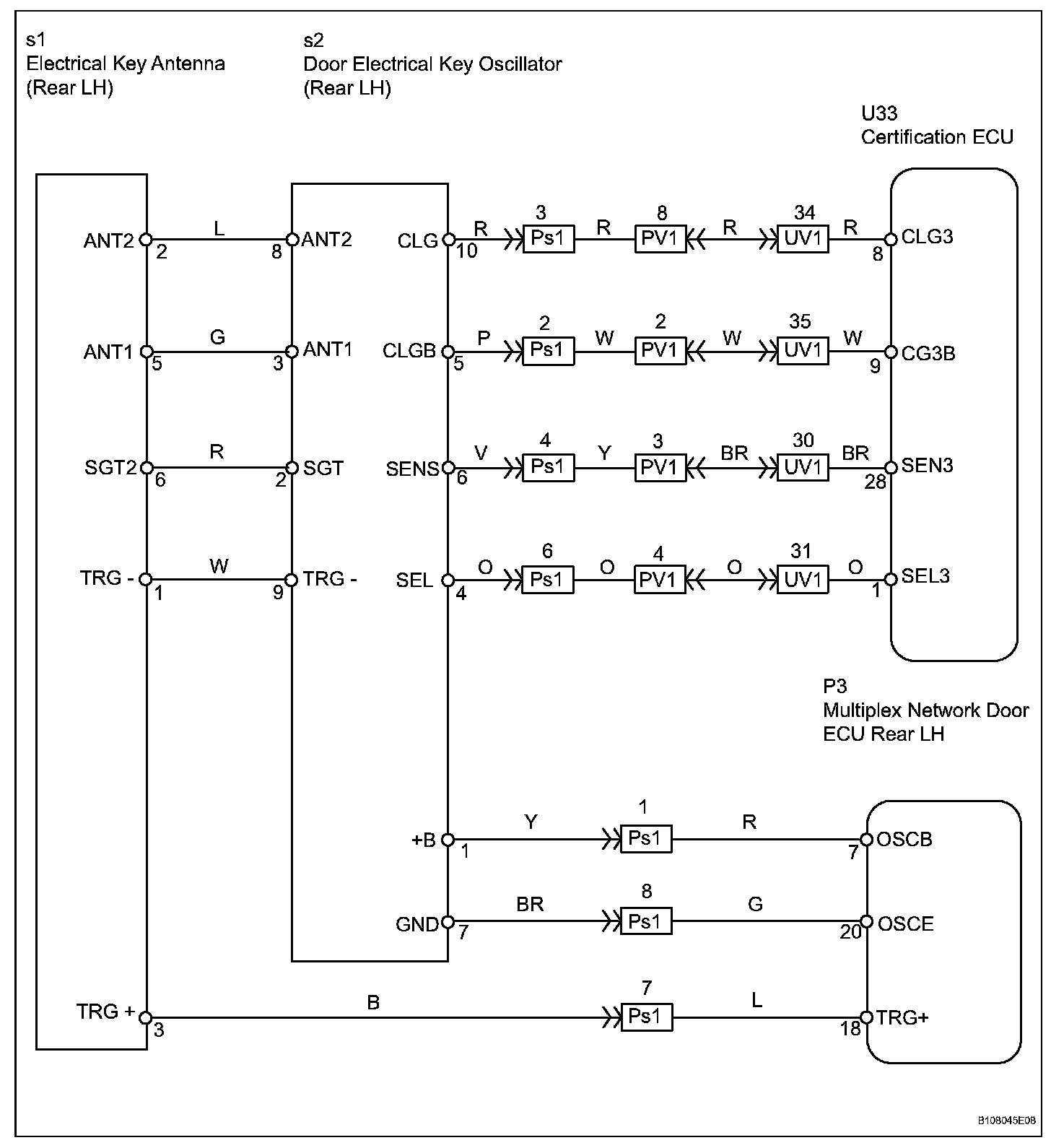

Wiring Diagram:

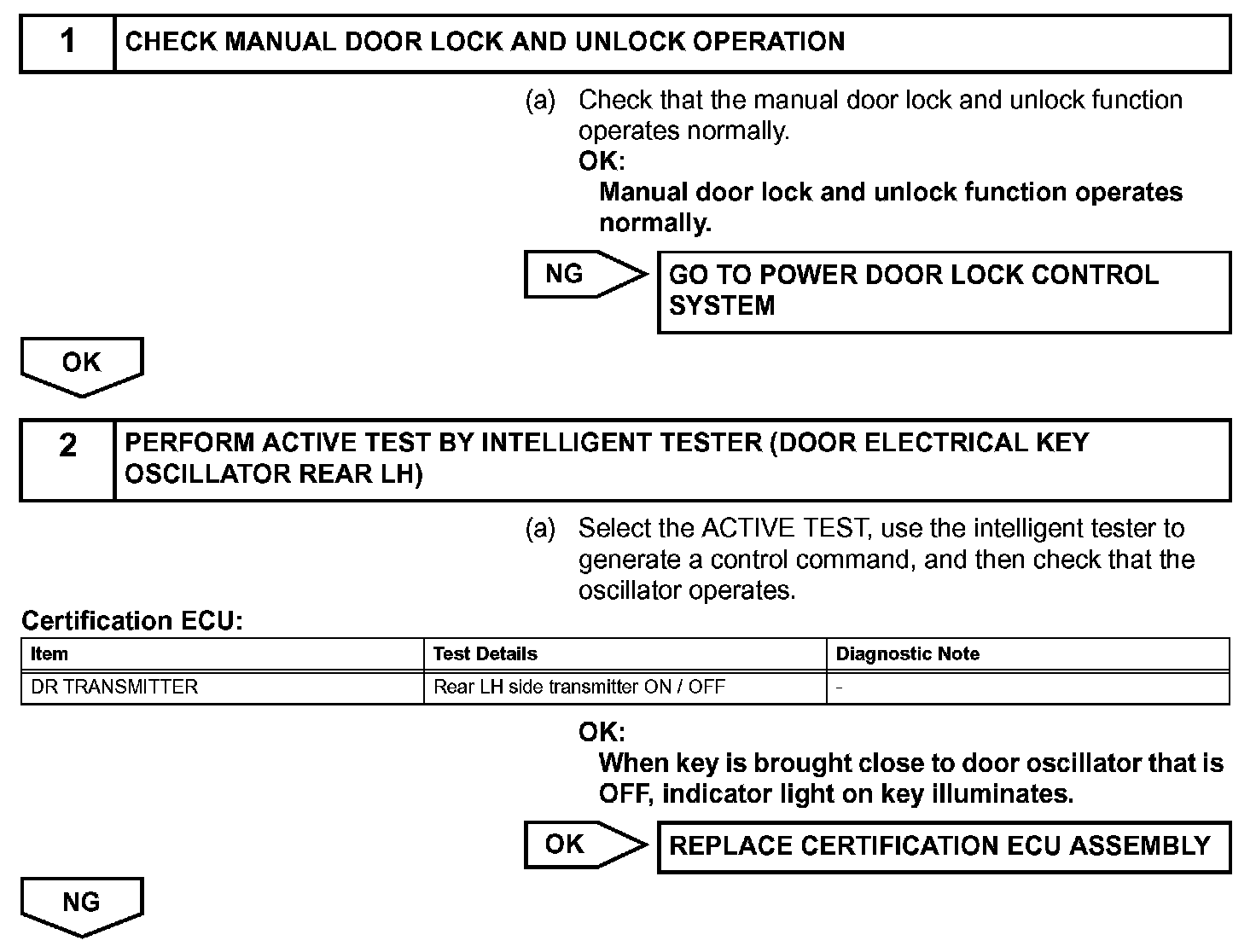

Step 1-2:

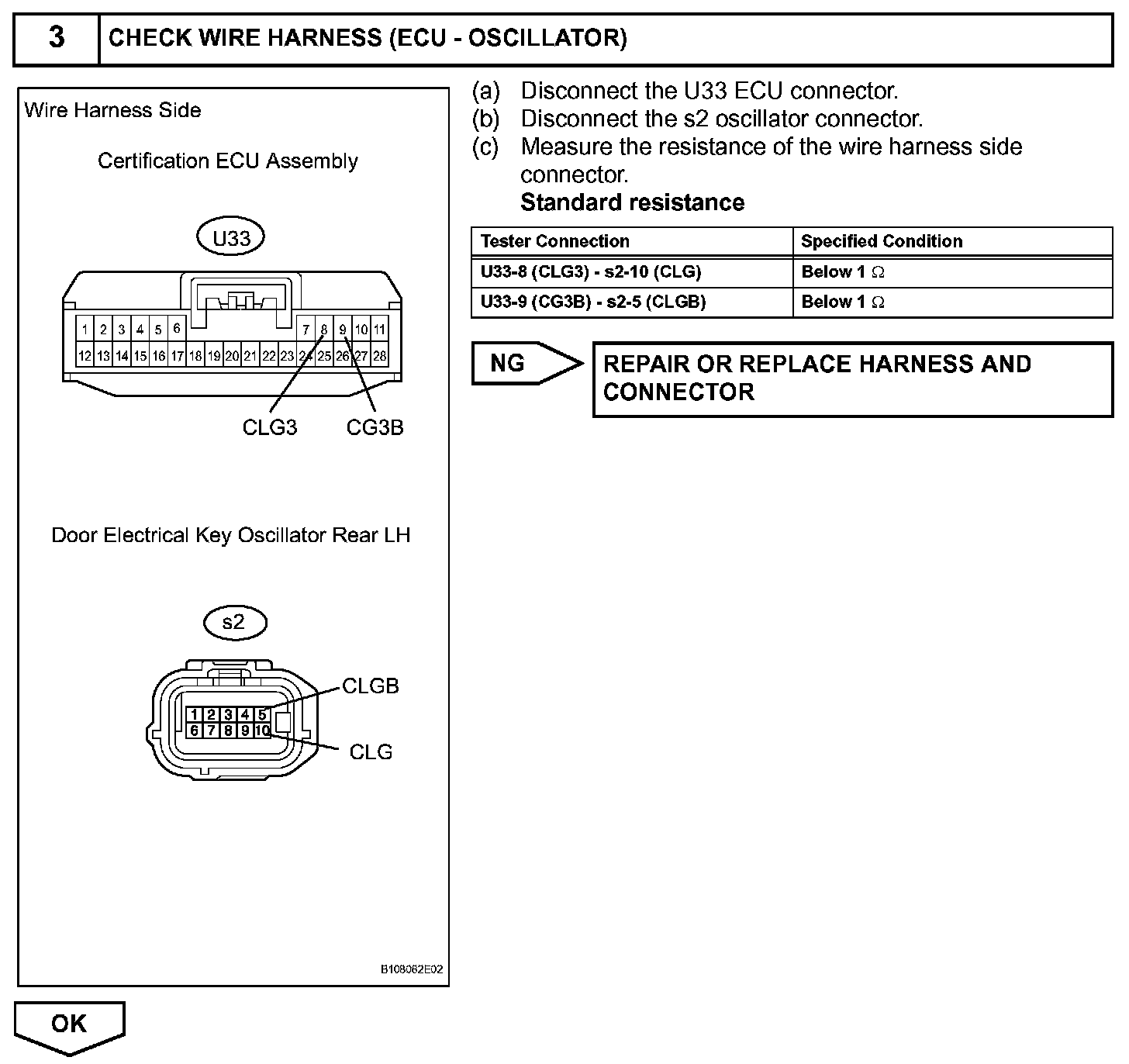

Step 3:

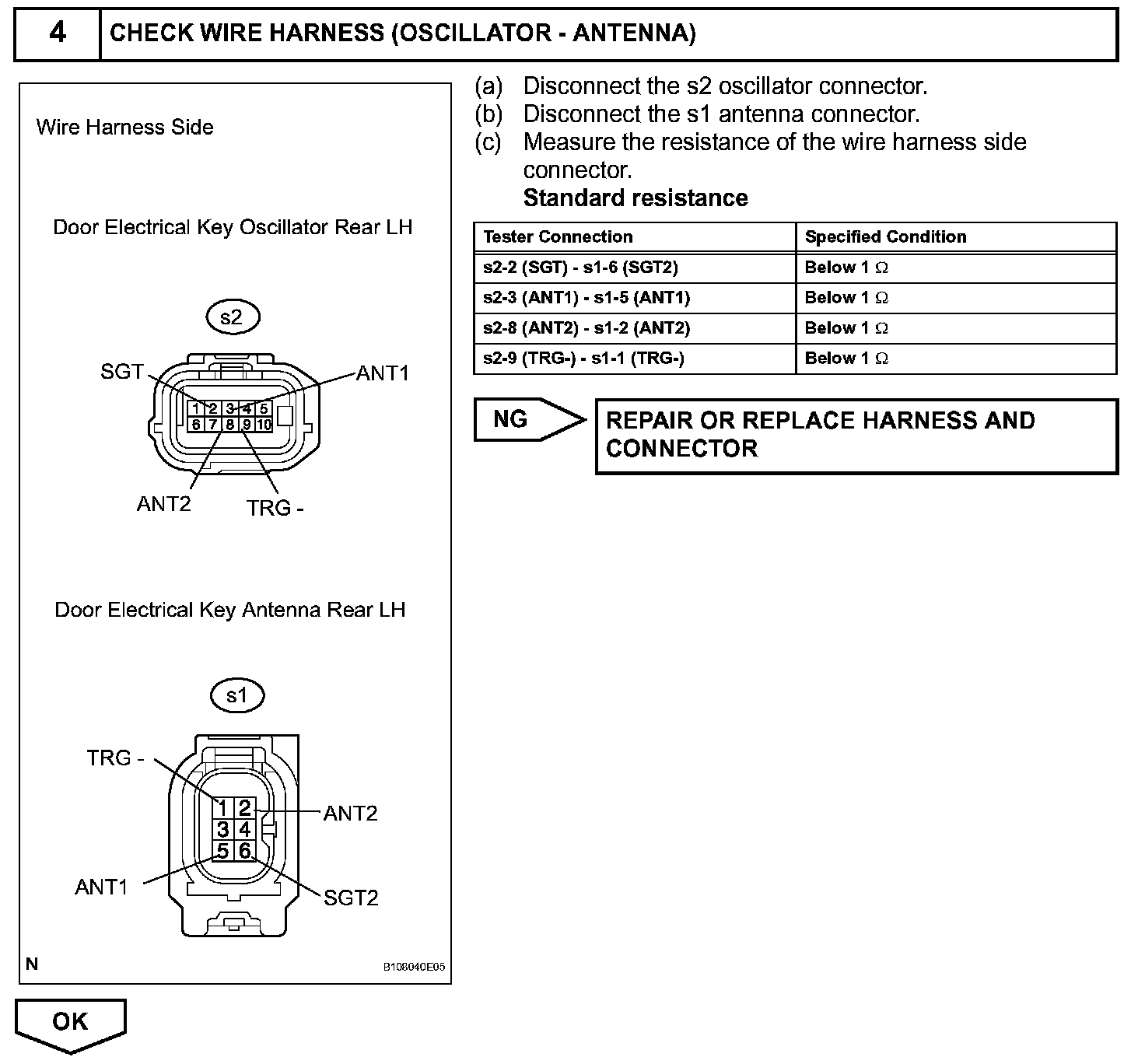

Step 4:

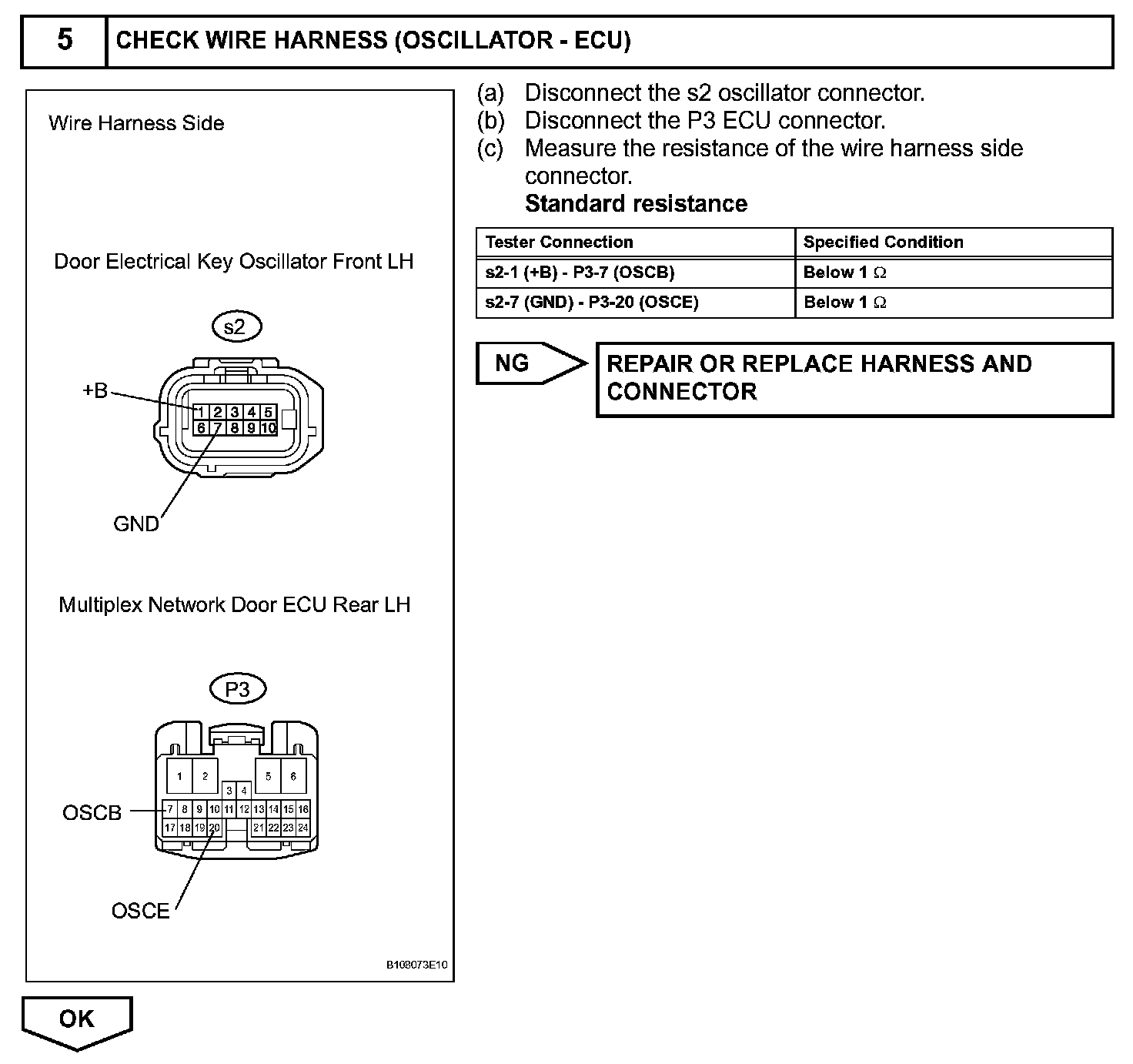

Step 5:

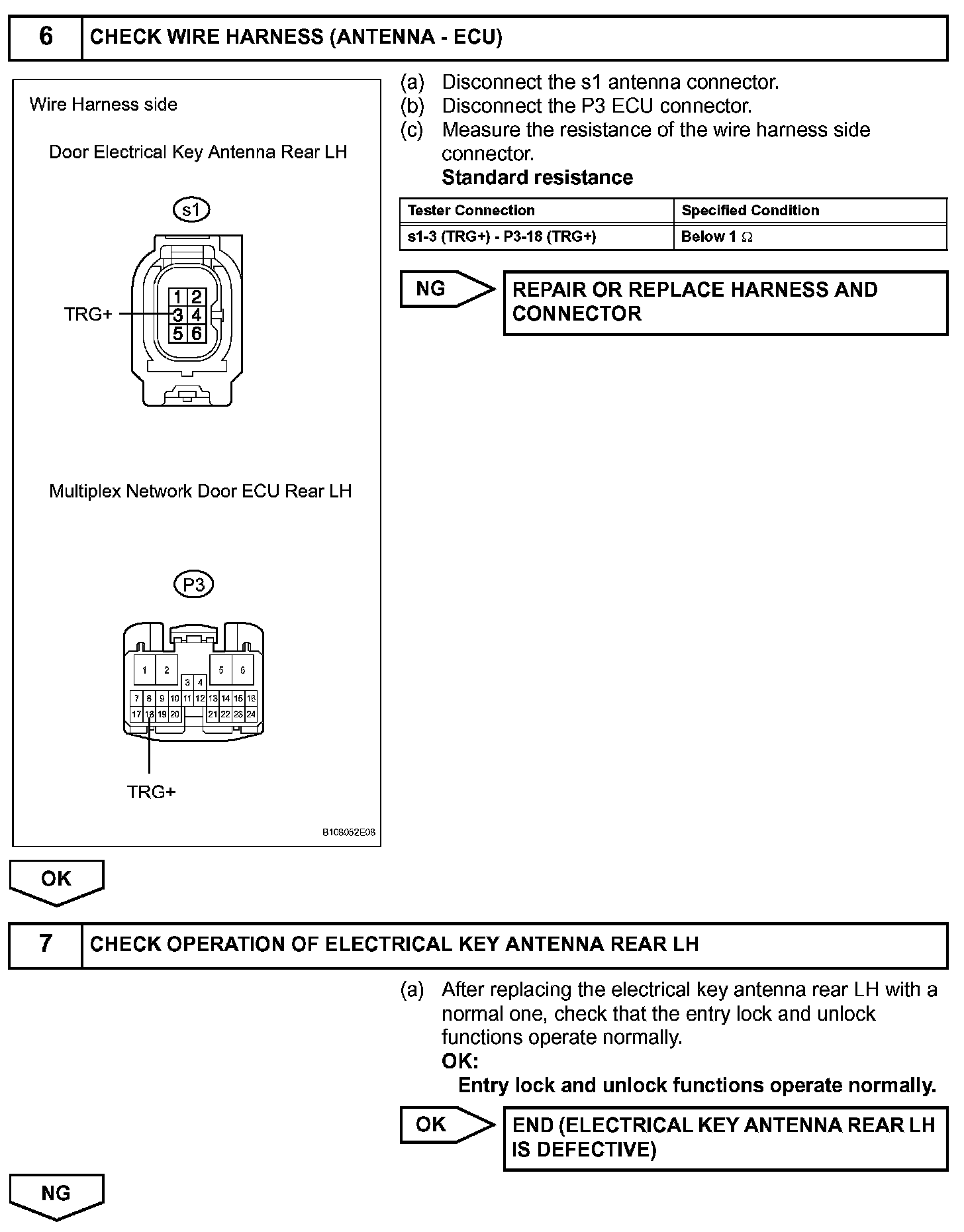

Step 6-7:

Step 8:

INSPECTION PROCEDURE
