Entry Lock and Unlock Functions do not Operate on Driver Side Door
Entry Lock and Unlock Functions do not Operate on Driver Side DoorDESCRIPTION
Both the entry lock and unlock functions do not operate when: 1) nothing is output from the door electrical key oscillator front LH, 2) the smart access system with push-button start is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

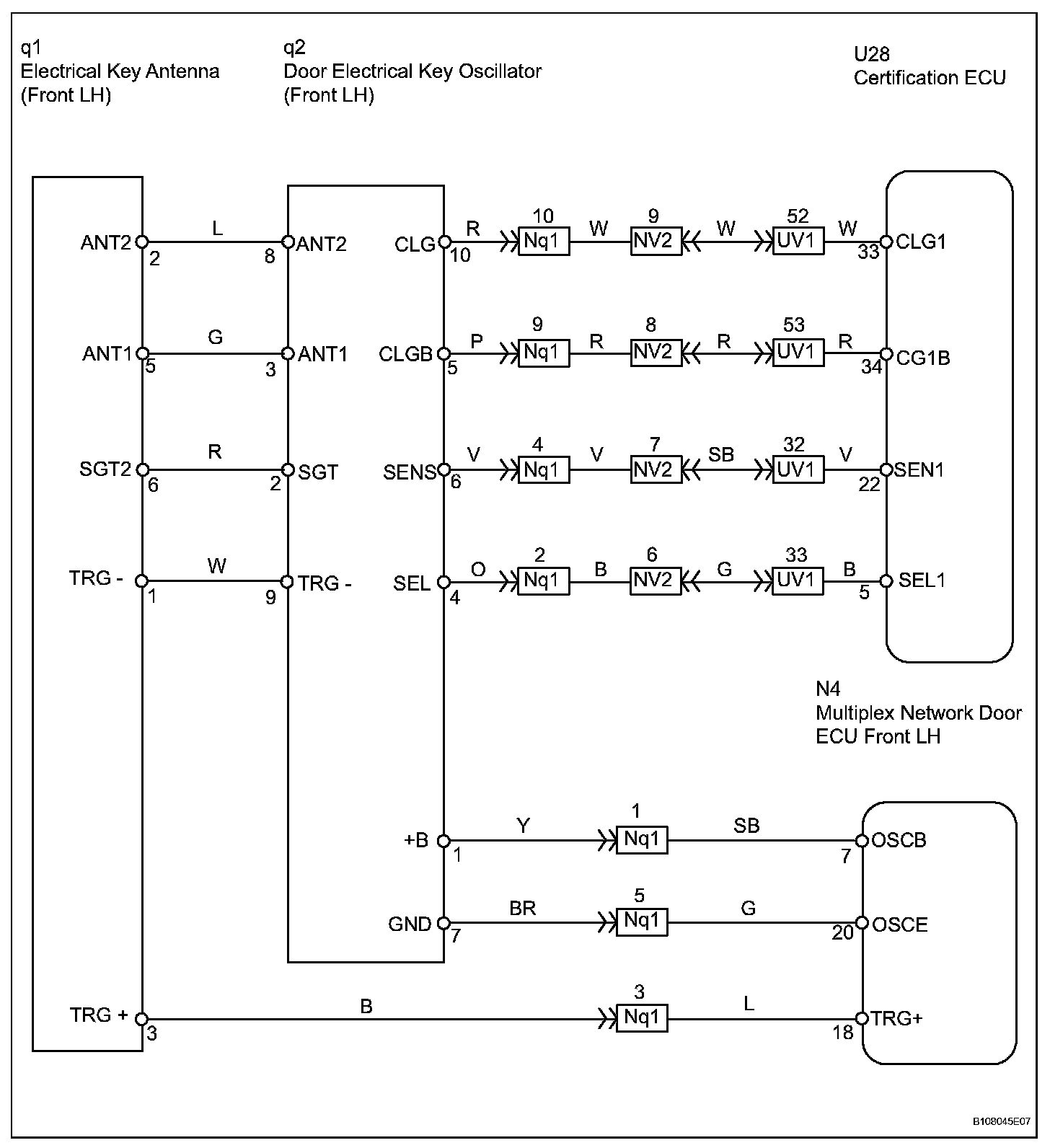

Wiring Diagram:

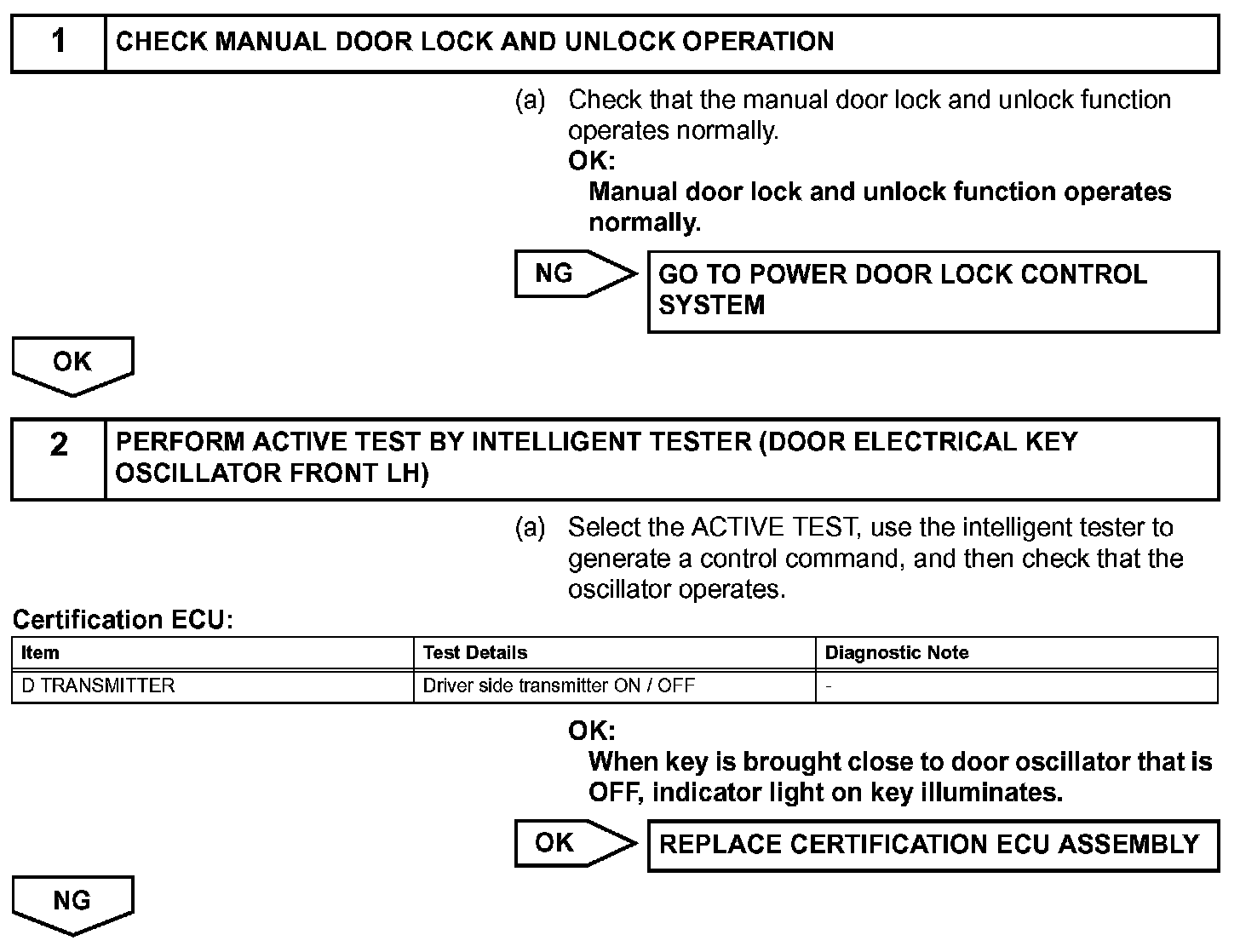

Step 1-2:

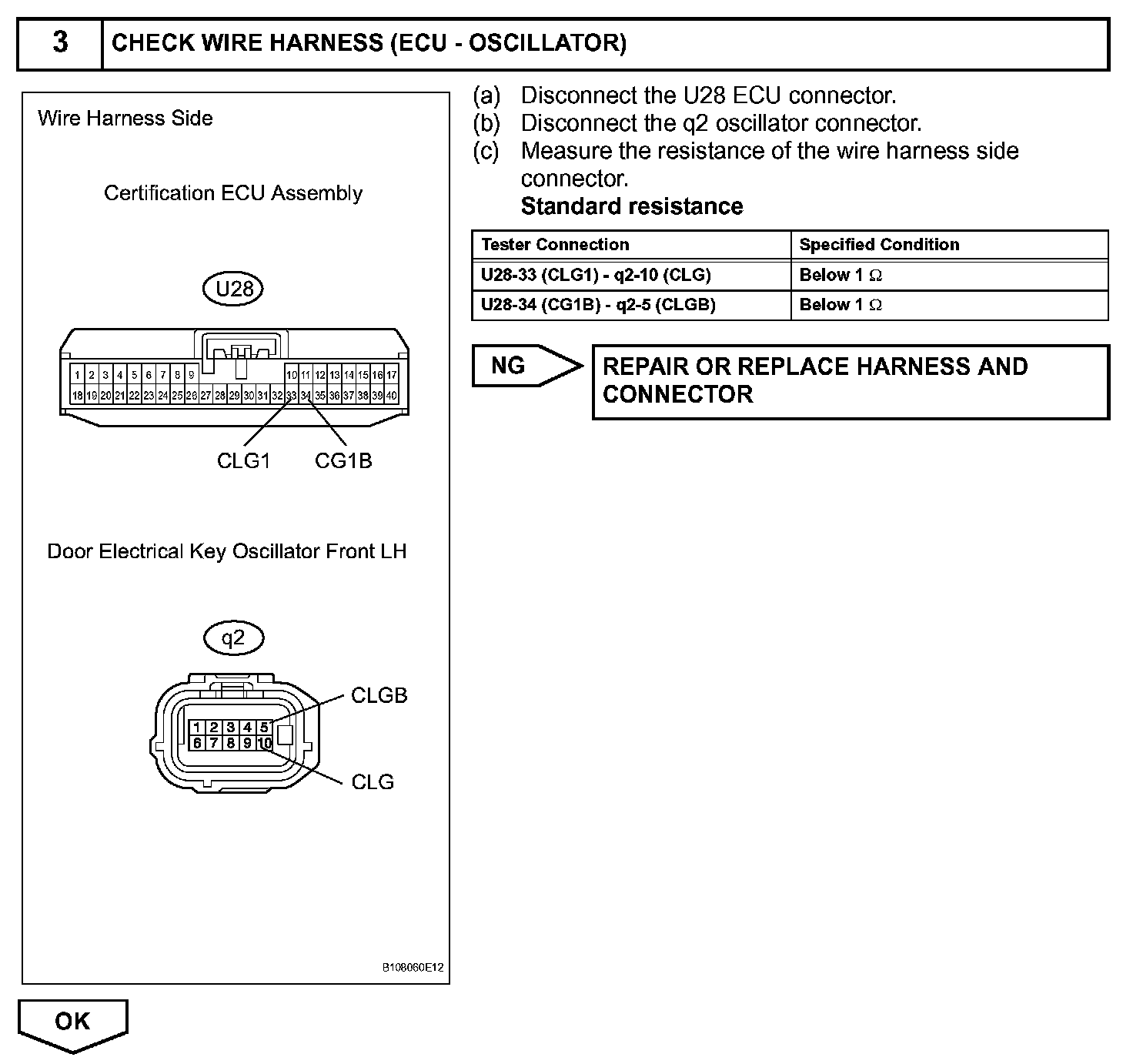

Step 3:

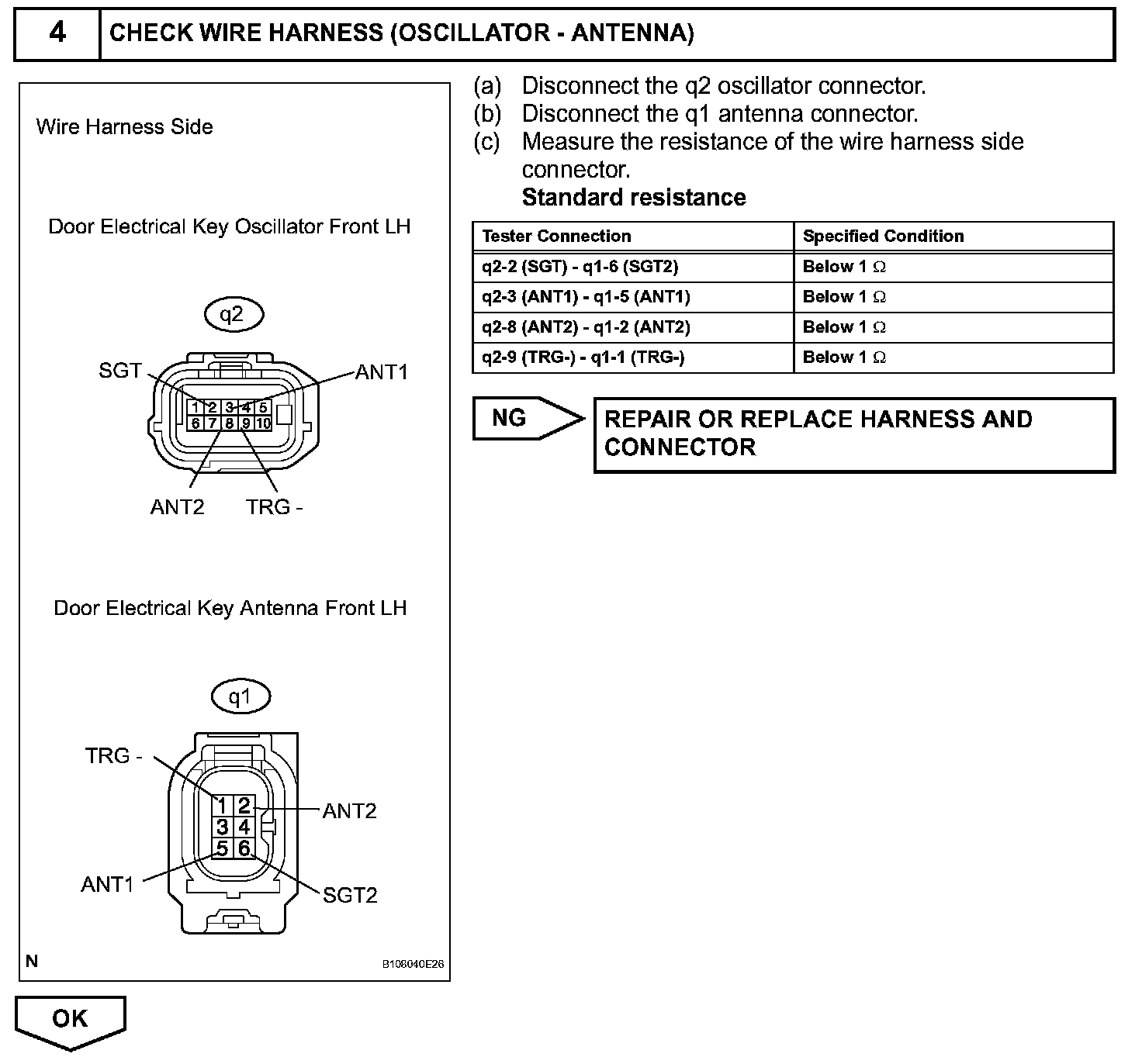

Step 4:

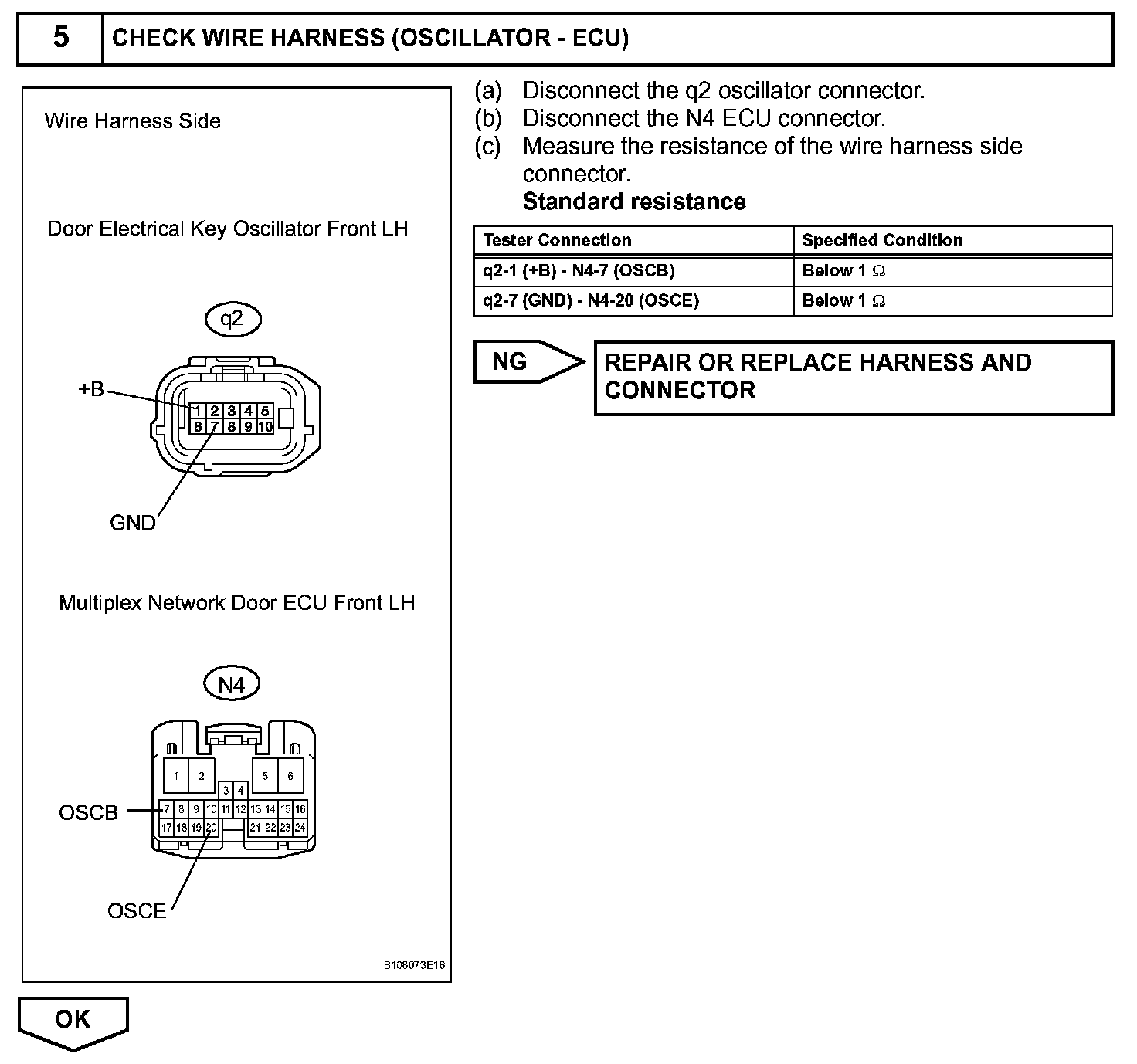

Step 5:

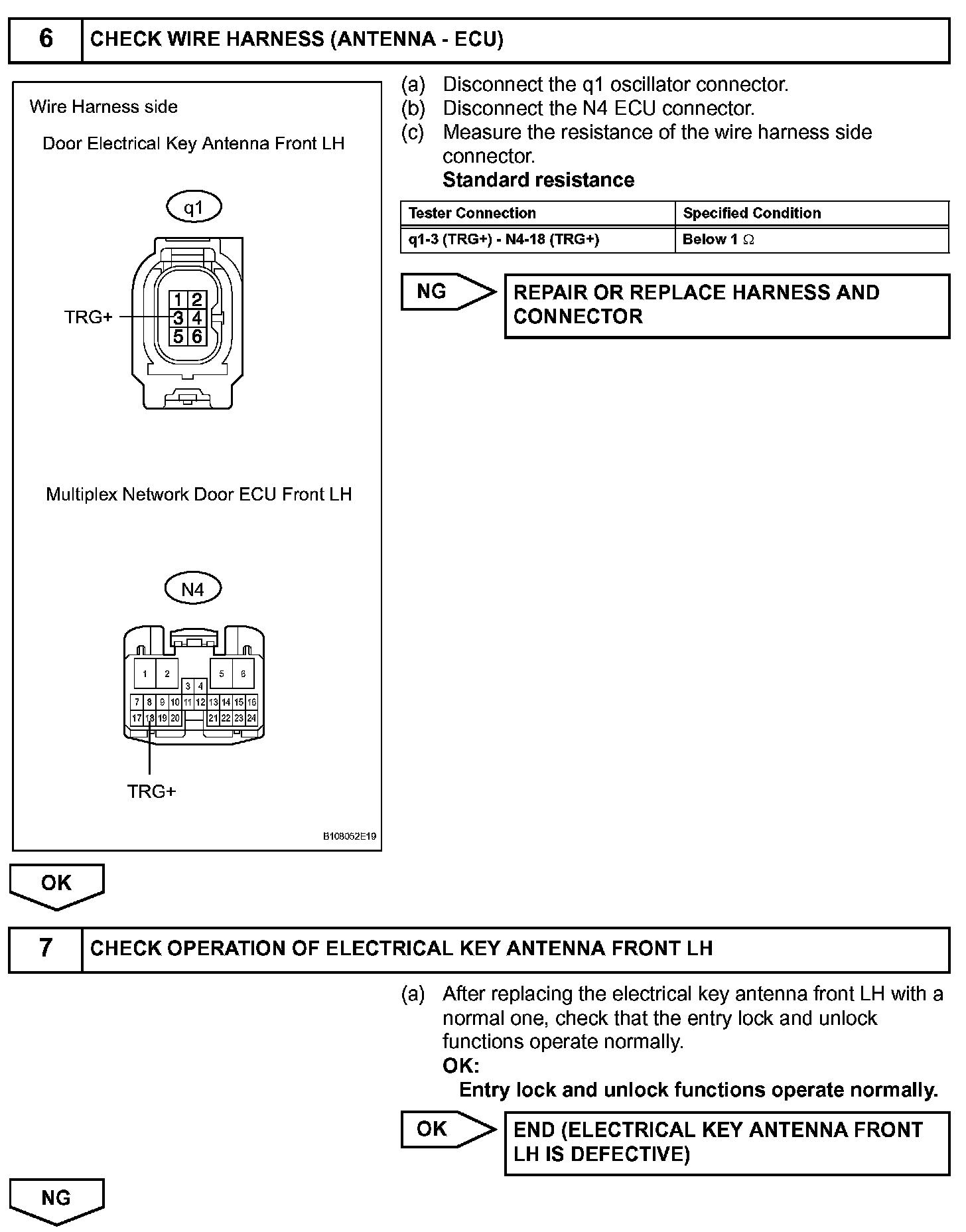

Step 6-7:

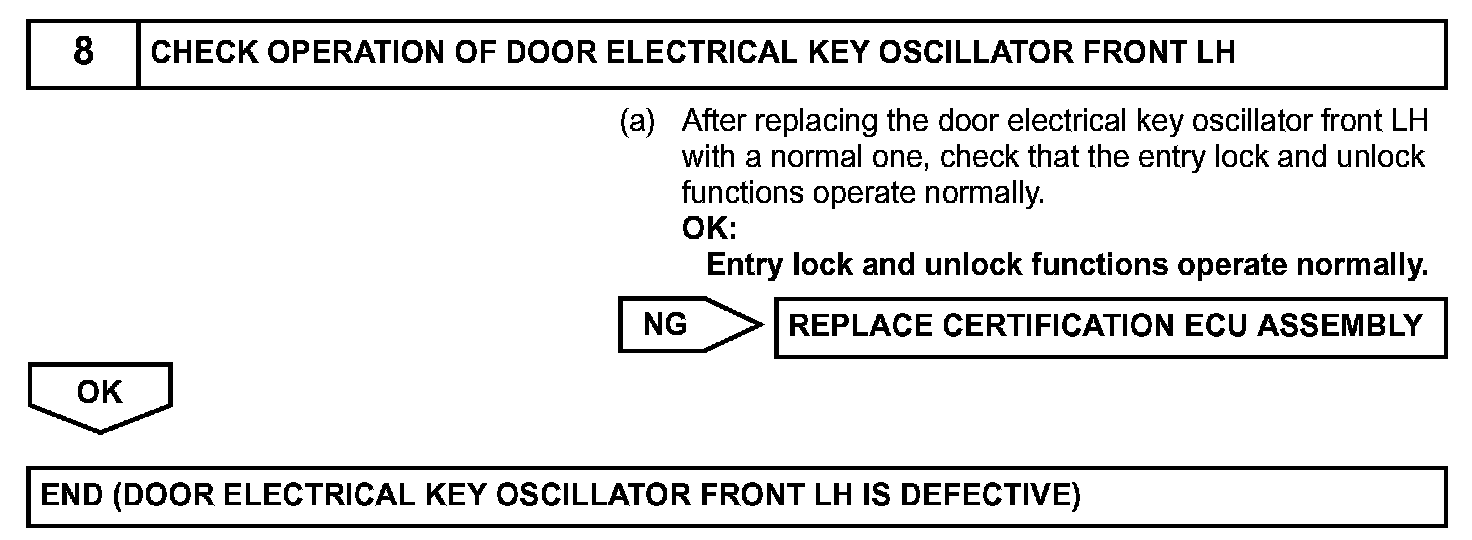

Step 8:
INSPECTION PROCEDURE
