Non-Trouble Code Procedures

Engine Hood Courtesy Switch Circuit

DESCRIPTION
The engine hood courtesy switch is built into the hood lock. This switch turns on when the engine hood is opened and turns off when the engine hood is closed.

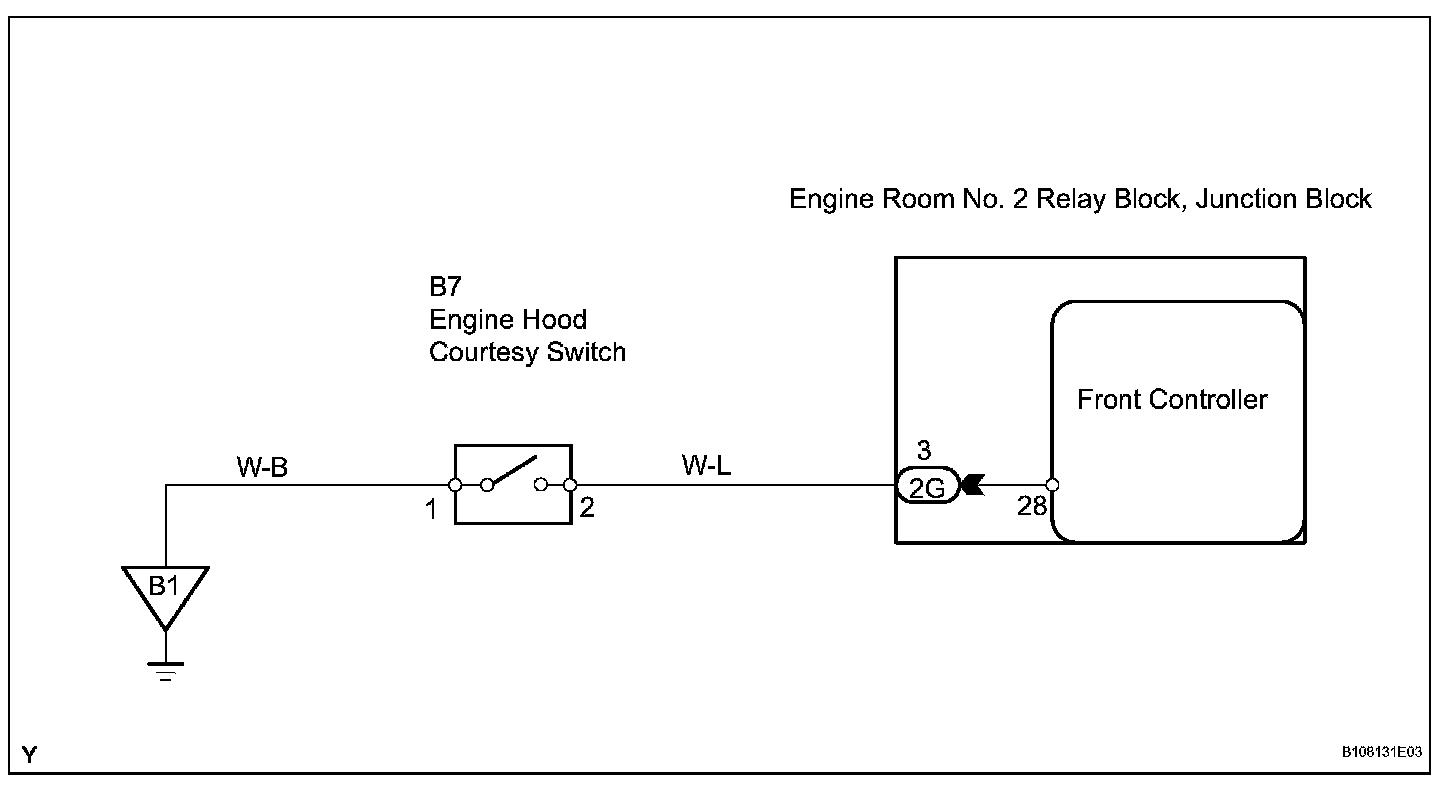

Wiring Diagram:

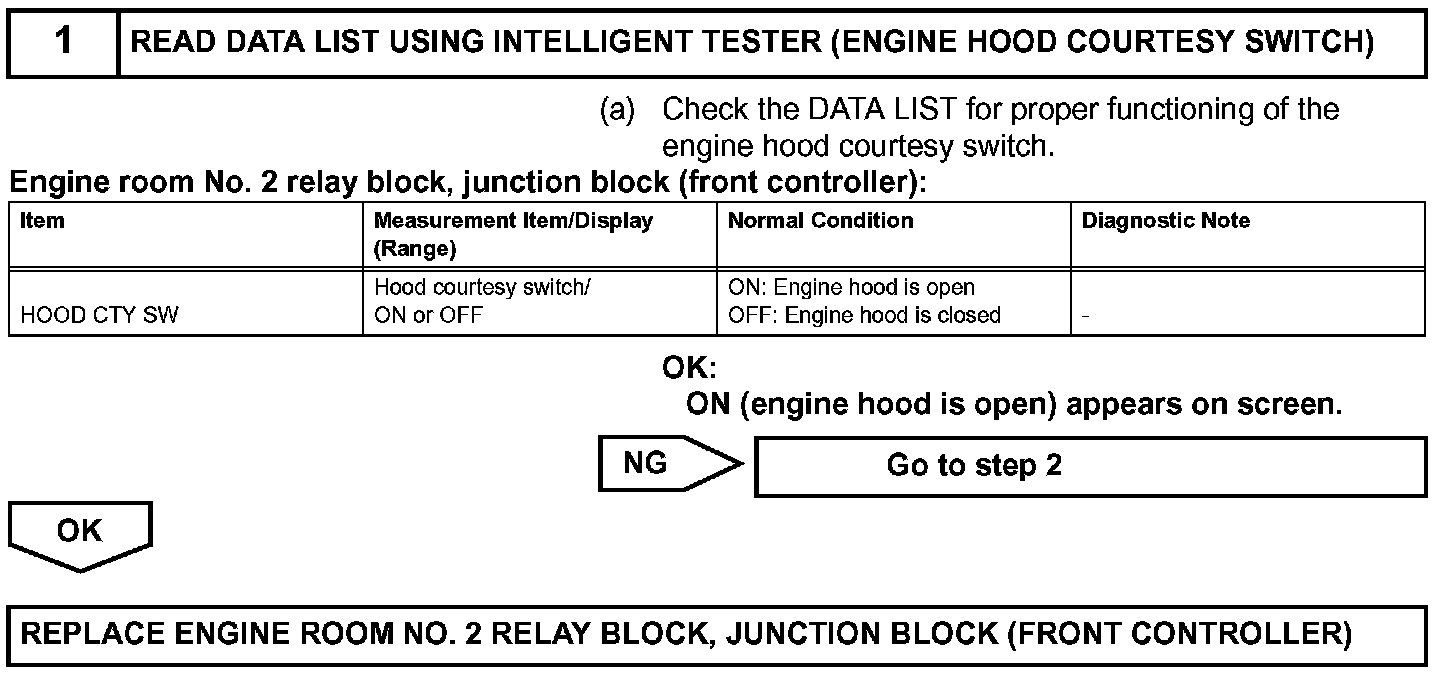

Step 1:

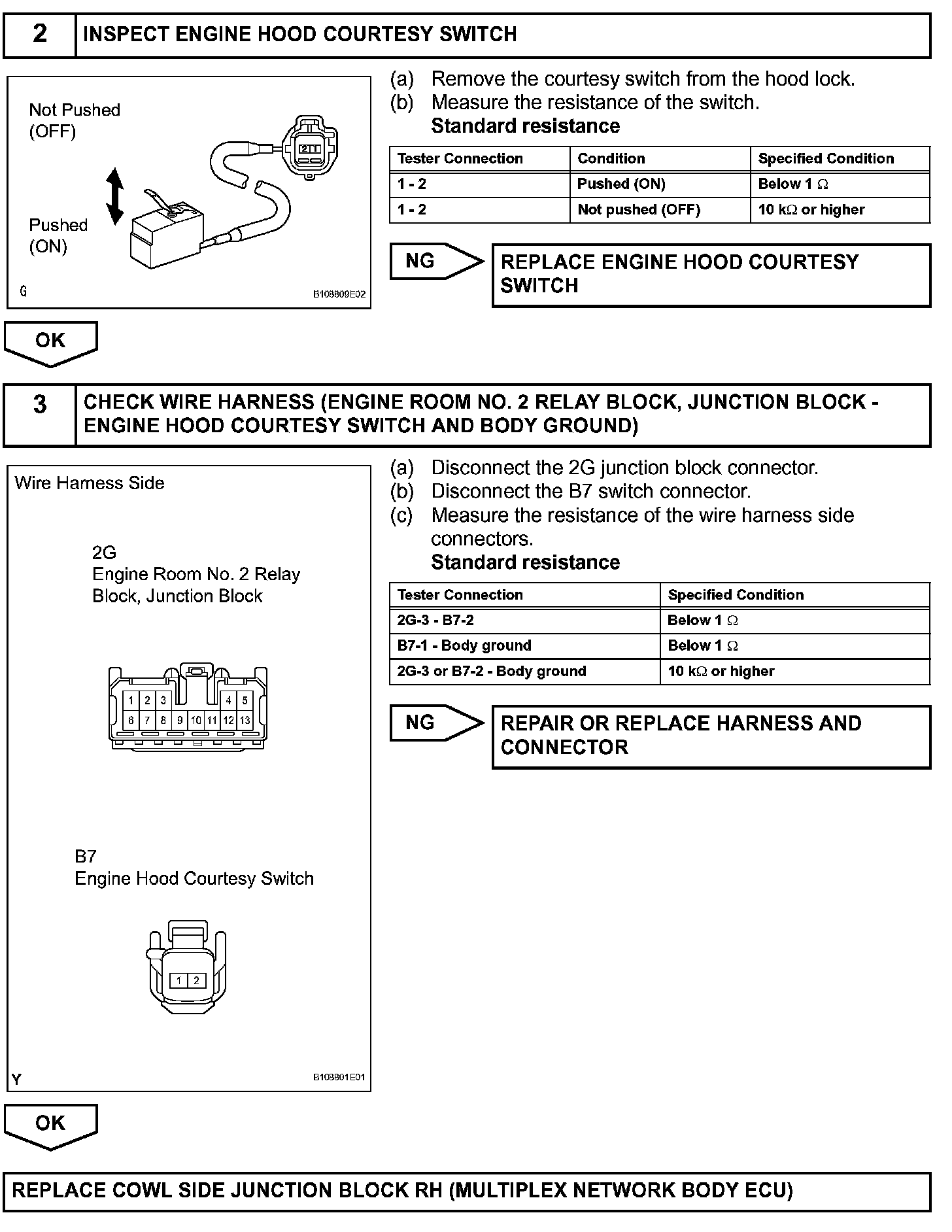

Step 2-3:

INSPECTION PROCEDURE
