Horn Circuit
Horn CircuitDESCRIPTION
When the theft deterrent system changed from the armed state to the alarm sounding state, the front controller transmits a signal to cause the horns to sound at 0.4 seconds intervals.

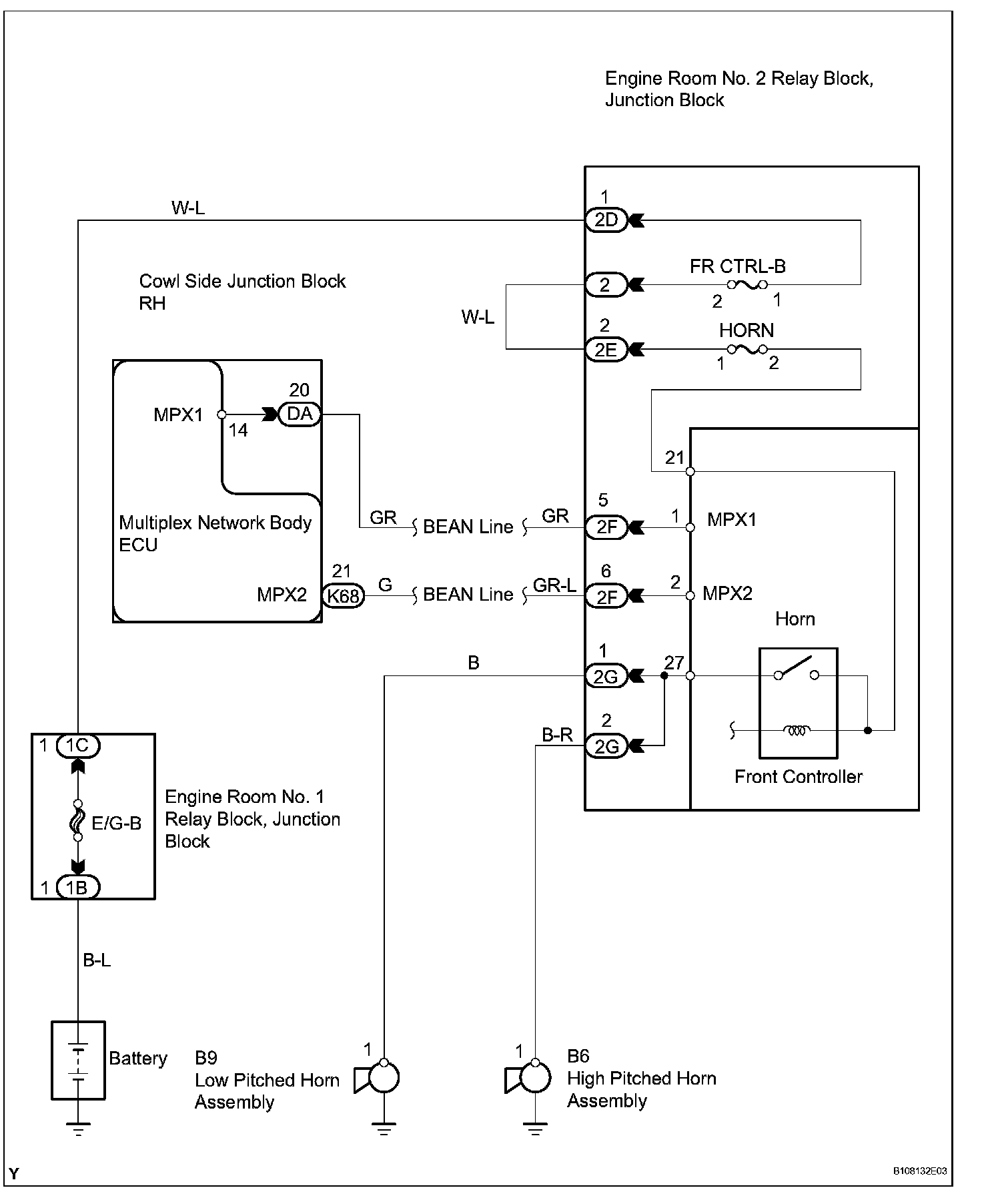

Wiring Diagram:

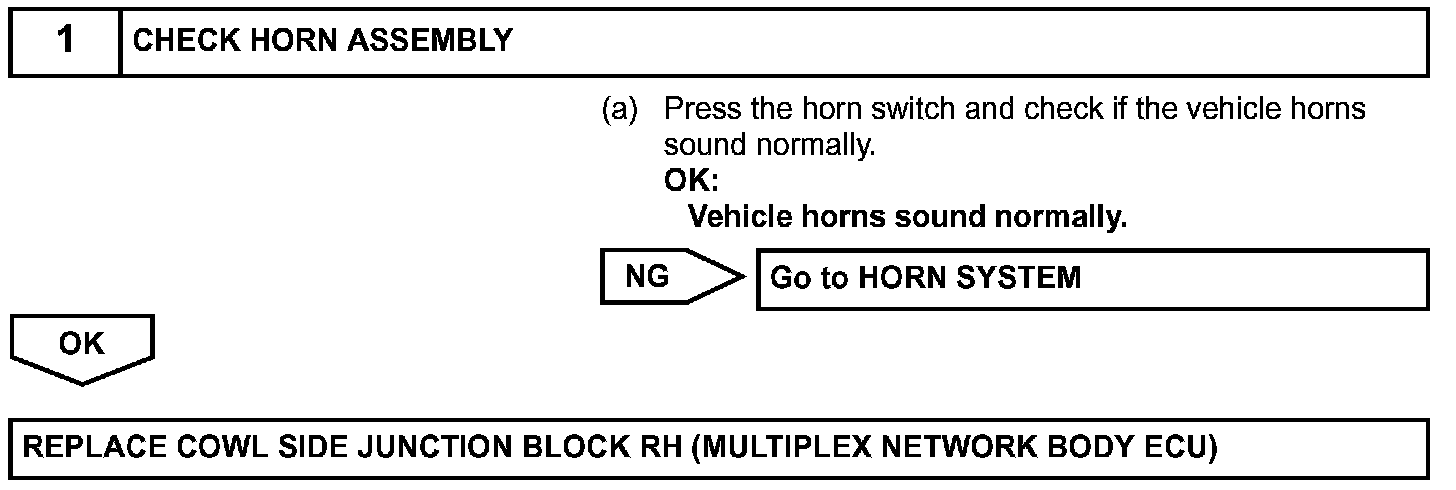

Step 1:
INSPECTION PROCEDURE
