ON-VEHICLE INSPECTION
1.

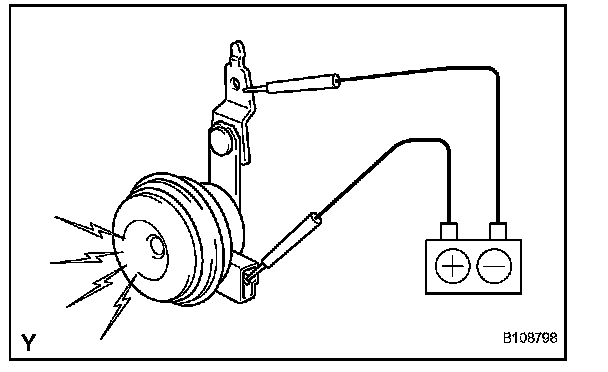

INSPECT SECURITY HORN ASSEMBLY
a.

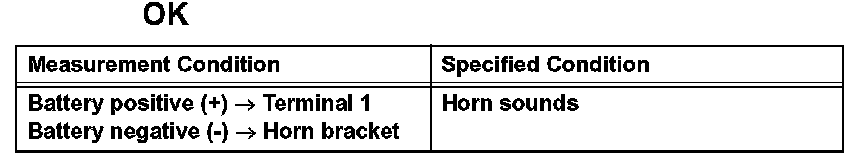

Check the operation of the horn.
If the result is not as specified, replace the horn.
