Antenna, Navigation: Service and Repair

REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE FRONT DOOR SCUFF PLATE LH
4. REMOVE FRONT DOOR SCUFF PLATE RH
5. REMOVE FRONT DOOR OPENING TRIM COVER LH
6. REMOVE FRONT DOOR OPENING TRIM COVER RH
7. REMOVE NO. 3 STEERING WHEEL COVER LOWER
8. REMOVE NO. 2 STEERING WHEEL COVER LOWER
9. REMOVE STEERING PAD
10. REMOVE STEERING WHEEL ASSEMBLY
11. REMOVE STEERING COLUMN COVER
12. REMOVE SPIRAL CABLE WITH STEERING SENSOR
13. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
14. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
15. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
16. REMOVE CONSOLE UPPER PANEL ASSEMBLY
17. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
18. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
19. REMOVE CONSOLE BOX PLATE
20. REMOVE CONSOLE BOX REGISTER ASSEMBLY
21. REMOVE CONSOLE BOX
22. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
23. REMOVE COMBINATION METER ASSEMBLY
24. REMOVE INSTRUMENT SIDE PANEL LH
25. REMOVE INSTRUMENT SIDE PANEL RH
26. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
27. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
28. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
29. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
30. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
31. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
32. REMOVE GLOVE COMPARTMENT DOOR SUBASSEMBLY
33. REMOVE FRONT PILLAR GARNISH LH
34. REMOVE FRONT PILLAR GARNISH RH
35. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
36. CONFIRM RADIO RECEIVER ASSEMBLY SHIPMENT MODE SETTING
37. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
38. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
39. REMOVE NO. 1 HEATER TO REGISTER DUCT




40. REMOVE NAVIGATION ANTENNA

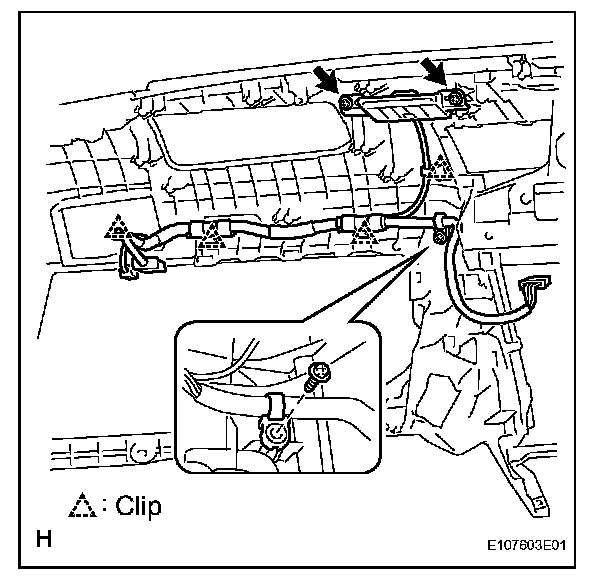

a. Remove the 3 screws and detach the 4 clips to remove the antenna.

INSTALLATION




1. INSTALL NAVIGATION ANTENNA

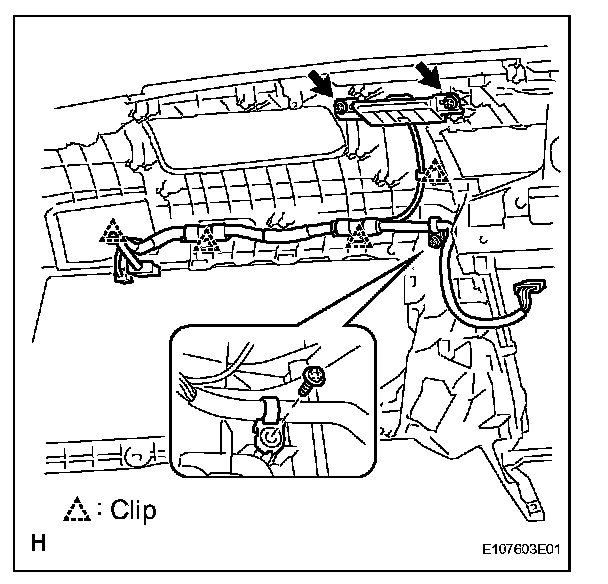

a. Install the navigation antenna with the 3 screws and attach the 4 clips.

2. INSTALL NO. 1 HEATER TO REGISTER DUCT
3. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT
4. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
6. INSTALL FRONT PILLAR GARNISH LH
7. INSTALL FRONT PILLAR GARNISH RH
8. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY
9. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
10. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
11. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
12. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
13. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
14. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
15. INSTALL INSTRUMENT SIDE PANEL LH
16. INSTALL INSTRUMENT SIDE PANEL RH
17. INSTALL COMBINATION METER ASSEMBLY
18. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
19. INSTALL CONSOLE BOX
20. INSTALL CONSOLE BOX REGISTER ASSEMBLY
21. INSTALL CONSOLE BOX PLATE
22. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
23. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
24. INSTALL CONSOLE UPPER PANEL ASSEMBLY
25. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
26. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
27. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
28. INSTALL SPIRAL CABLE WITH STEERING SENSOR
29. INSTALL STEERING COLUMN COVER
30. INSTALL STEERING WHEEL ASSEMBLY
31. INSTALL STEERING PAD
32. INSTALL NO. 2 STEERING WHEEL COVER LOWER
33. INSTALL NO. 3 STEERING WHEEL COVER LOWER
34. INSTALL FRONT DOOR OPENING TRIM COVER LH
35. INSTALL FRONT DOOR OPENING TRIM COVER RH
36. INSTALL FRONT DOOR SCUFF PLATE LH
37. INSTALL FRONT DOOR SCUFF PLATE RH
38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
39. PERFORM INITIALIZATION
a. Perform initialization. Testing and Inspection

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

40. CHECK SRS WARNING LIGHT
a. Check SRS warning light.
