Antenna Amplifier: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
3. REMOVE FRONT SEAT ASSEMBLY
4. REMOVE REAR SEAT CUSHION ASSEMBLY
5. REMOVE REAR SEAT HEADREST ASSEMBLY LH AND RH
6. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
7. REMOVE REAR SEATBACK ASSEMBLY
8. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
9. REMOVE CONSOLE UPPER PANEL ASSEMBLY
10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
11. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
12. REMOVE CONSOLE BOX PLATE
13. REMOVE CONSOLE BOX REGISTER ASSEMBLY
14. REMOVE CONSOLE BOX
15. REMOVE FRONT DOOR SCUFF PLATE LH
16. REMOVE FRONT DOOR SCUFF PLATE RH
17. REMOVE FRONT DOOR OPENING TRIM COVER LH
18. REMOVE FRONT DOOR OPENING TRIM COVER RH
19. REMOVE FRONT PILLAR GARNISH LH
20. REMOVE FRONT PILLAR GARNISH RH
21. REMOVE REAR DOOR SCUFF PLATE LH
22. REMOVE REAR DOOR SCUFF PLATE RH
23. REMOVE CENTER PILLAR GARNISH LOWER LH
24. REMOVE CENTER PILLAR GARNISH LOWER RH
25. REMOVE CENTER PILLAR GARNISH LH
26. REMOVE CENTER PILLAR GARNISH RH
27. REMOVE REAR SEAT SIDE GARNISH LH
28. REMOVE REAR SEAT SIDE GARNISH RH
29. REMOVE ROOF SIDE GARNISH INNER LH
30. REMOVE ROOF SIDE GARNISH INNER RH
31. REMOVE INNER REAR VIEW MIRROR COVER
32. REMOVE FRONT ROOF TOP GARNISH
33. REMOVE PERSONAL LIGHT ASSEMBLY
34. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
35. REMOVE REAR ROOM LIGHT ASSEMBLY
36. REMOVE ASSIST GRIP ASSEMBLY
37. REMOVE STEERING SPOT LIGHT ASSEMBLY
38. REMOVE VISOR BRACKET COVER
39. REMOVE LH VISOR ASSEMBLY
40. REMOVE RH VISOR ASSEMBLY
41. REMOVE VISOR HOLDER
42. REMOVE ROOF HEADLINING ASSEMBLY
43. REMOVE AMPLIFIER ANTENNA ASSEMBLY

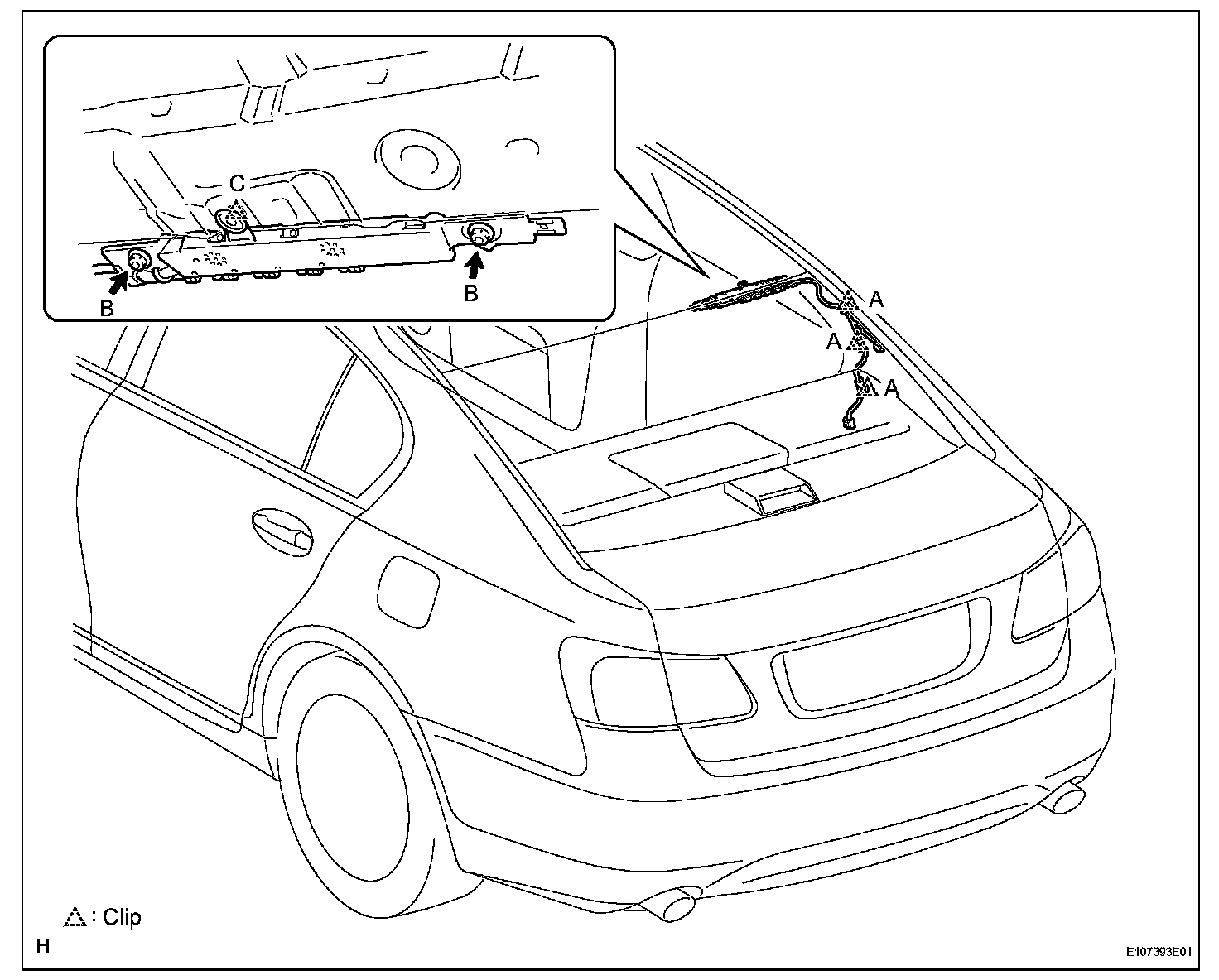

a. Disconnect the connectors.
b. Detach the 3 clips labeled A and remove the 2 nuts labeled B.
c. Detach the clip labeled C and remove the amplifier antenna.

INSTALLATION

1. INSTALL AMPLIFIER ANTENNA ASSEMBLY
a. Use white gasoline to clean the area on the glass where the antenna will be installed.

NOTE: Do not use white gasoline to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.

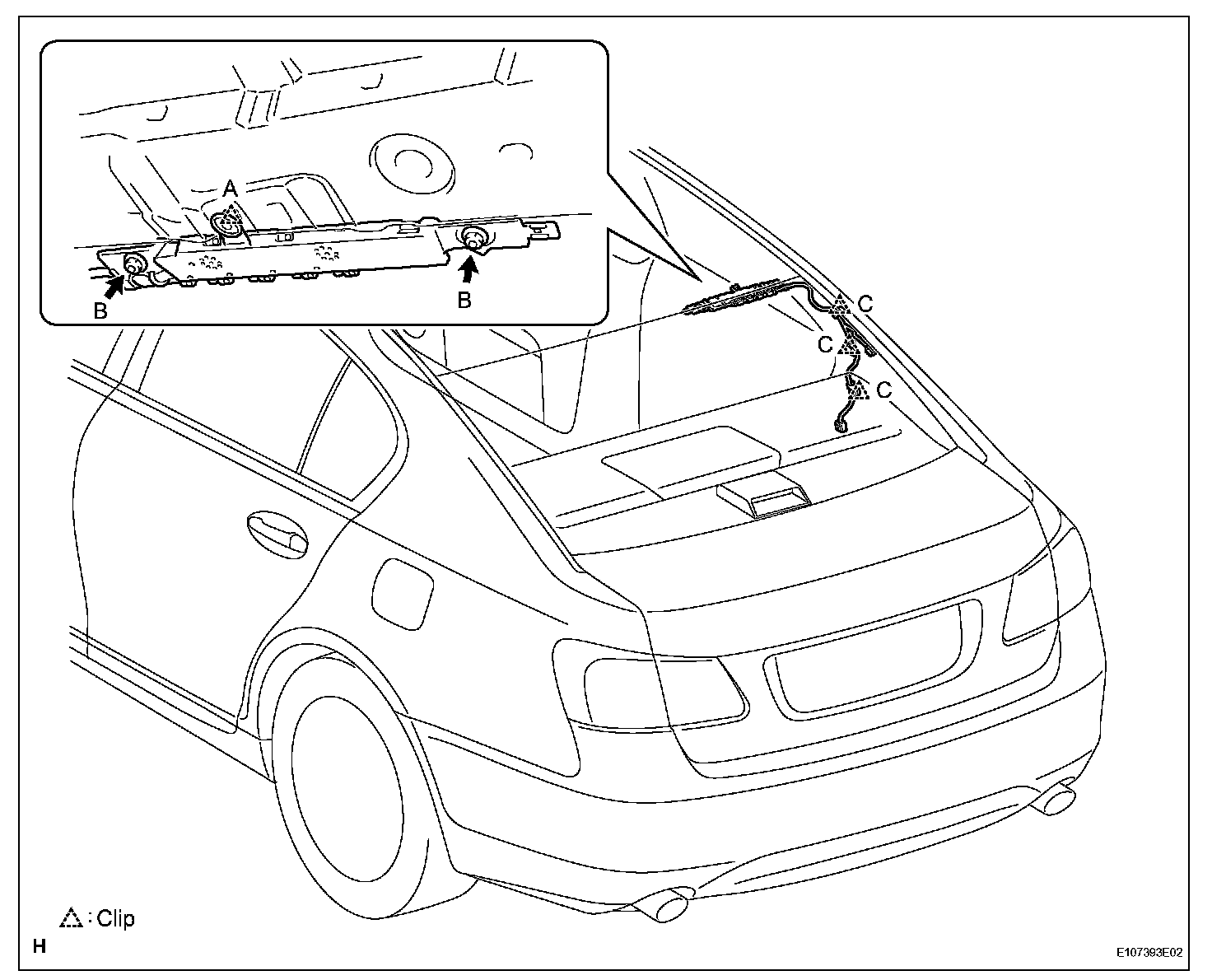

b. Temporarily install the antenna with the clip labeled A, and then install the antenna with the 2 nuts labeled B.

Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)

NOTE:
- Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
- When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
- Never touch the contact points after removing the protective cover.
- After removing the protective cover, return it to the manufacturer for recycling.
- Do not reuse the clip labeled A.

c. Attach the 3 clips labeled C.
d. Connect the connectors.

2. INSTALL ROOF HEADLINING ASSEMBLY
3. INSTALL VISOR HOLDER
4. INSTALL LH VISOR ASSEMBLY
5. INSTALL RH VISOR ASSEMBLY
6. INSTALL VISOR BRACKET COVER
7. INSTALL STEERING SPOT LIGHT ASSEMBLY
8. INSTALL ASSIST GRIP ASSEMBLY
9. INSTALL REAR ROOM LIGHT ASSEMBLY
10. INSTALL INNER REAR VIEW MIRROR ASSEMBLY
11. INSTALL PERSONAL LIGHT ASSEMBLY
12. INSTALL ROOF TOP GARNISH FRONT
13. INSTALL INNER REAR VIEW MIRROR COVER
14. INSTALL ROOF SIDE GARNISH INNER LH
15. INSTALL ROOF SIDE GARNISH INNER RH
16. INSTALL REAR SEAT SIDE GARNISH LH
17. INSTALL REAR SEAT SIDE GARNISH RH
18. INSTALL CENTER PILLAR GARNISH LH
19. INSTALL CENTER PILLAR GARNISH RH
20. INSTALL CENTER PILLAR GARNISH LOWER LH
21. INSTALL CENTER PILLAR GARNISH LOWER RH
22. INSTALL REAR DOOR SCUFF PLATE LH
23. INSTALL REAR DOOR SCUFF PLATE RH
24. INSTALL FRONT PILLAR GARNISH LH
25. INSTALL FRONT PILLAR GARNISH RH
26. INSTALL FRONT DOOR OPENING TRIM COVER LH
27. INSTALL FRONT DOOR OPENING TRIM COVER RH
28. INSTALL FRONT DOOR SCUFF PLATE LH
29. INSTALL FRONT DOOR SCUFF PLATE RH
30. INSTALL CONSOLE BOX
31. INSTALL CONSOLE BOX REGISTER ASSEMBLY
32. INSTALL CONSOLE BOX PLATE
33. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
34. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
35. INSTALL CONSOLE UPPER PANEL ASSEMBLY
36. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
37. INSTALL REAR SEATBACK ASSEMBLY
38. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
39. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH
40. INSTALL REAR SEAT CUSHION ASSEMBLY
41. INSTALL FRONT SEAT ASSEMBLY
42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
44. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

45. INSPECT FRONT POWER SEAT CONTROL SYSTEM
a. Inspect front power seat control system.
b. Inspect front power seat control system (w/ seat position memory system).

46. INSPECT SEAT HEATER CONTROL
a. Inspect seat heater control.

47. INSPECT CLIMATE CONTROL SEAT SYSTEM
a. Inspect climate control seat system.

48. INSPECT SEAT BELT WARNING SYSTEM
a. Inspect seat belt warning system.
