DTC P2759 Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.

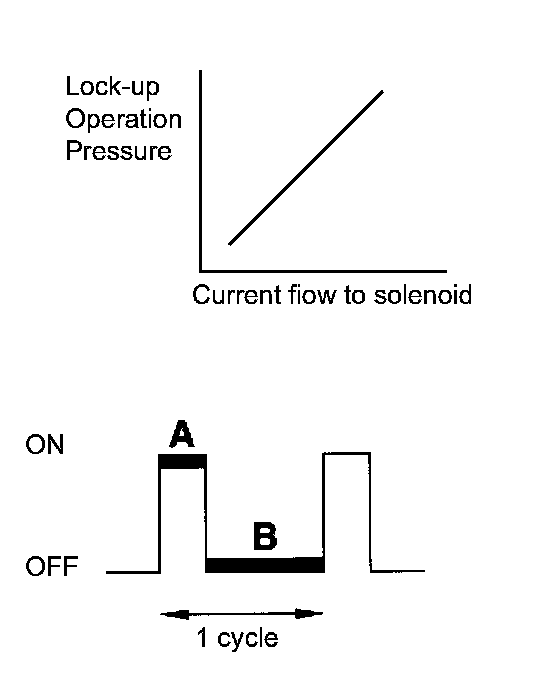

(*) Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio = A/(A+B) x 100(%).

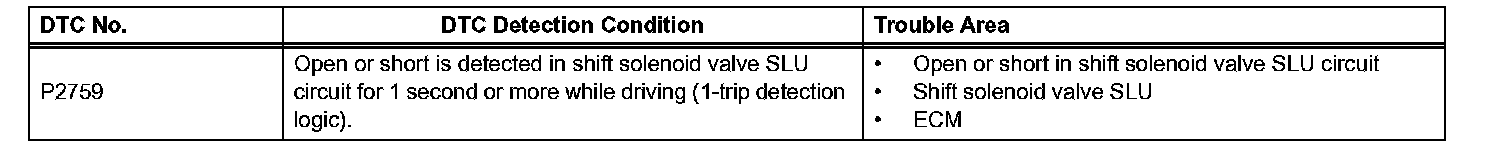

DTC DETECTION CONDITION:

MONITOR DESCRIPTION
When an open or short in a shift solenoid valve (SLU) circuit is detected, the ECM determines there is a malfunction. The ECM will turn on the MIL and store this DTC.

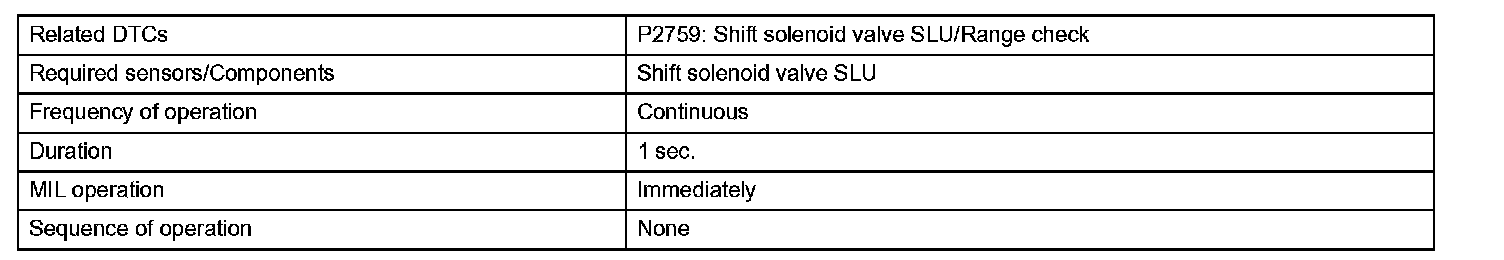

MONITOR STRATEGY:

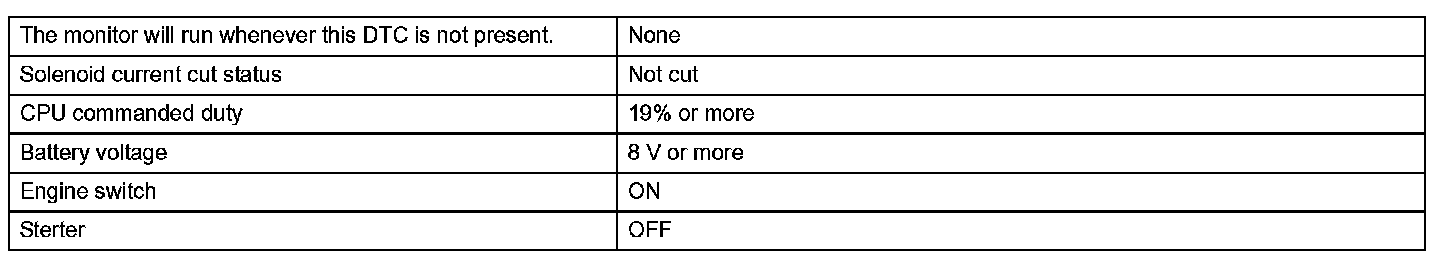

TYPICAL ENABLING CONDITIONS:

TYPICAL MALFUNCTION THRESHOLDS:

COMPONENT OPERATING RANGE:

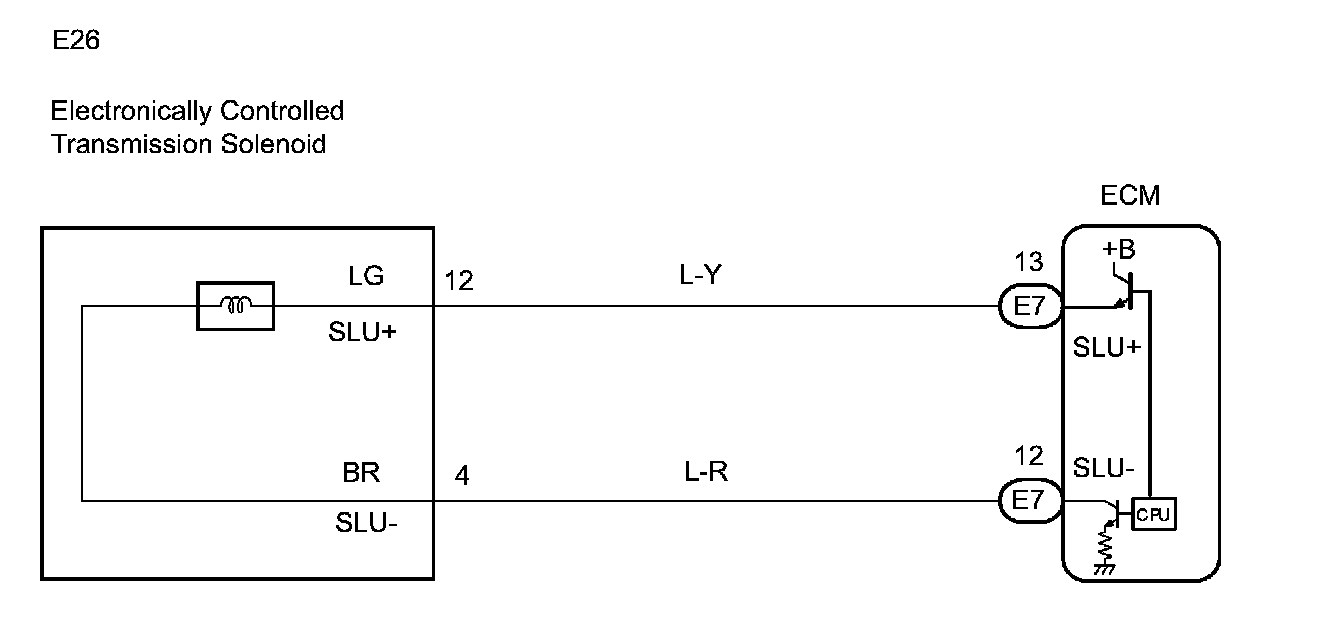

WIRING DIAGRAM:

INSPECTION PROCEDURE

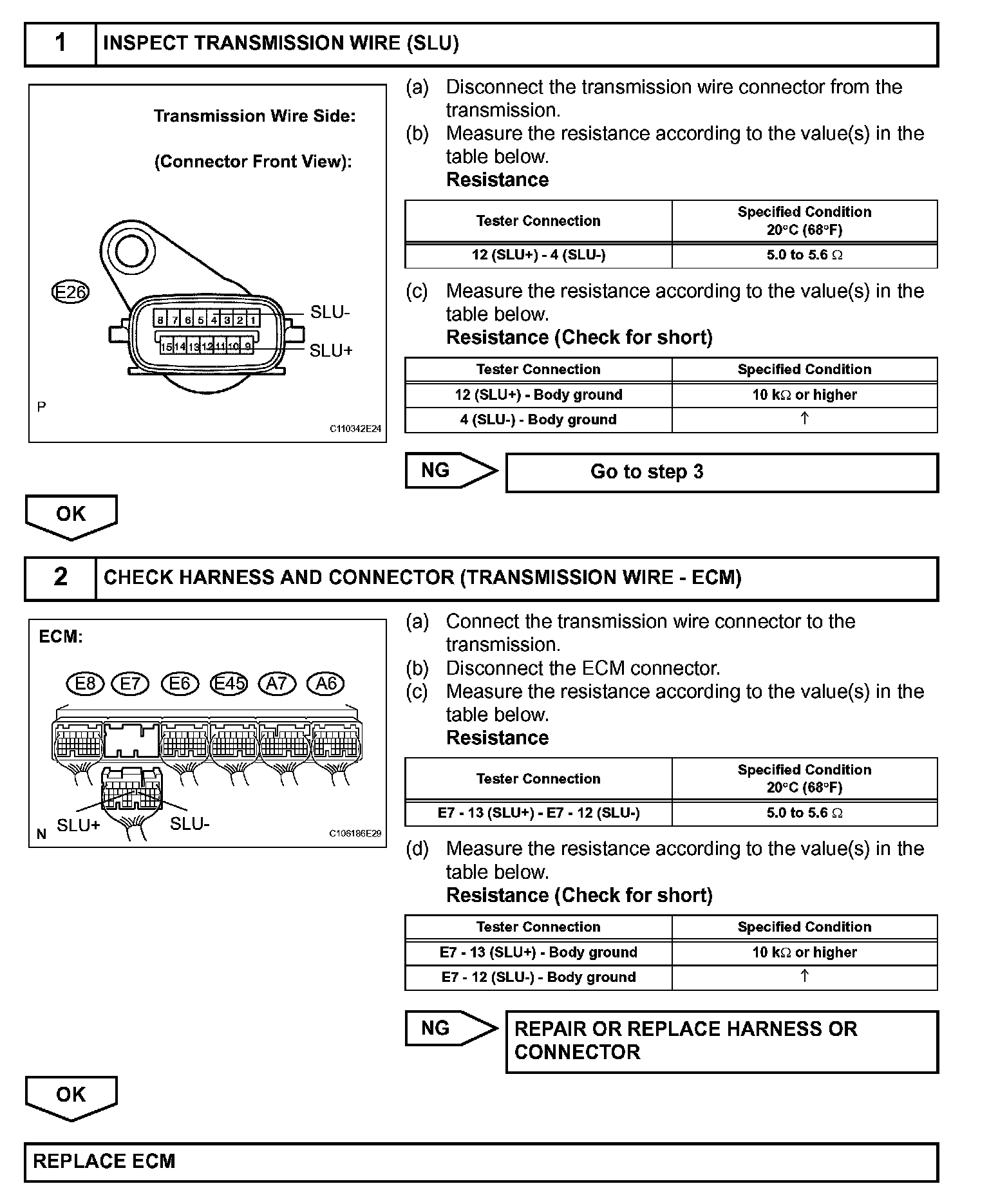

Steps 1-2:

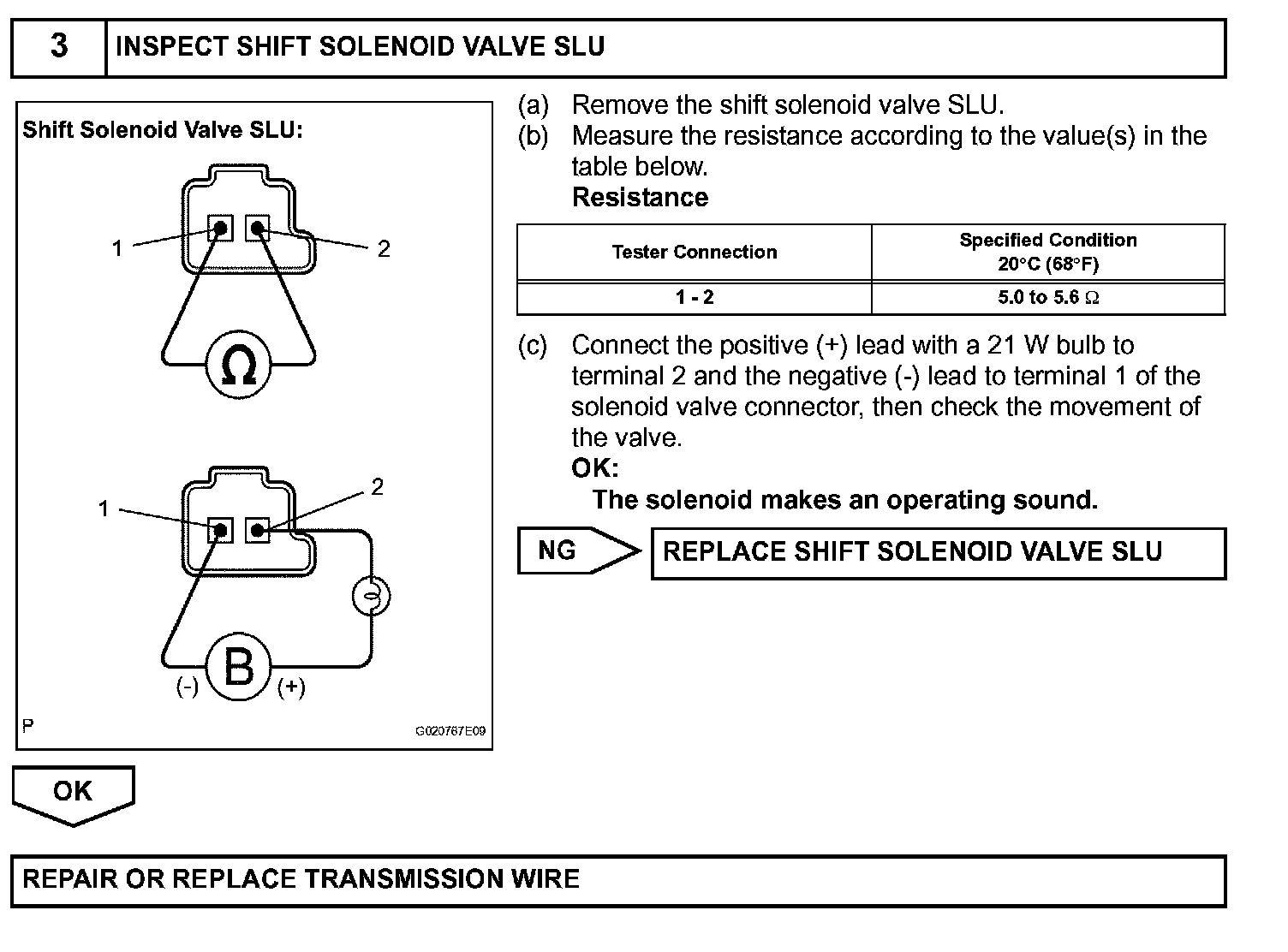

Step 3:
