DTC 76
DTC C2176/76 Receiver ErrorDESCRIPTION

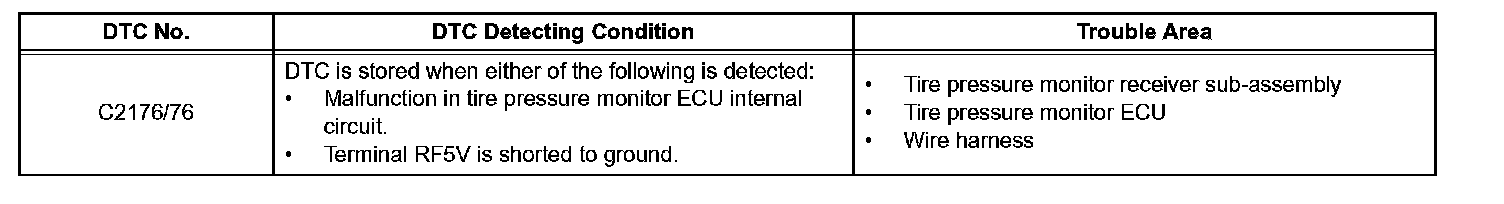

DTC DETECTION CONDITION:
WIRING DIAGRAM:
HINT: Set the tire pressure to the specified value.
INSPECTION PROCEDURE

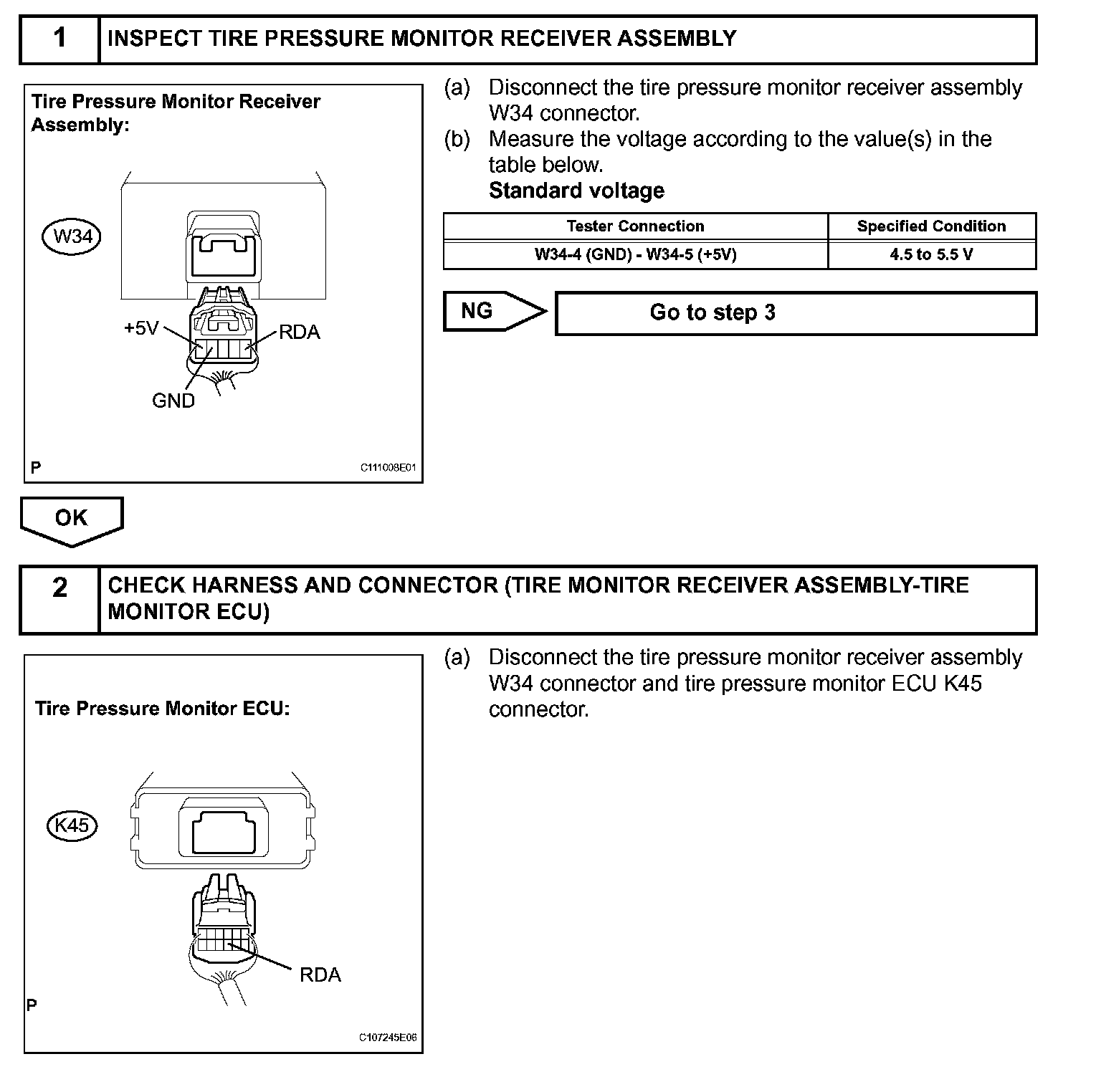

Steps 1-2:

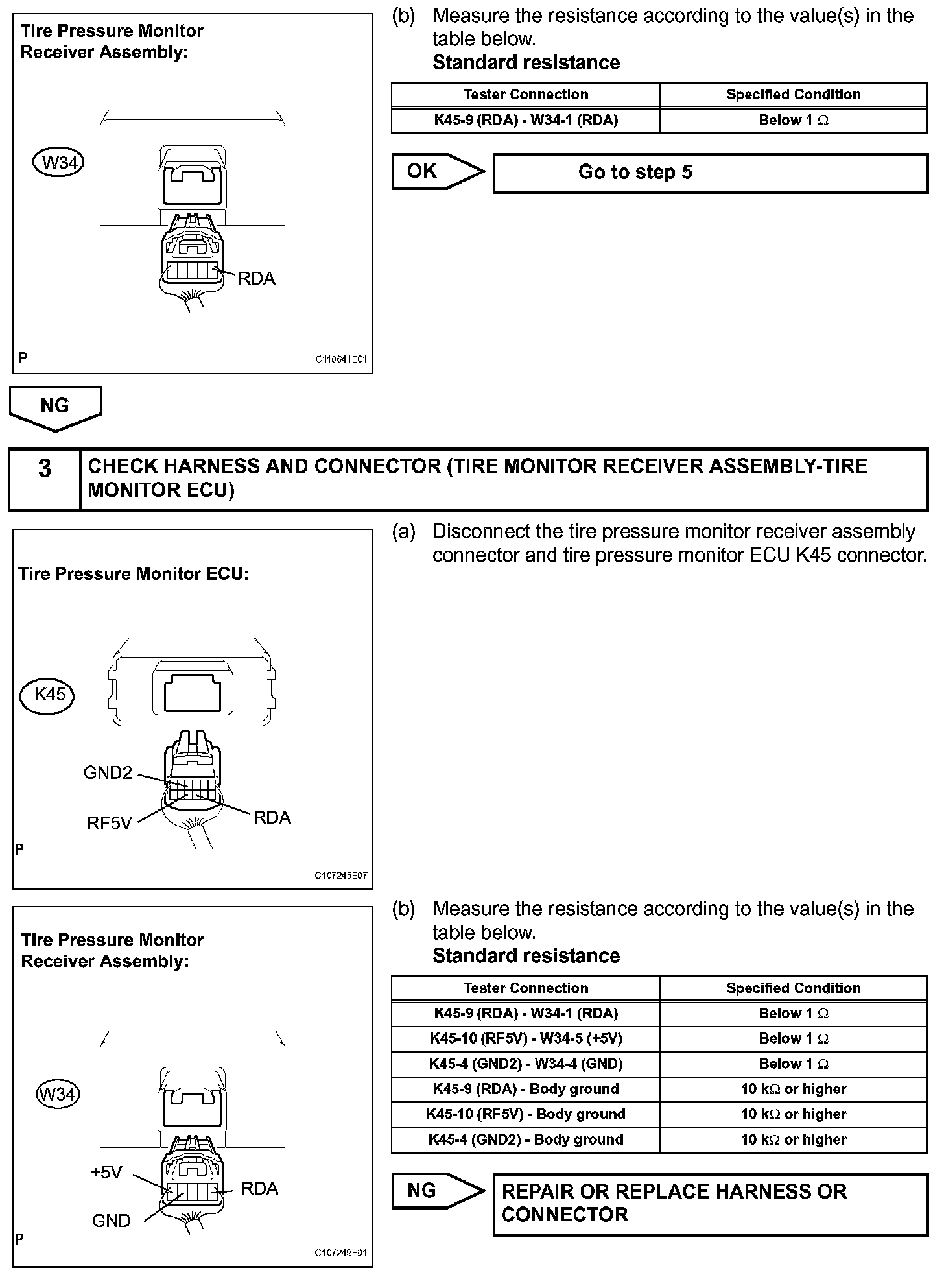

Step 2 (Continued)-3:

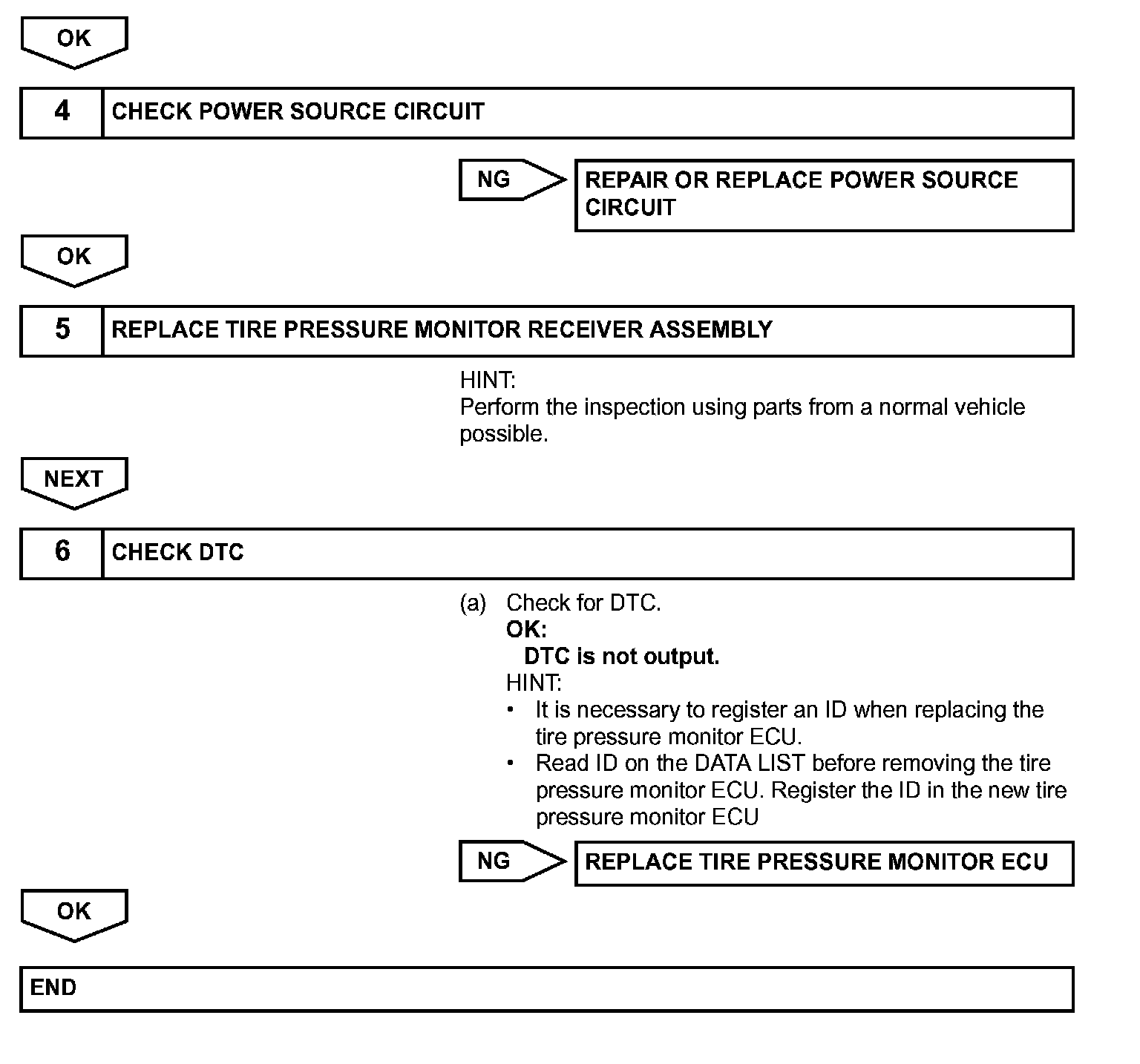

Step 3 (Continued)-6:
DESCRIPTION
HINT: Set the tire pressure to the specified value.
INSPECTION PROCEDURE
