Master Error (G/W)

DTC 01-DF Master Error (G/W)

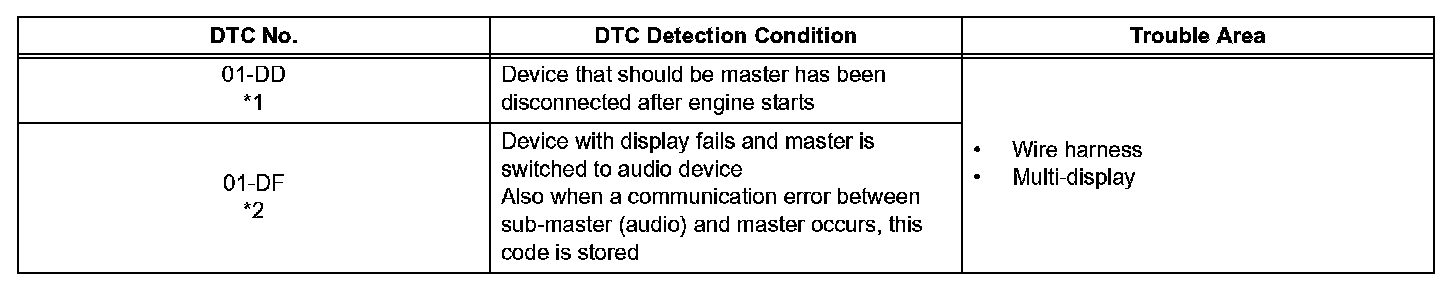

DTC Detection Condition:

DESCRIPTION

HINT:
- *1: This code may be stored if the engine is started, turned off, and then started again.
- *2: When 210 seconds have elapsed after disconnecting the power supply connector of the master component with the engine switch on (ACC or IG), this code is stored.

Step 1-2:

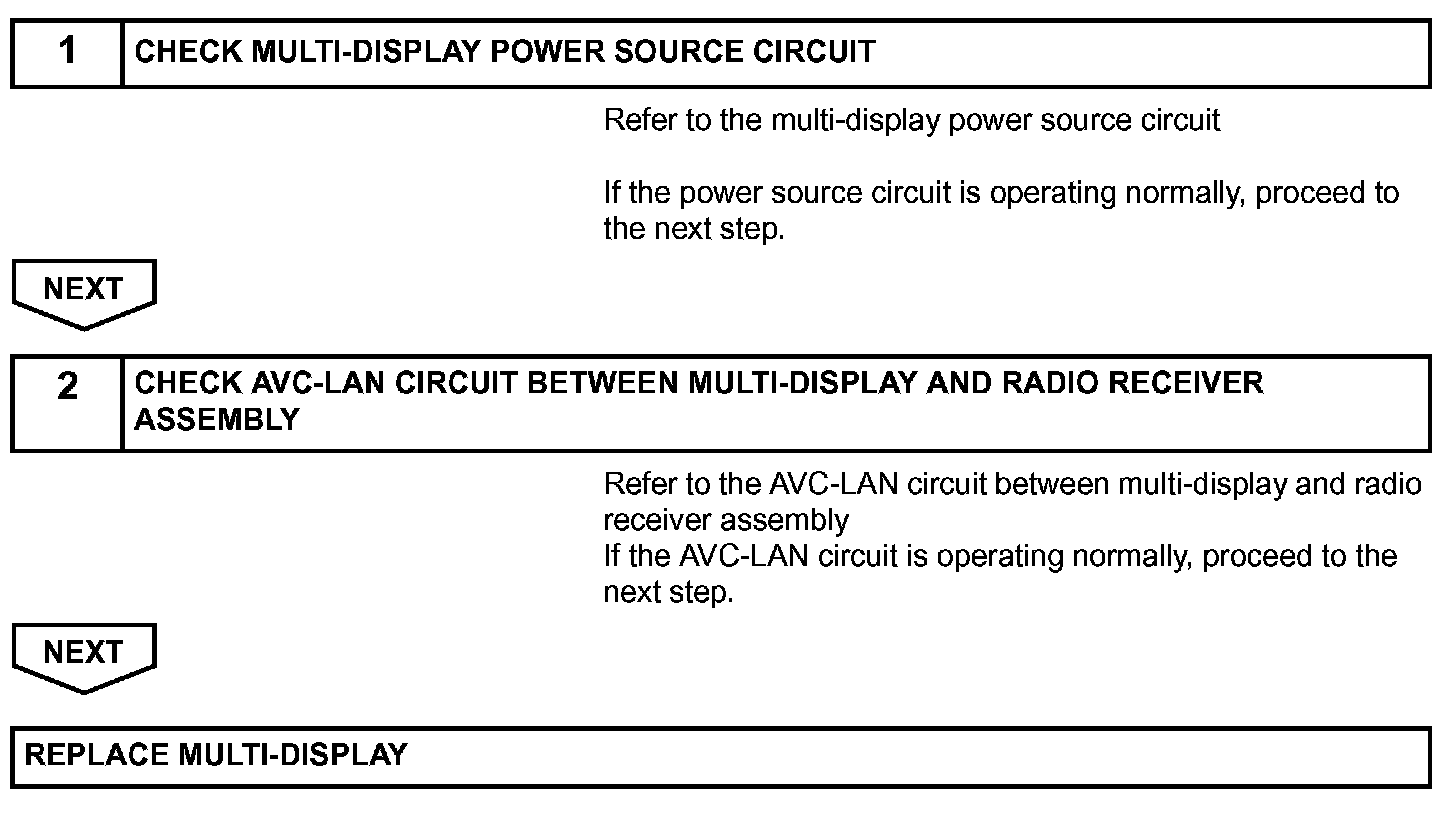

INSPECTION PROCEDURE
