DTC 5C-40
DTC 5C-40
DTC 5C-40 Camera Picture Error

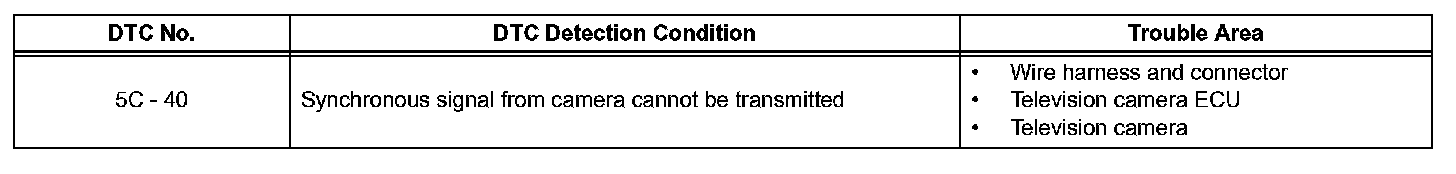

DTC Detection Condition:
DESCRIPTION

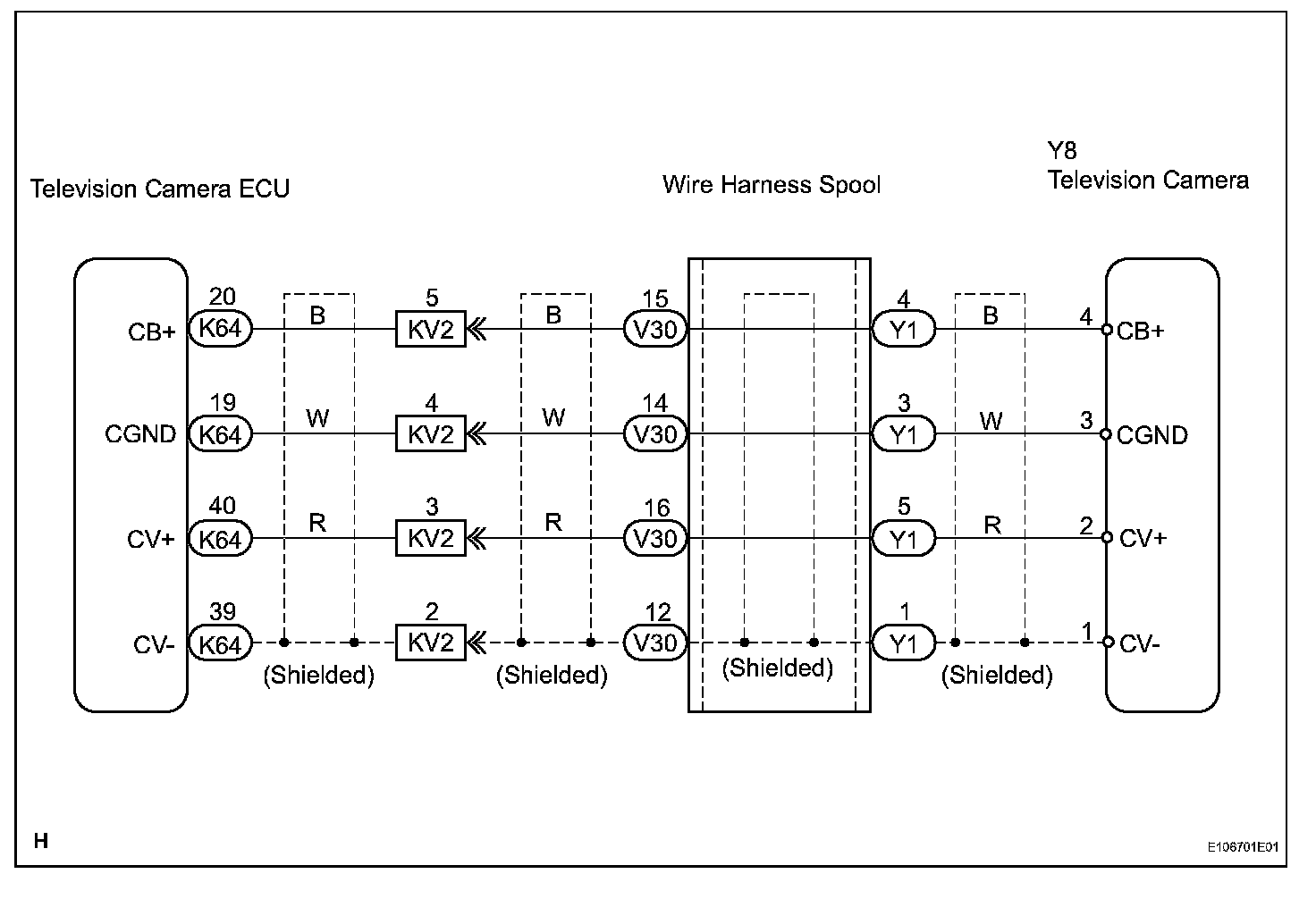

Wiring Diagram:

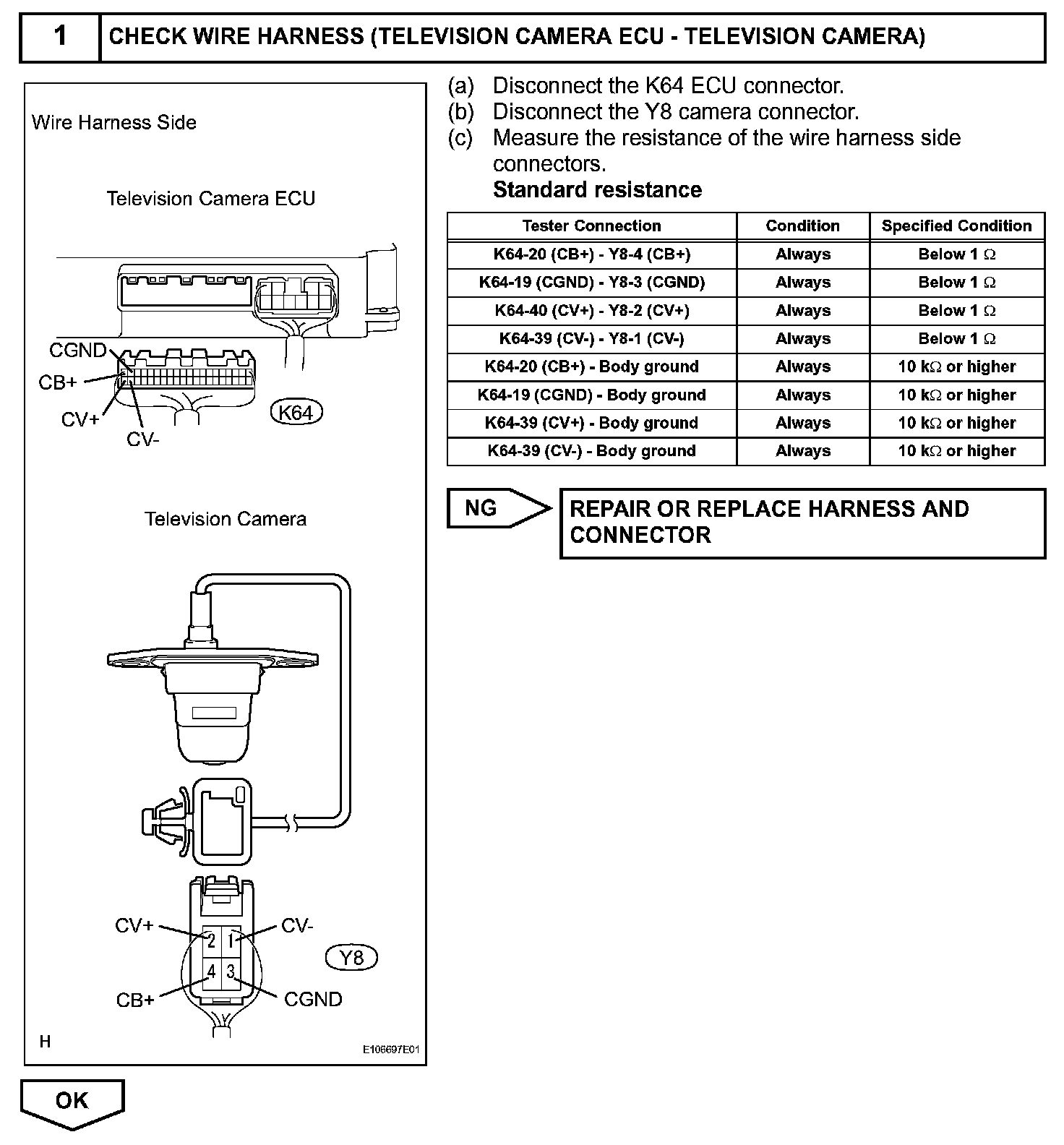

Step 1:

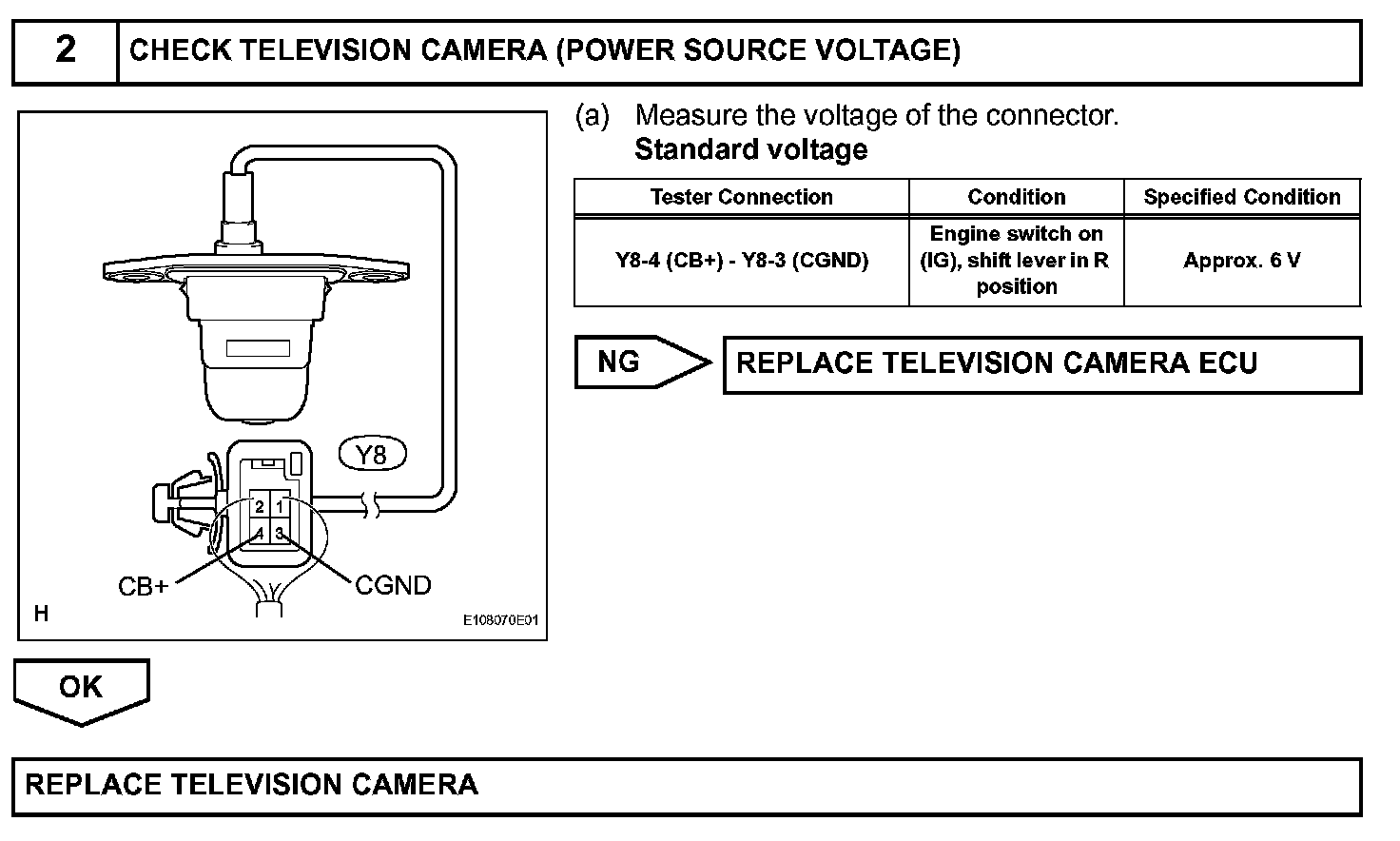

Step 2:
INSPECTION PROCEDURE
