Vehicle Stability Control System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective DTC No.in the DTC chart.

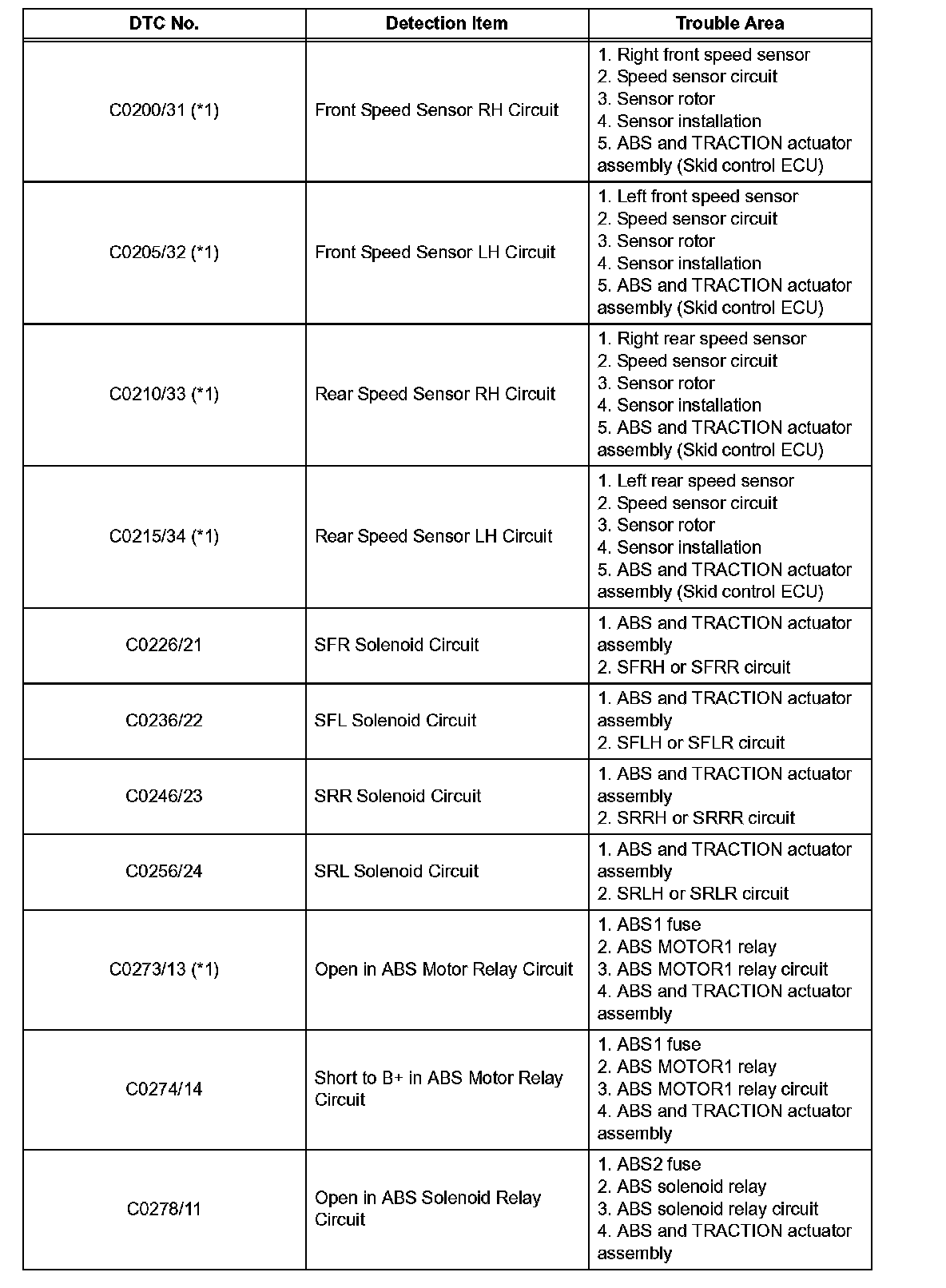

DTC Chart of ABS: DTC C0200/31-C0278/11:

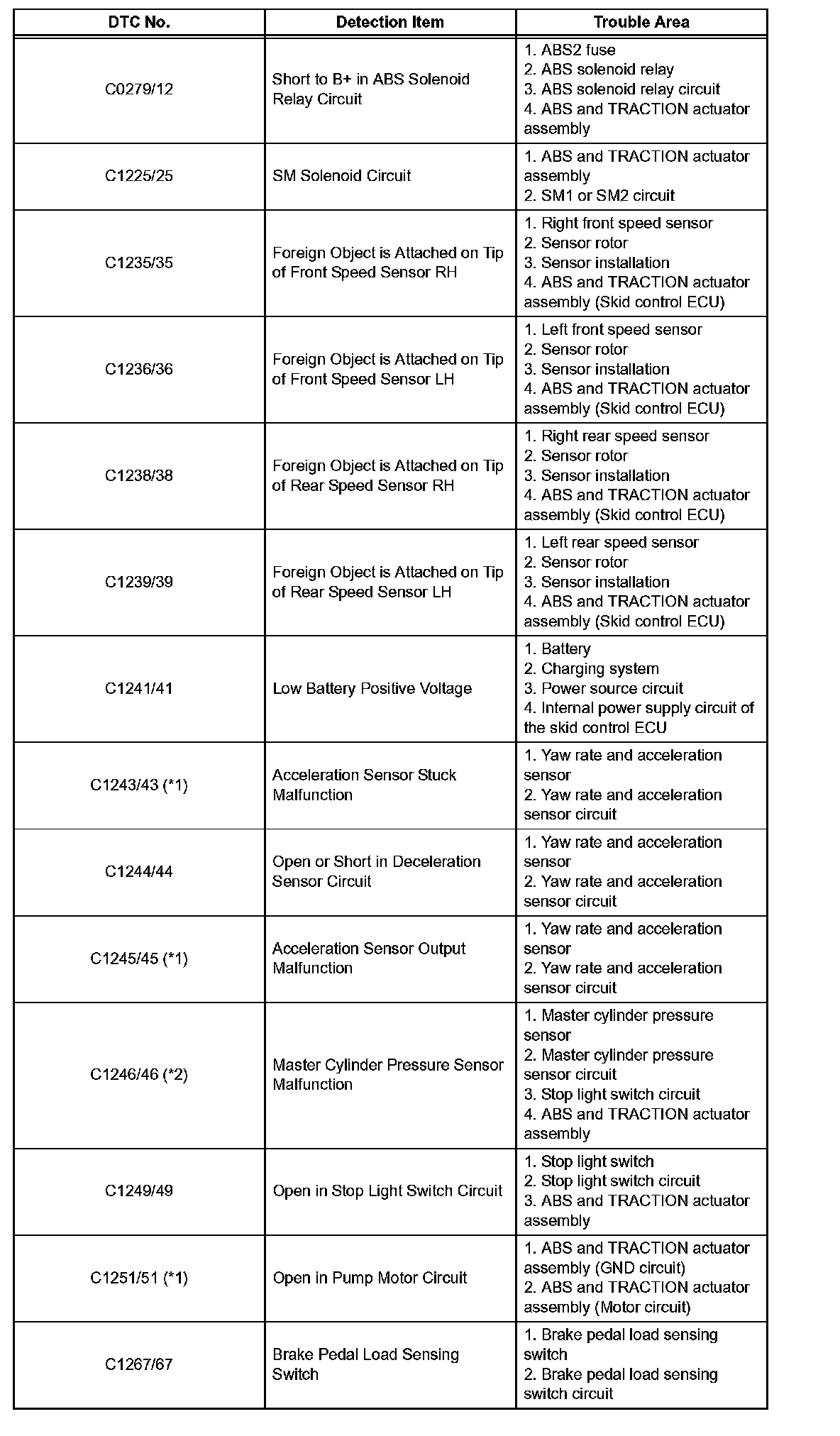

DTC Chart of ABS: DTC C0279/12-C1267/67:

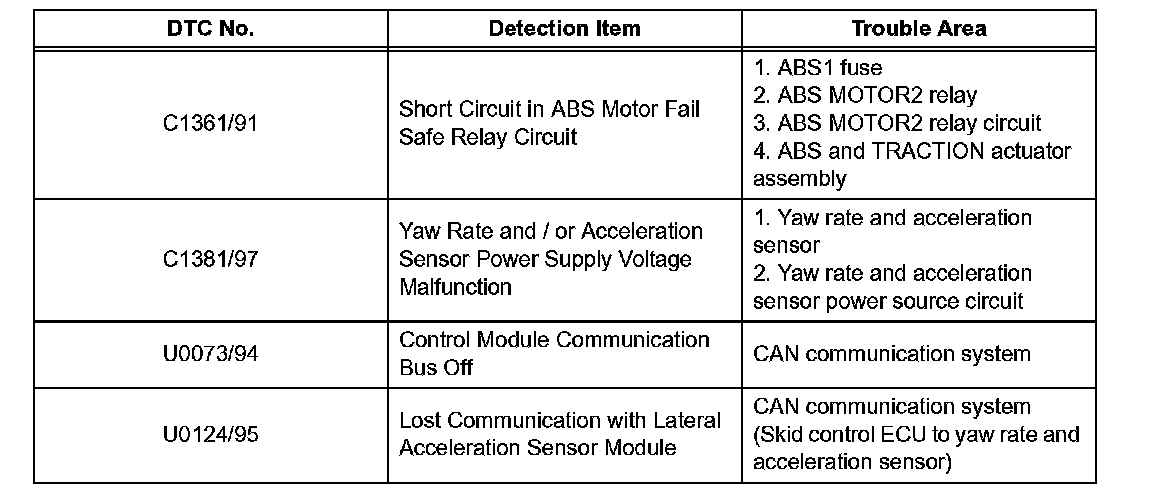

DTC Chart of ABS: DTC C1361/91-U0124/95:

*1, *2: Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.
a. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
b. Clear the DTC.
*2:
a. Keep the vehicle stationary for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
b. Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
c. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
d. Clear the DTC.

HINT: In some cases, the intelligent tester cannot be used when the ABS warning light remains on.

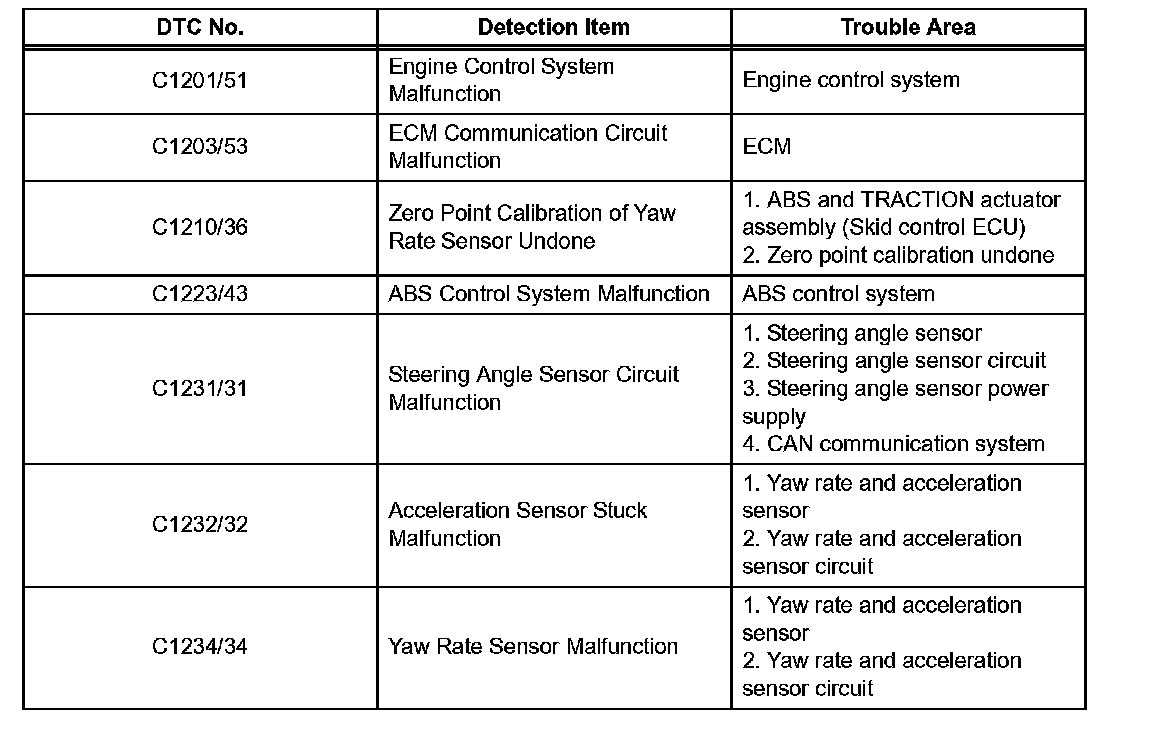

DTC Chart of VSC: DTC C1201/51-C1234/34:

DTC Chart of VSC: DTC C1290/66-U0126/63:

HINT: In some cases, the intelligent tester cannot be used when the VSC warning light remains on.
