Variable Gear Ratio Steering System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, proceed to the respective "DTC No." in the DTC chart.

Variable Gear Ratio Steering System

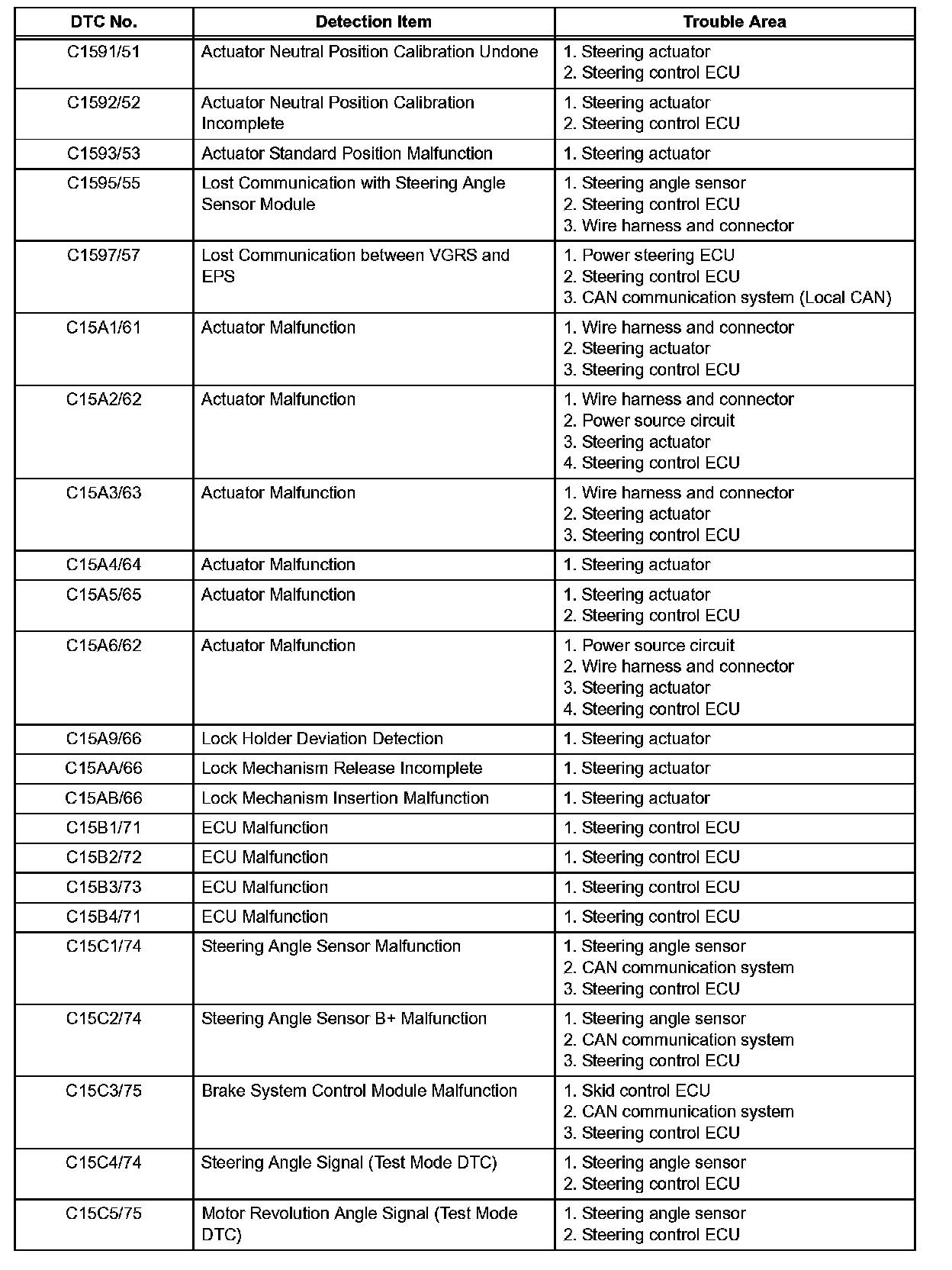

DTC C1591-C15C5:

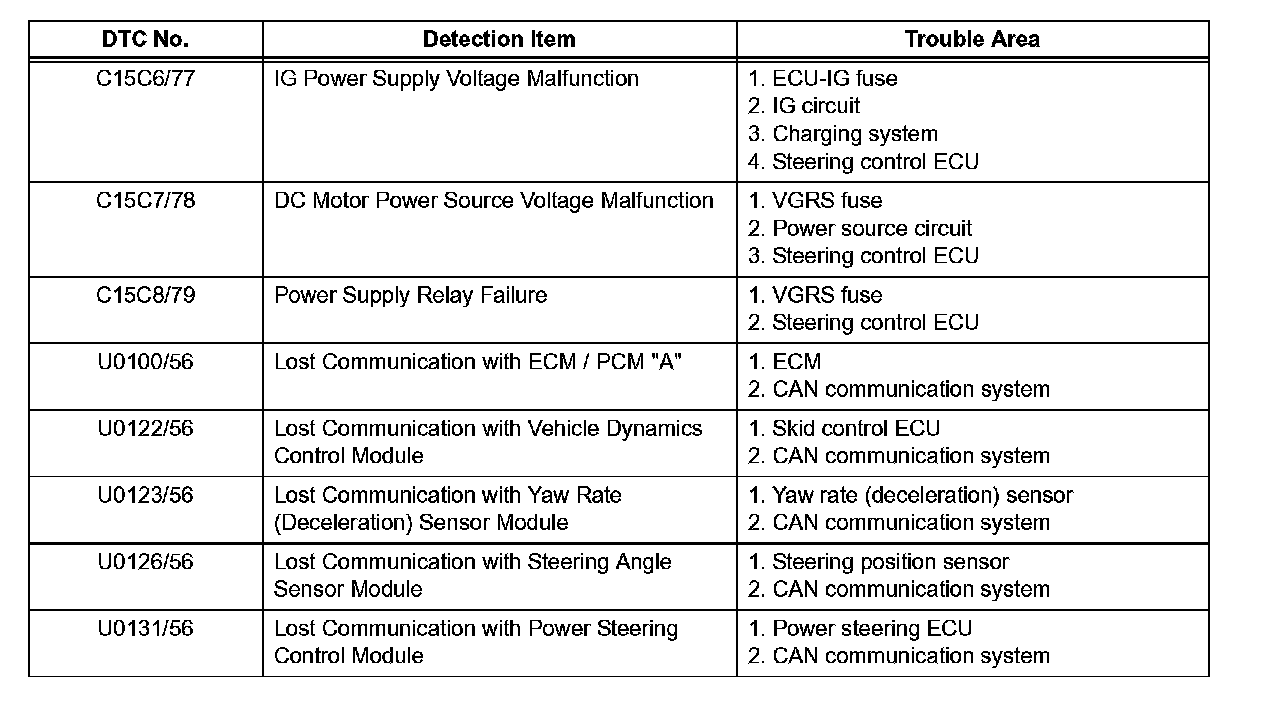

DTC C15C6-C15C8 & DTC U0100-U0131:
