Steering Lock System

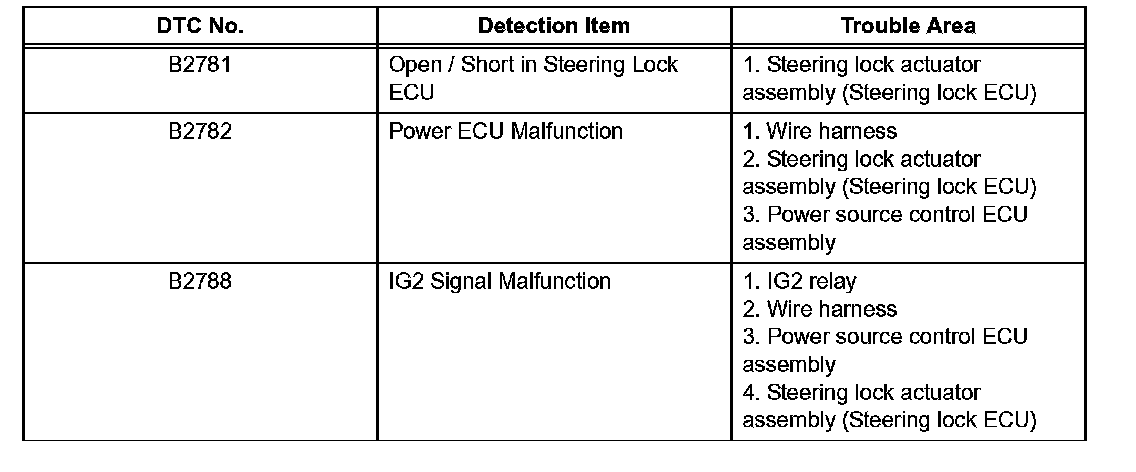

DIAGNOSTIC TROUBLE CODE CHART
If trouble code is displayed during the DTC check, check the parts listed for that code in the table and proceed as required.

HINT: The steering lock ECU does not store DTCs regarding the past problems.

DTC B2781-B2788:
