Rear View Monitor System

DIAGNOSTIC TROUBLE CODE CHART

1. TELEVISION CAMERA ECU (Physical address: 1AC)

01-D6 - 01-E3:

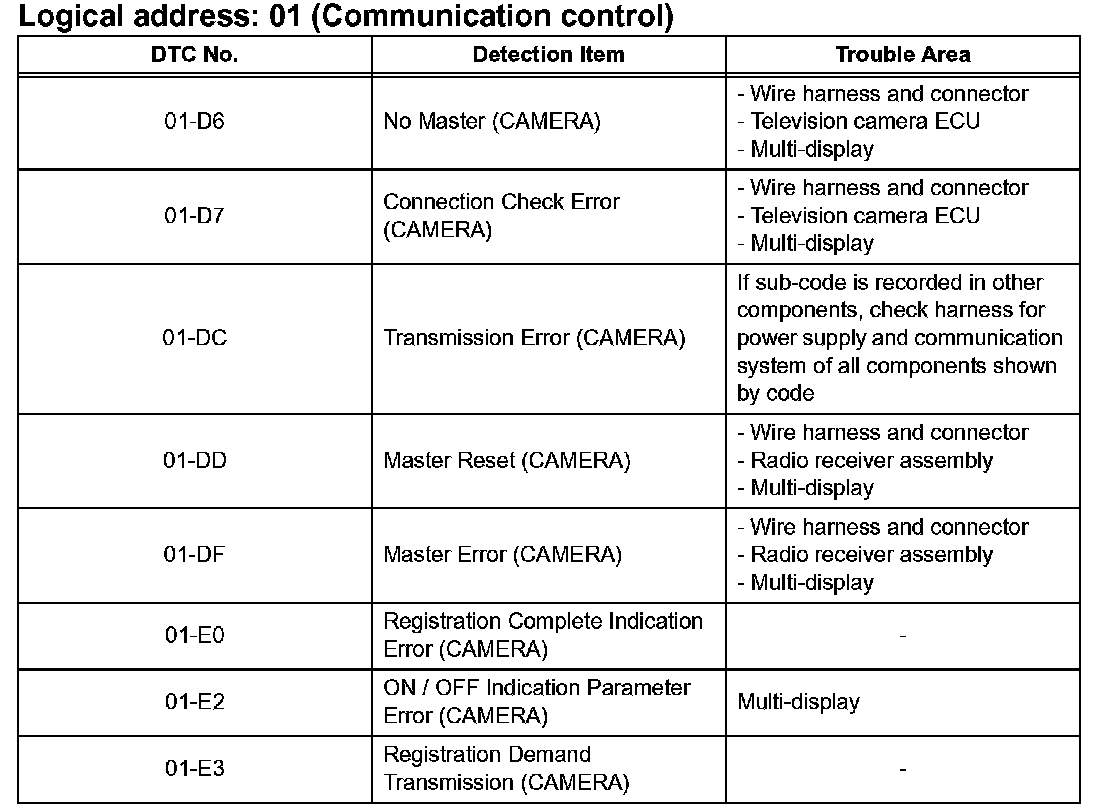

Logical address: 01 (Communication control)

5C-40:

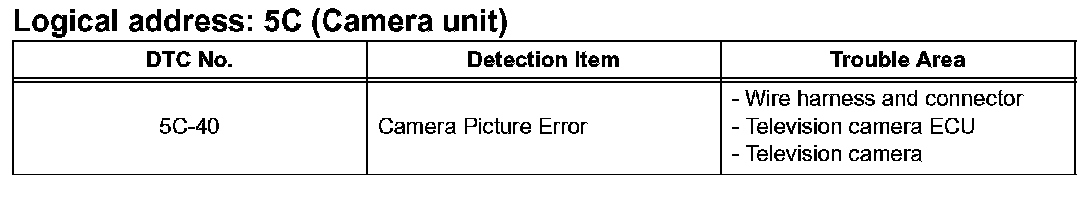

Logical address: 5C (Camera unit)
