Navigation System

DIAGNOSTIC TROUBLE CODE CHART

01-21 - 34-12:

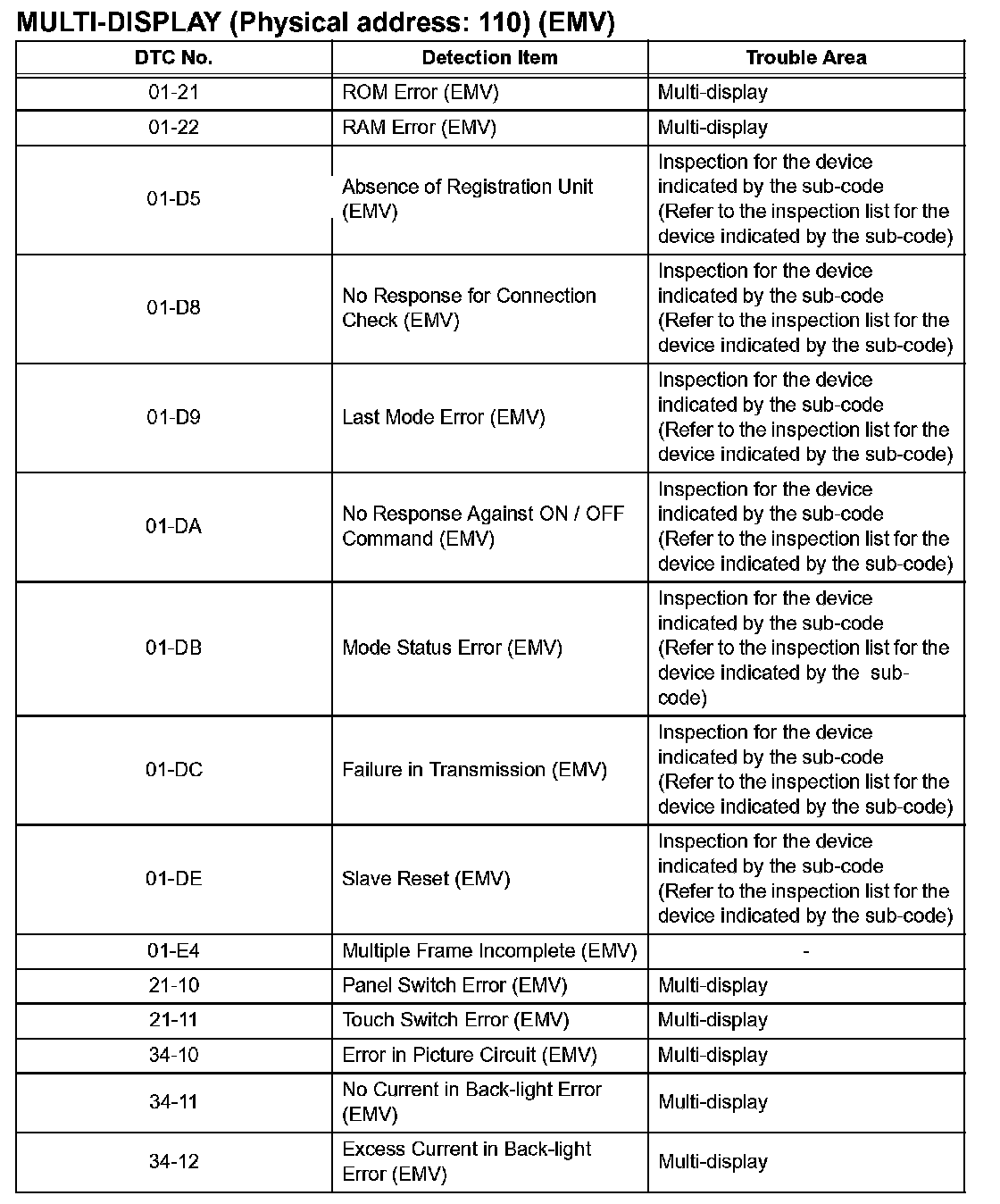

MULTI-DISPLAY (Physical address:110) (EMV)

01-D6 - 01-DF:

01-E0 - 58-45:

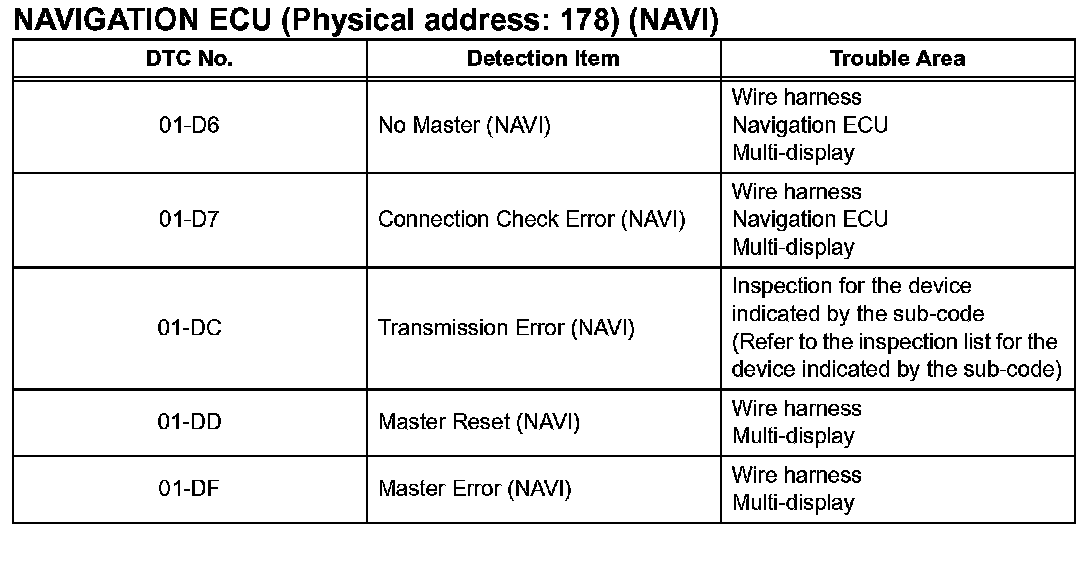

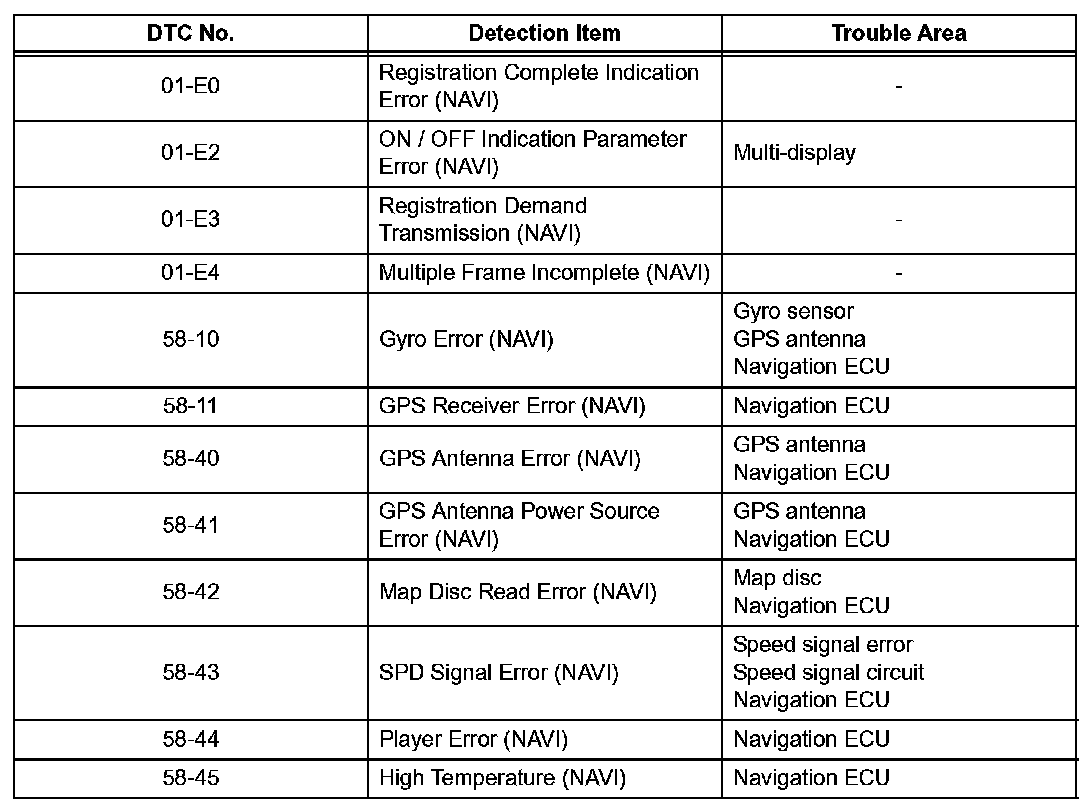

NAVIGATION ECU (Physical address:178) (NAVI)

01-D6 - 01-E4:

RADIO RECEIVER ASSEMBLY (Physical address:190) (AUDIO H/U)

01-D6 - 01-D7:

01-DC - 01-E3:

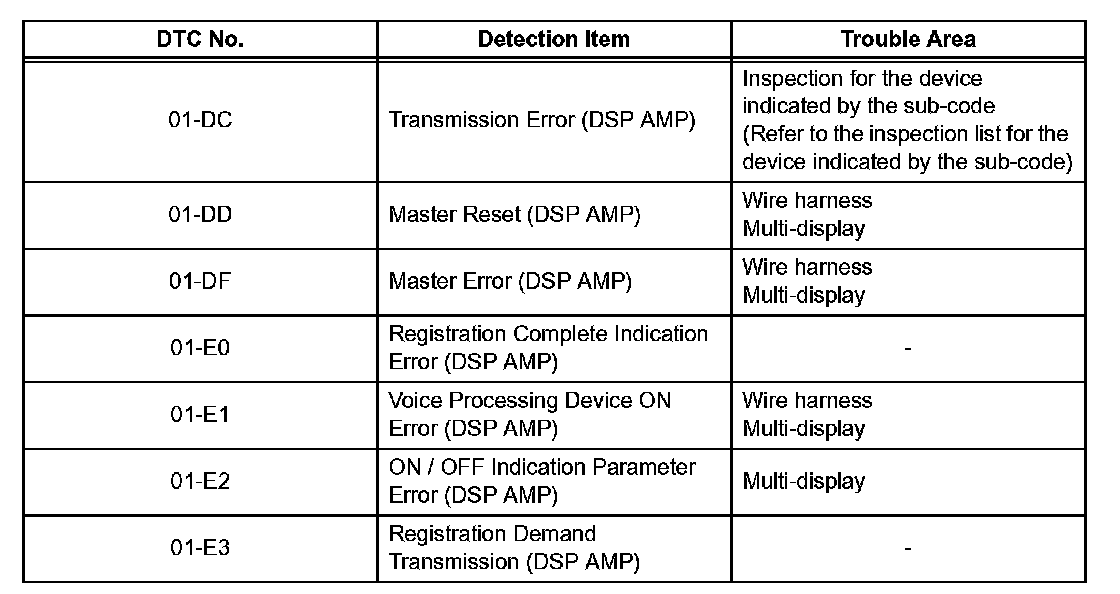

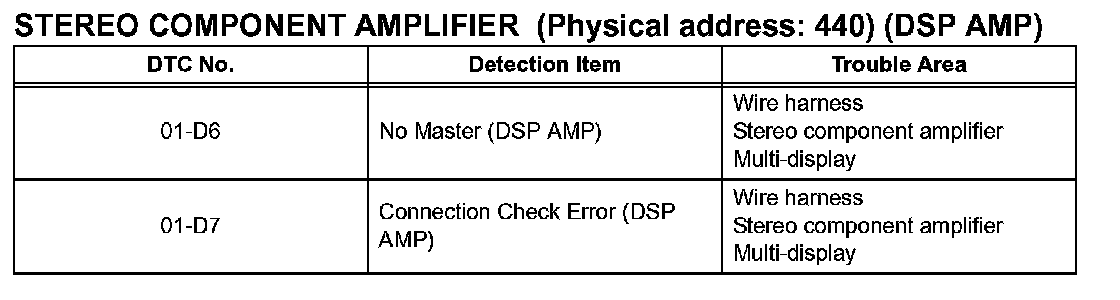

STEREO COMPONENT AMPLIFIER (Physical address:440) (DSP AMP)

01-D6 - 01-E3:

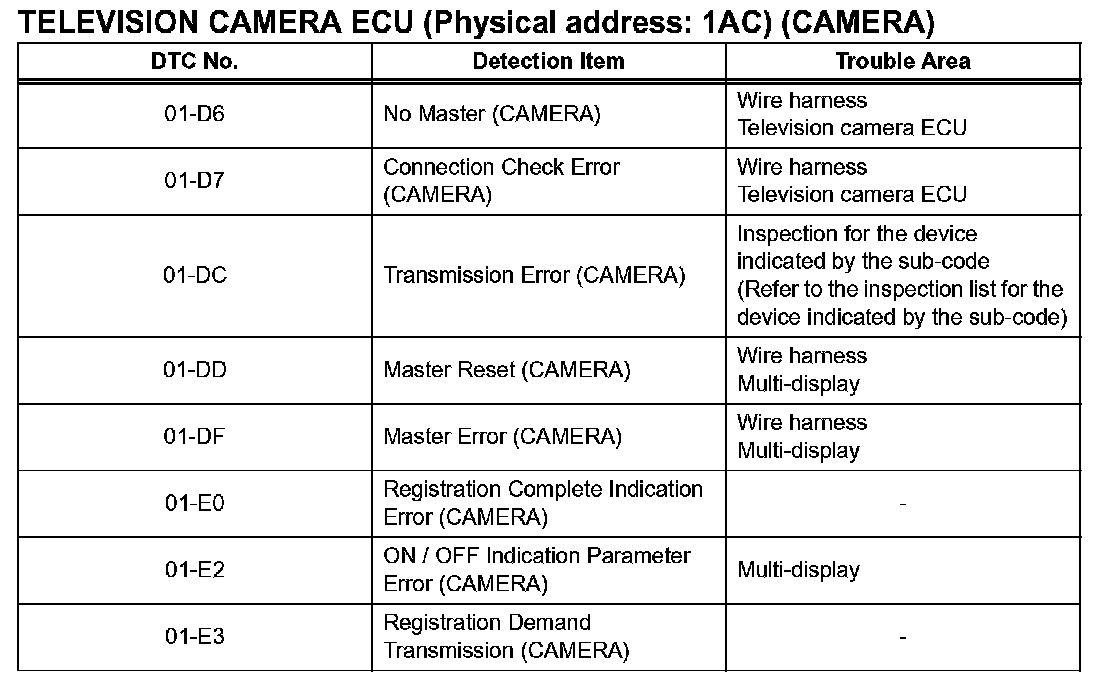

TELEVISION CAMERA ECU (Physical address: 1AC) (CAMERA)

01-D6 - 01-E4:

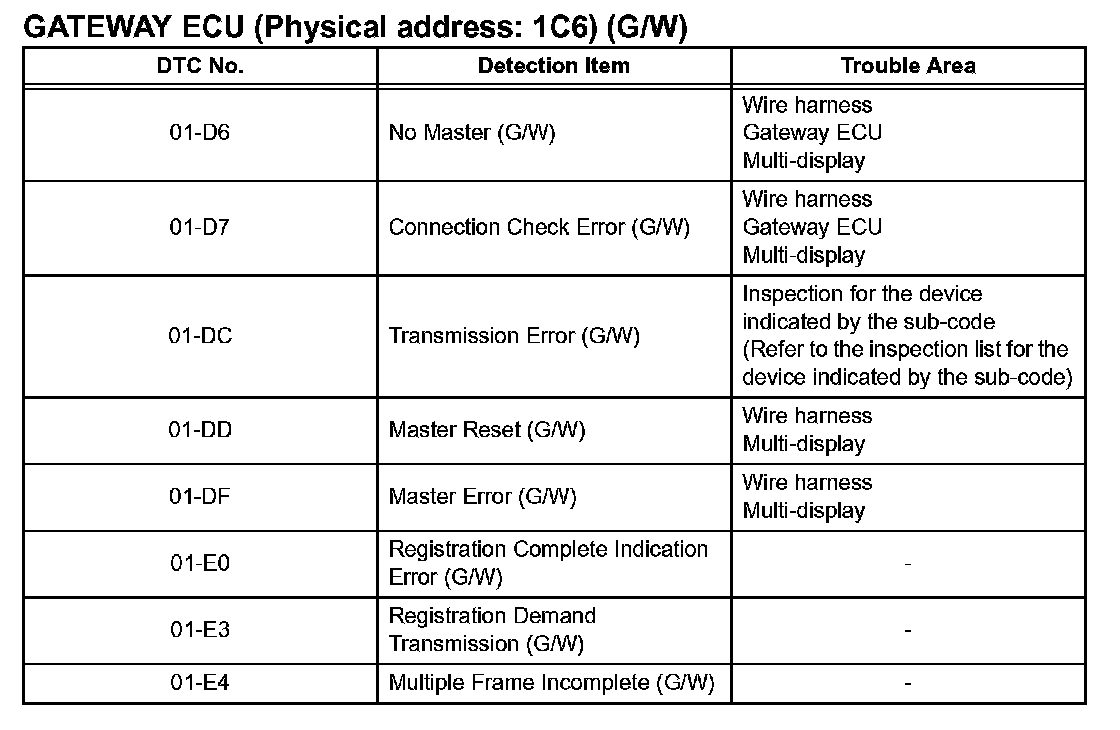

GATEWAY ECU (Physical address: 1C6) (G/W)
