Electronically Controlled Brake System

DIAGNOSTIC TROUBLE CODE CHART

HINT:
^ If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective DTC No. in the DTC chart.
^ Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

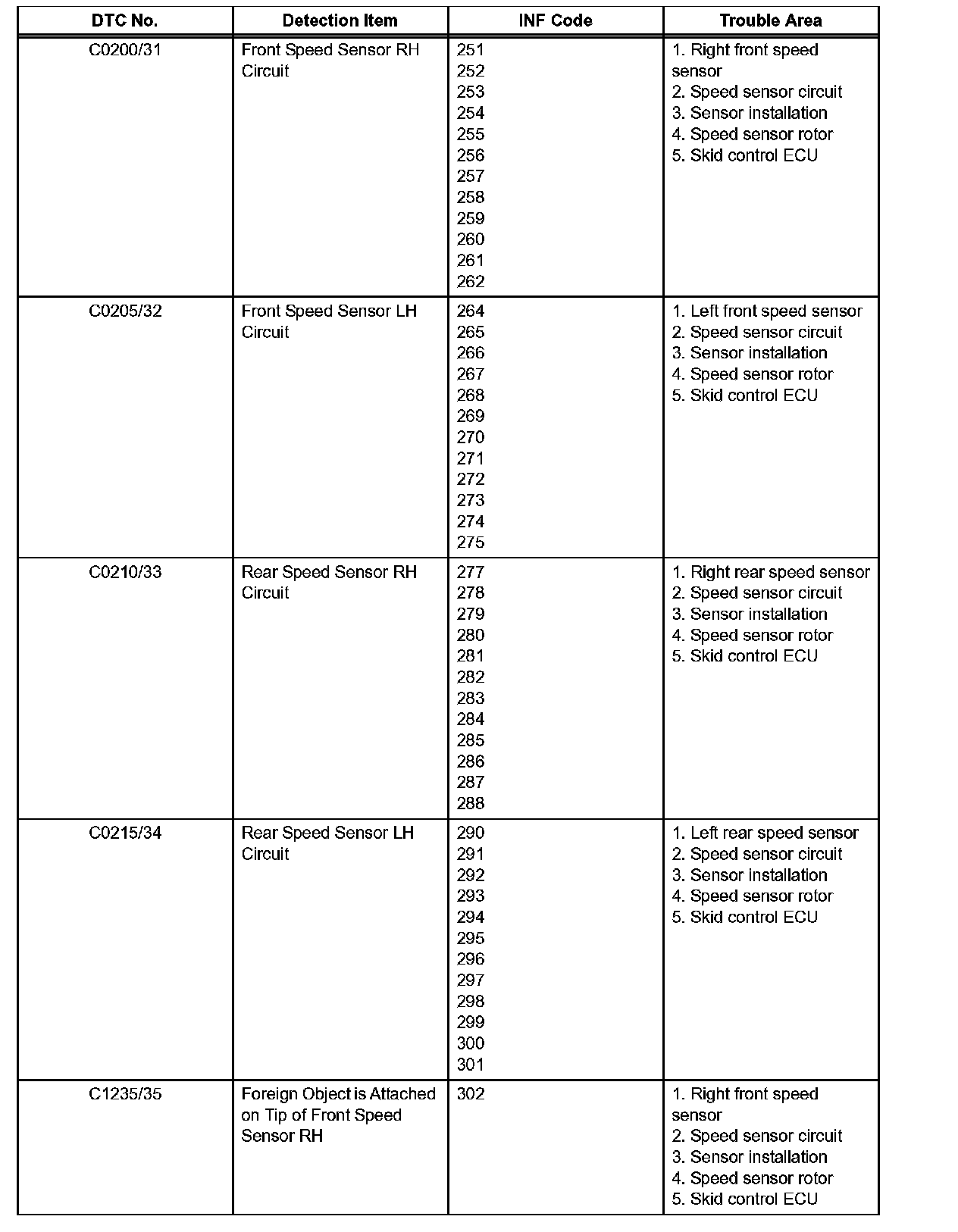

DTC chart of ABS: C0200/31-C1235/35:

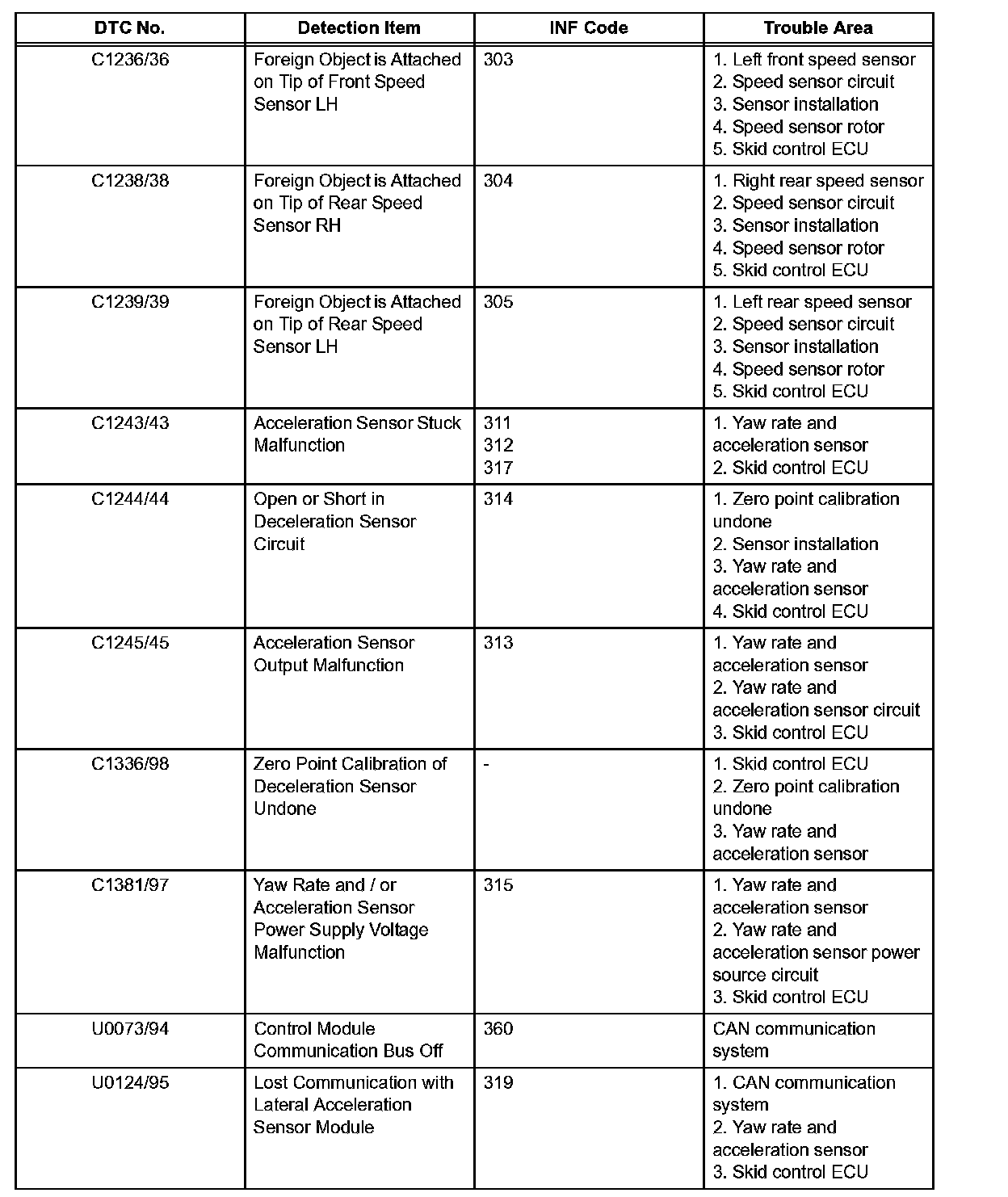

DTC chart of ABS: C1236/36-U0124/95:

1. Drive the vehicle at the speed of 31 mph (50 km/h) and depress the brake pedal strongly for approximately 3 seconds.
2. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3. Clear the DTC.

HINT:
^ In some cases, the intelligent tester cannot be used when ABS warning light remains on.
^ When U0073/94, U0100/65, U0123/62, U0124/95, U0126/63, U0130/68 or U0131/67 is output, inspect and repair the trouble areas indicated by these codes first.

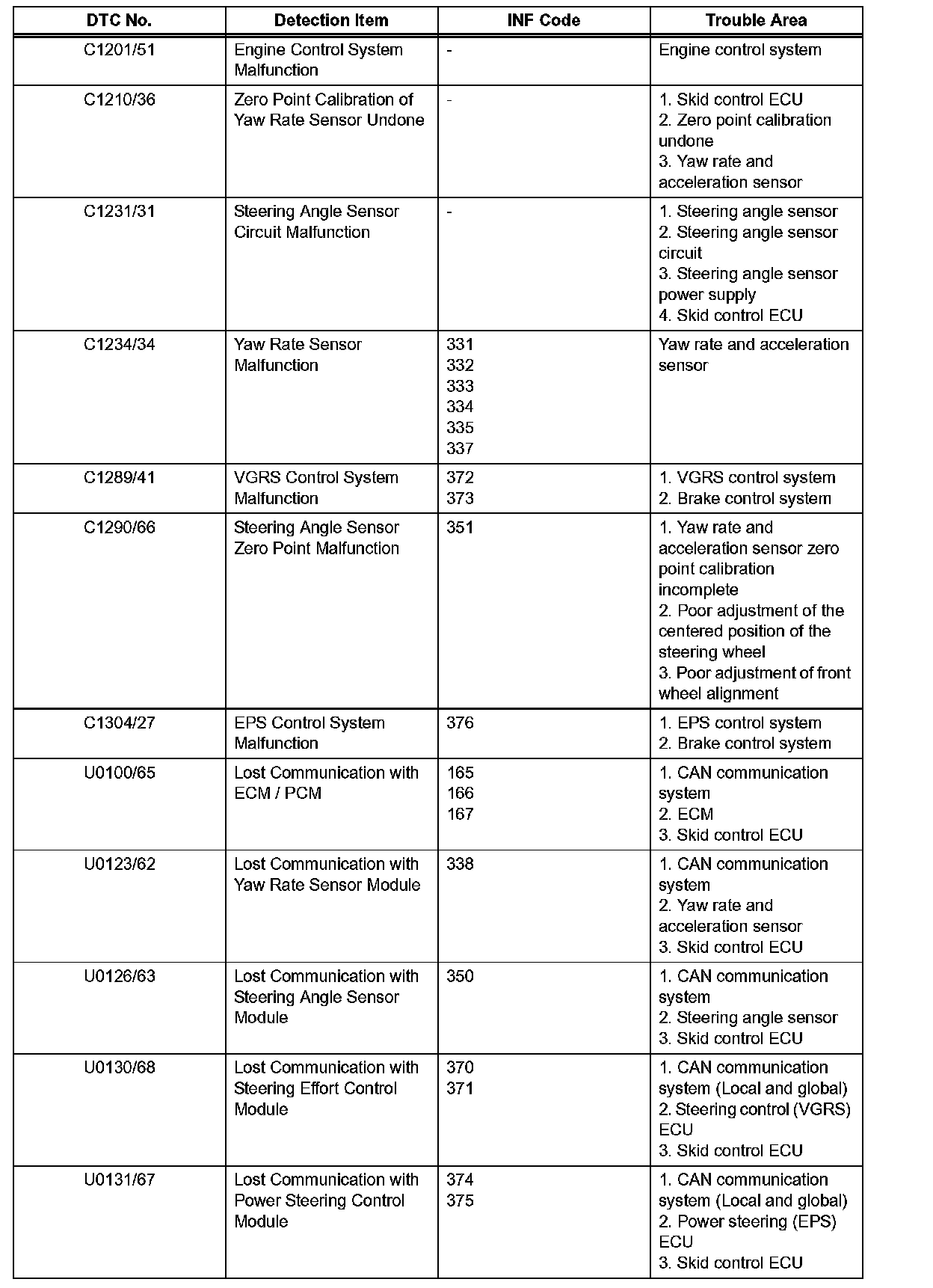

DTC chart of VSC: C1201/51-U0131/67:

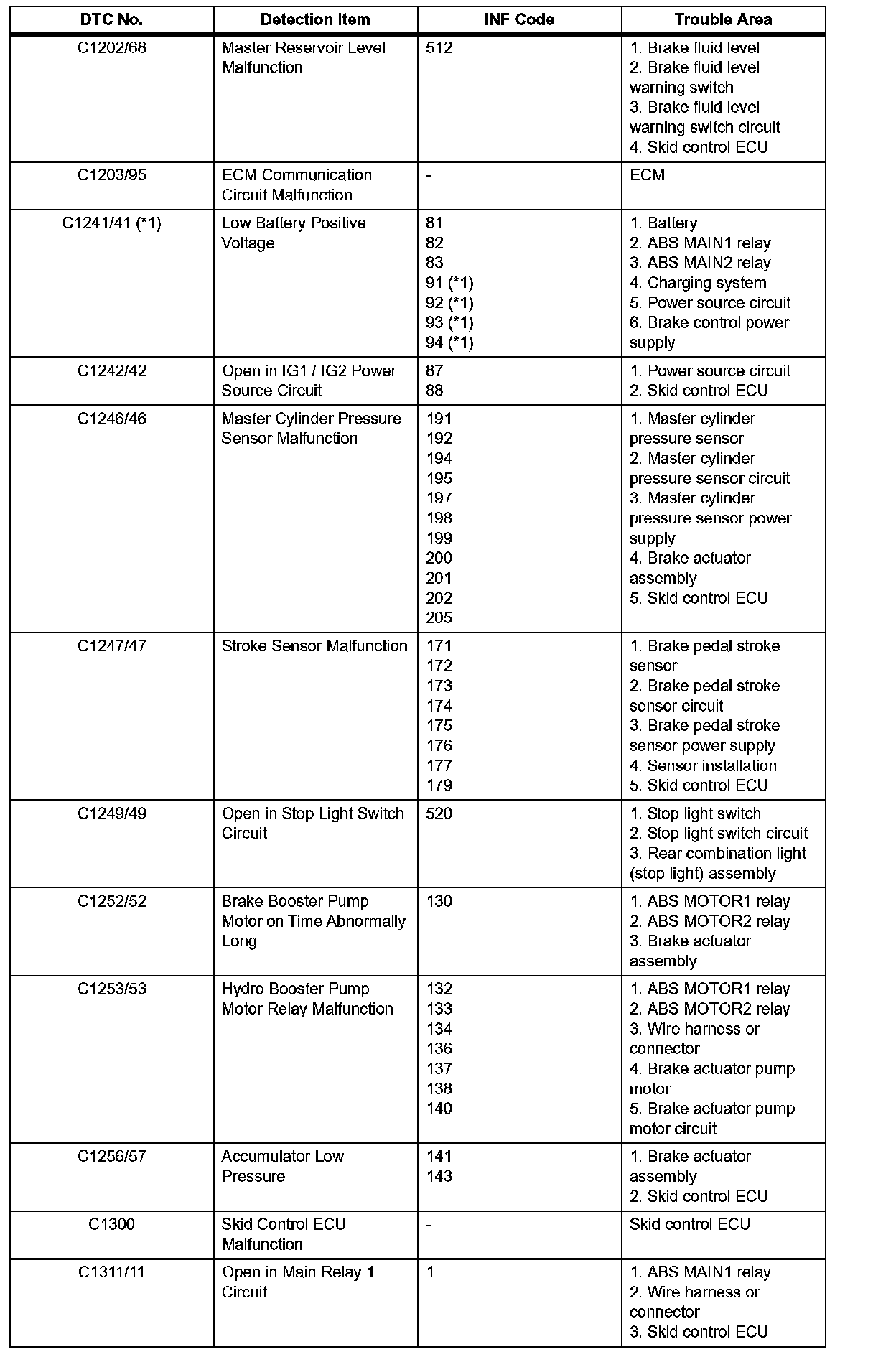

DTC chart of ECB: C1202/68-C1311/11:

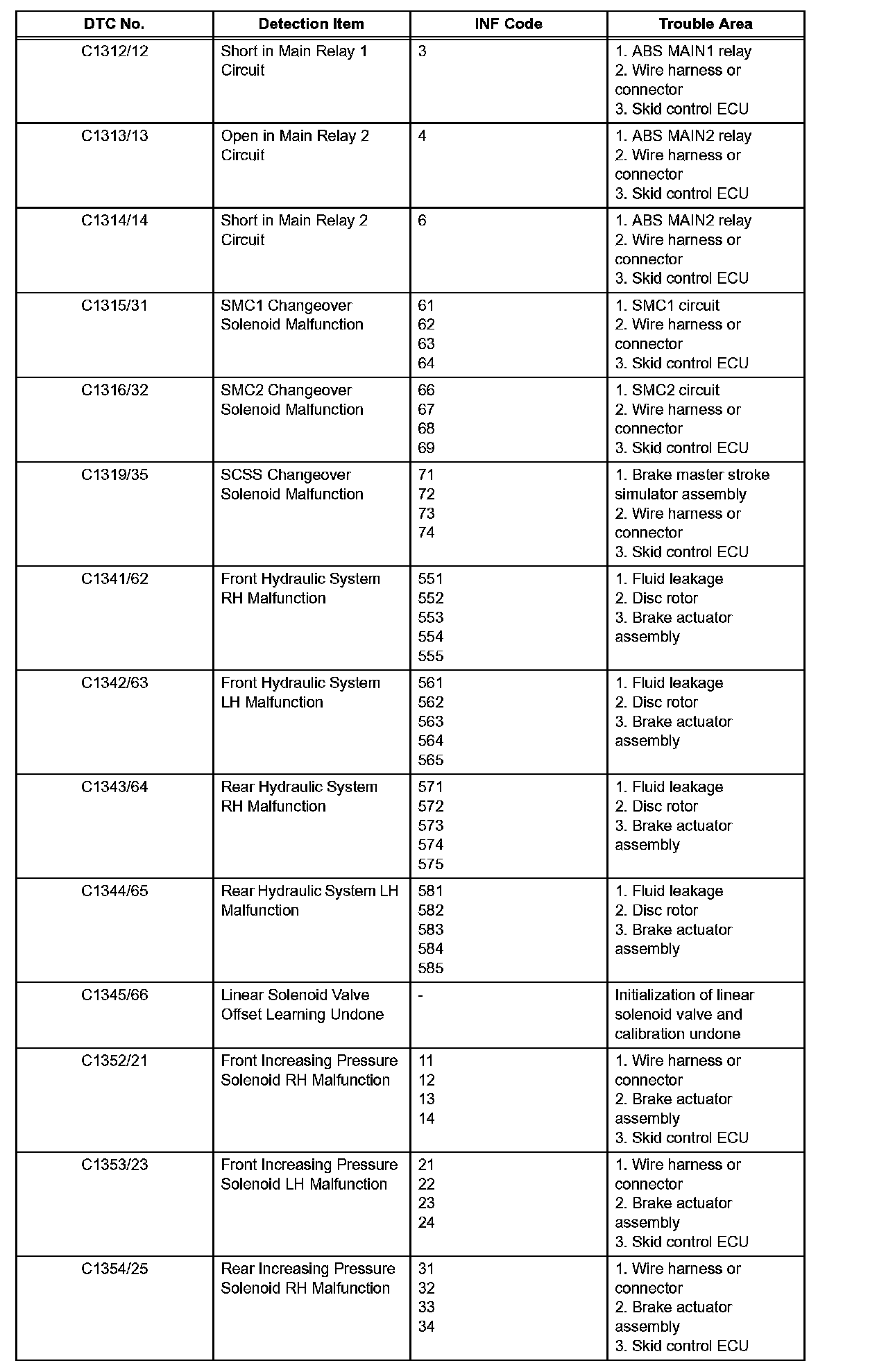

DTC chart of ECB: C1312/12-C1354/25:

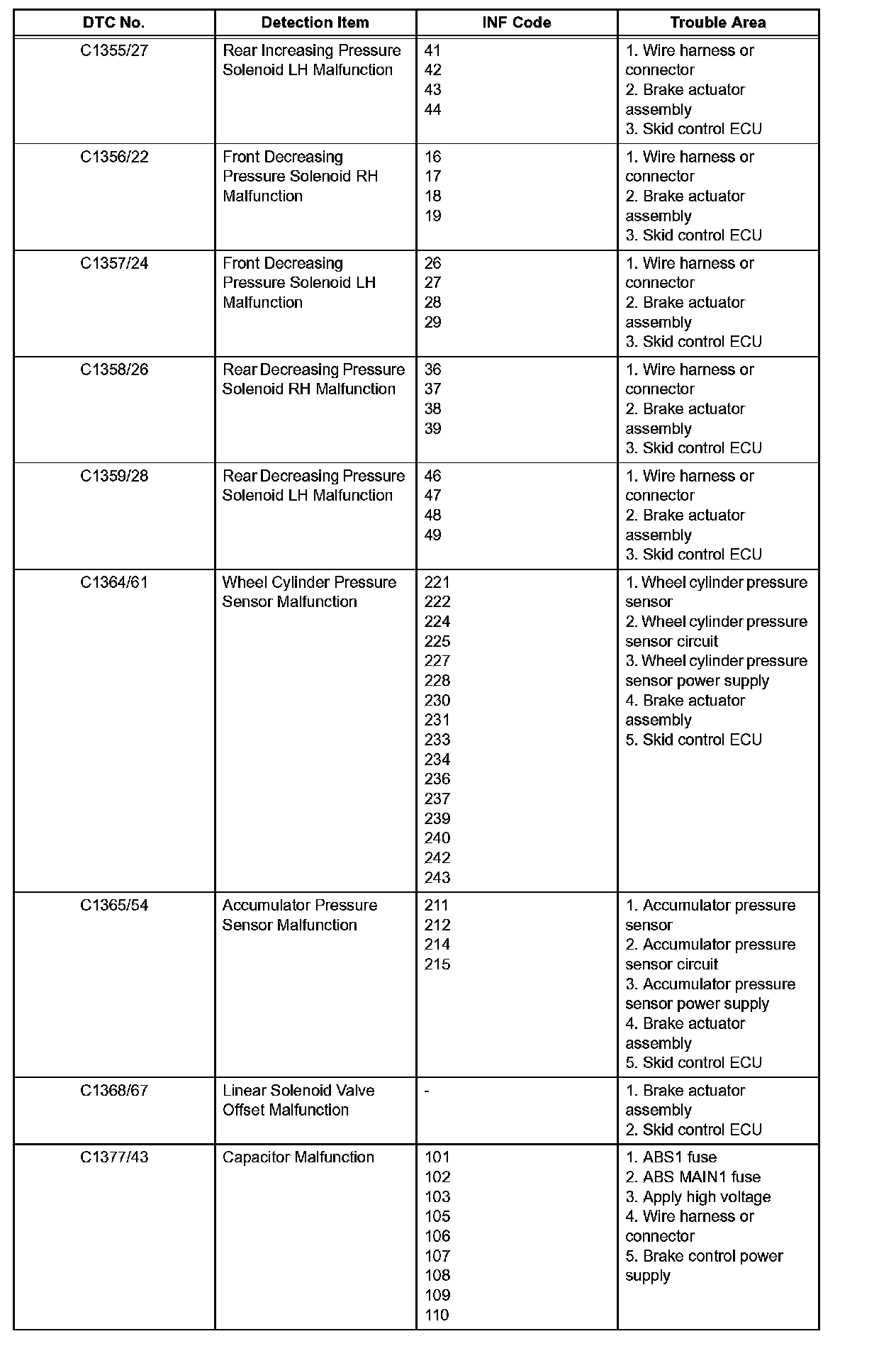

DTC chart of ECB:C1355/27-C1377/43:

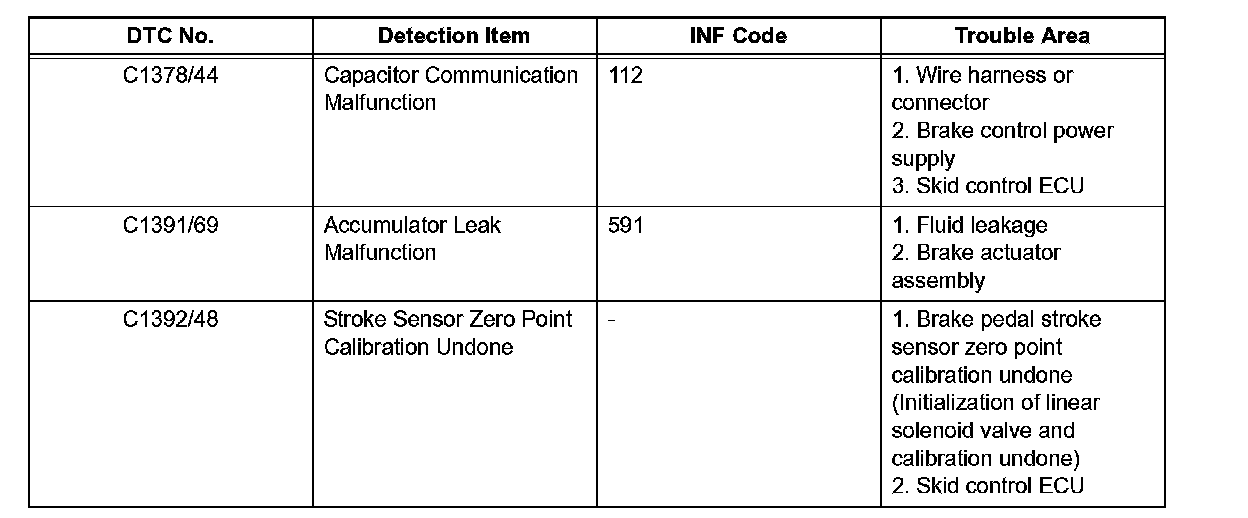

DTC chart of ECB:C1378/44-C1392/48:

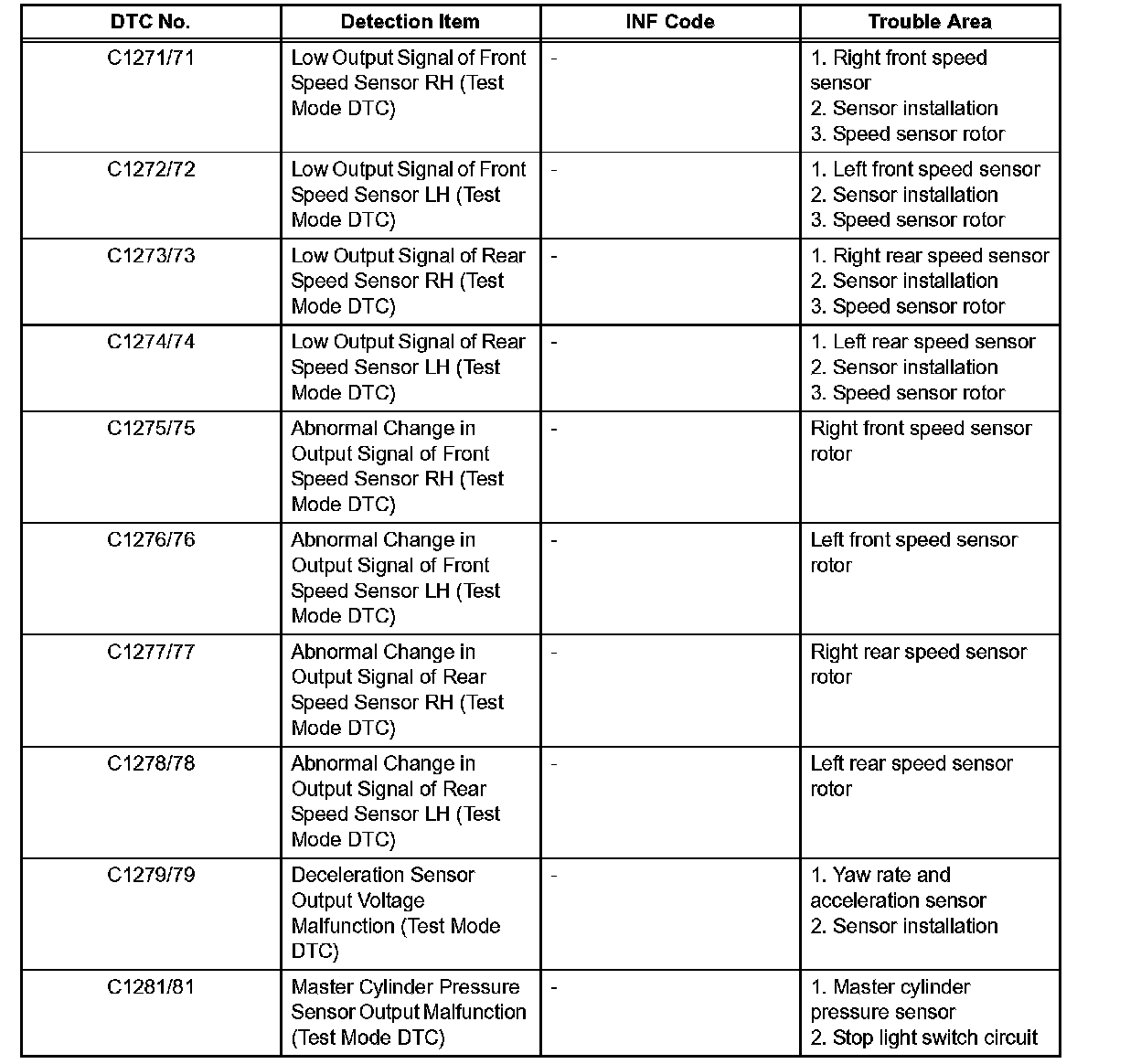

Test mode DTC of ABS: C1271/71-C1281/81:

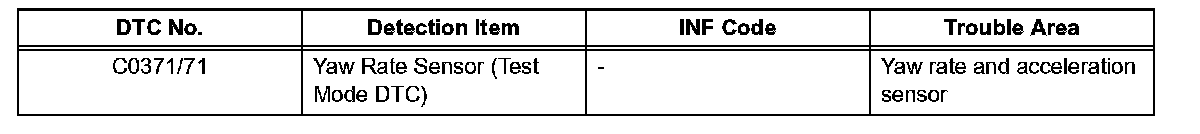

Test mode DTC of VSC: C0371/71:

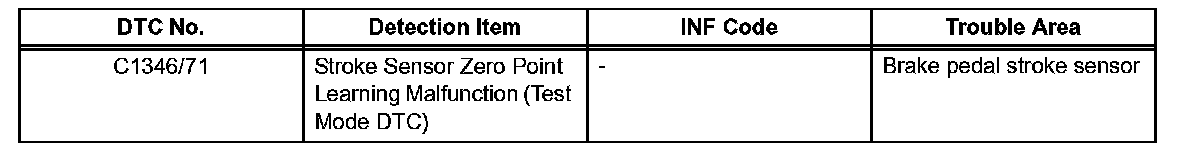

Test mode DTC of ECB: C1346/71:
