C2172

DTC C2171/71 Transmitter ID not Registered in Main Mode
DTC C2172/72 Transmitter ID not Registered in 2nd Mode

DESCRIPTION

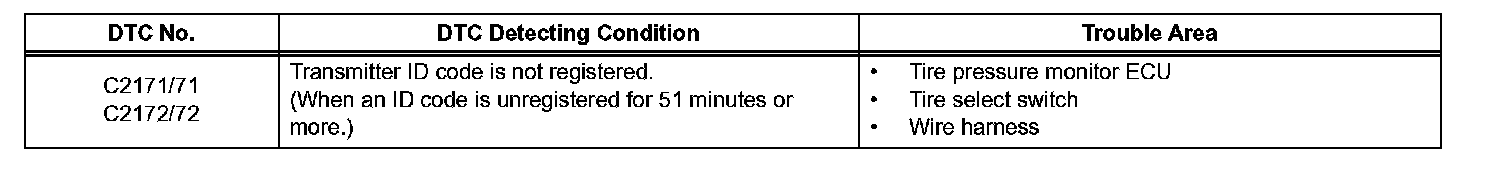

DTC DETECTION CONDITION:

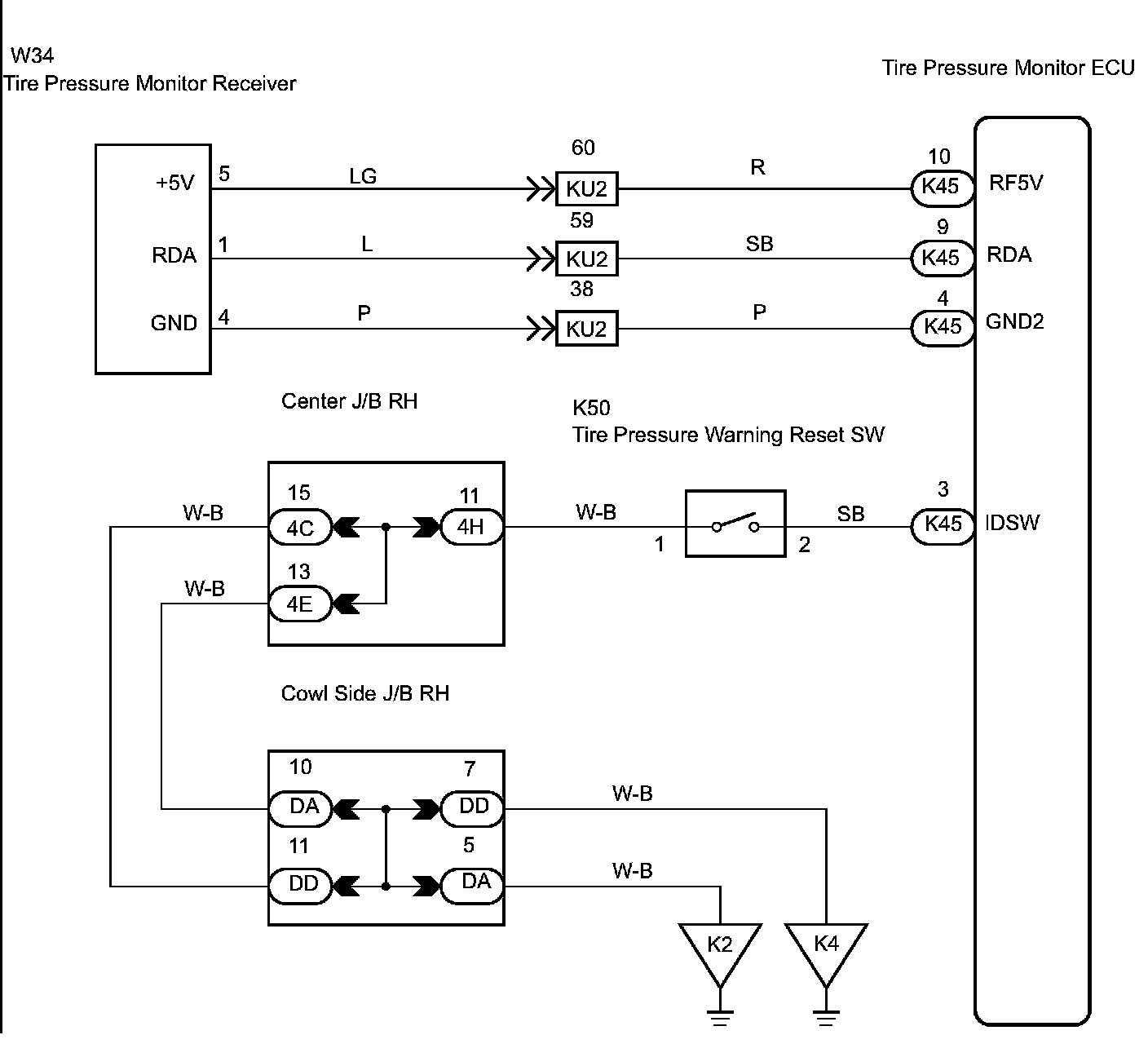

WIRING DIAGRAM:

NOTICE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or the tire pressure monitor ECU.

HINT: Set the tire pressure to the specified value.

INSPECTION PROCEDURE

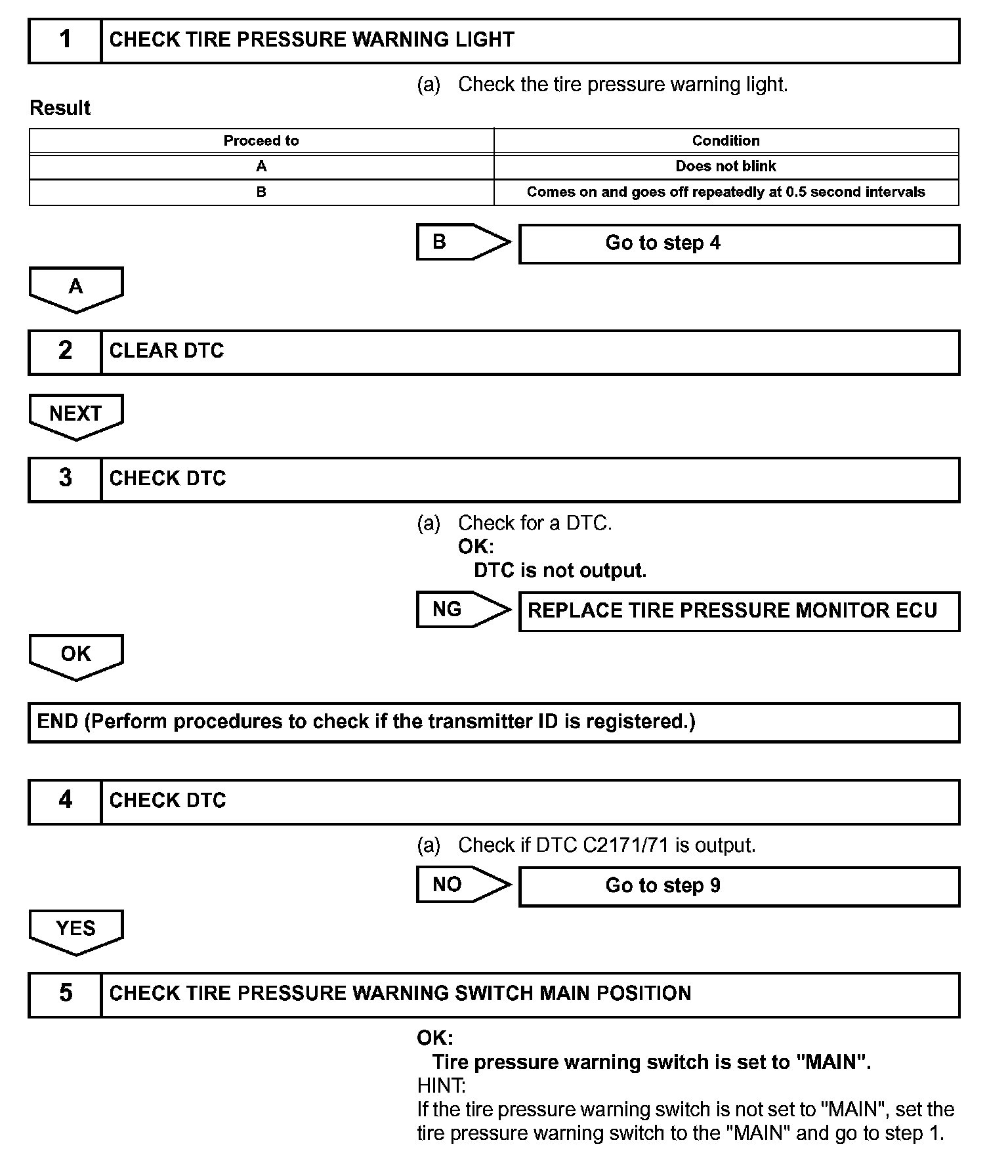

Steps 1-5:

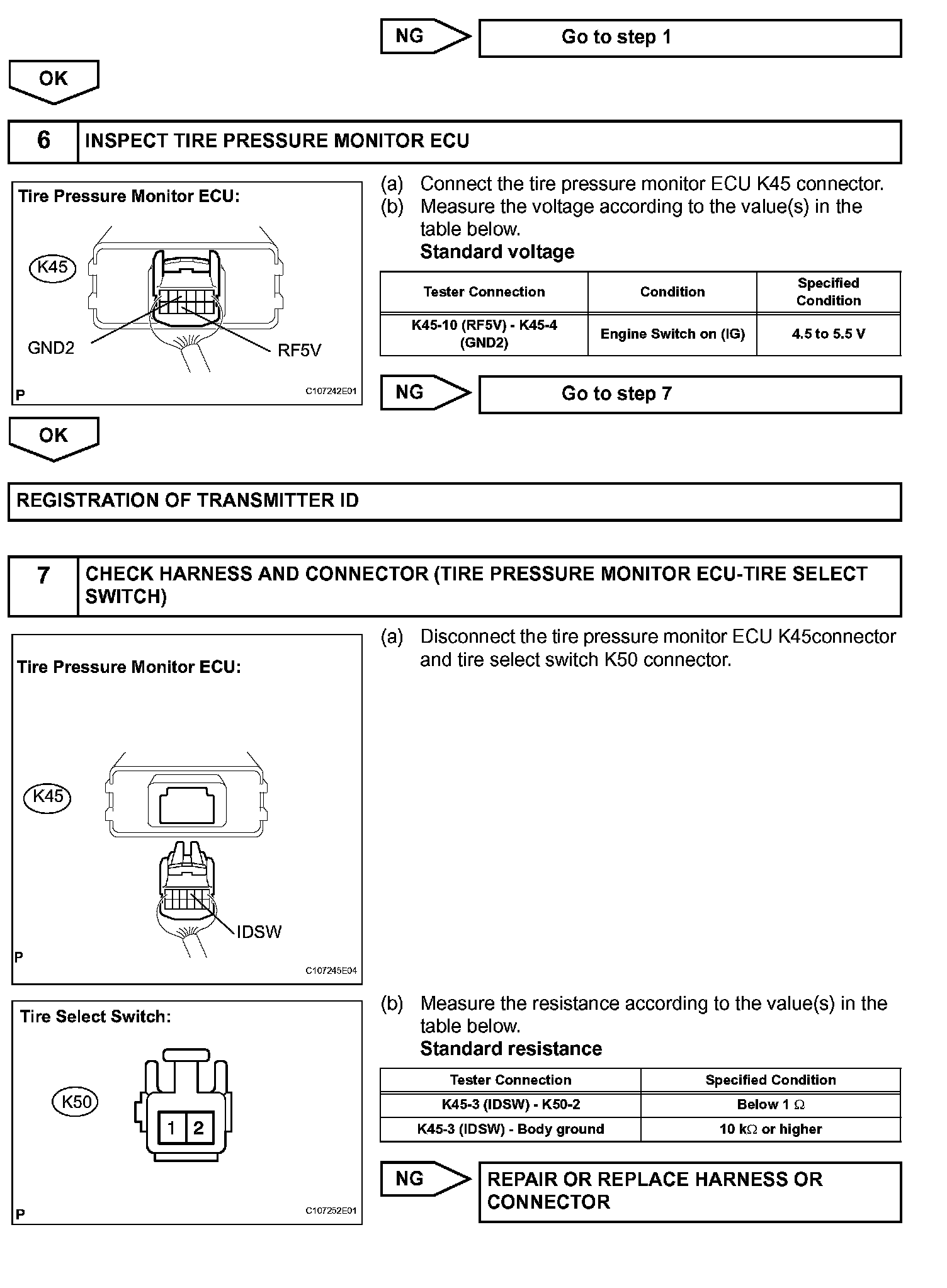

Step 5 (Continued)-7:

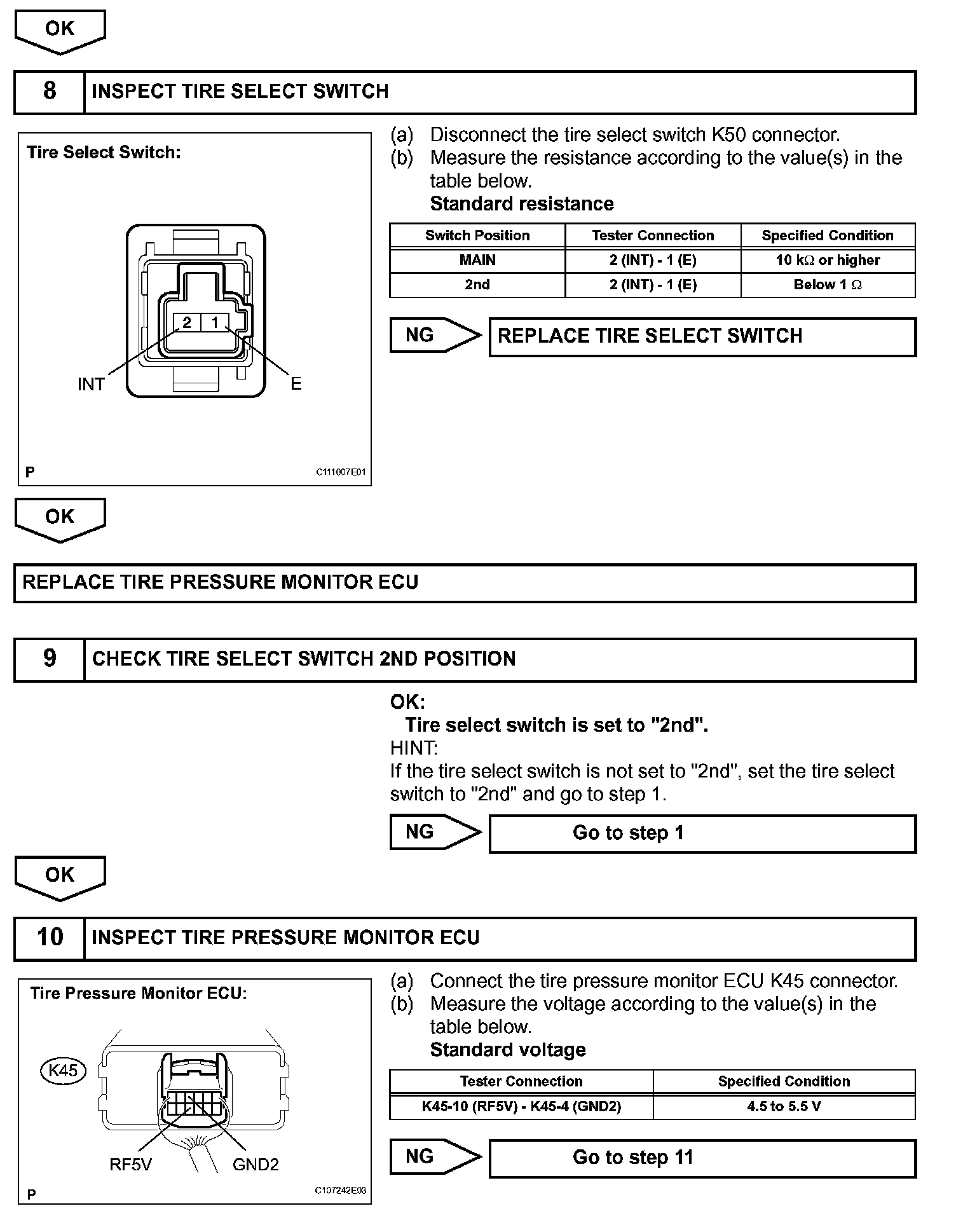

Steps 8-10:

Step 10 (Continued)-11:

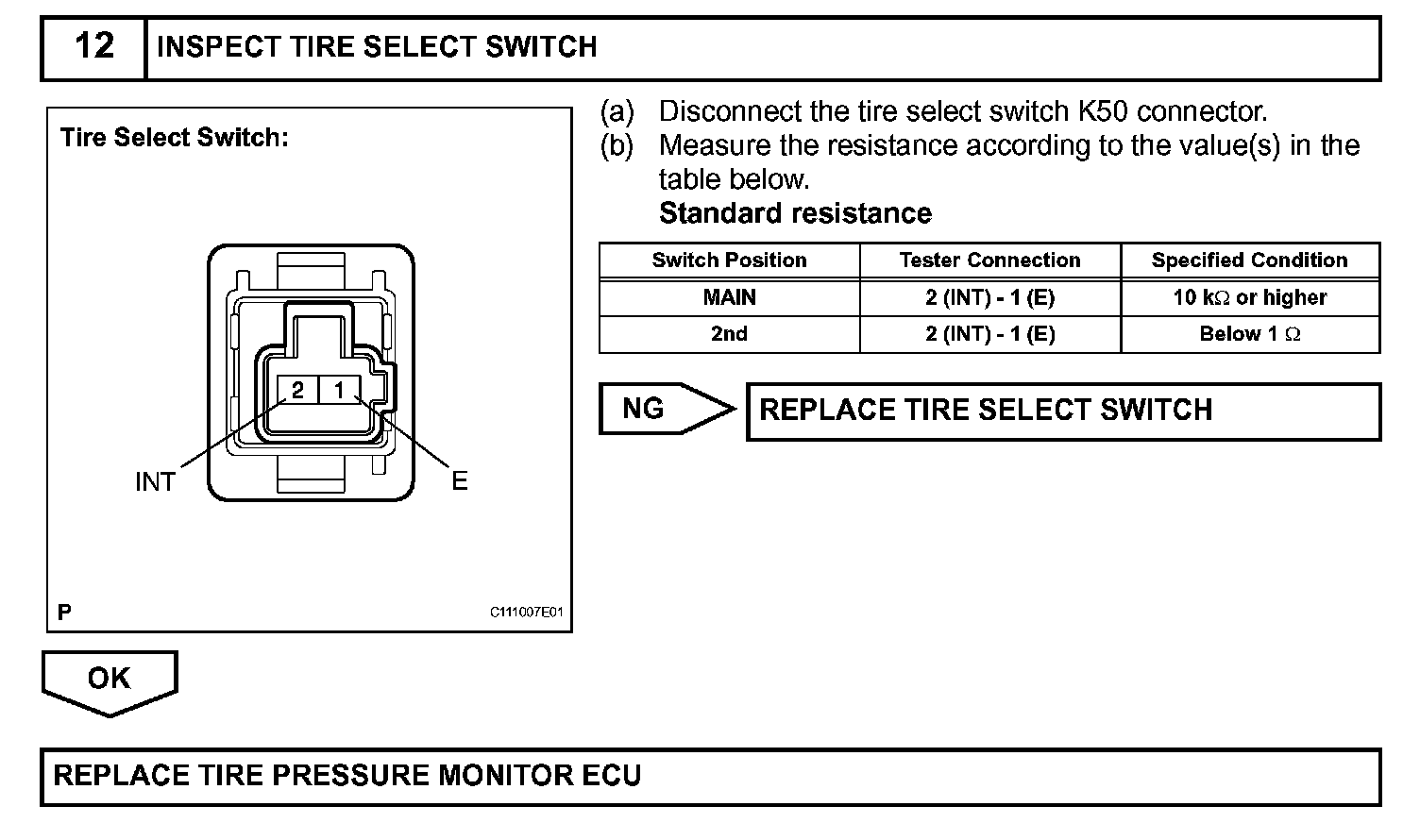

Step 12:
