DTC C1787 EMS Switch Circuit (Test Mode DTC)

DESCRIPTION
^ The absorber control switch (EMS Switch) is a switch which selects the damping force mode of shock absorber.
^ The absorber control ECU reads the changes in each signal when performing the Test Mode check and outputs the DTC (C1787) if there is no change.

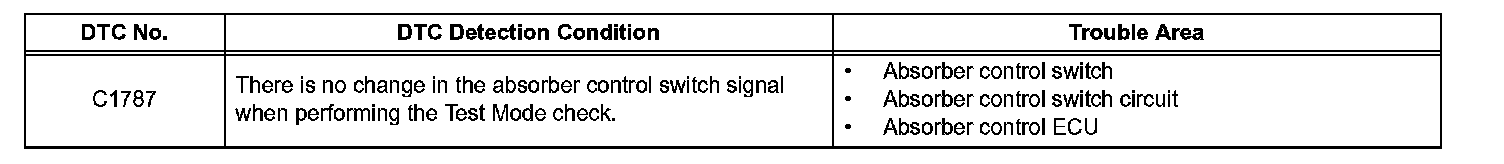

DTC DETECTION CONDITION:

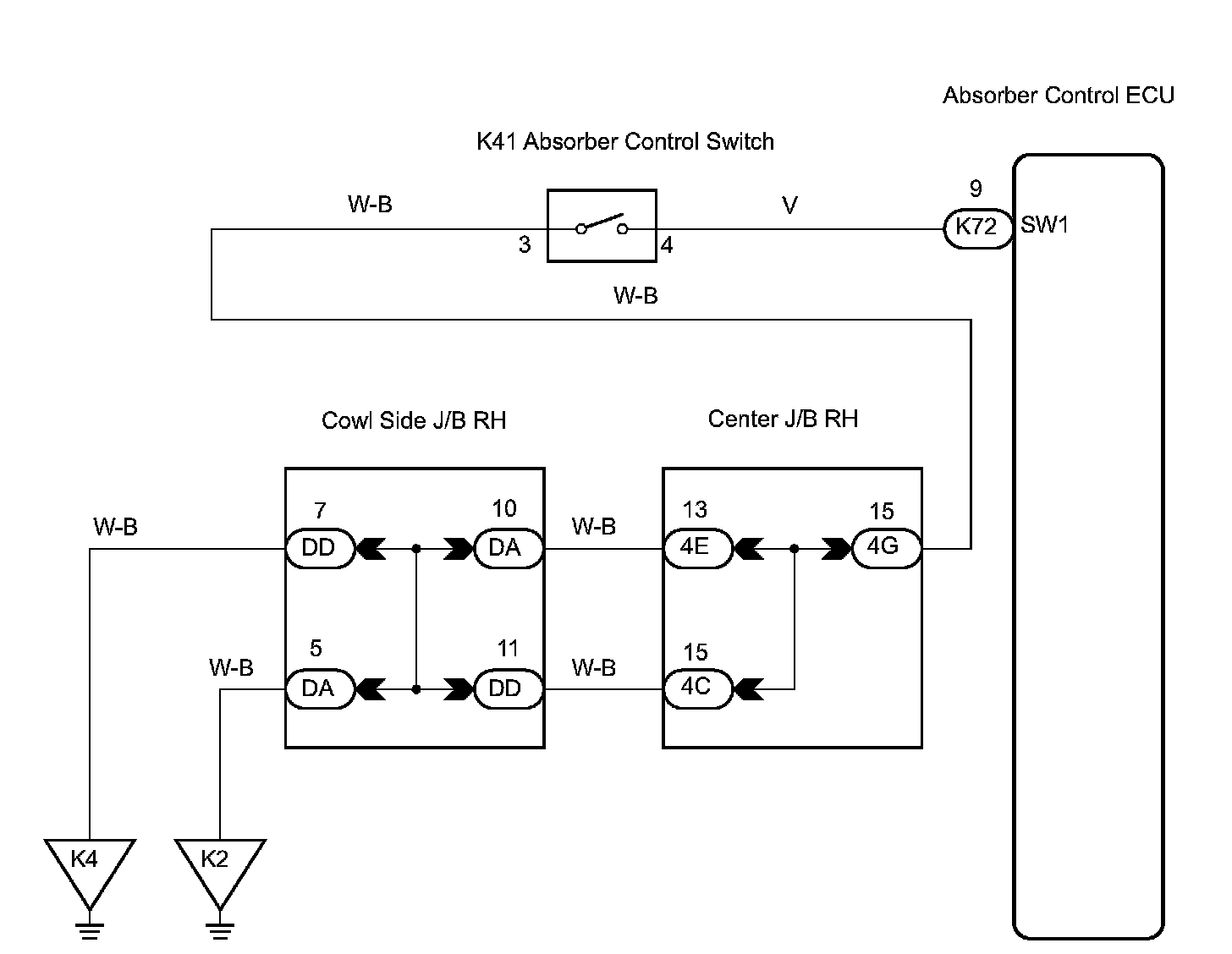

WIRING DIAGRAM:

NOTICE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT:
^ Check the condition of each related circuit connector before troubleshooting.
^ When C1774 is output, inspect and repair the trouble areas indicated by C1774 first.

INSPECTION PROCEDURE

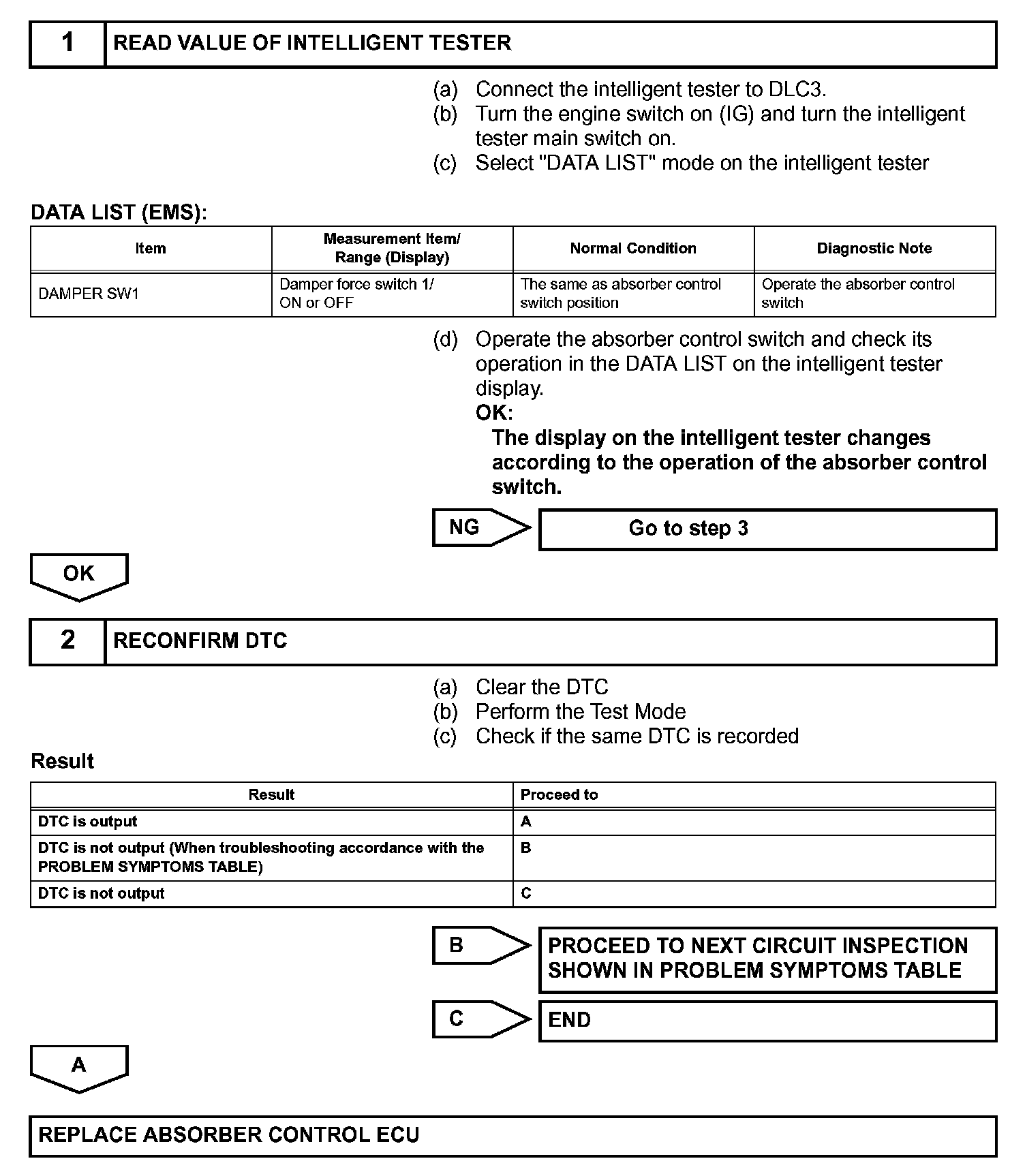

Steps 1-2:

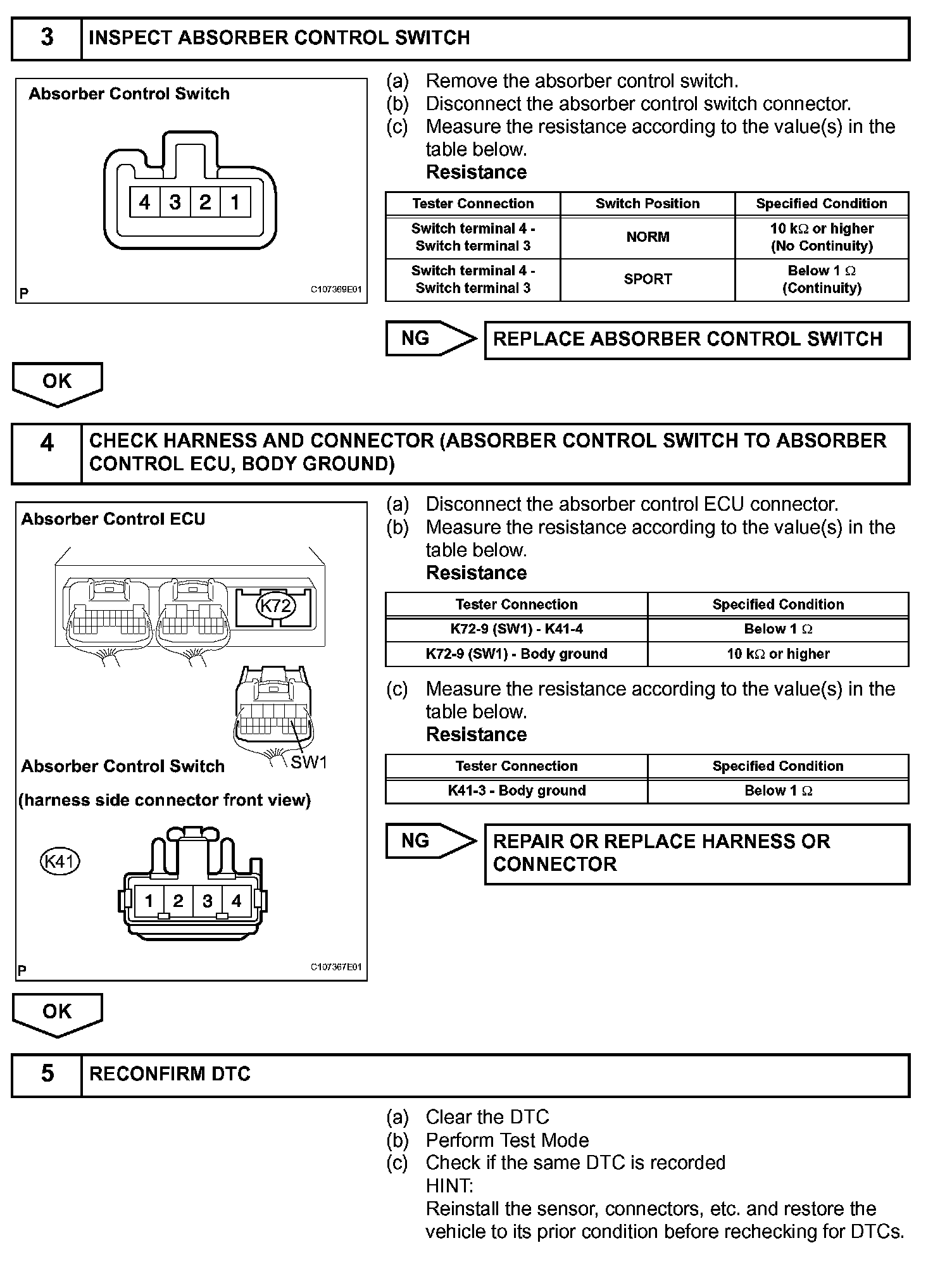

Steps 3-5:

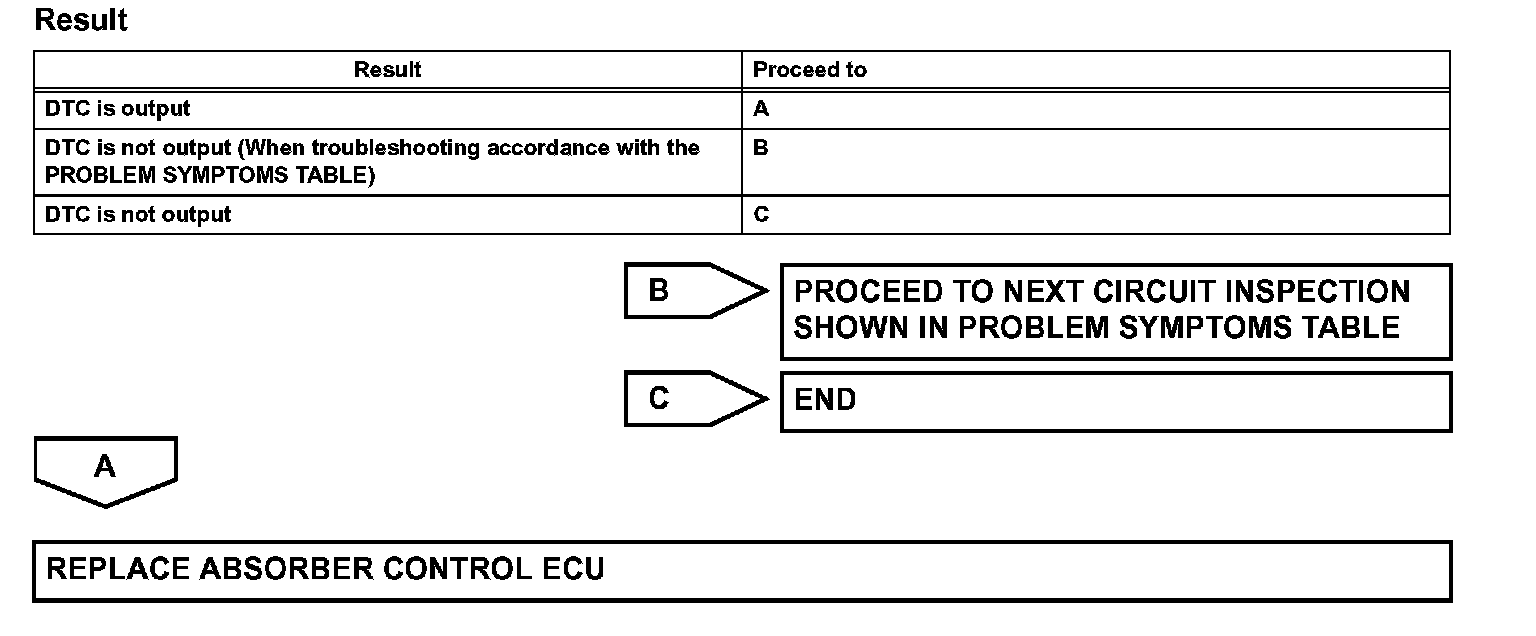

Step 5 (Continued):
