C1777

DTC C1777 Steering Angle Sensor Circuit

DESCRIPTION
^ The steering angle sensor detects the amount and direction of steering wheel movement and inputs these details to the absorber control ECU via CAN communication.
^ The fail-safe function prohibits roll posture control if any malfunction occurs in the steering angle sensor circuit.

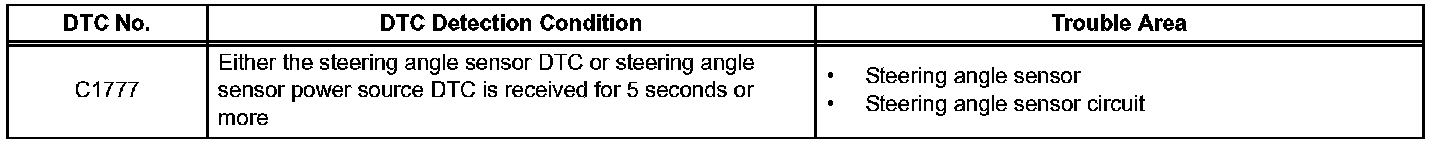

DTC DETECTION CONDITION:

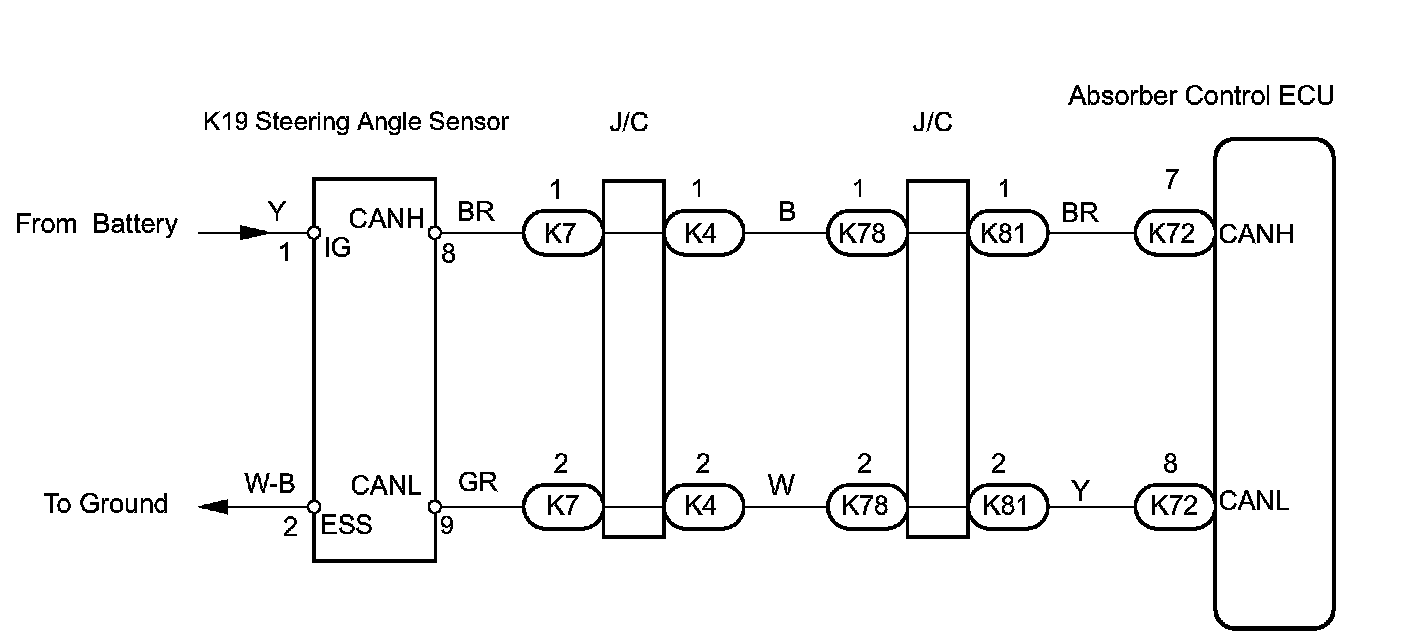

WIRING DIAGRAM:

HINT:
^ Check the condition of each related circuit connector before troubleshooting.
^ When C1774 is output, inspect and repair the trouble areas indicated by C1774 first.

INSPECTION PROCEDURE

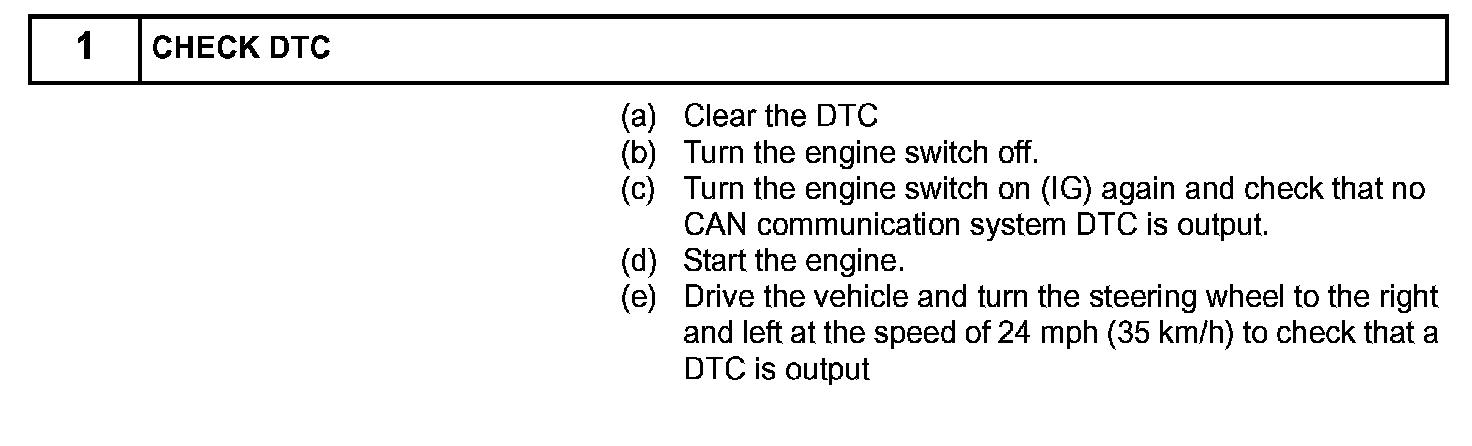

Step 1:

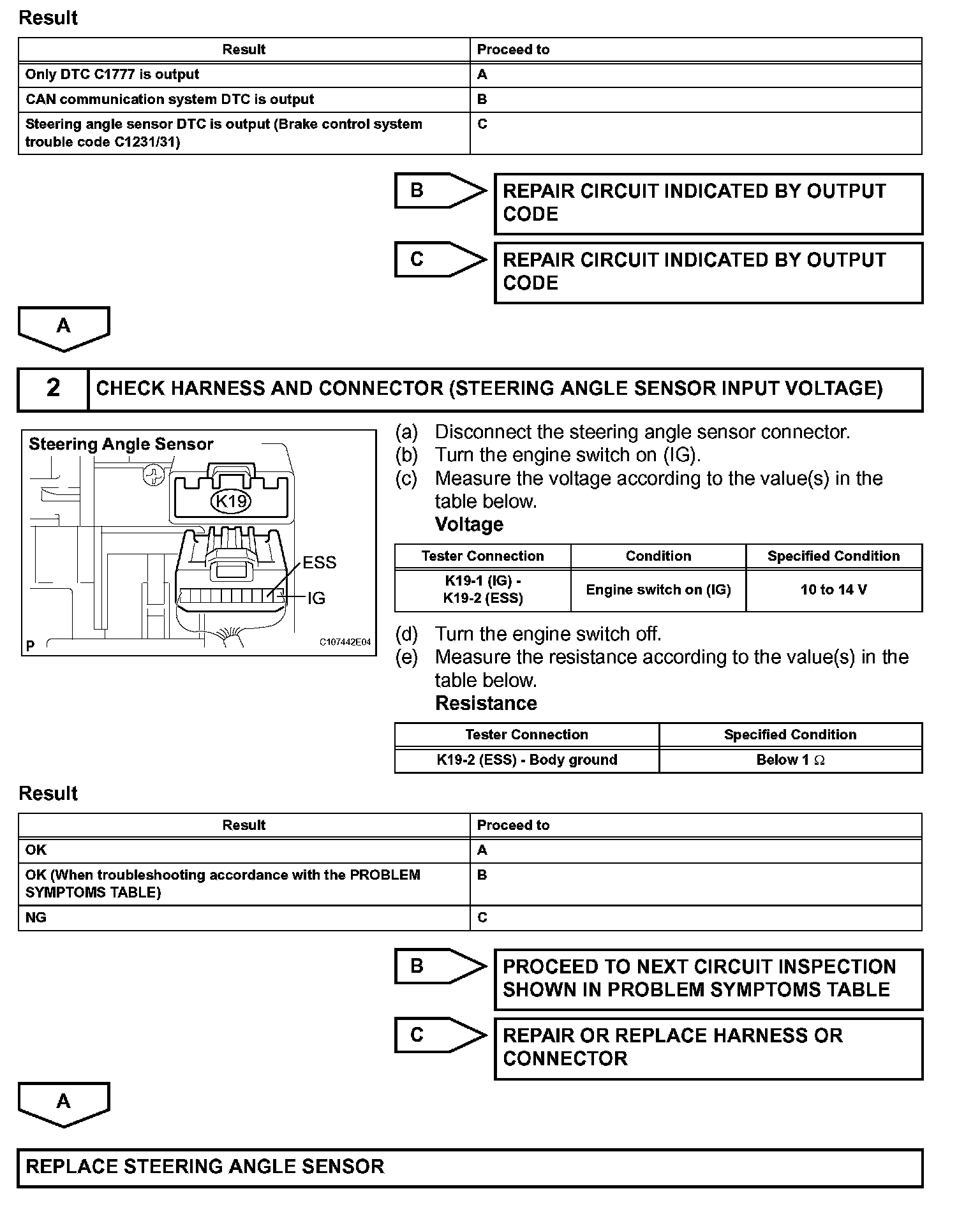

Step 1 (Continued)-2:
