C1761

DTC C1761 Suspension Control ECU Malfunction

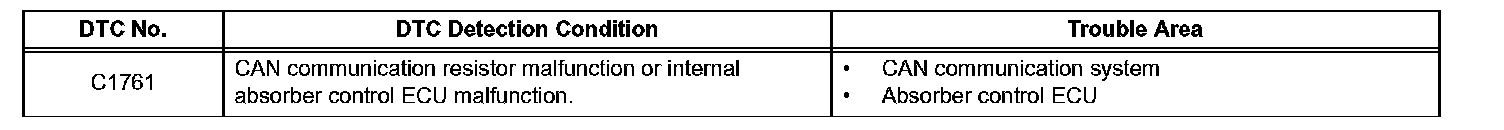

DESCRIPTION
The absorber control ECU outputs C1761 if any malfunction occurs in the absorber control ECU itself, etc.

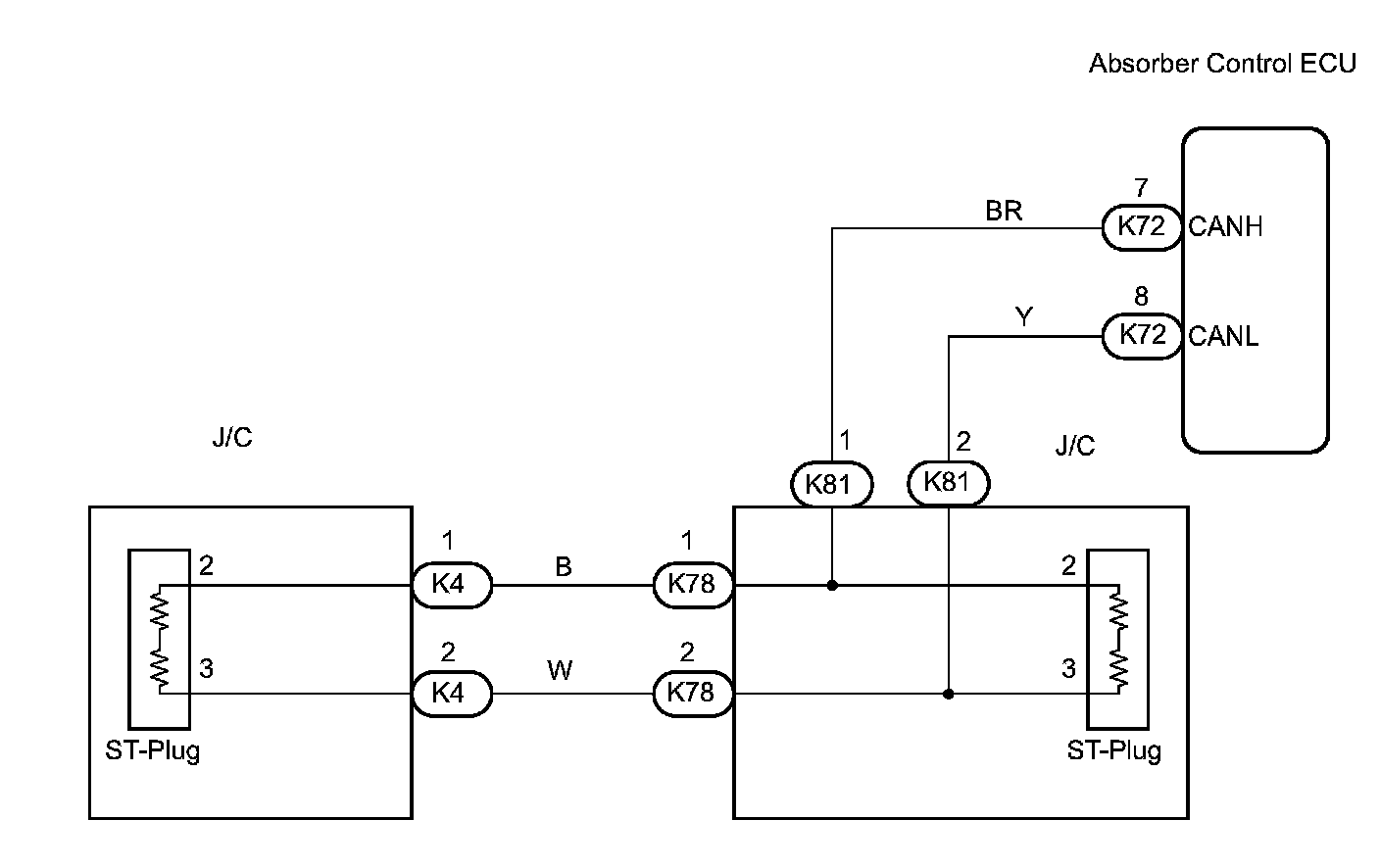

WIRING DIAGRAM:

NOTICE: When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement.

HINT:
^ Check the condition of each related circuit connector before troubleshooting.
^ When C1774 is output, inspect and repair the trouble areas indicated by C1774 first.

1INSPECTION PROCEDURE

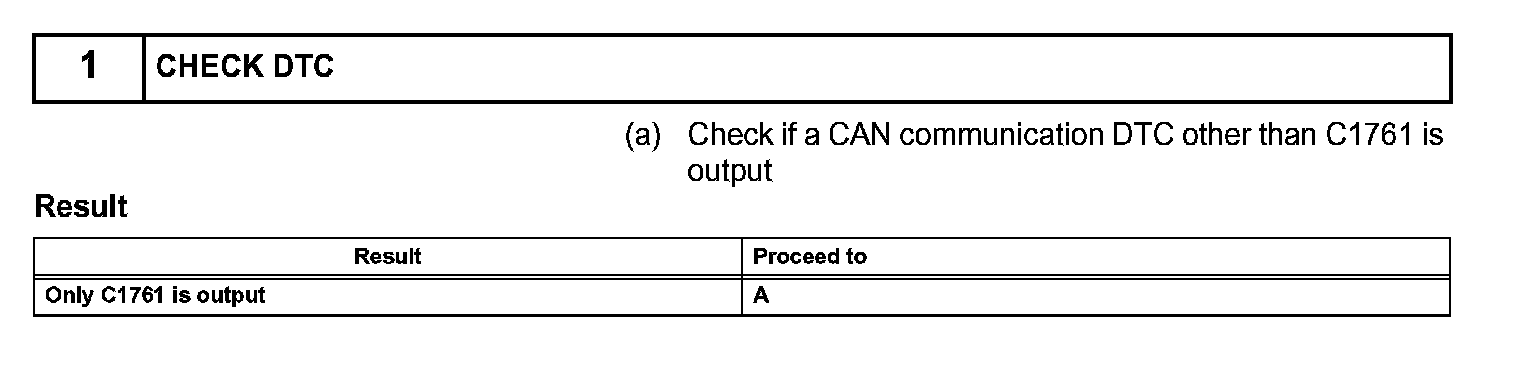

Step 1:

Step 1 (Continued):
