C1552

DTC C1552 PIG Power Supply Voltage Malfunction
DTC C1554 Power Supply Relay Failure

DESCRIPTION
This circuit supplies power to drive the power steering motor.

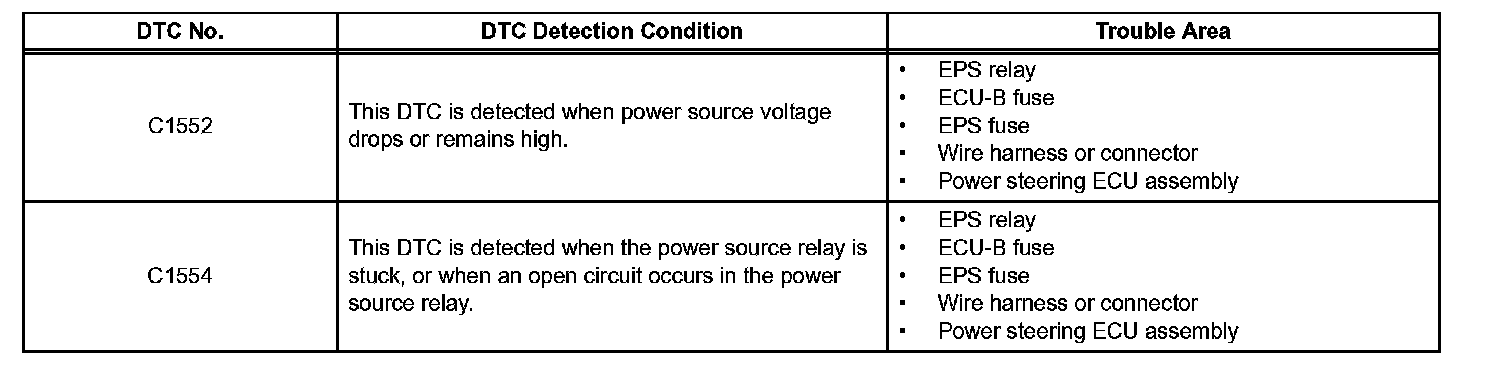

DTC DETECTION CONDITION:

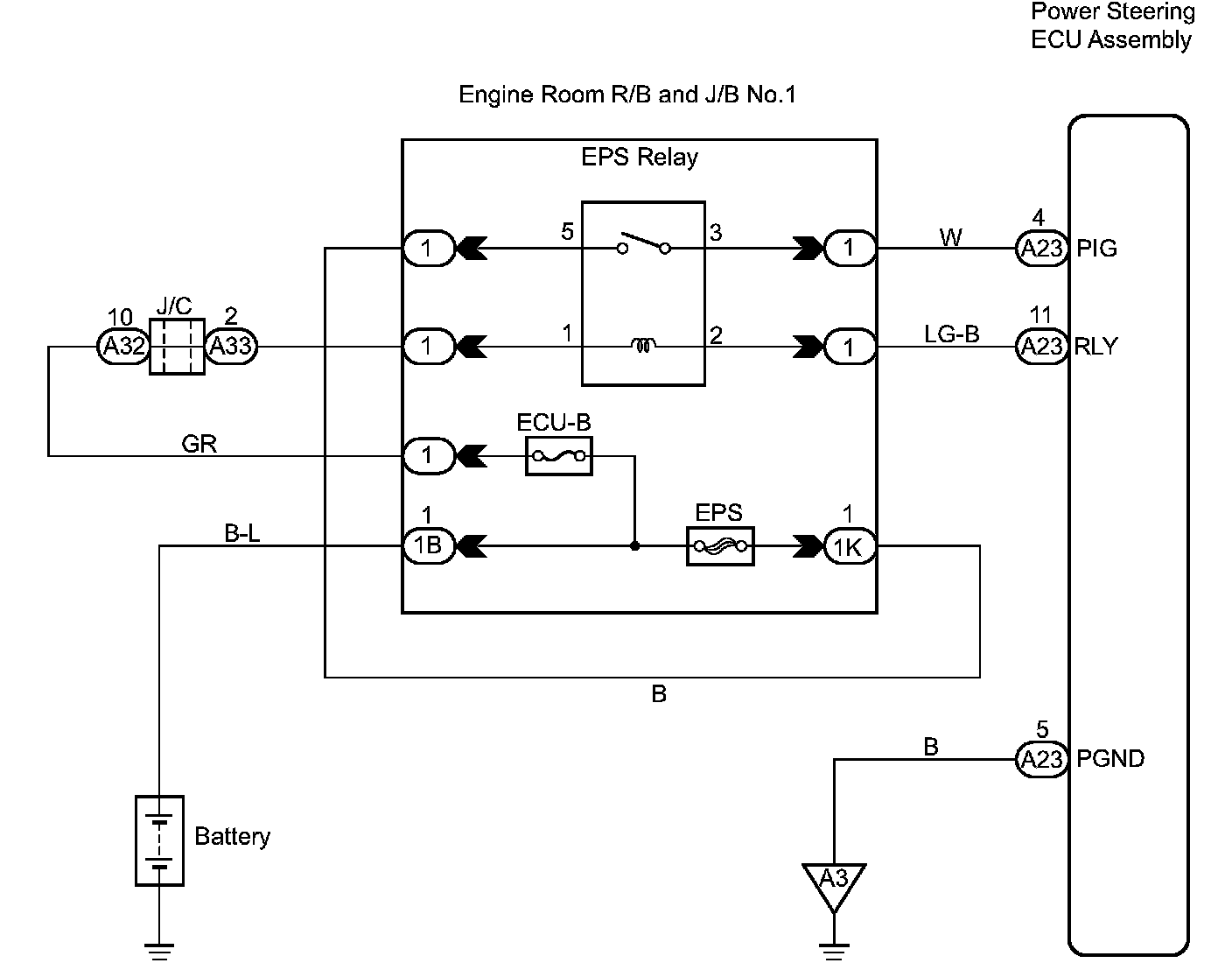

WIRING DIAGRAM:

INSPECTION PROCEDURE

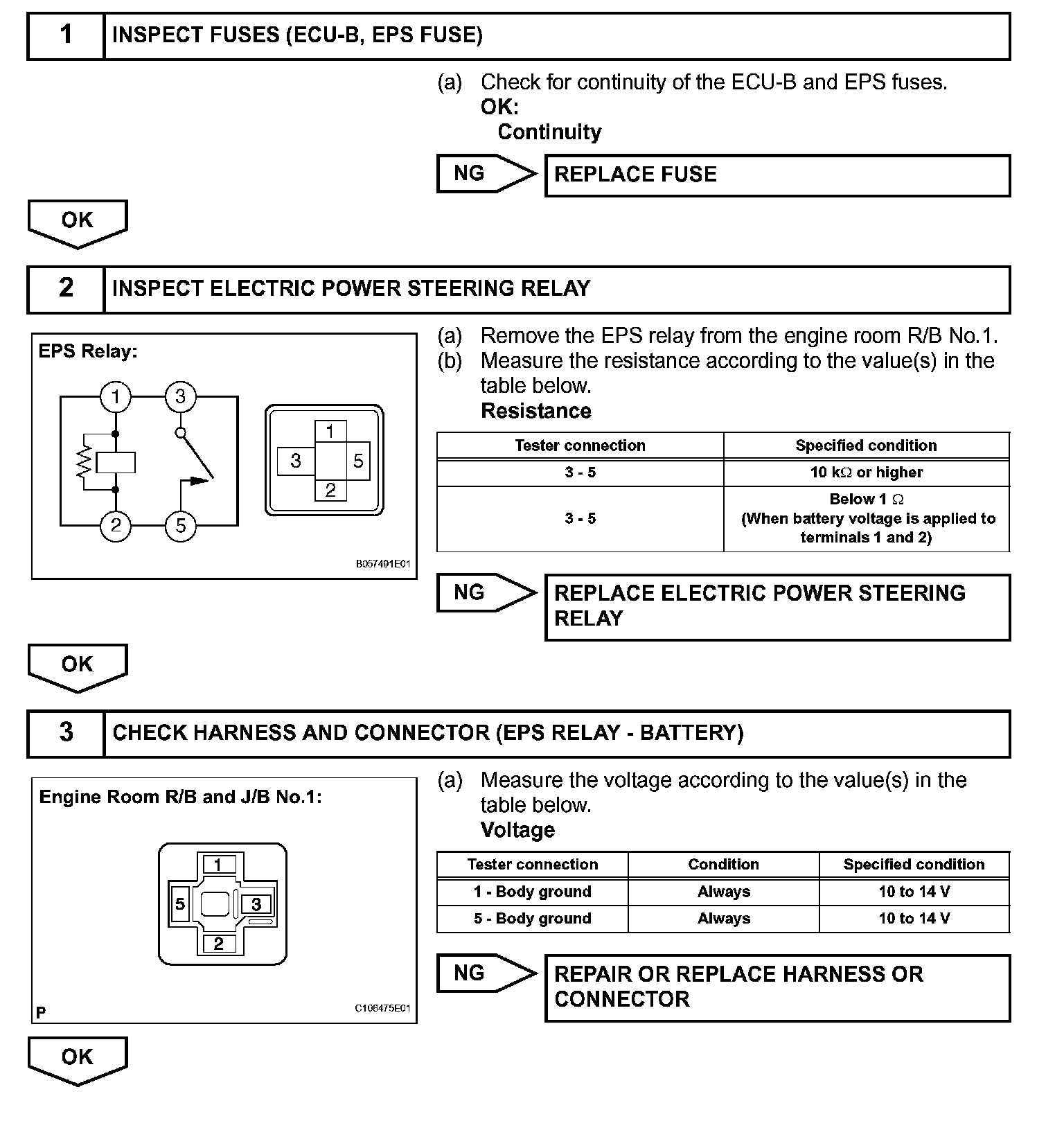

Steps 1-3:

Step 4:
