C1378

DTC C1378/44 Capacitor Communication Malfunction

DESCRIPTION
Refer to DTC C1377/43. C1377

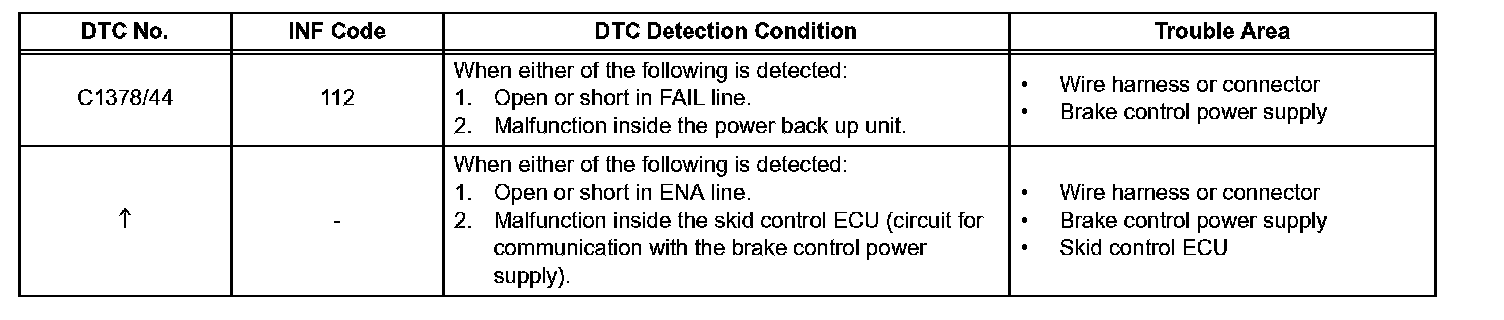

DTC Detection Condition:

WIRING DIAGRAM
Refer to DTC C1377/43. C1377

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Electronically Controlled Brake System

INSPECTION PROCEDURE

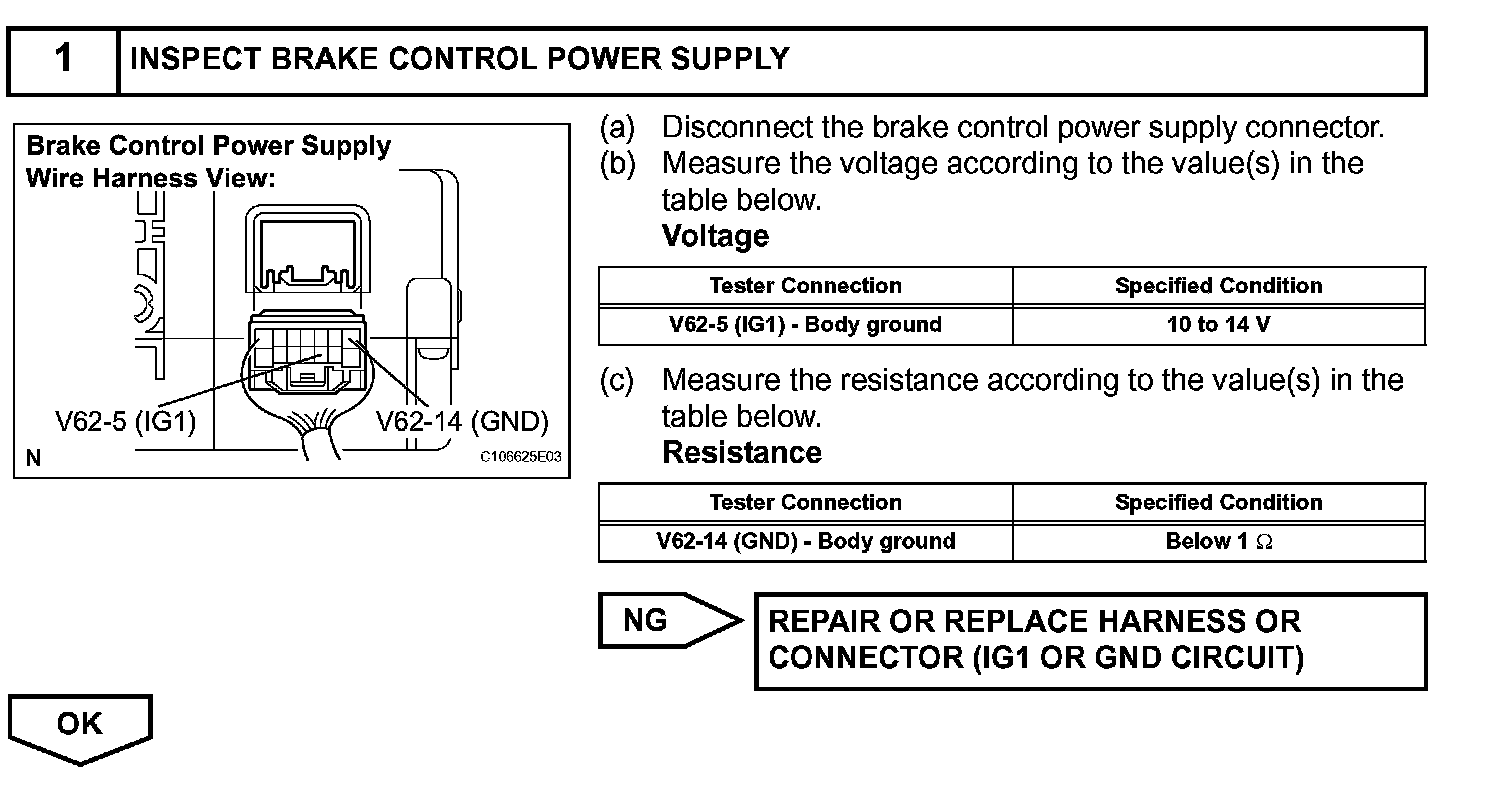

Step 1:

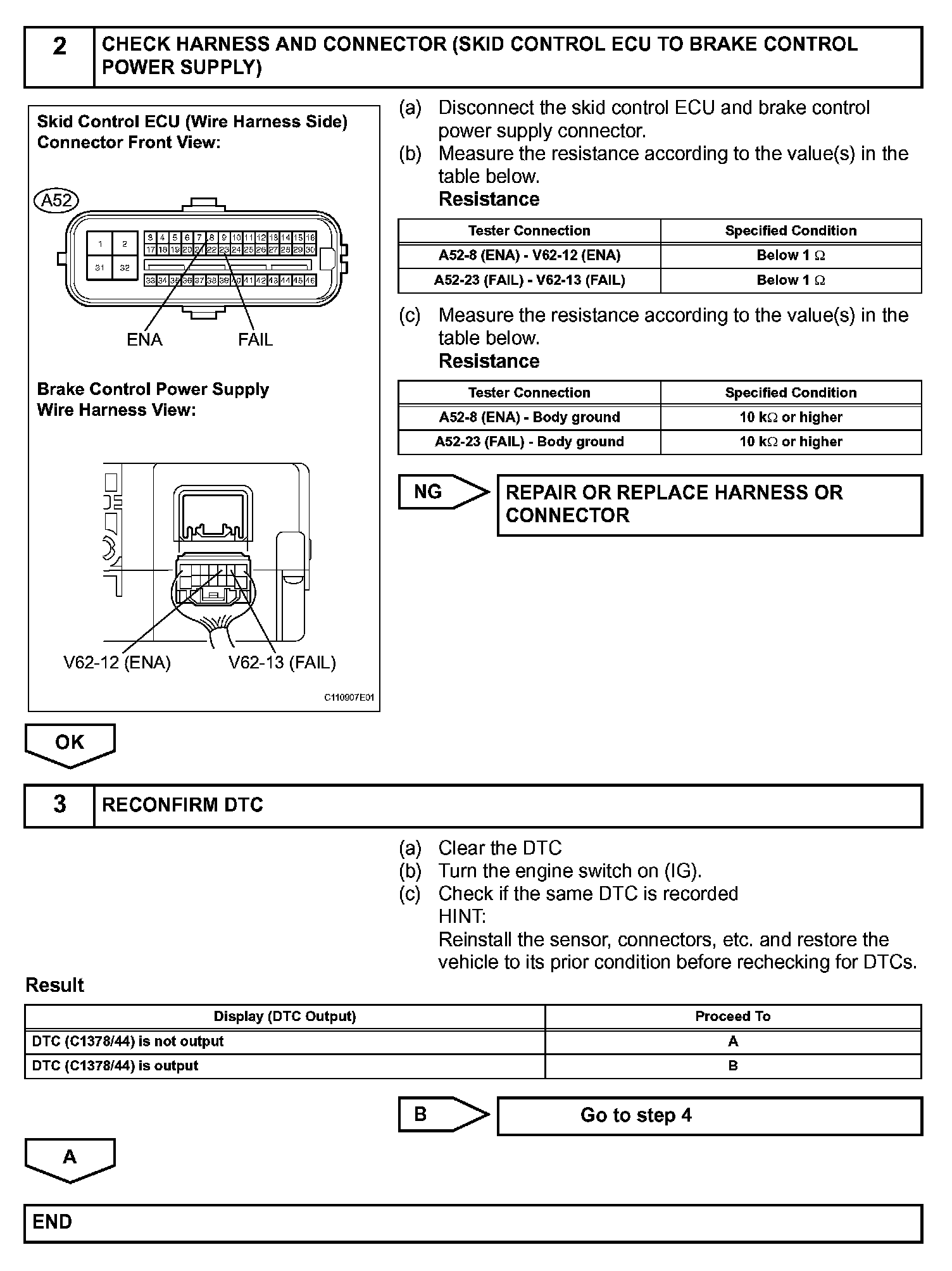

Steps 2-3:

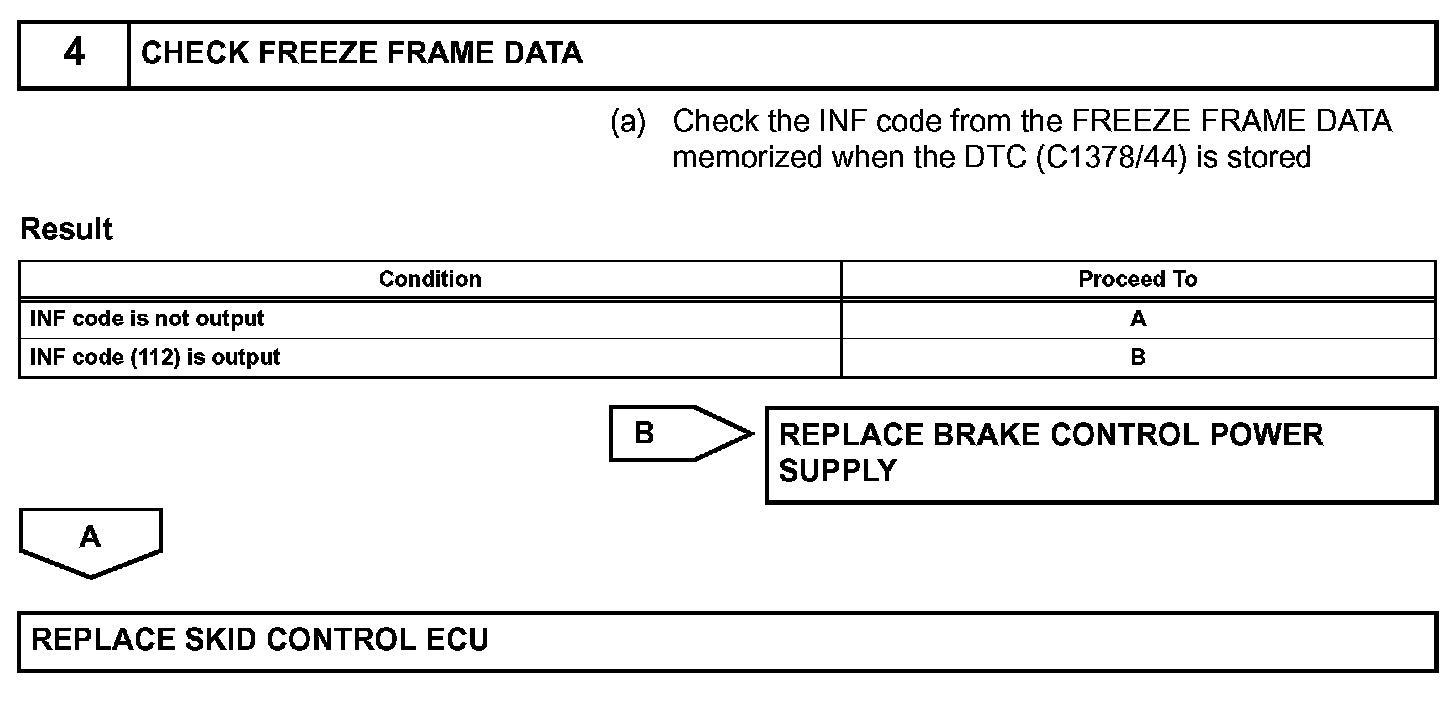

Step 4:
