C1377

DTC C1377/43 Capacitor Malfunction

DESCRIPTION
The brake control power supply assembly (capacitor) is used as auxiliary power for brake control when battery voltage is low.

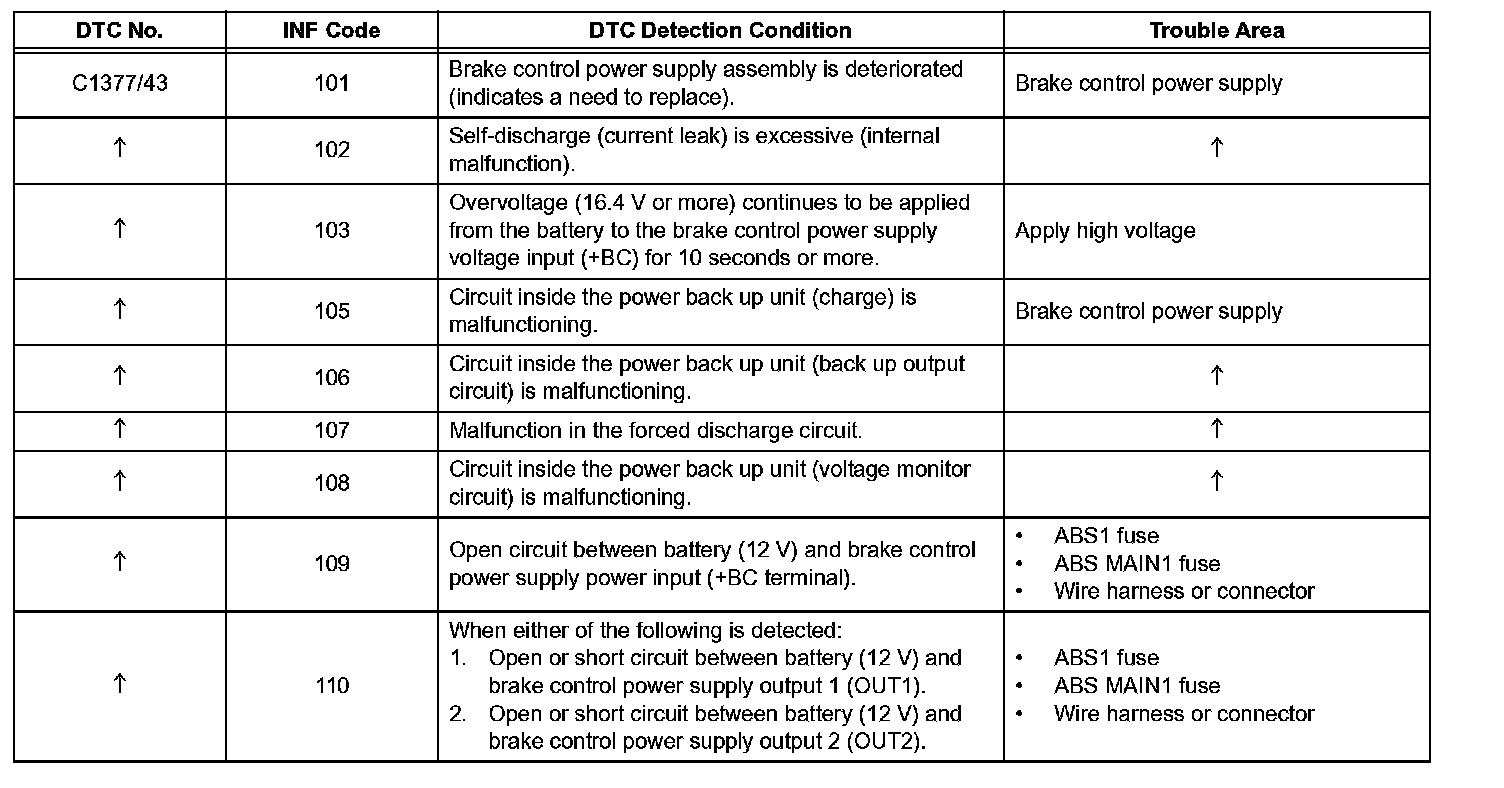

DTC Detection Condition:

Wiring Diagram:

INSPECTION PROCEDURE

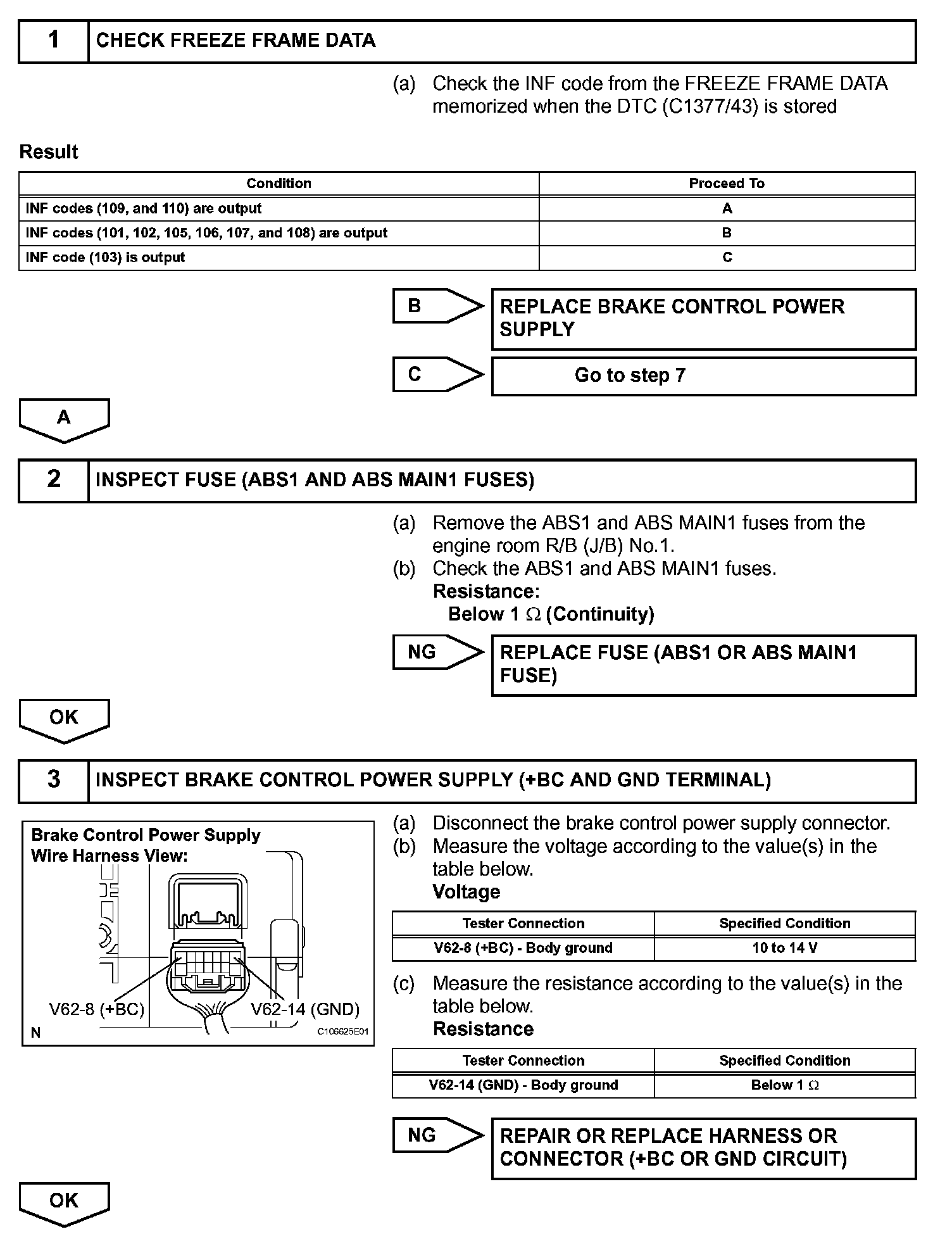

Steps 1-3:

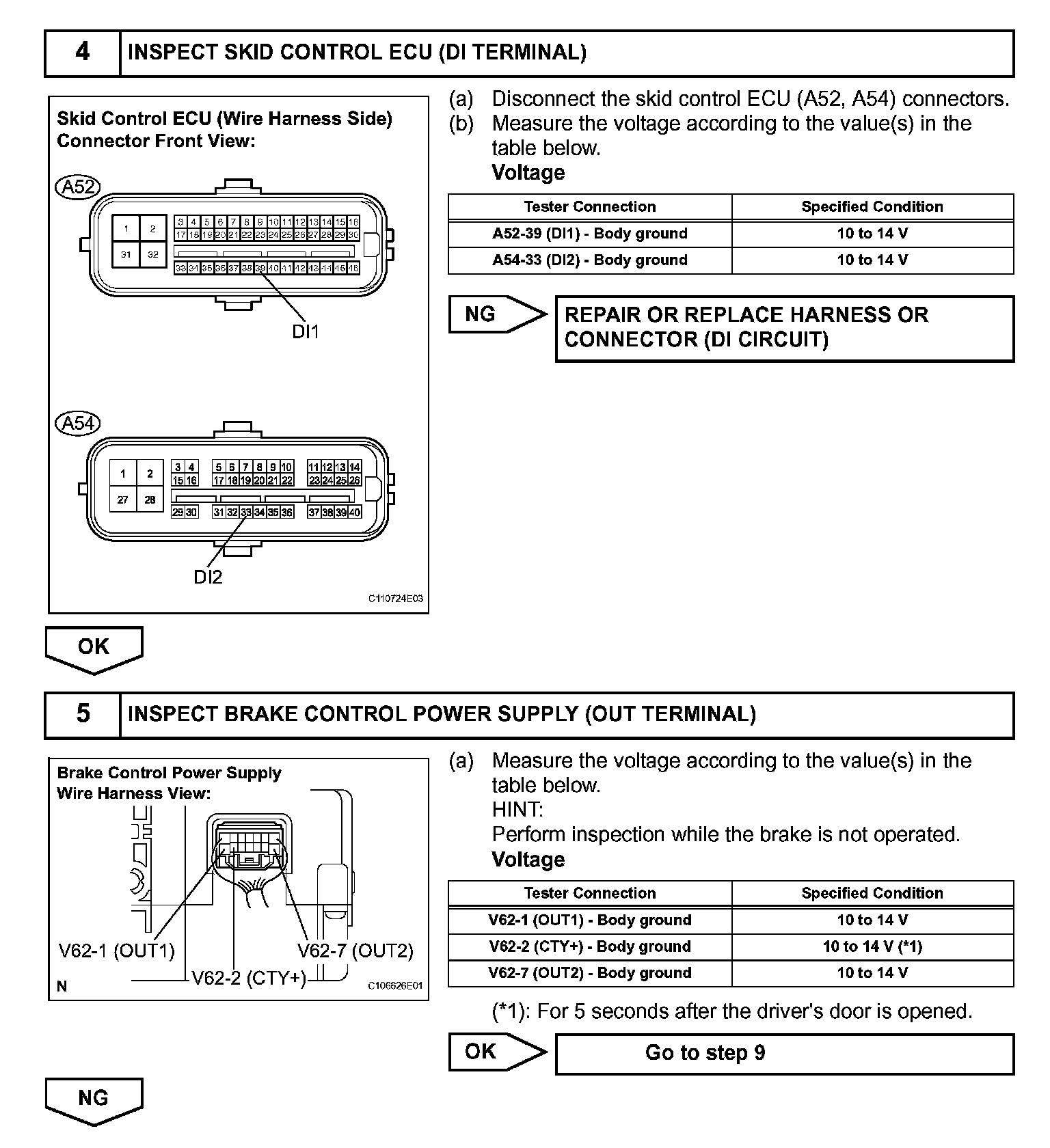

Steps 4-5:

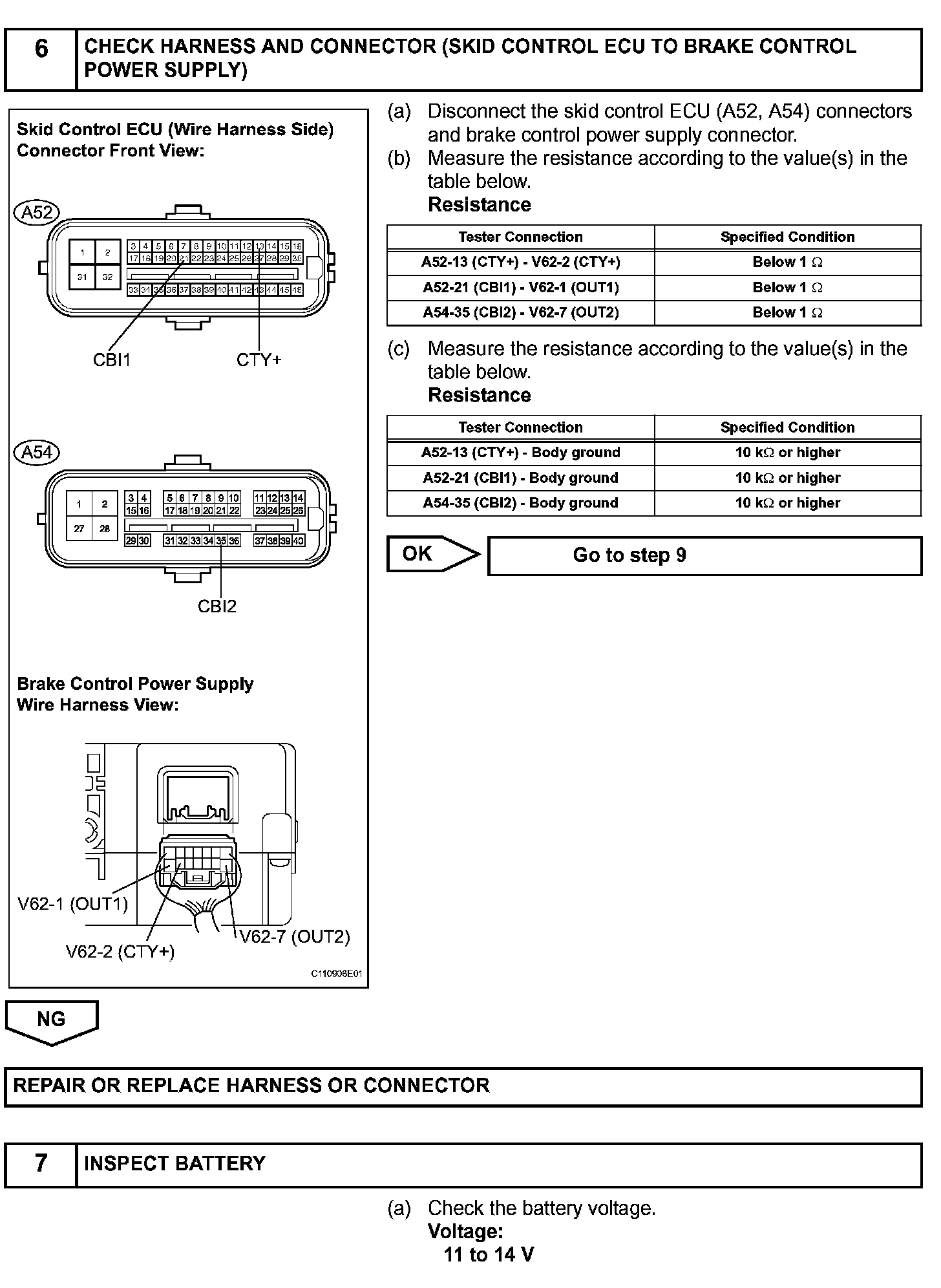

Steps 6-7:

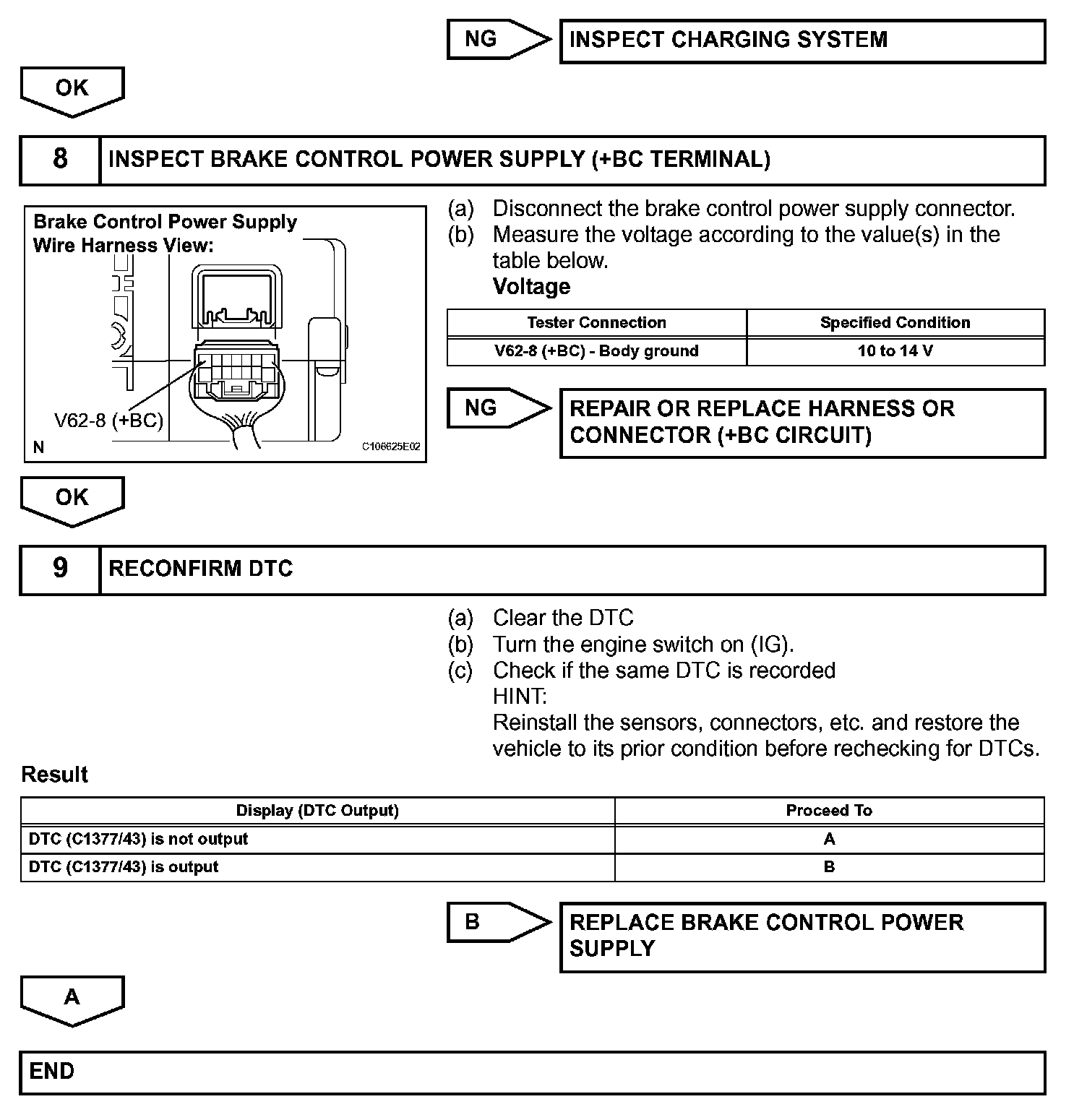

Steps 7-9:
