C1365
DTC C1365/54 Accumulator Pressure Sensor MalfunctionDESCRIPTION
The accumulator pressure sensor is built into the brake actuator. The skid control ECU detects the accumulator pressure based on the data sent from the accumulator pressure sensor, and then runs and stops the pump motor by operating the motor relay DTCs may be output if the accumulator pressure drops due to frequent braking (this is not a malfunction).

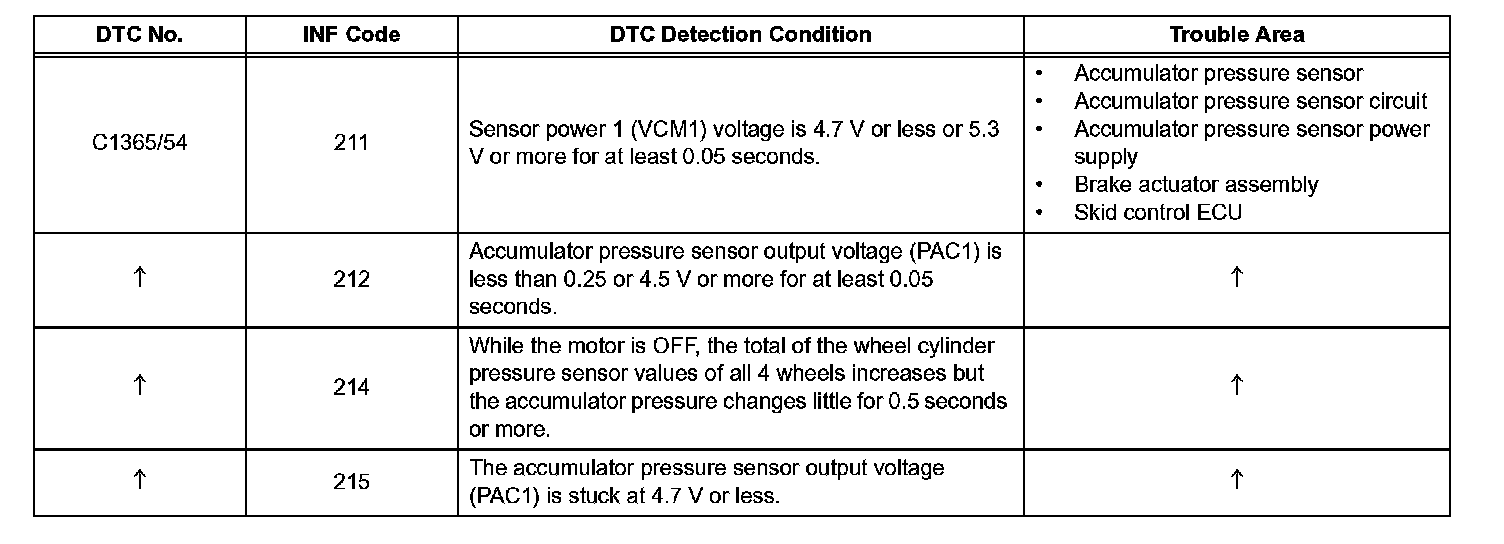

DTC Detection Condition:
WIRING DIAGRAM
Refer to DTCs:
C1246/46 C1246
C1364/61 C1246
NOTICE: When replacing the skid control ECU or brake actuator assembly, perform initialization of linear solenoid valve and calibration. Electronically Controlled Brake System
INSPECTION PROCEDURE

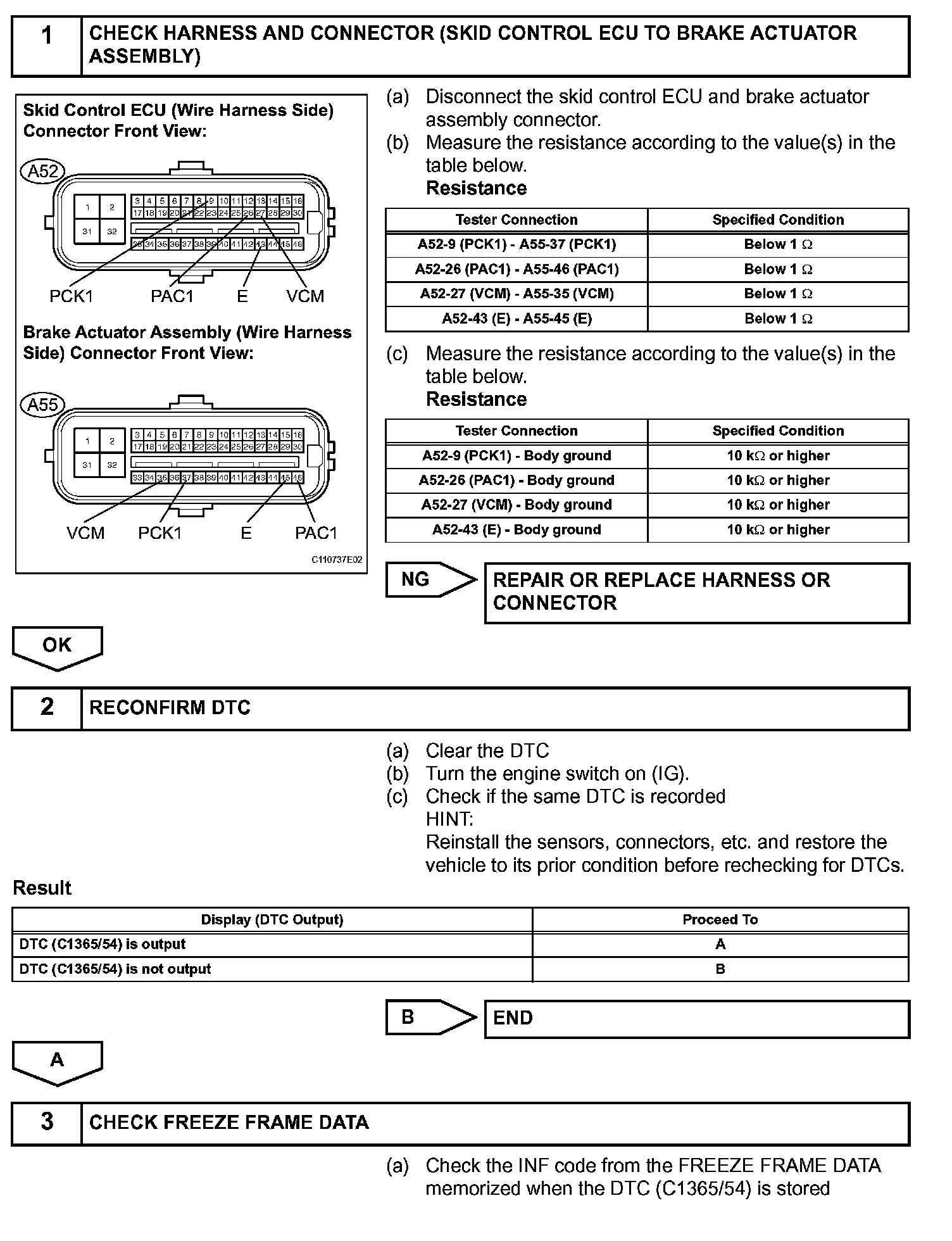

Steps 1-3:

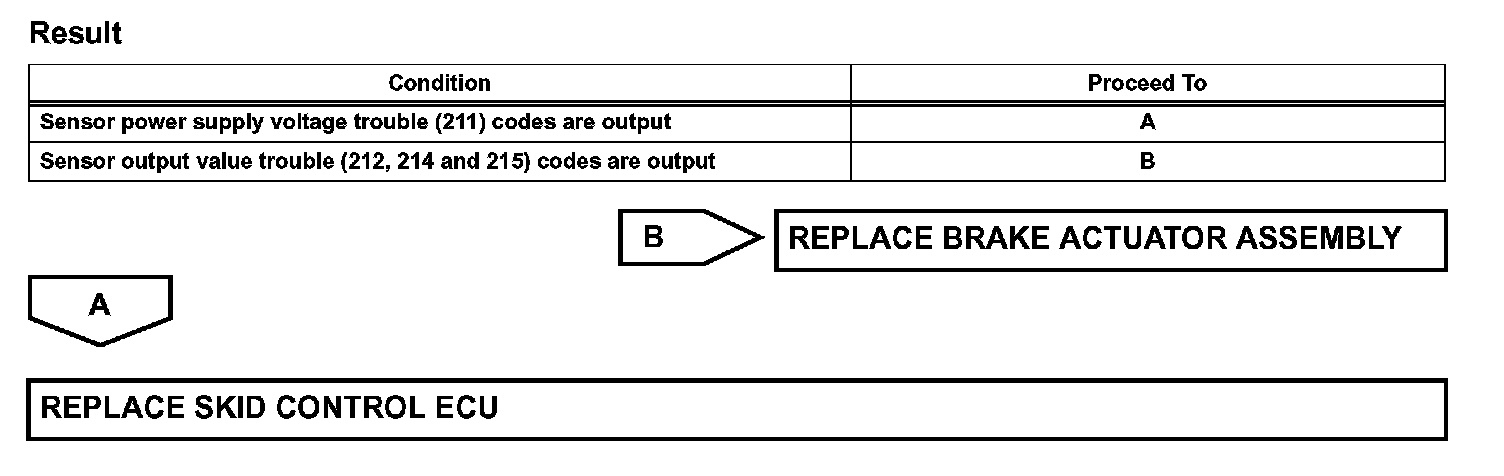

Step 3 (continued):
