DTC C1311/11 Open in Main Relay 1 Circuit

DTC C1312/12 Short in Main Relay 1 Circuit

DTC C1313/13 Open in Main Relay 2 Circuit

DTC C1314/14 Short in Main Relay 2 Circuit

DESCRIPTION
The ABS main relay remains ON for approximately 2 minutes after the engine switch is turned off and the input of brake operation signals stops, and supplies power to the system to keep it ready to operate.

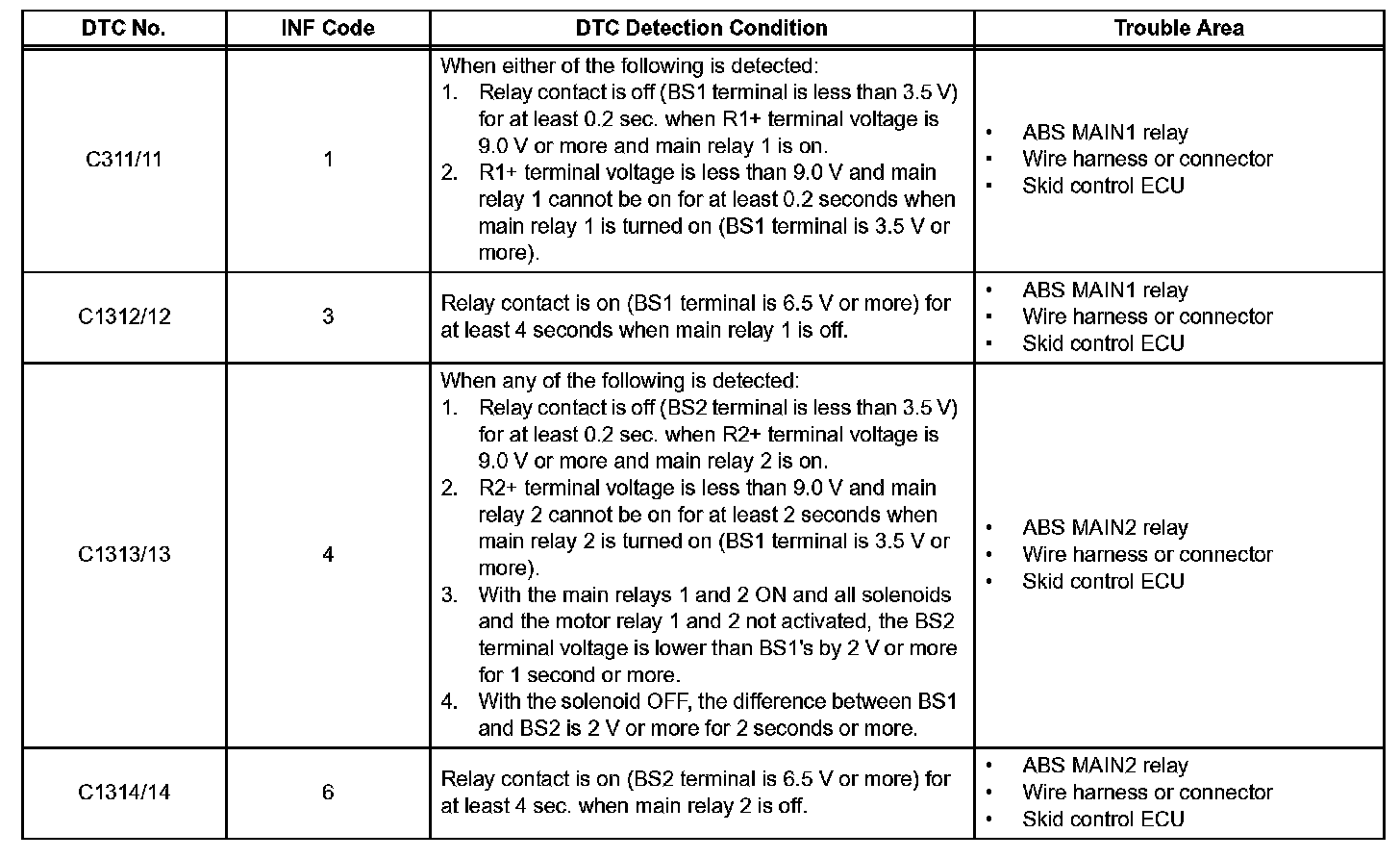

DTC Detection Condition:

WIRING DIAGRAM
Refer to DTCs
C1241/41 C1241
C1242/42 C1242

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Programming and Relearning

INSPECTION PROCEDURE

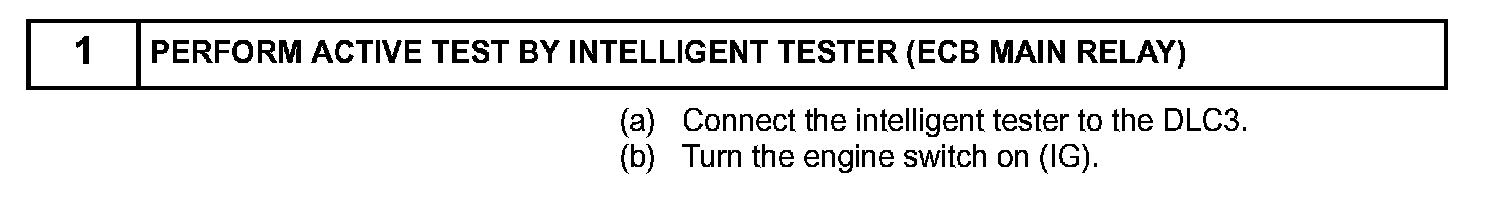

Step 1:

Steps 1-3:

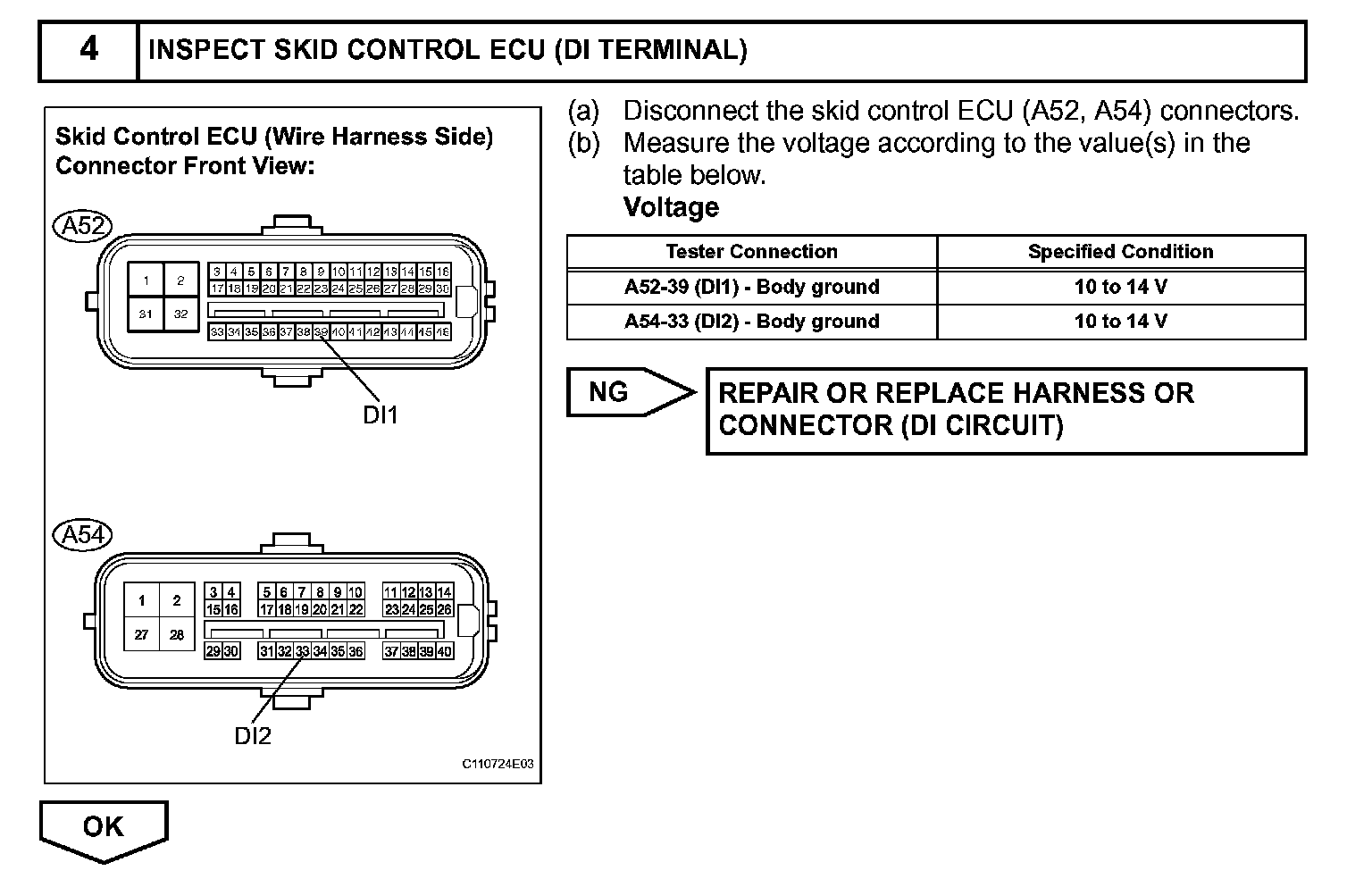

Step 4:

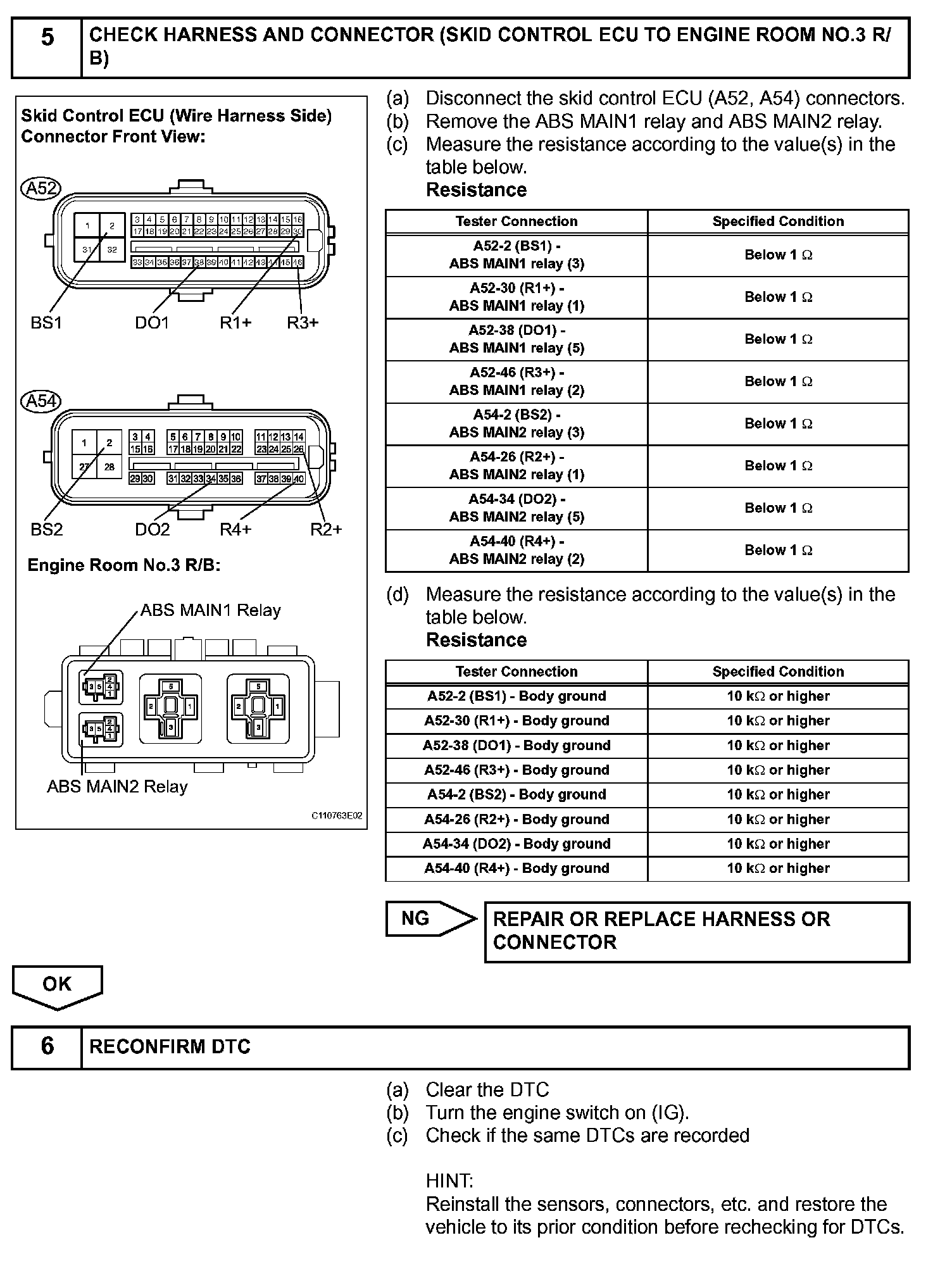

Steps 5-6:

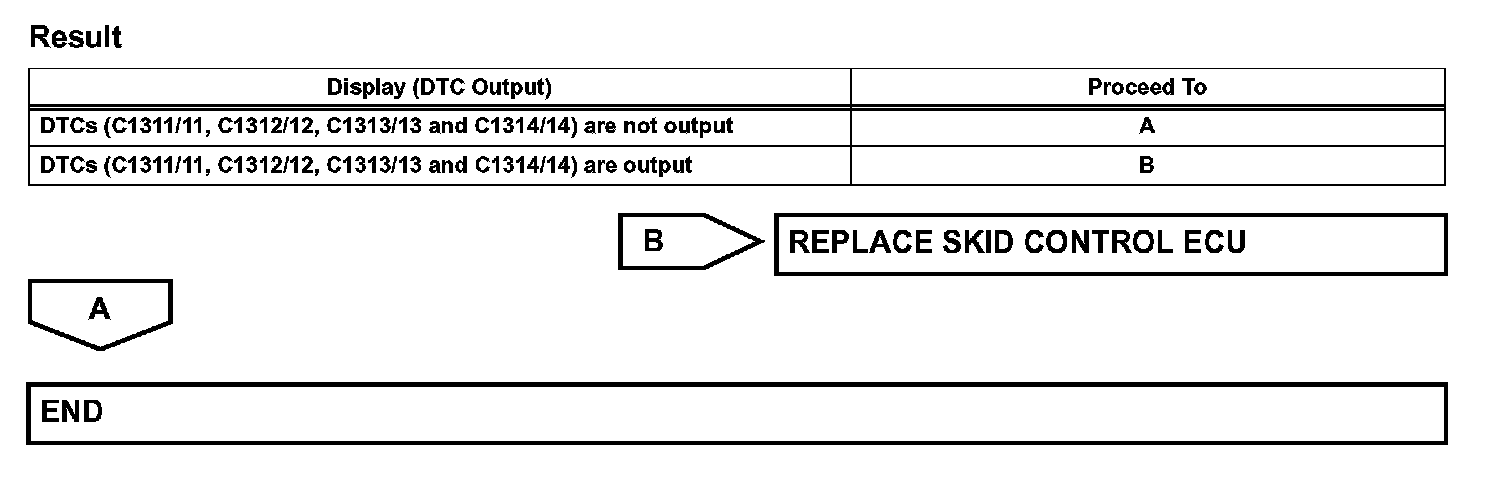

Step 6 (continued):
