C1267
DTC C1267/67 Brake Pedal Load Sensing SwitchDESCRIPTION
The brake pedal load sensing switch is turned on when the brake pedal is depressed with force exceeding a predetermined level. The skid control ECU detects if the brake pedal is depressed or not via this circuit.

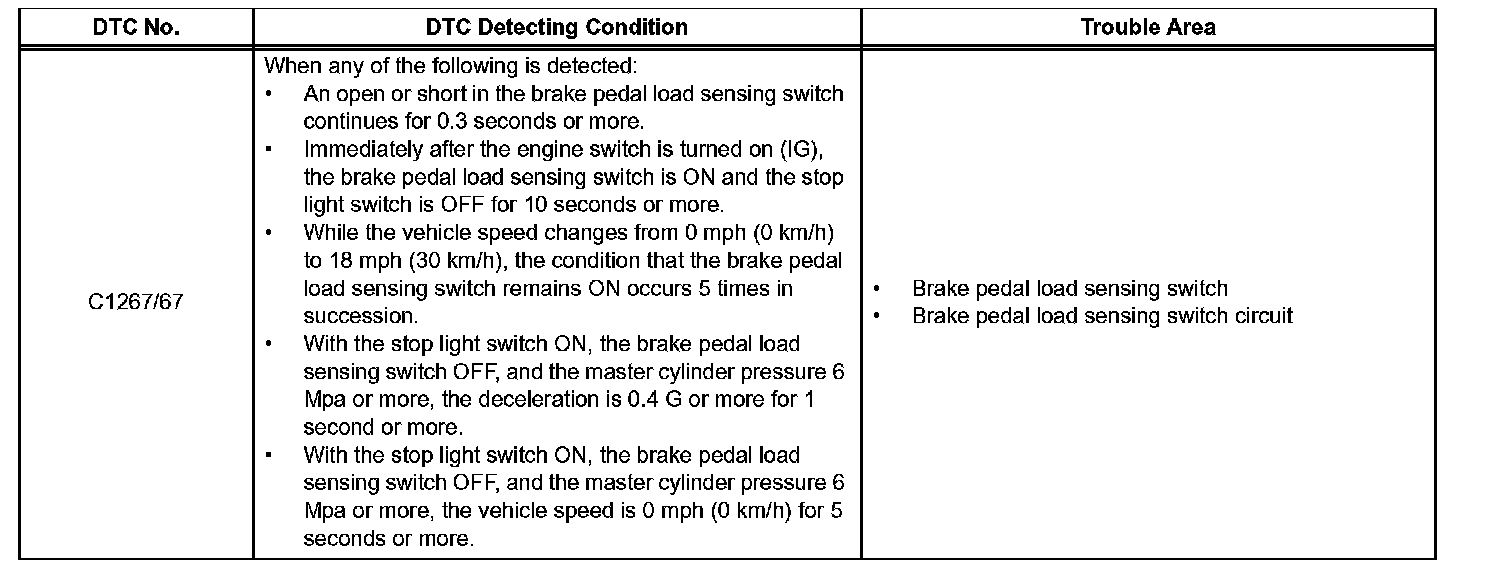

DTC Detection Condition:

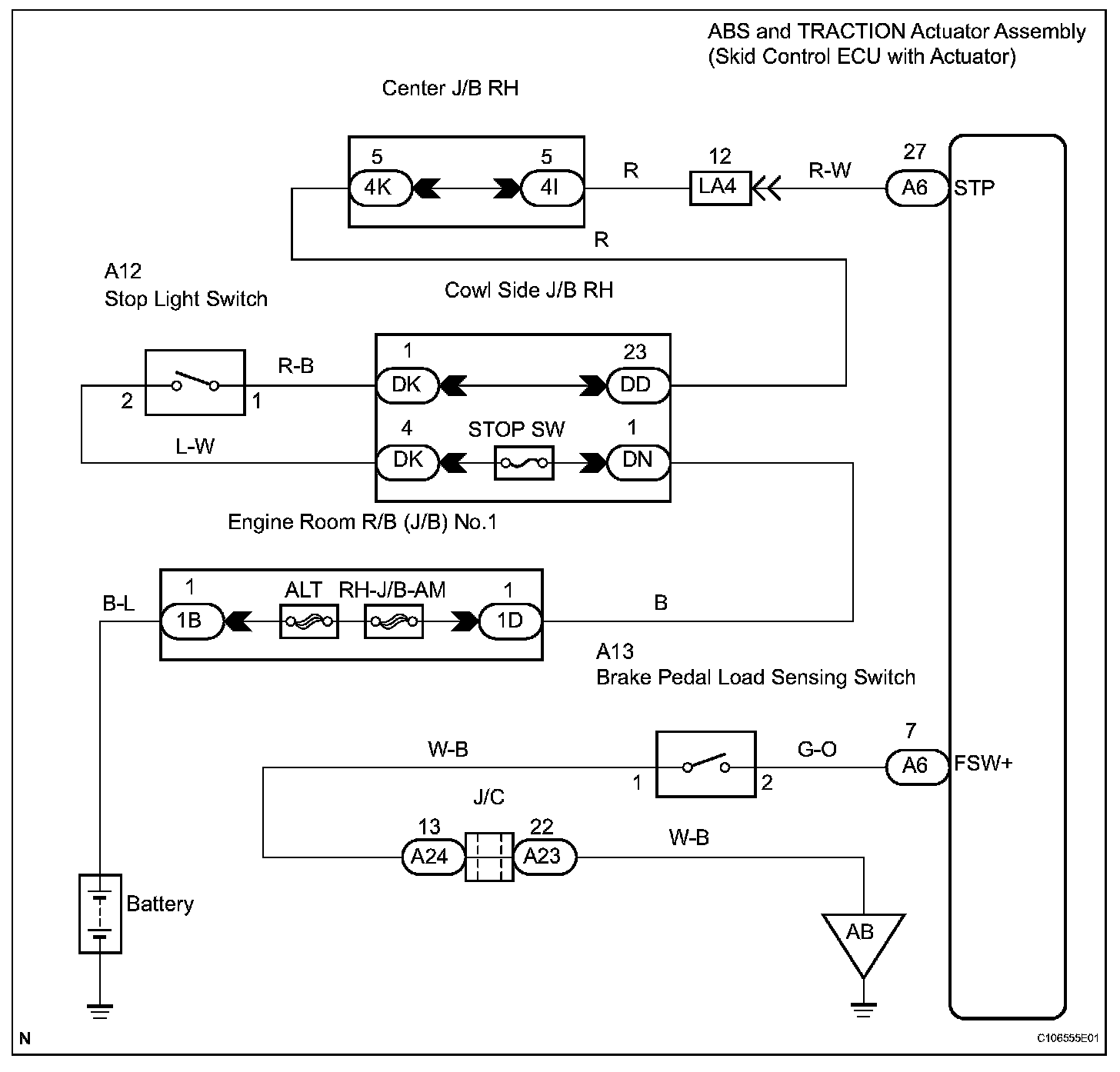

Wiring Diagram:
NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration. Vehicle Stability Control System
HINT: If C1249/49 is output, repair it before repairing C1267/67 based on the flow below.
INSPECTION PROCEDURE

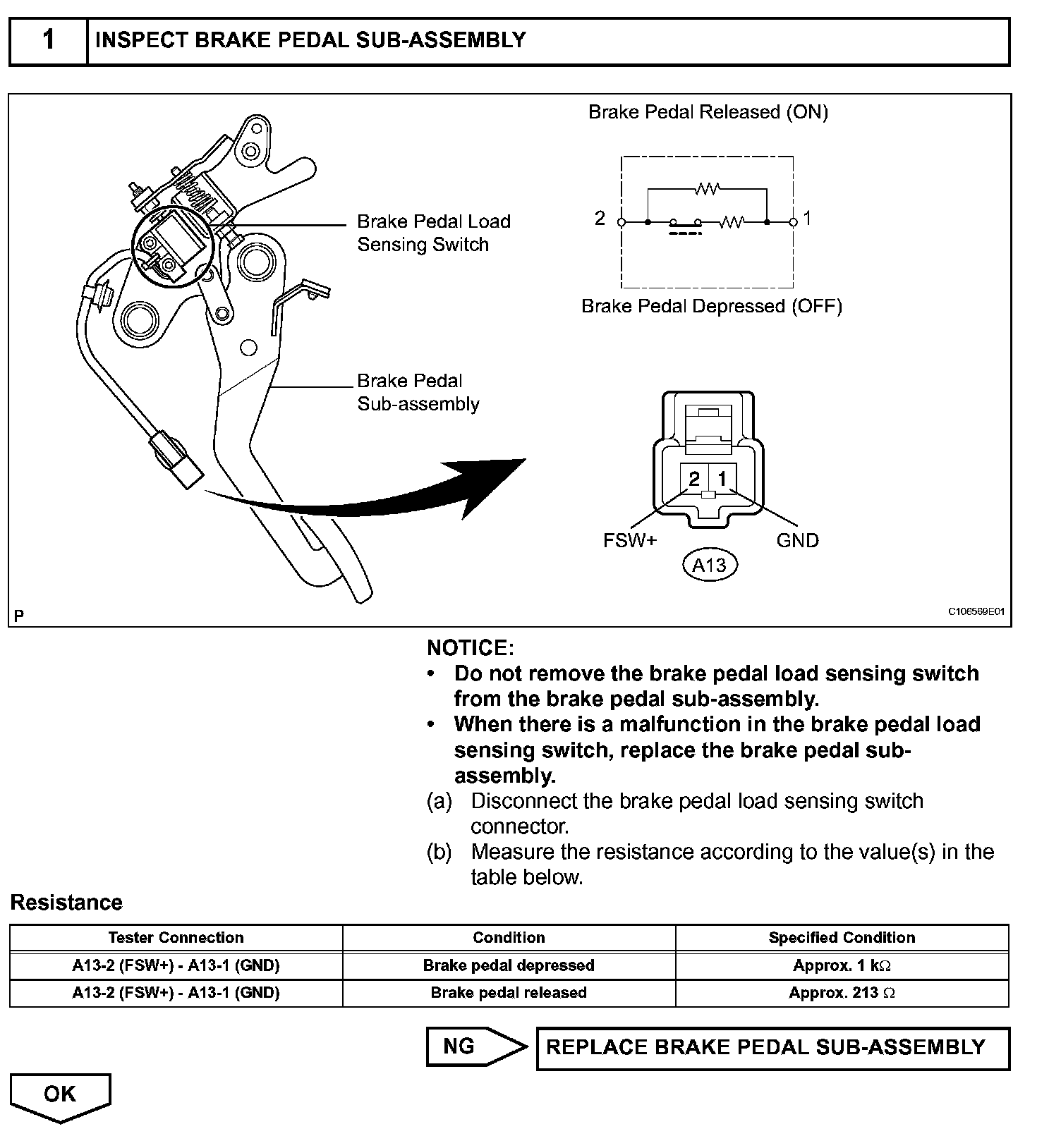

Step 1:

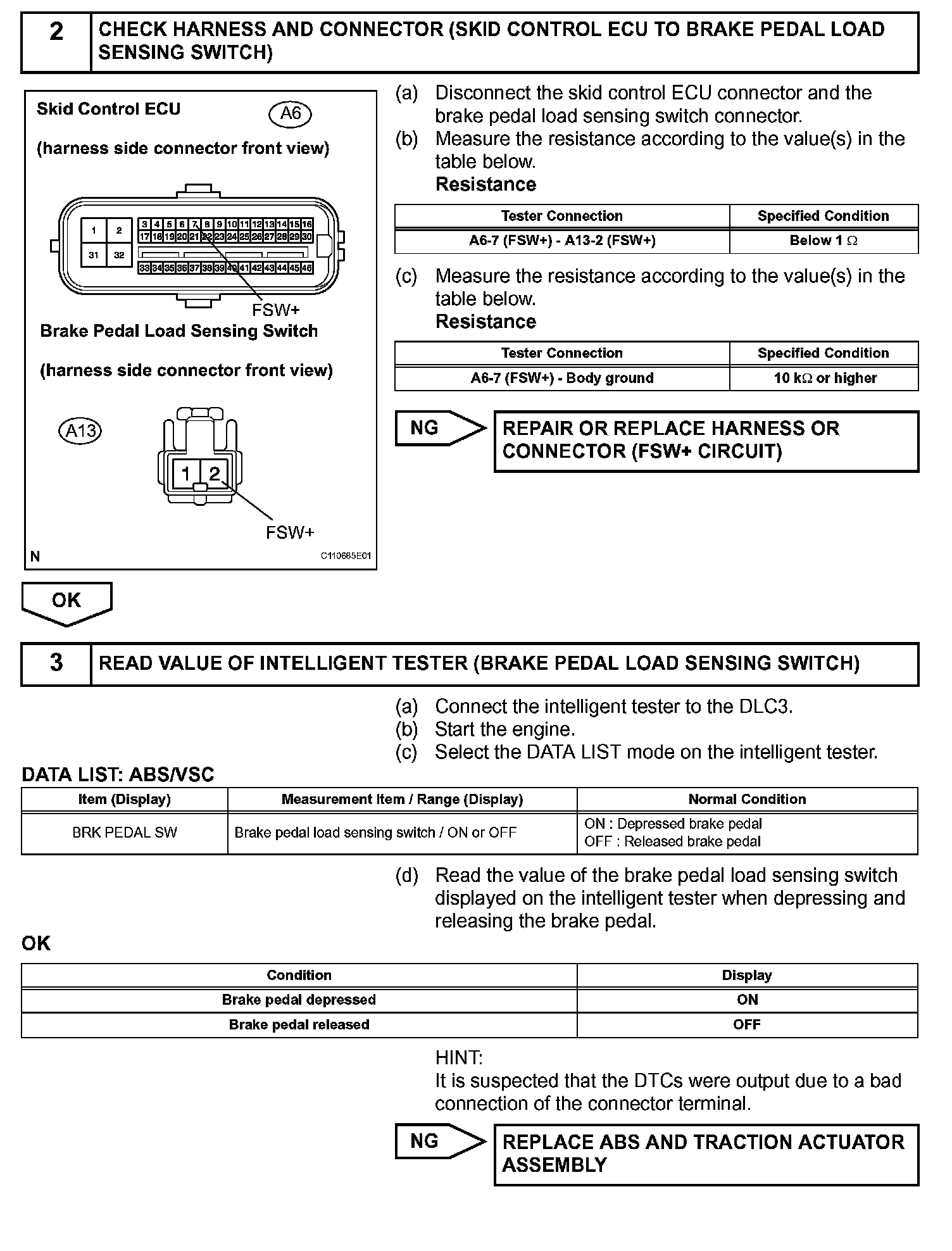

Steps 2-3:
Step 3 (continued):
