C1202

DTC C1202/68 Master Reservoir Level Malfunction

DESCRIPTION
When a fluid level drop in the master cylinder reservoir is detected, the signal is input to the skid control ECU. When the DTC for the fluid level drop is memorized, the warning is canceled and the DTC is not stored if the fluid level returns to normal.

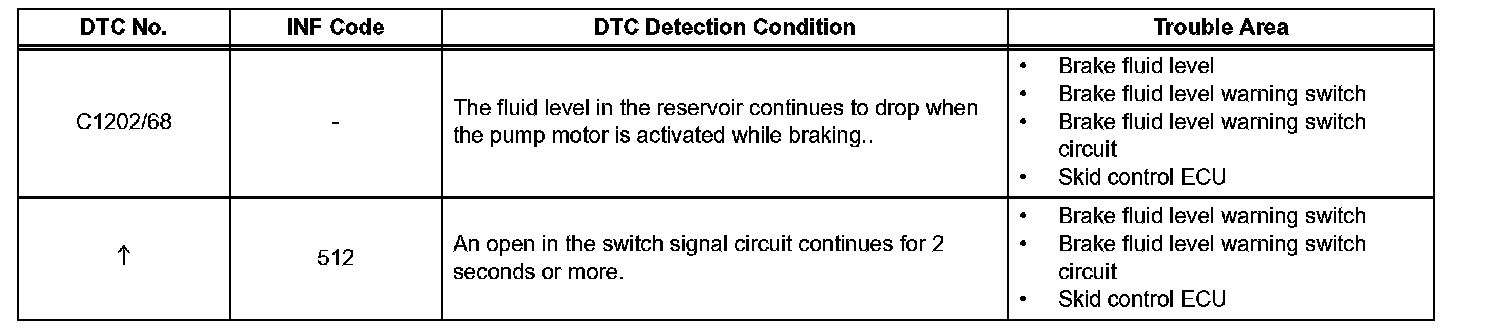

DTC Detection Condition:

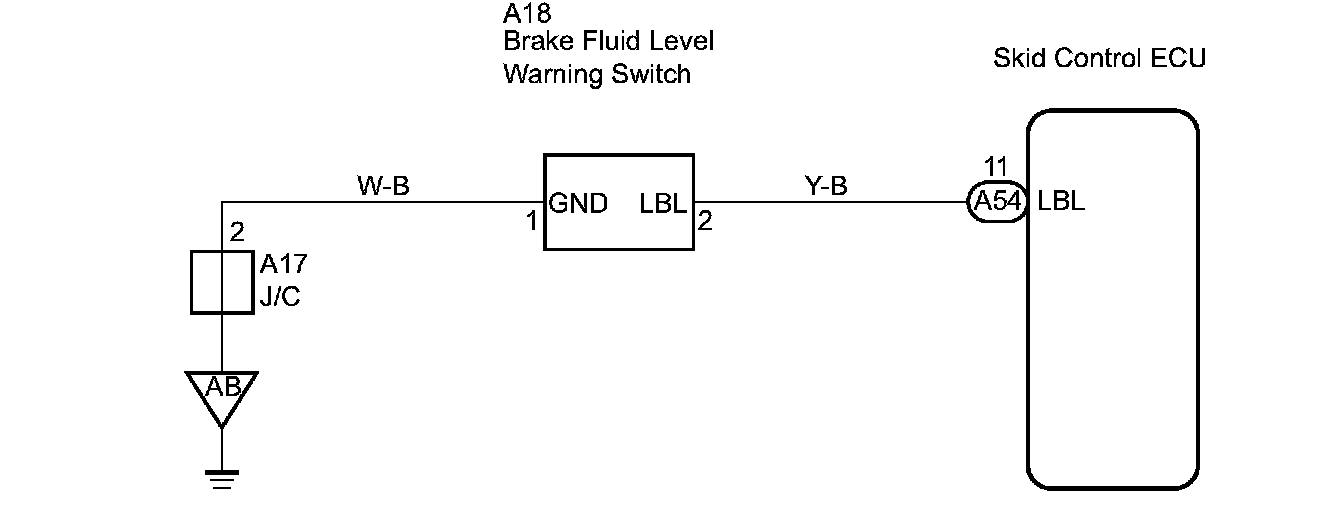

Wiring Diagram:

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Programming and Relearning

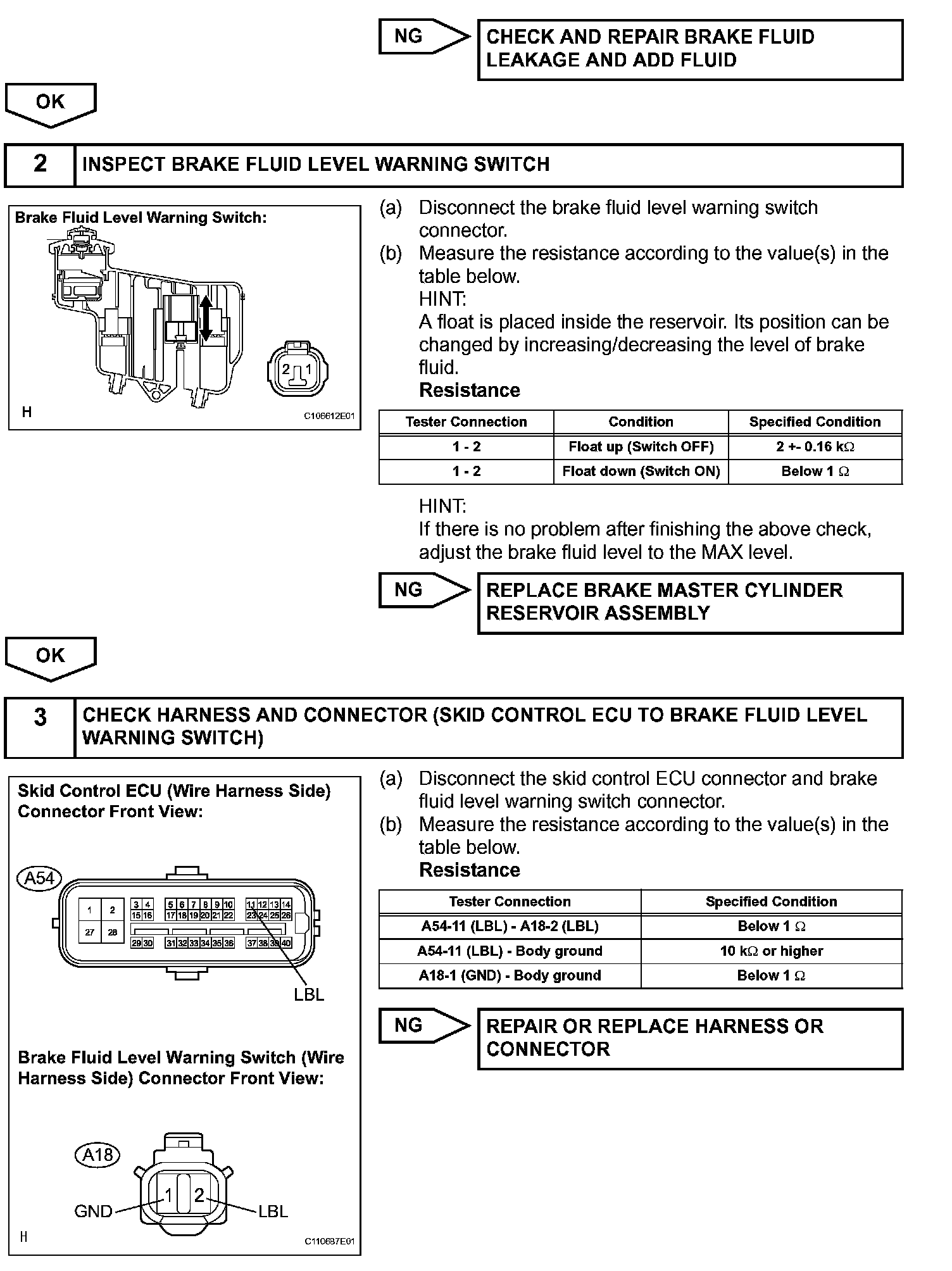

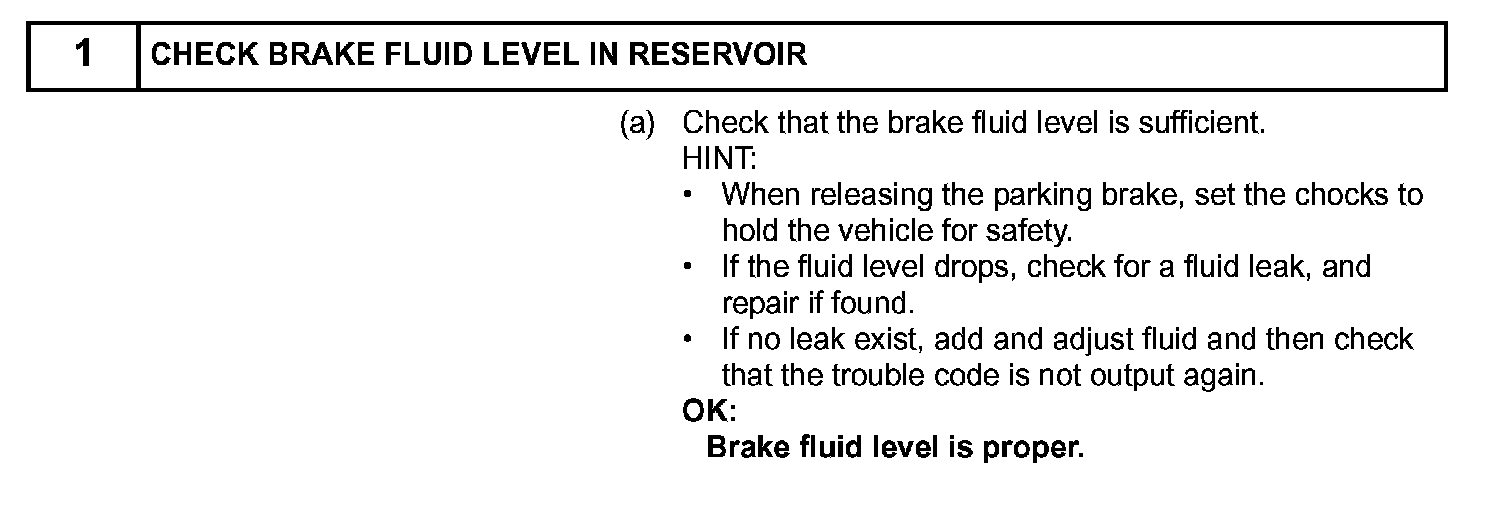

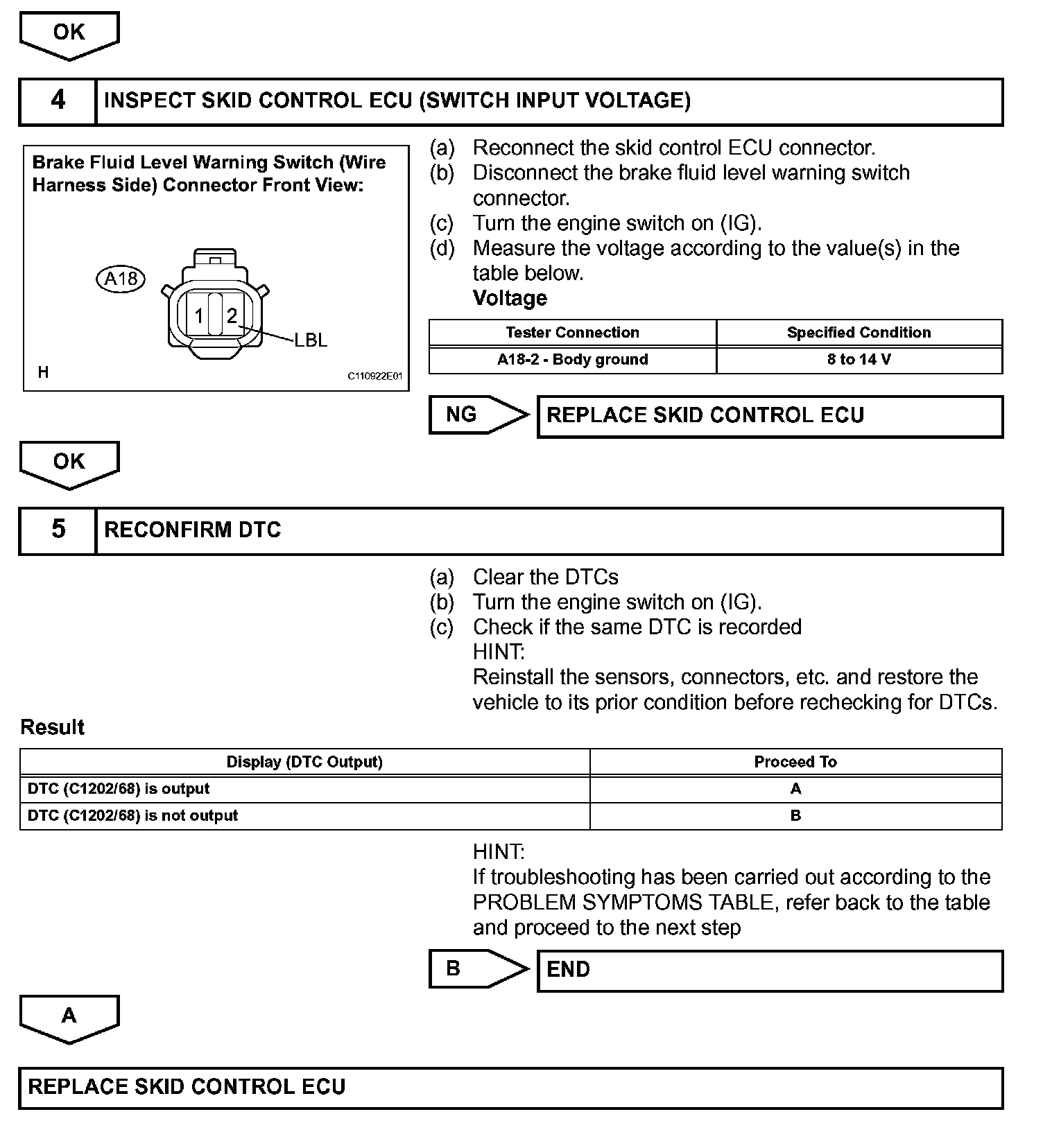

INSPECTION PROCEDURE
