DTC C0278/11 Open in ABS Solenoid Relay Circuit

DTC C0279/12 Short to B+ in ABS Solenoid Relay Circuit

DESCRIPTION
The ABS solenoid relay supplies power to the ABS solenoid and TRAC solenoid. The solenoid relay is turned on 1.5 seconds after the engine switch is turned on (IG), and is turned off if an open or short in the solenoid is detected by self diagnosis performed when the vehicle starts running. The ABS solenoid relay is housed in the skid control ECU in the actuator assembly.

HINT: If a speed signal of 4 mph (6 km/h) or more is input to the skid control ECU, with the engine switch on (IG) and the stop light switch off, the ECU performs self diagnosis of the motor and solenoid circuits.

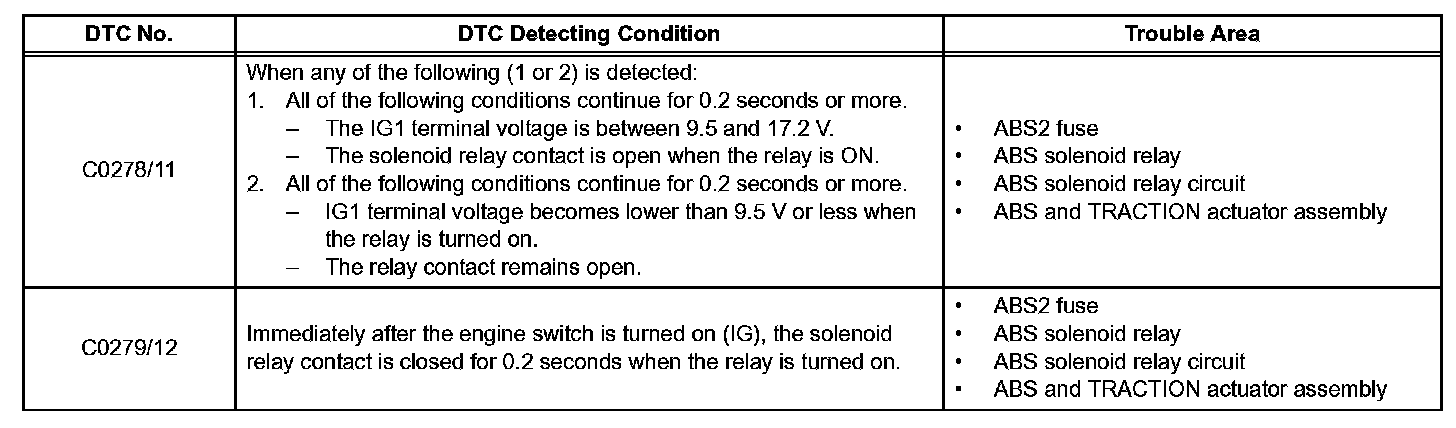

DTC Detection Condition:

WIRING DIAGRAM
Refer to DTCs:
C0226/21 C0226
C0236/22 C0236
C0246/23 C0246
C0256/24 C0256
C1225/25 C1225

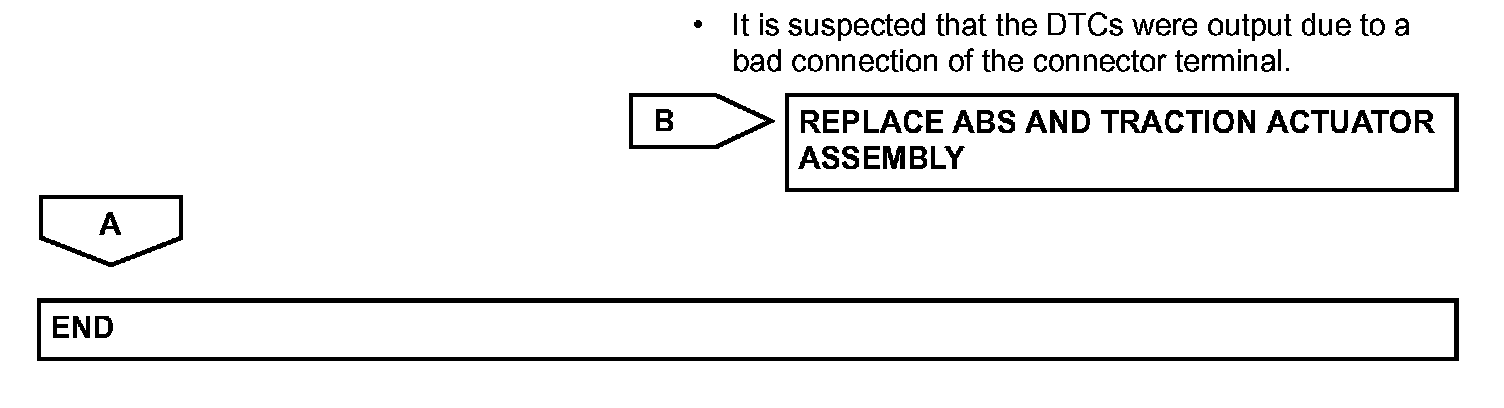

NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

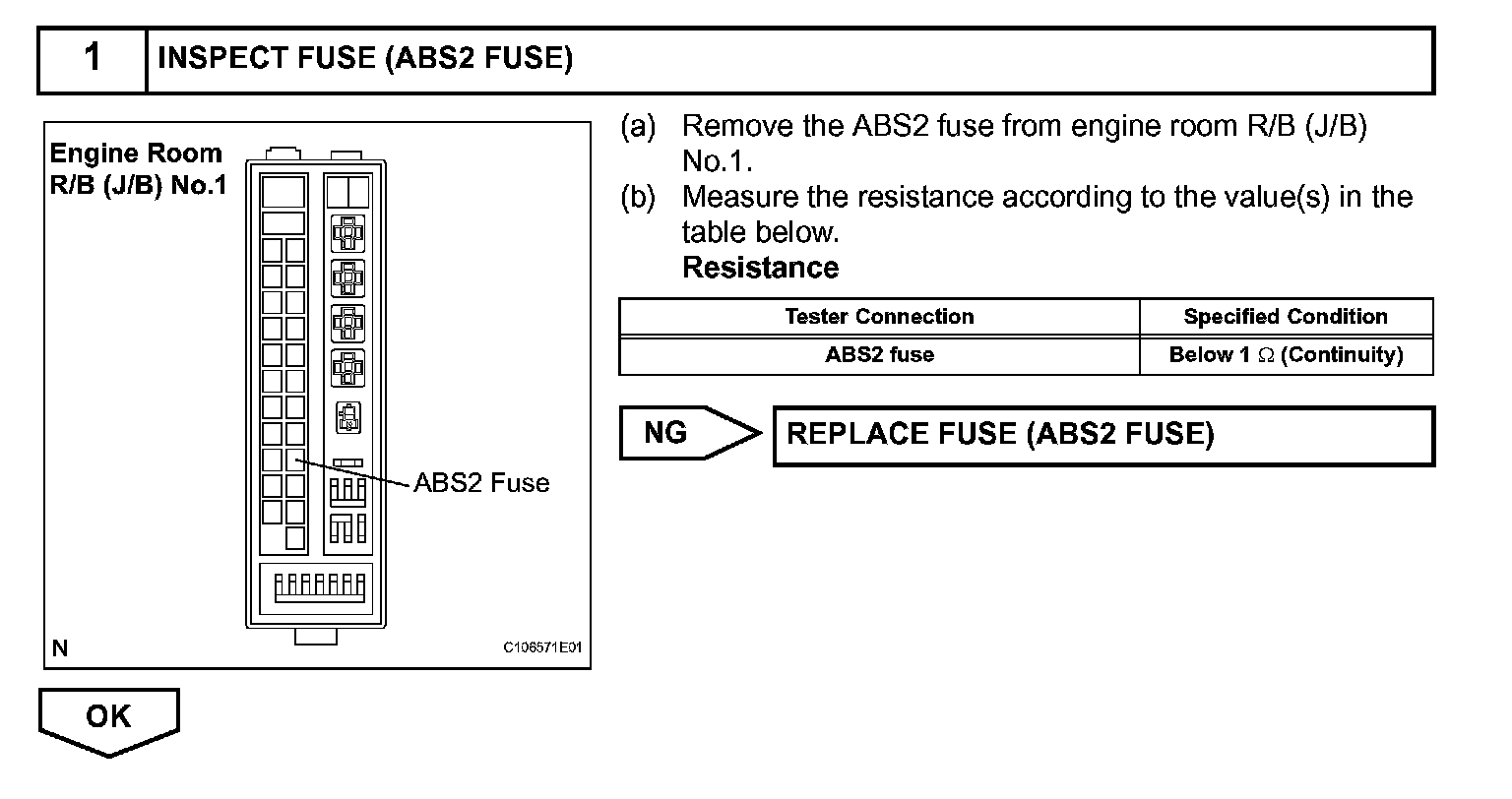

Step 1:

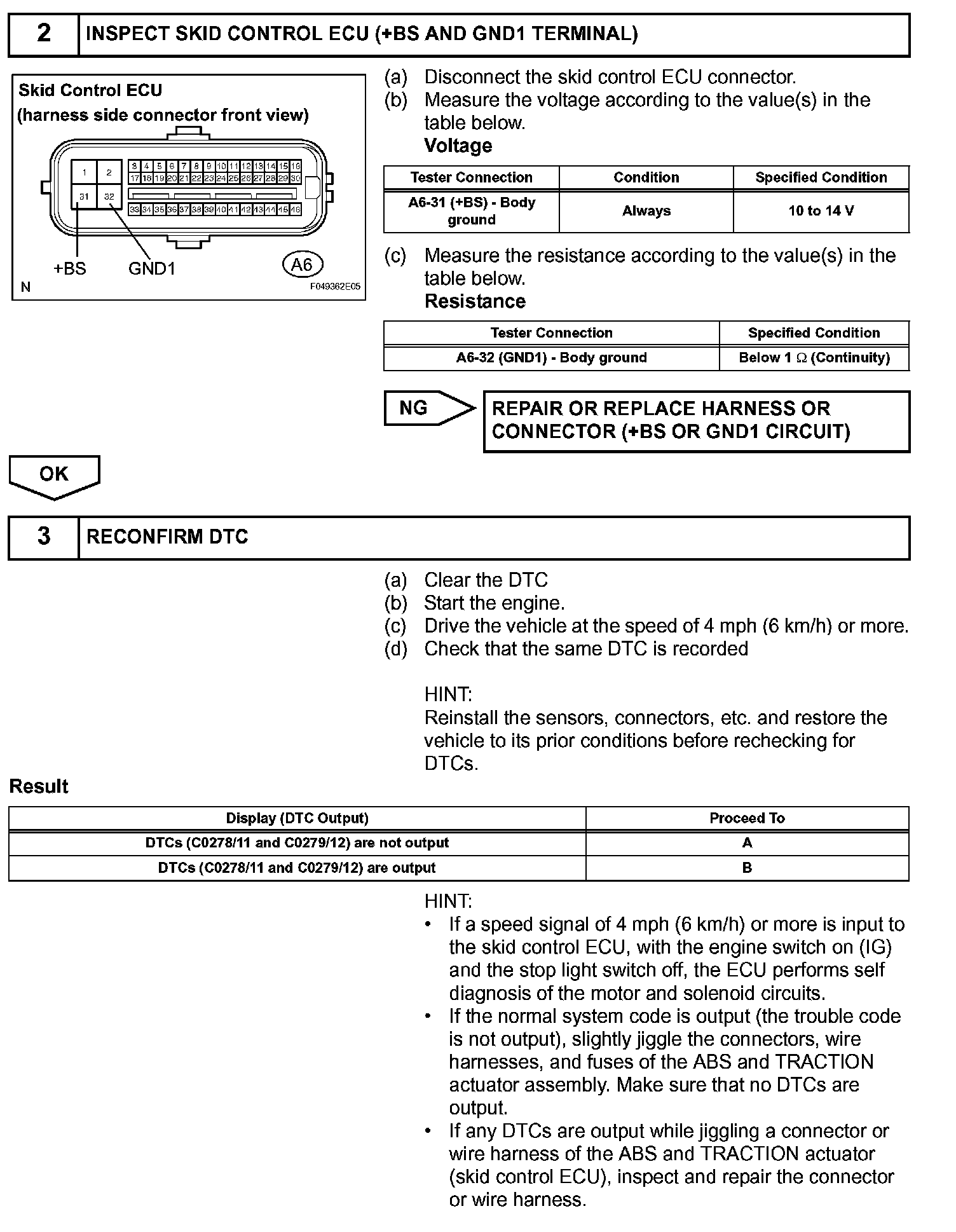

Steps 2-3:

Step 3 (continued):
