Electronically Controlled Brake System

DTC C0210/33 Rear Speed Sensor RH Circuit

DTC C0215/34 Rear Speed Sensor LH Circuit

DTC C1273/73 Low Output Signal of Rear Speed Sensor RH (Test Mode DTC)

DTC C1274/74 Low Output Signal of Rear Speed Sensor LH (Test Mode DTC)

DESCRIPTION
Refer to DTC C0200/31 C0200
Refer to DTC C0205/32 C0205
DTCs C1273/73 and C1274/74 can be deleted when the speed sensor sends a vehicle speed signal or the Test Mode ends. DTCs C1273/73 and C1274/74 are output only in the Test Mode.

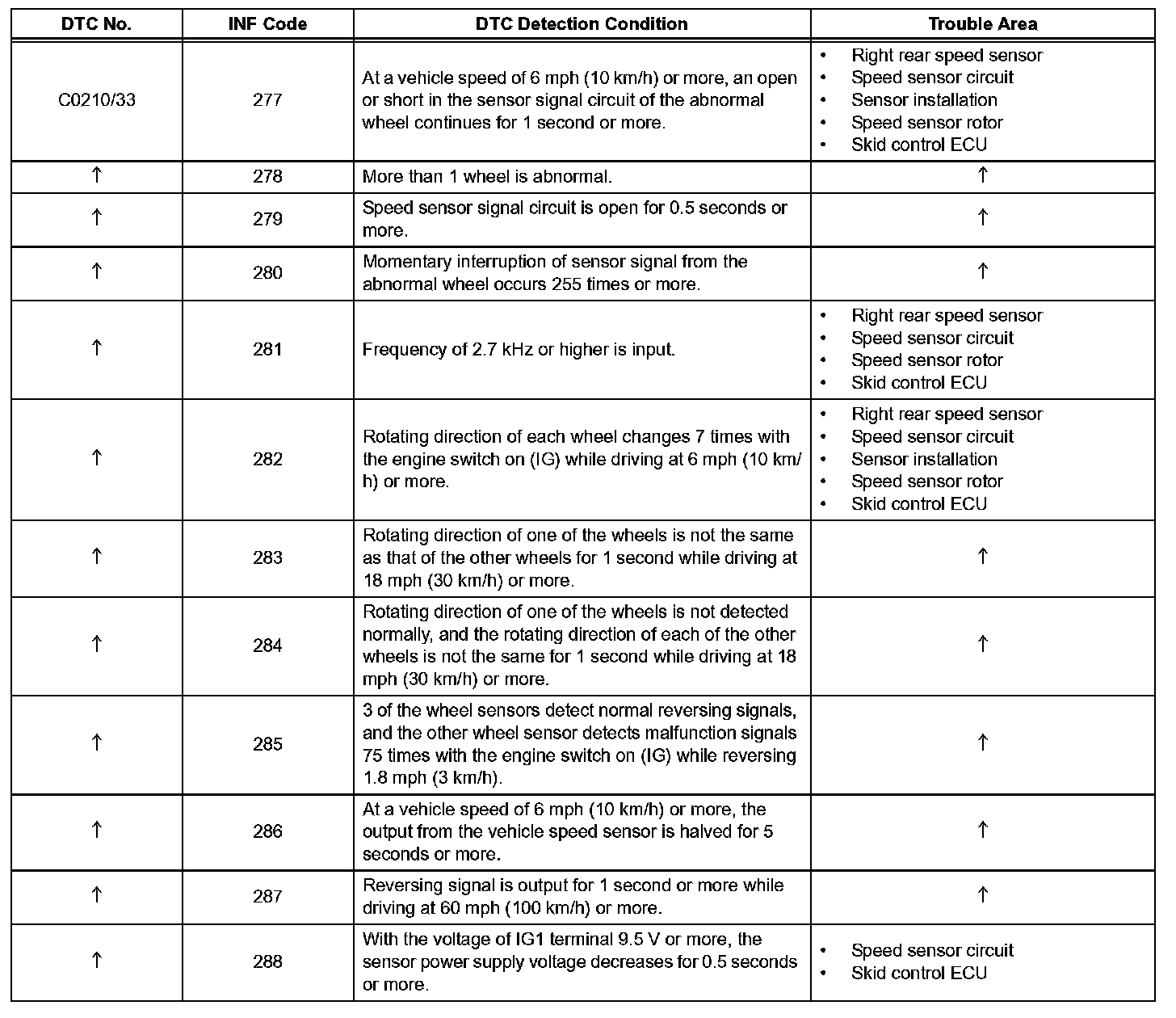

DTC Detection Condition (part 1):

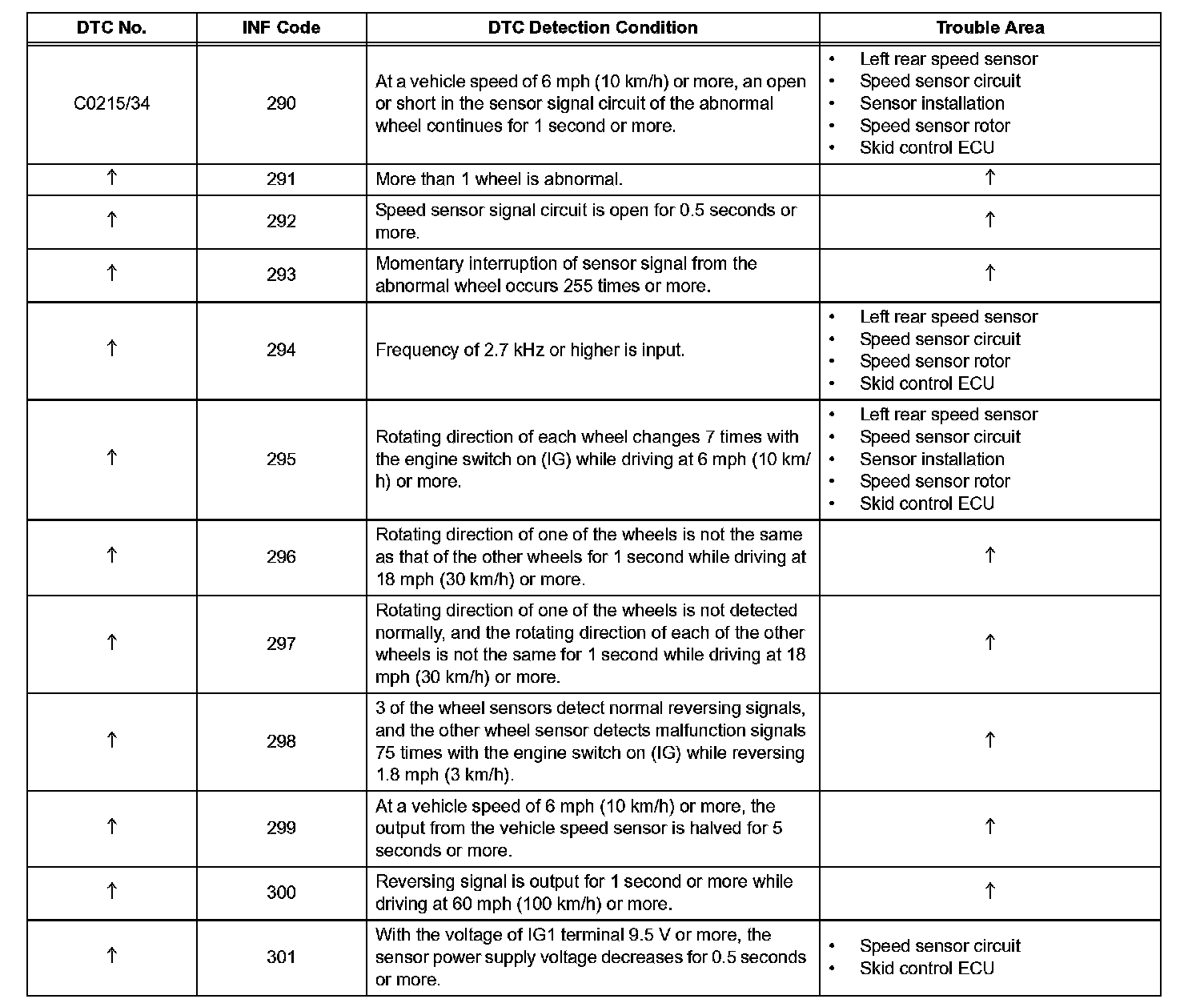

DTC Detection Condition (part 2):

HINT:
^ DTC C0210/33 is for the right rear speed sensor.
^ DTC C0215/34 is for the left rear speed sensor.

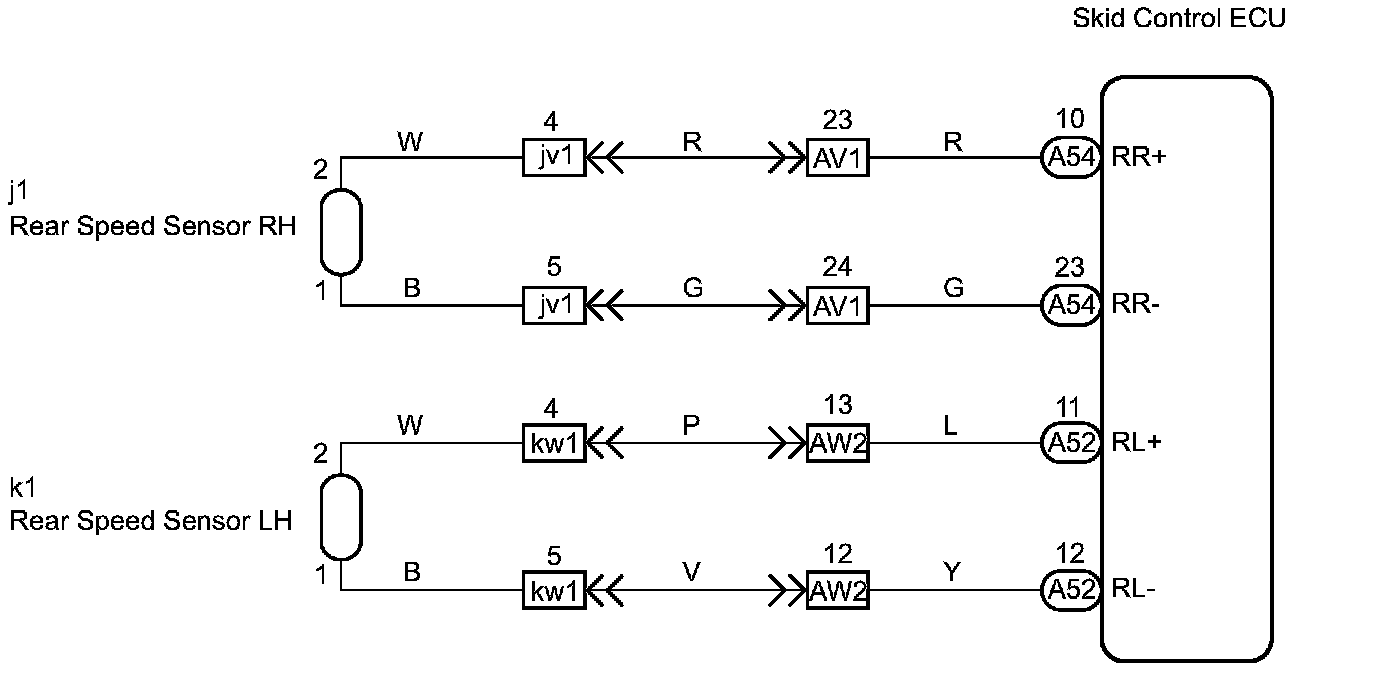

Wiring Diagram:

NOTICE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration. Programming and Relearning

HINT: Start the inspection from step 1 when using the intelligent tester and start from step 3 when not using the intelligent tester.

INSPECTION PROCEDURE

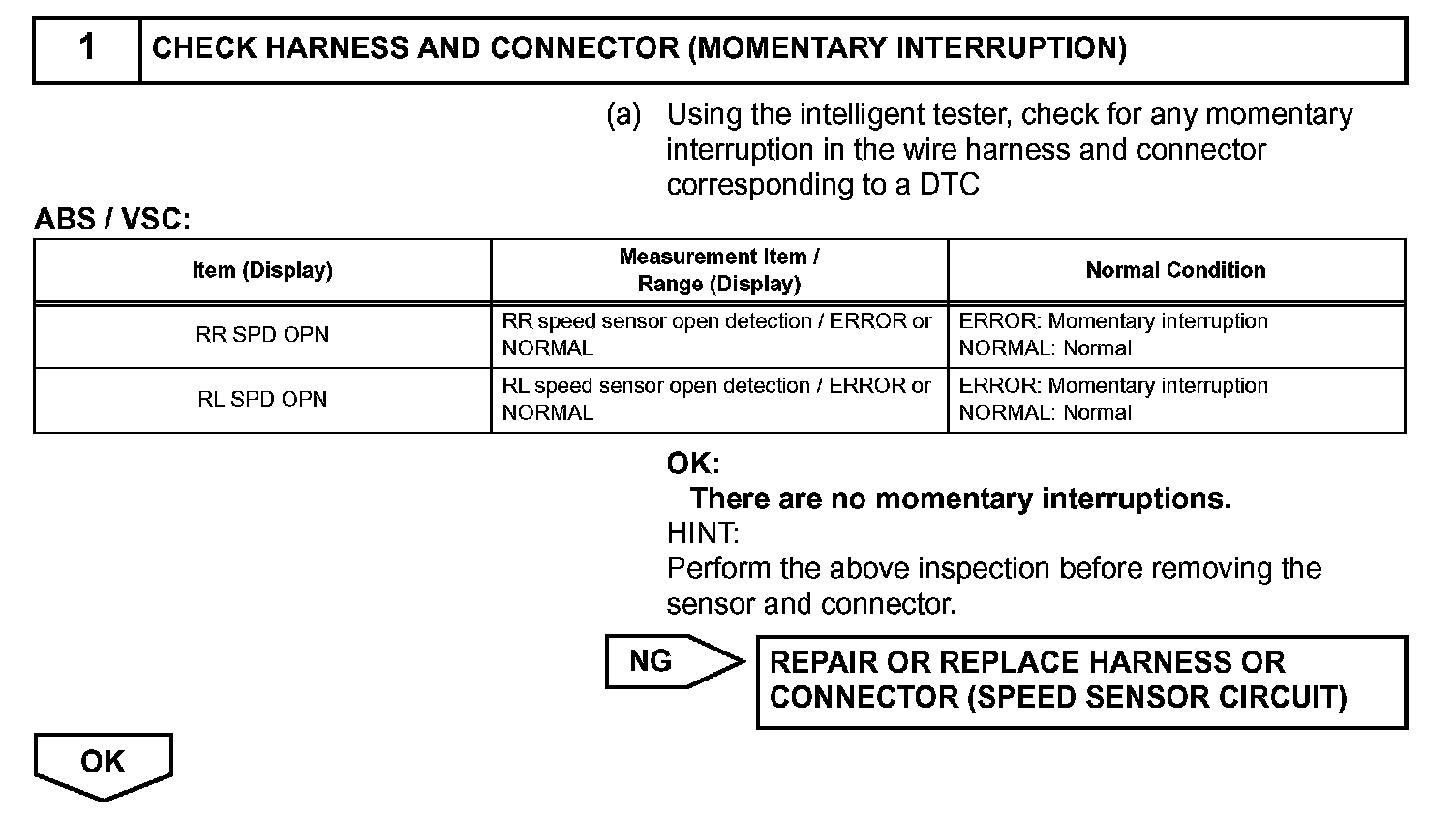

Step 1:

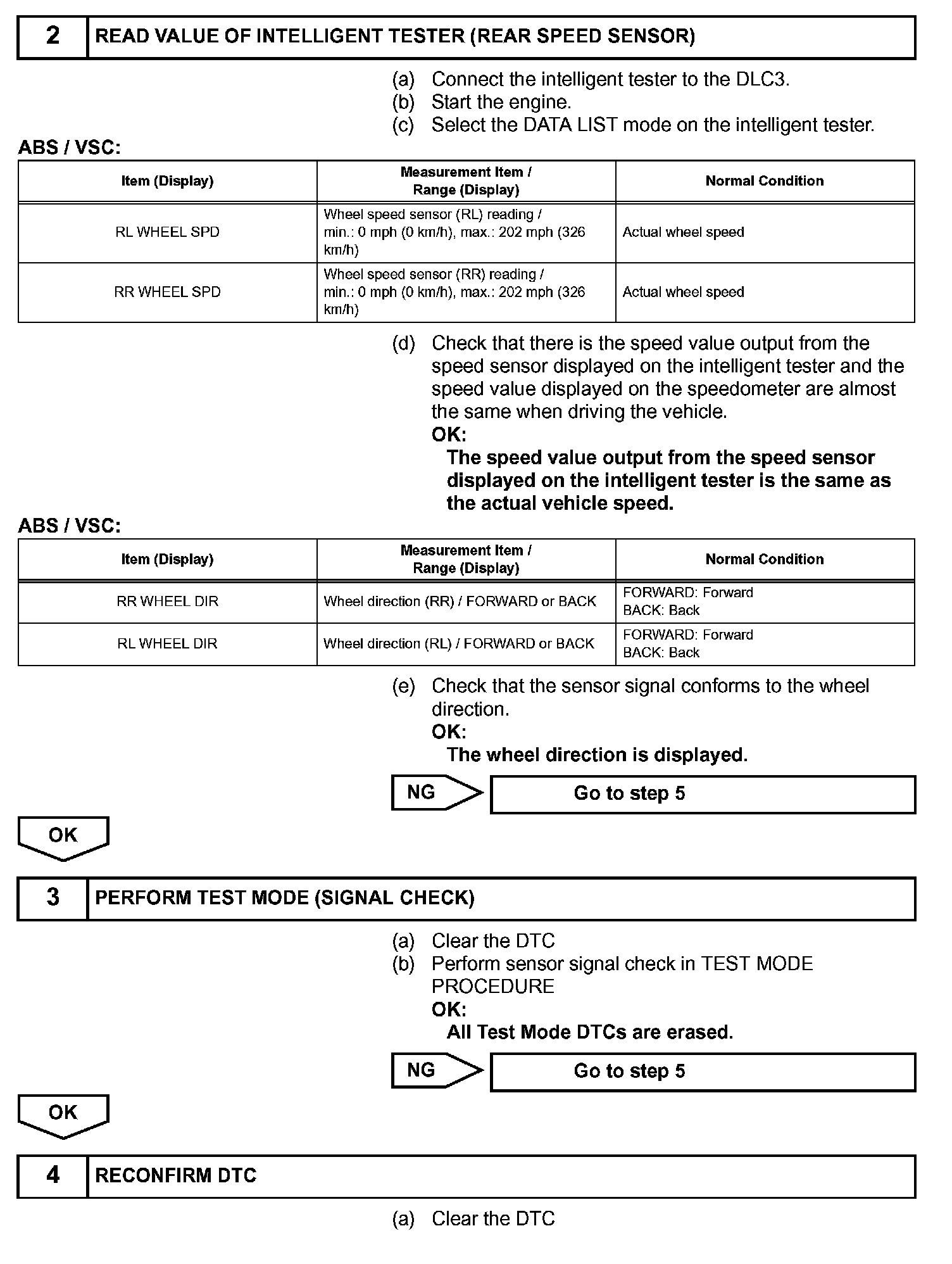

Steps 2-4:

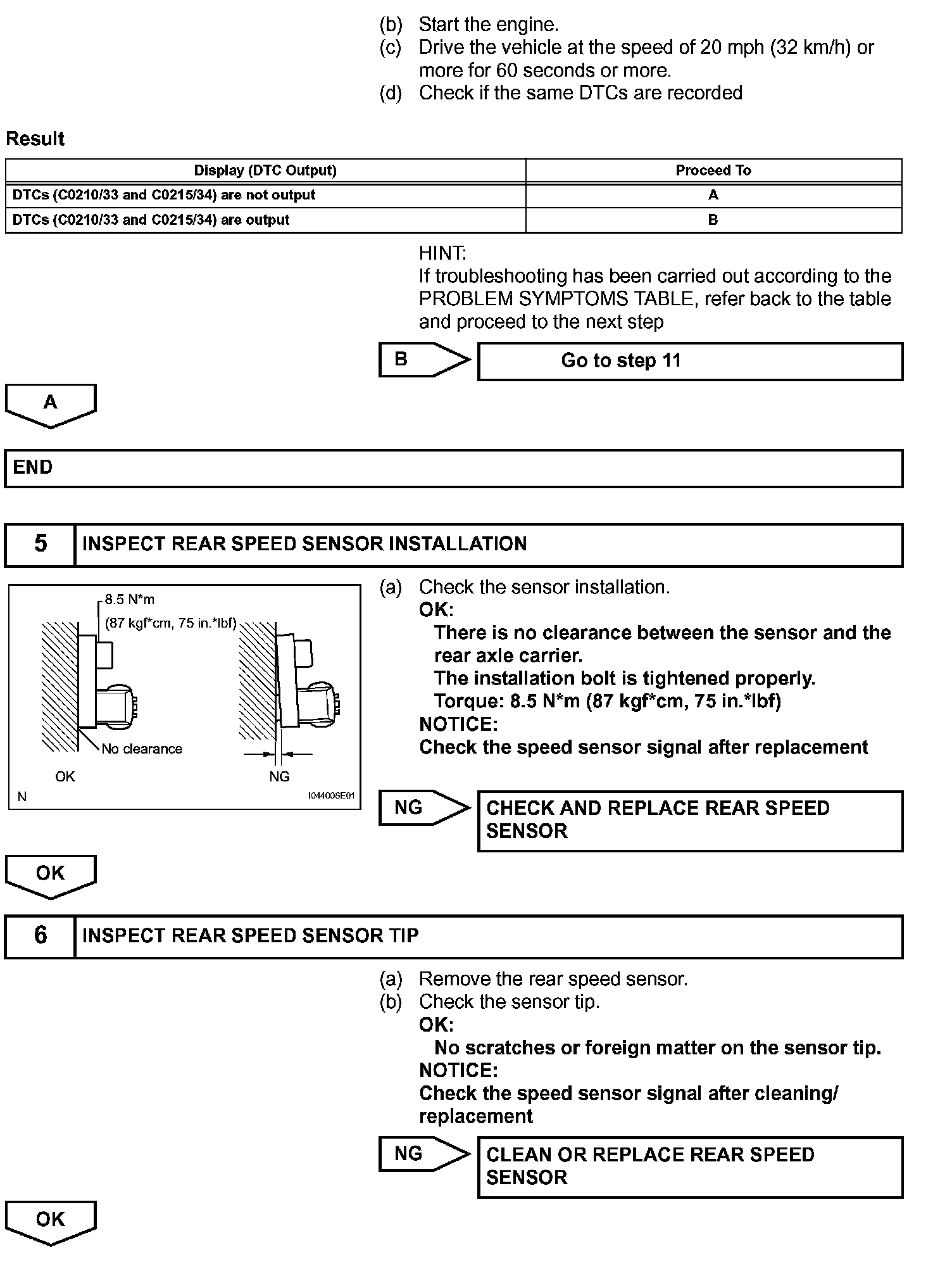

Steps 4-6:

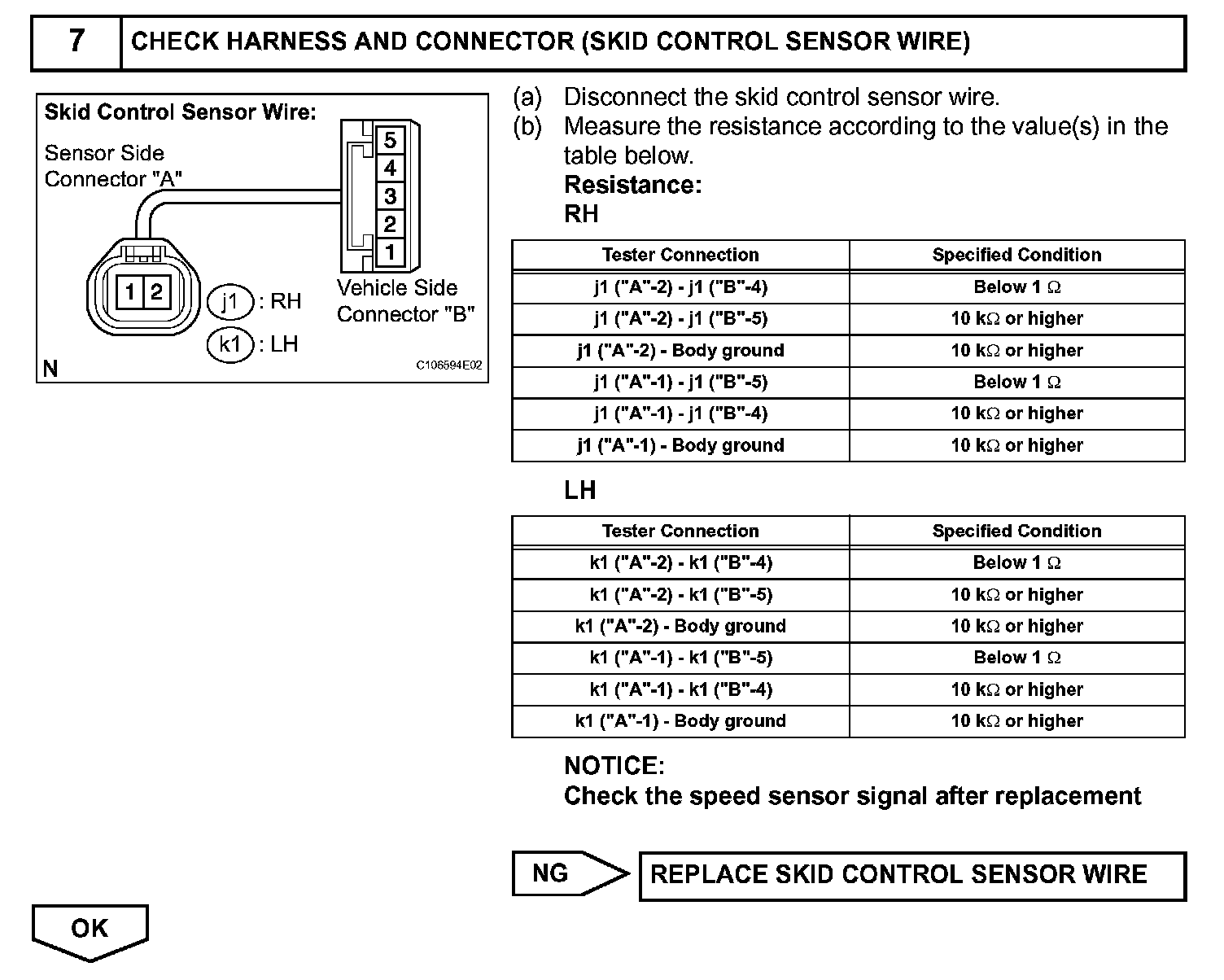

Step 7:

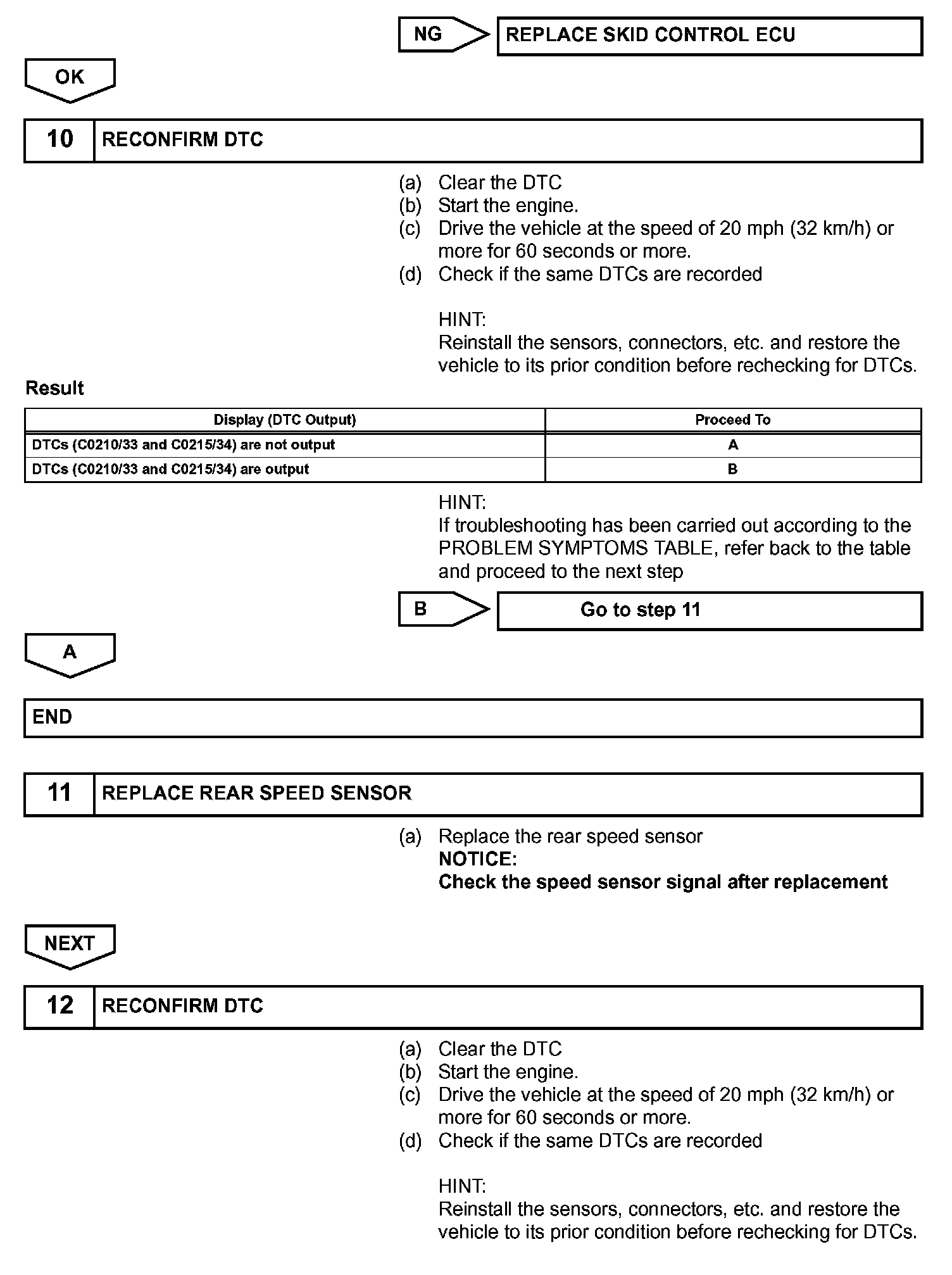

Steps 8-9:

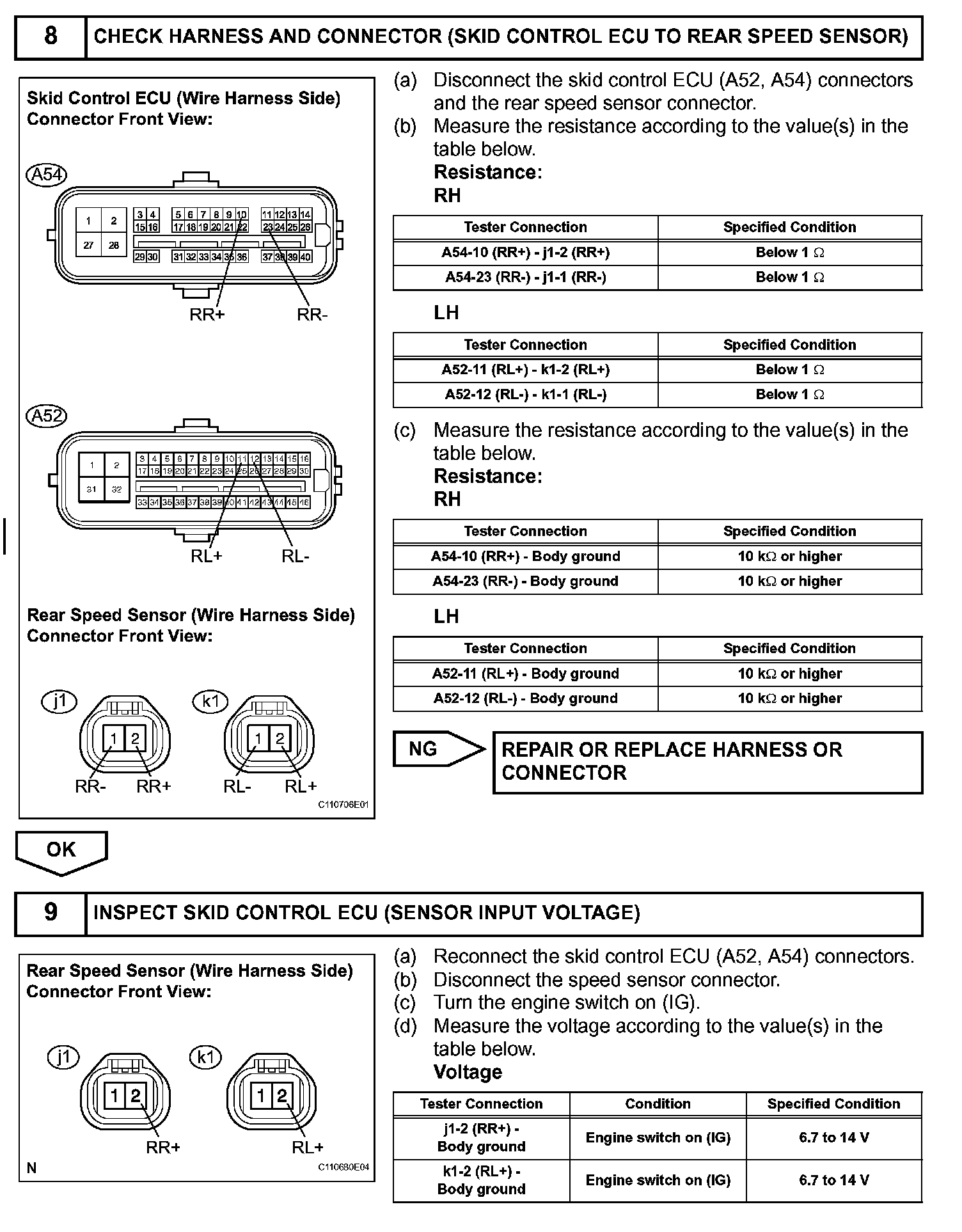

Steps 9-12:

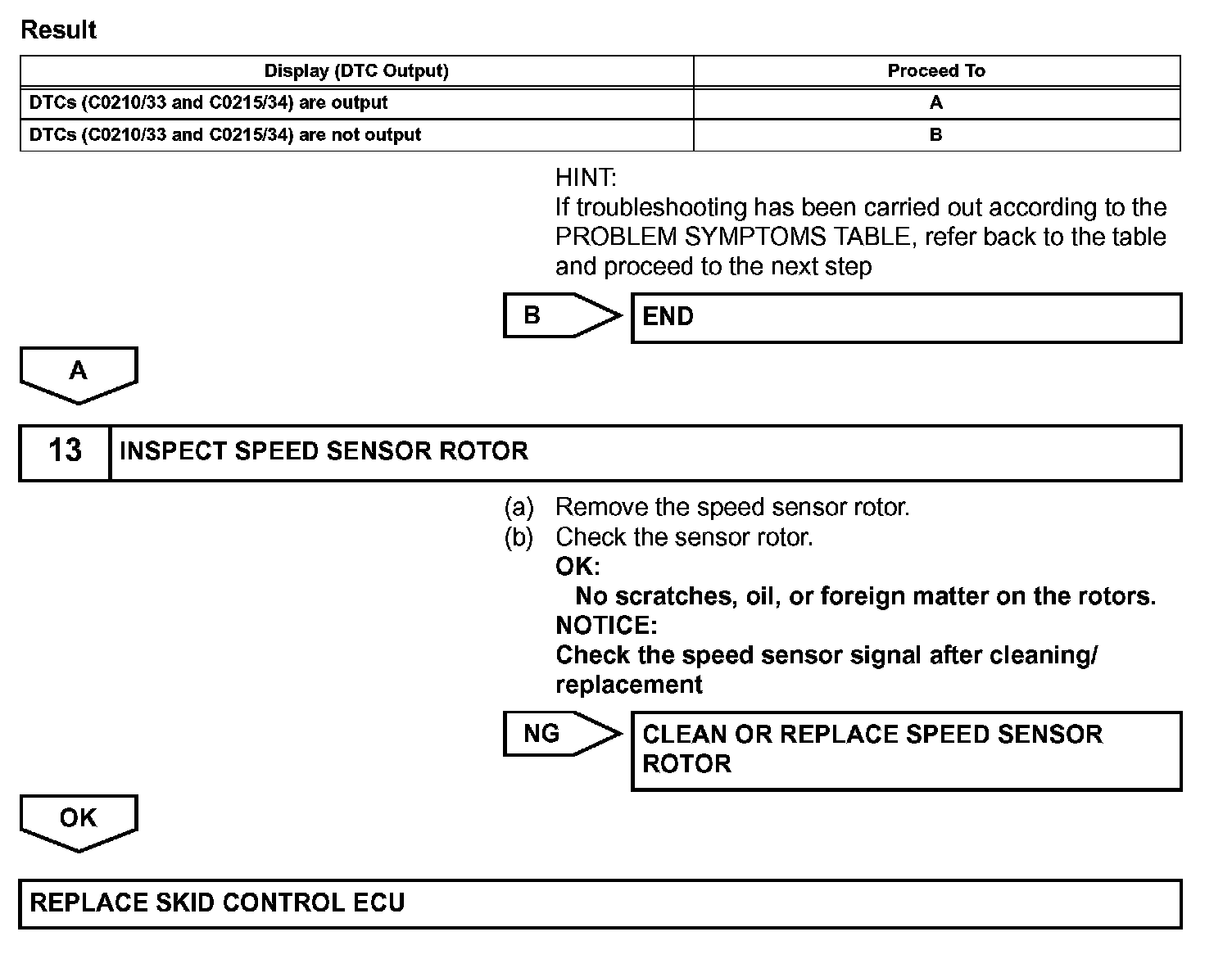

Steps 12-13:
