B2789

DTC B2789 No Response from ID BOX

DESCRIPTION

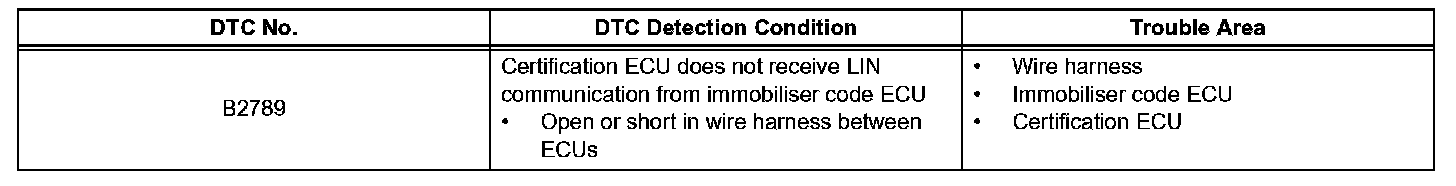

DTC Detection Condition:

This DTC is output when the certification ECU does not receive LIN communication from the immobilizer code ECU for 10 seconds.

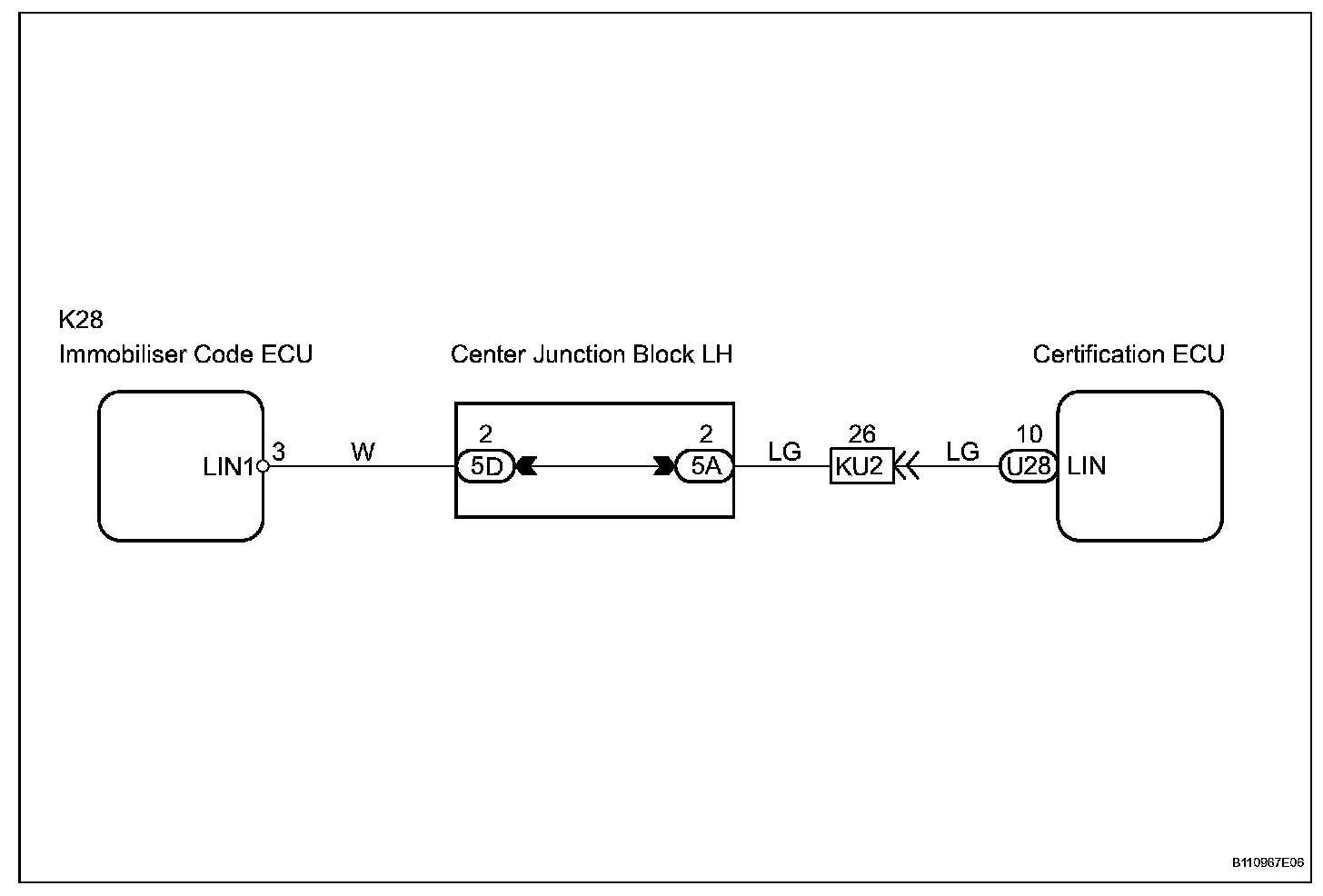

Wiring Diagram:

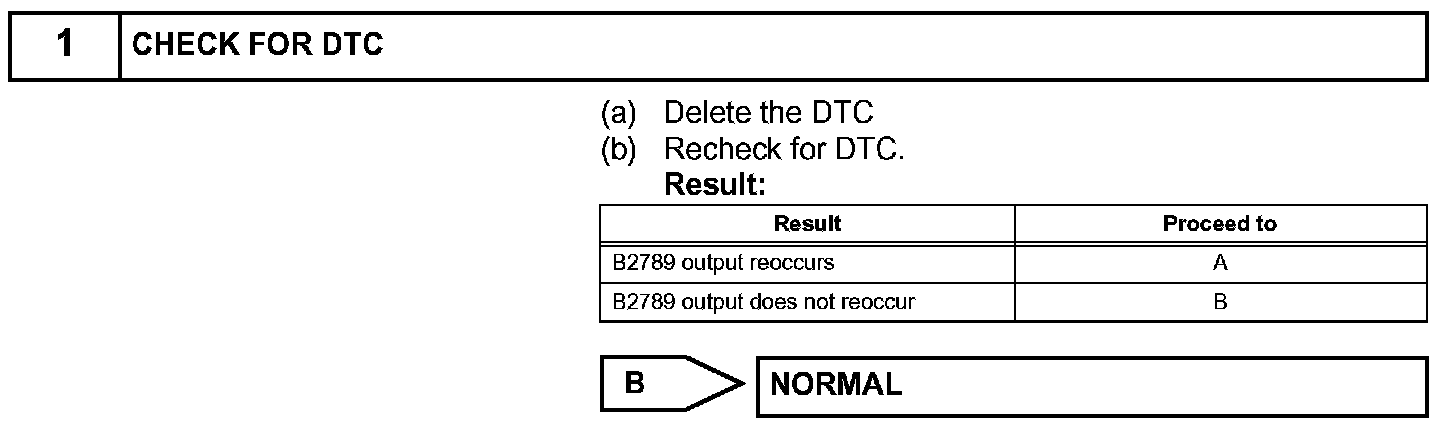

Step 1:

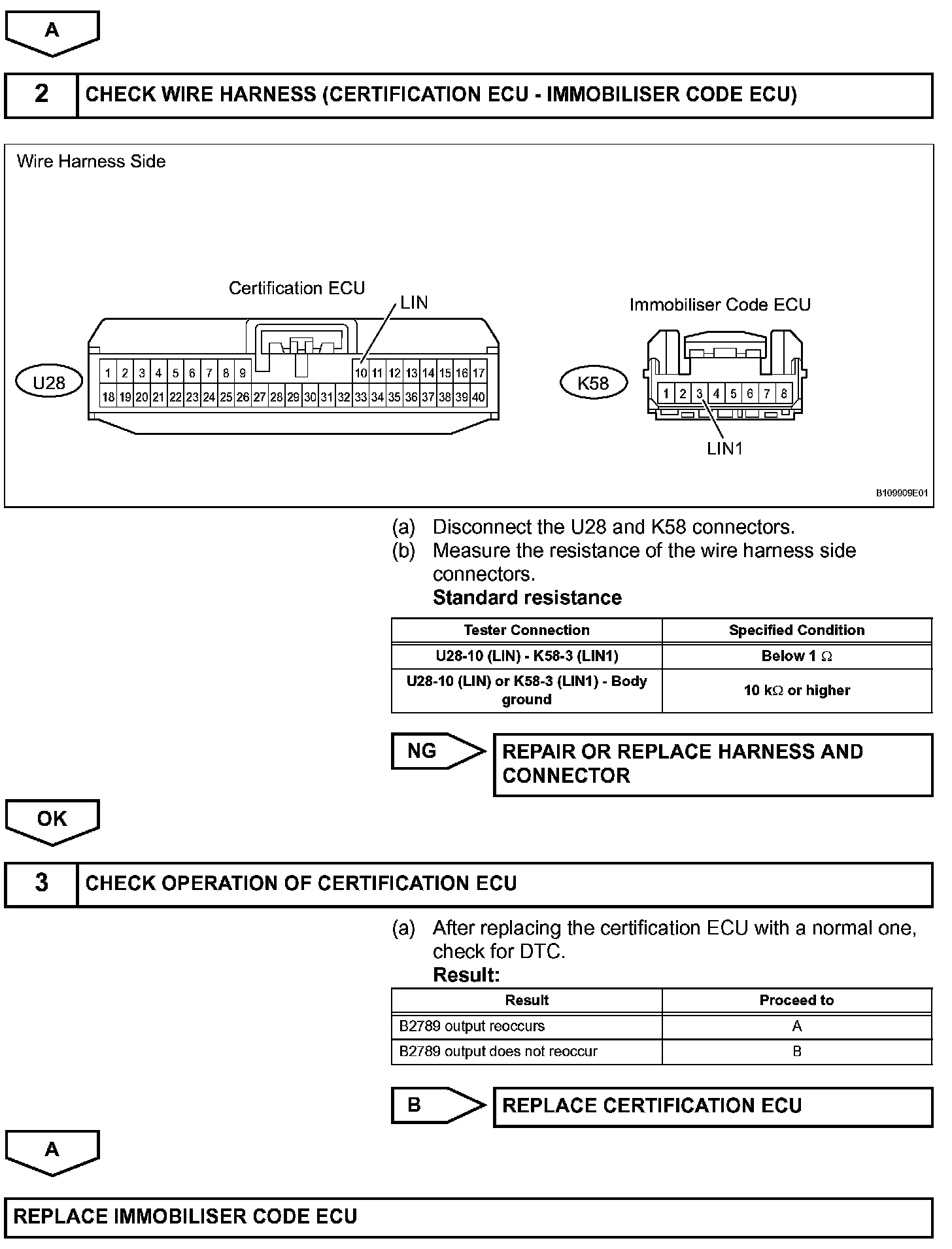

Step 1(continued)-3:

INSPECTION PROCEDURE
