B2414

DTC B2414 Steering Position Sensor Malfunction

DESCRIPTION

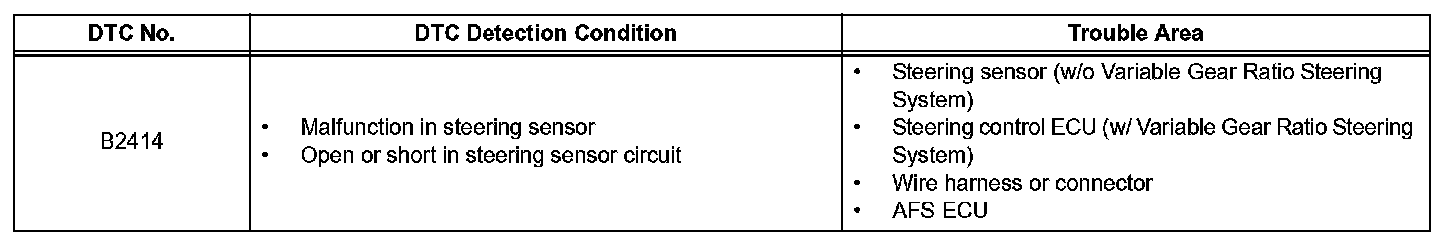

DTC Detection Condition:

The AFS ECU receives signals regarding the swerve-angle from the steering sensor in the steering wheel.

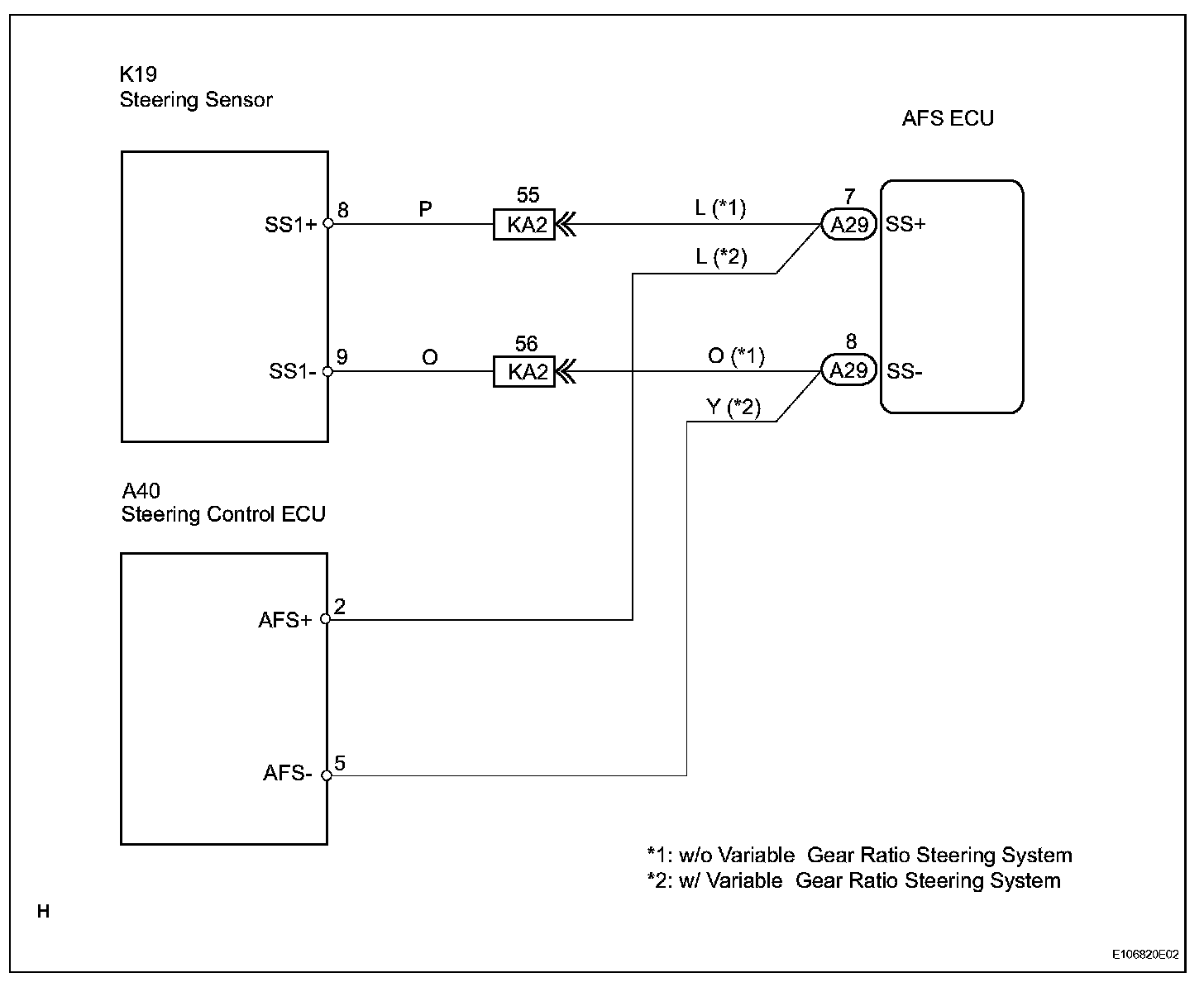

Wiring Diagram:

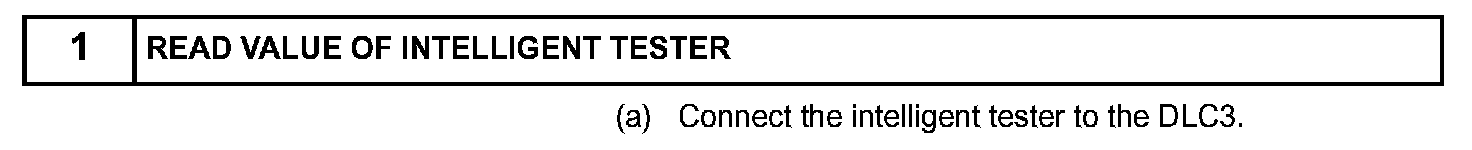

Step 1:

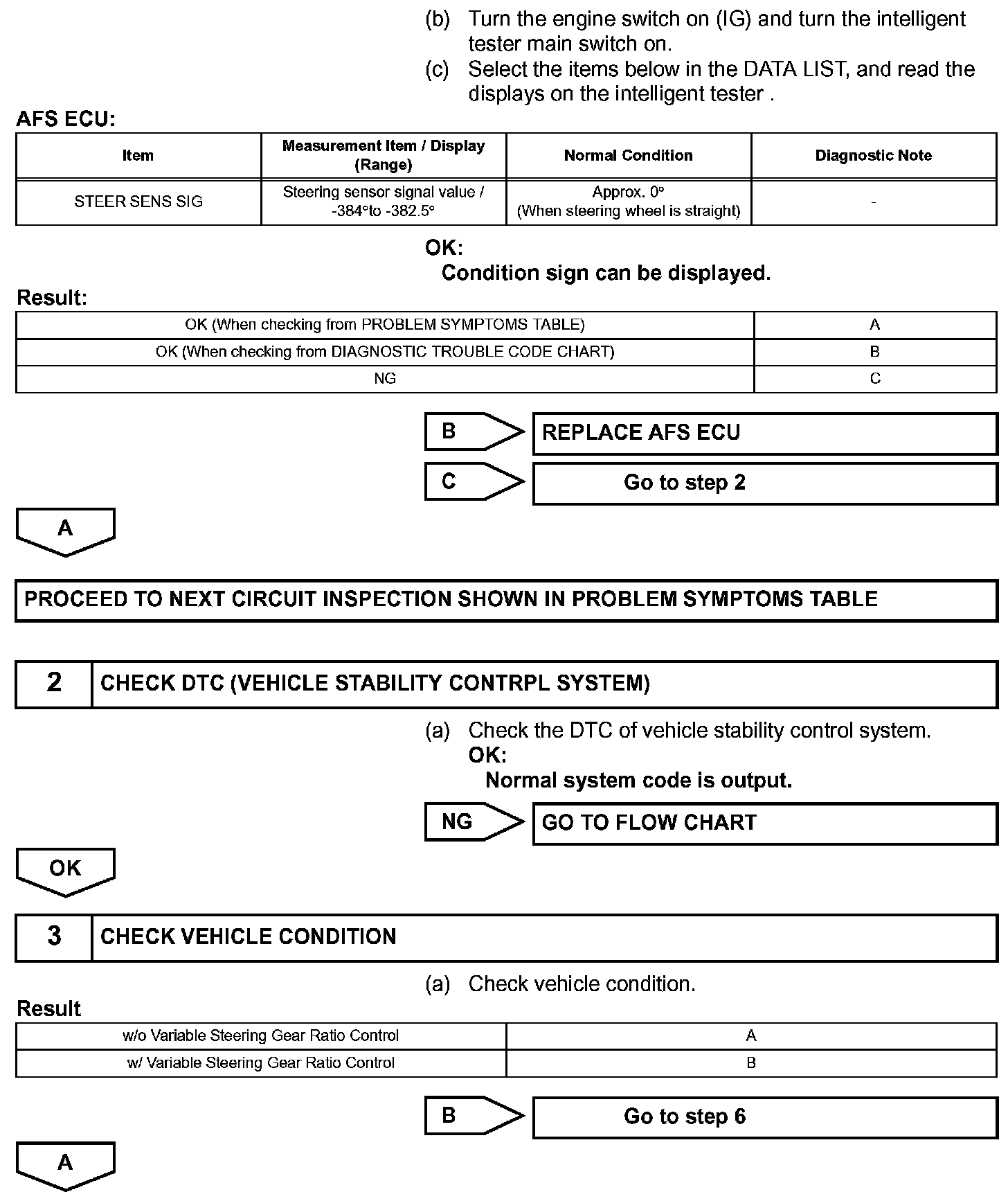

Step 1(continued)-3:

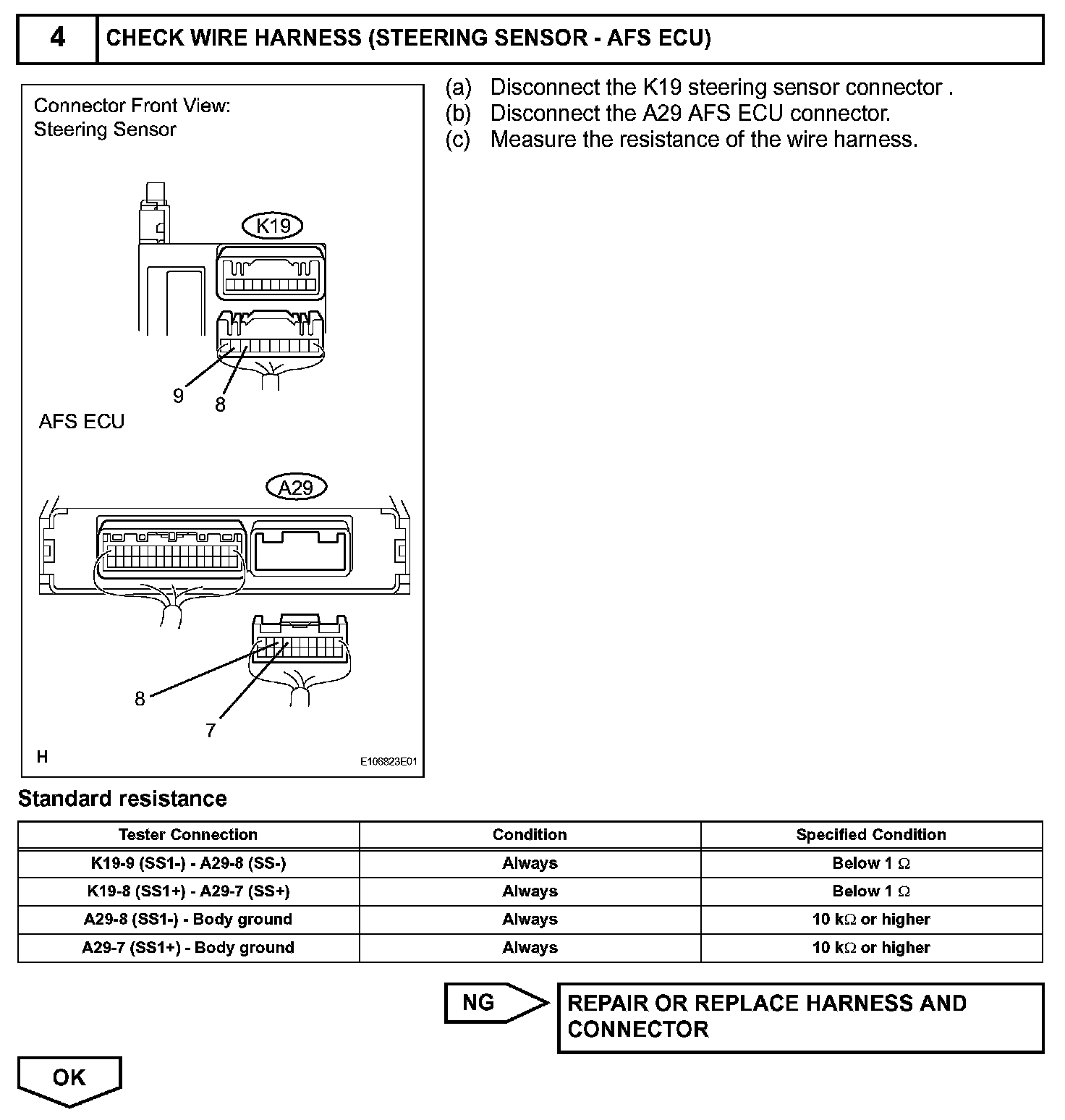

Step 4:

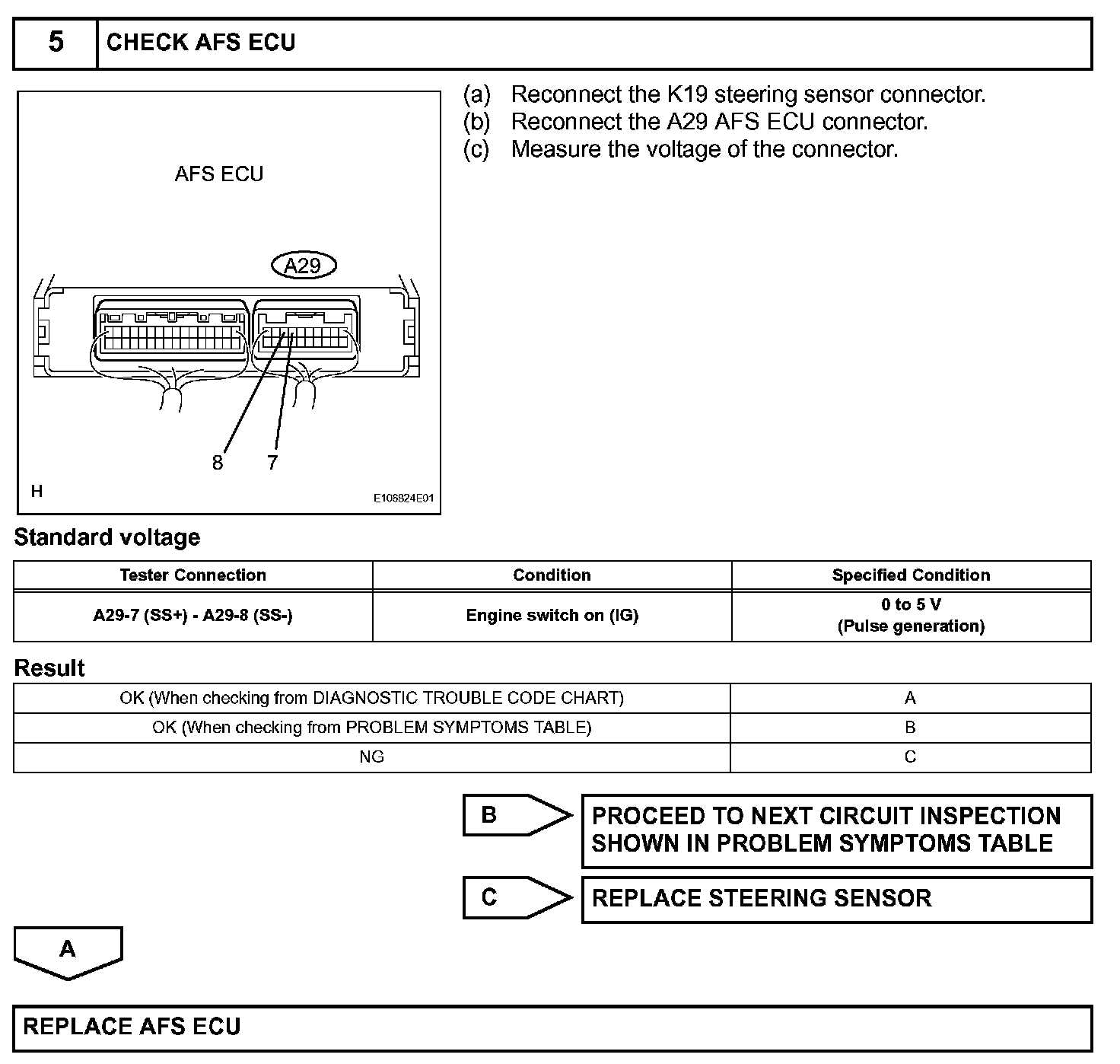

Step 5:

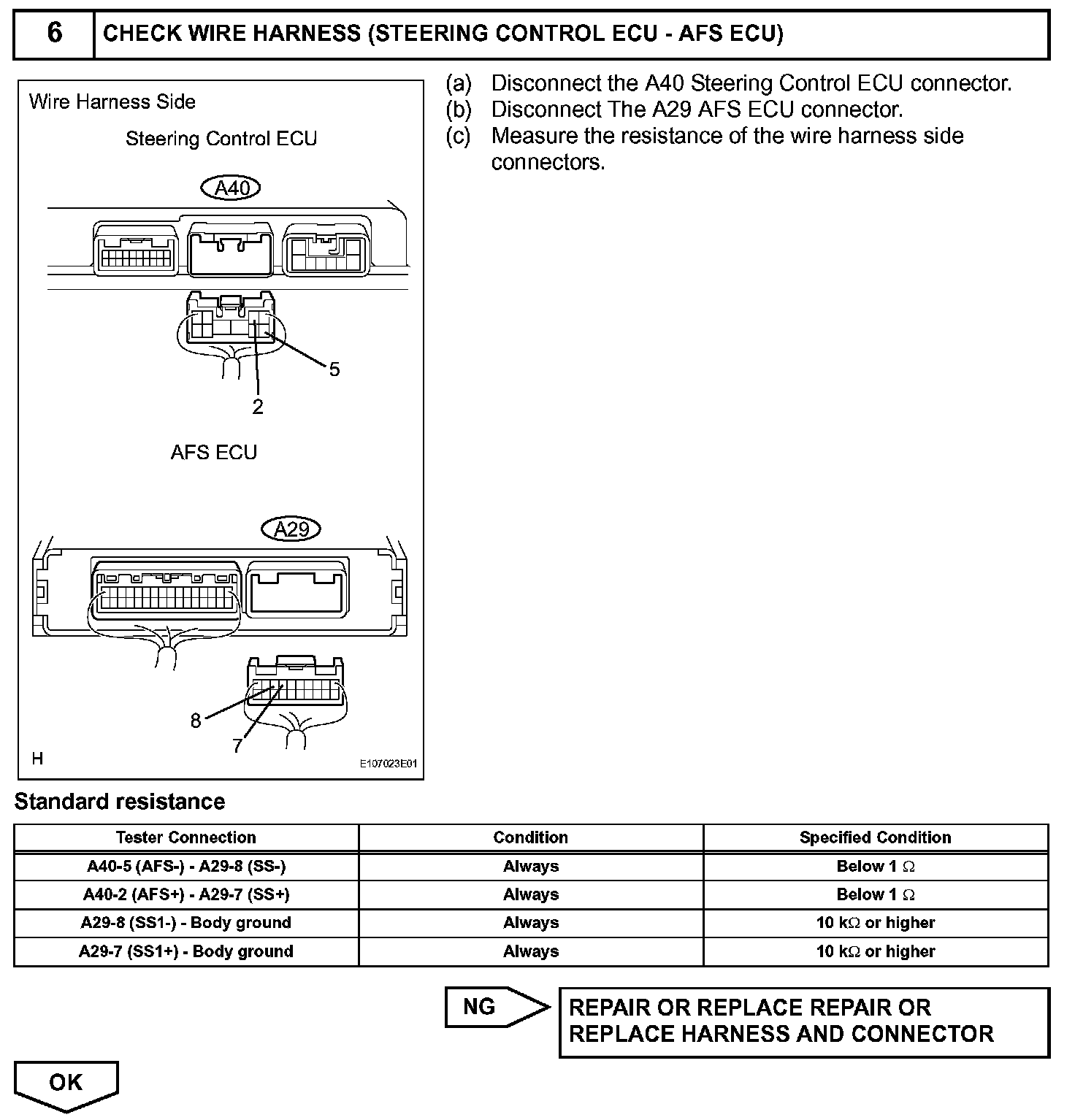

Step 6:

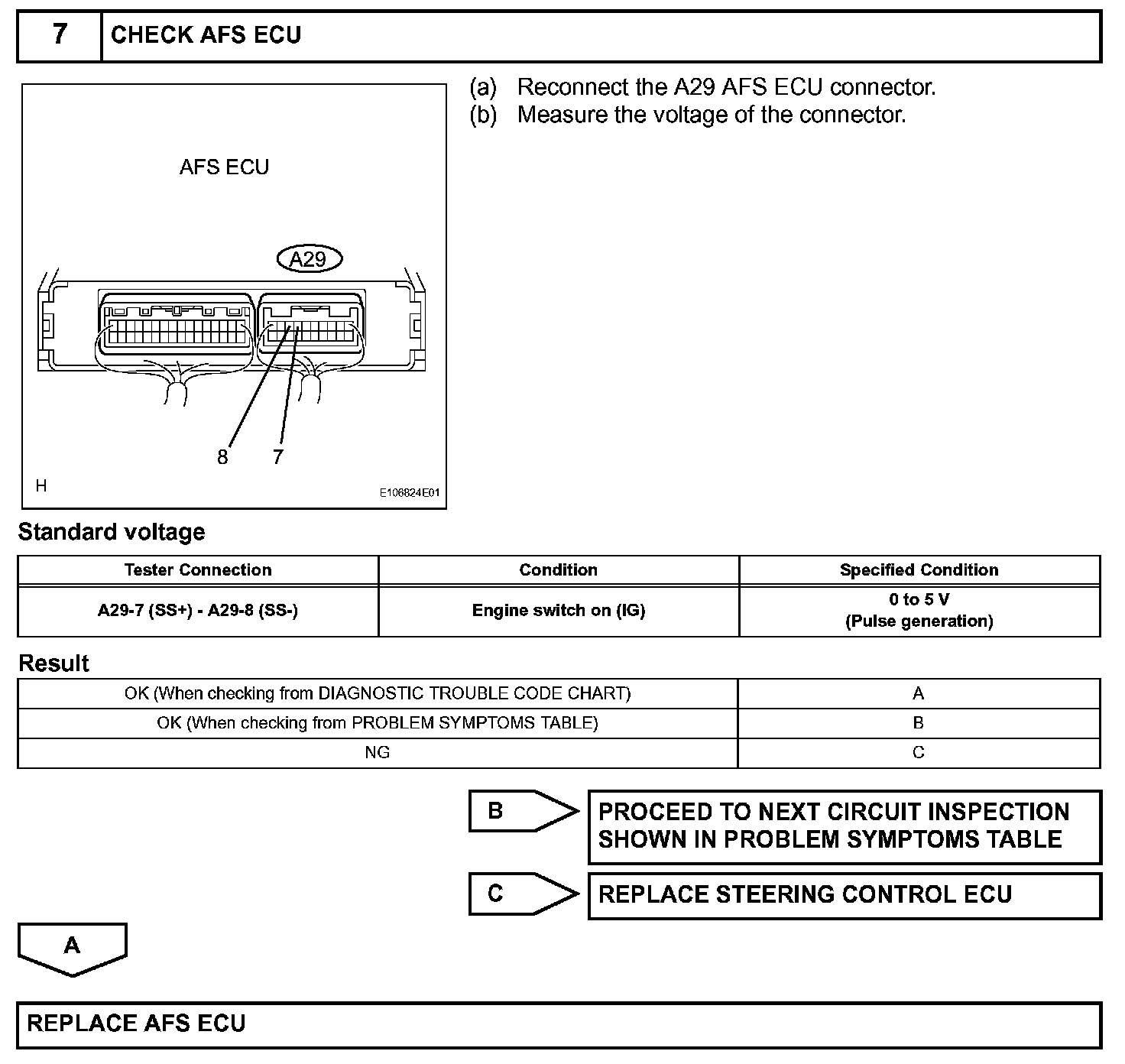

Step 7:

INSPECTION PROCEDURE
