B2289

DTC B2287 LIN Communication Master Malfunction
DTC B2289 Key Collation Waiting Time Over

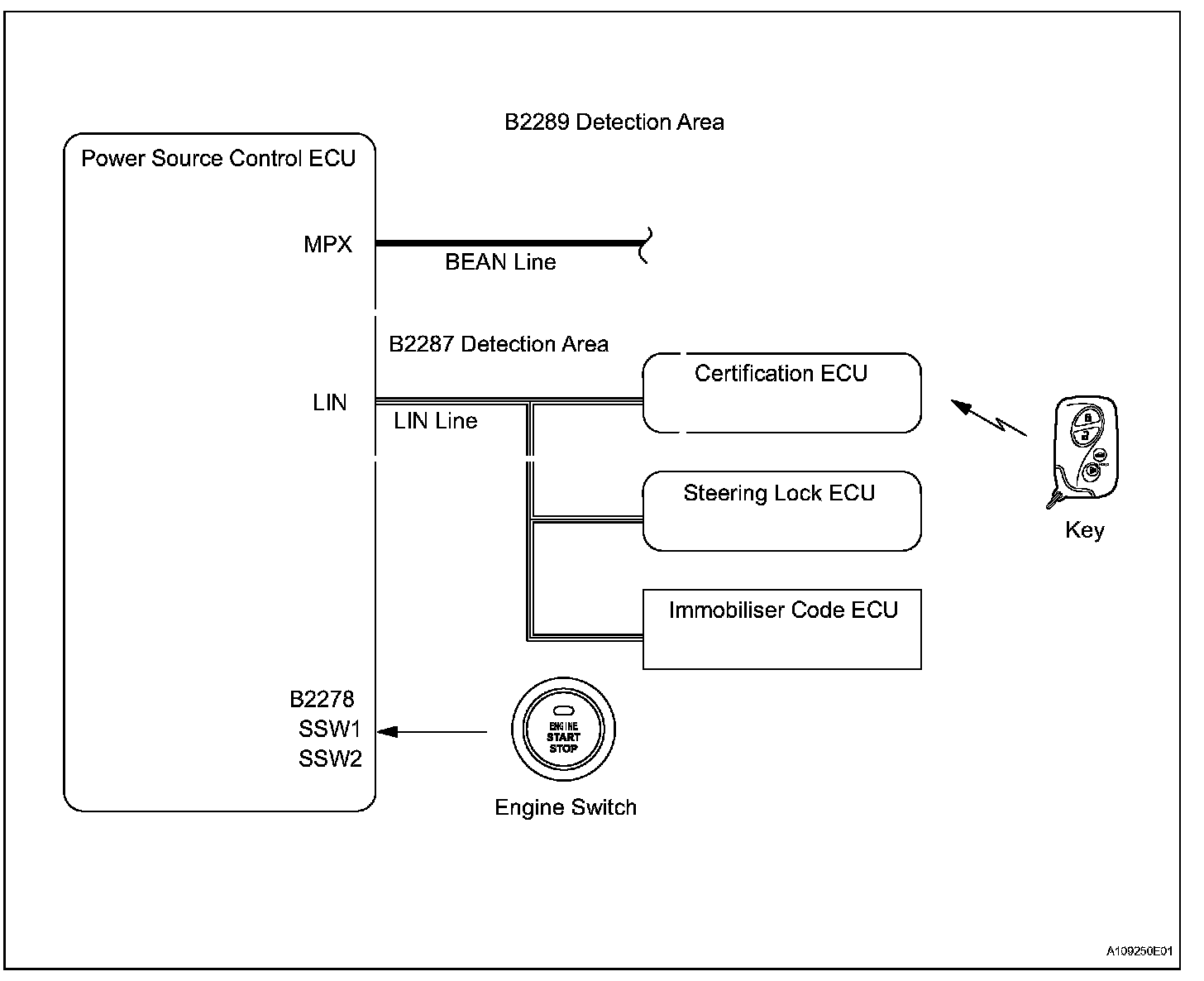

DESCRIPTION

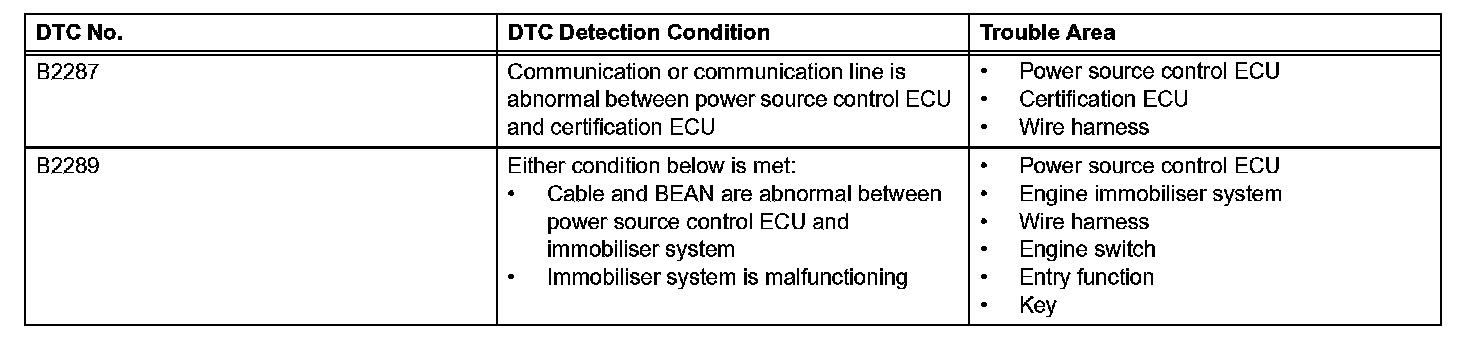

DTC Detection Condition:

This DTC is output when:1)any other DTC is set in the power source control ECU; or 2)the wire harness between the power source control ECU and the certification ECU is open or short.

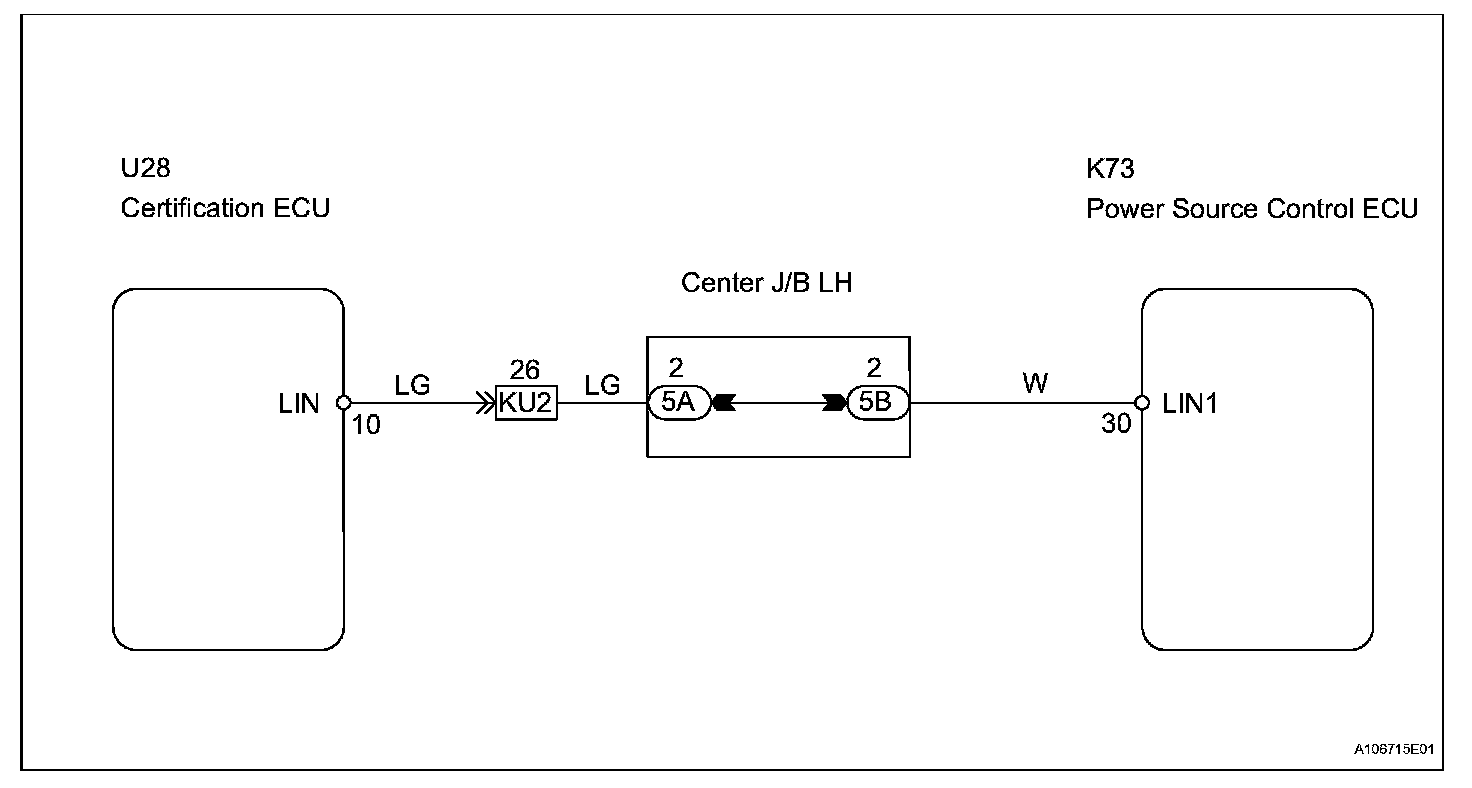

Wiring Diagram:

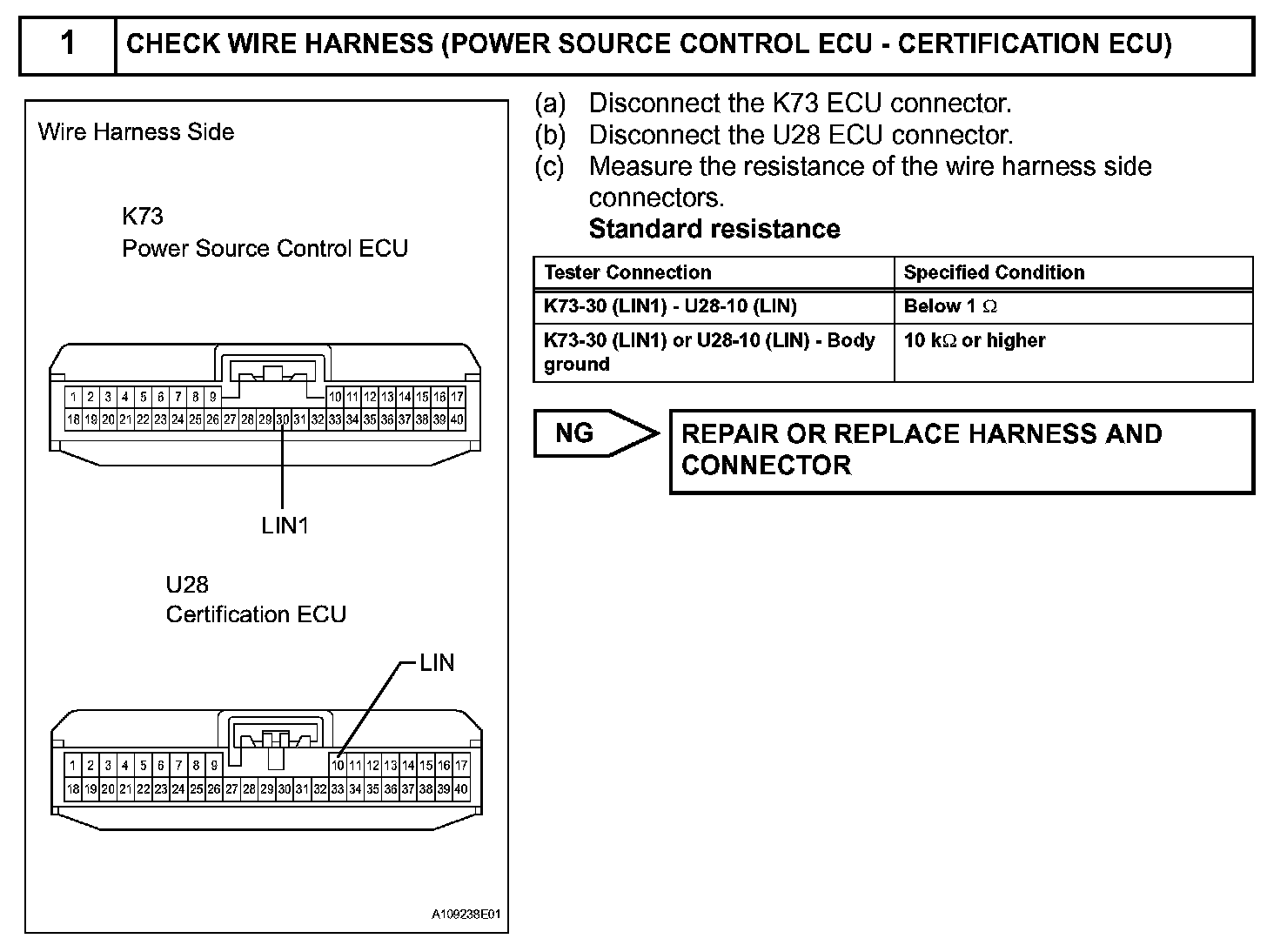

Step 1:

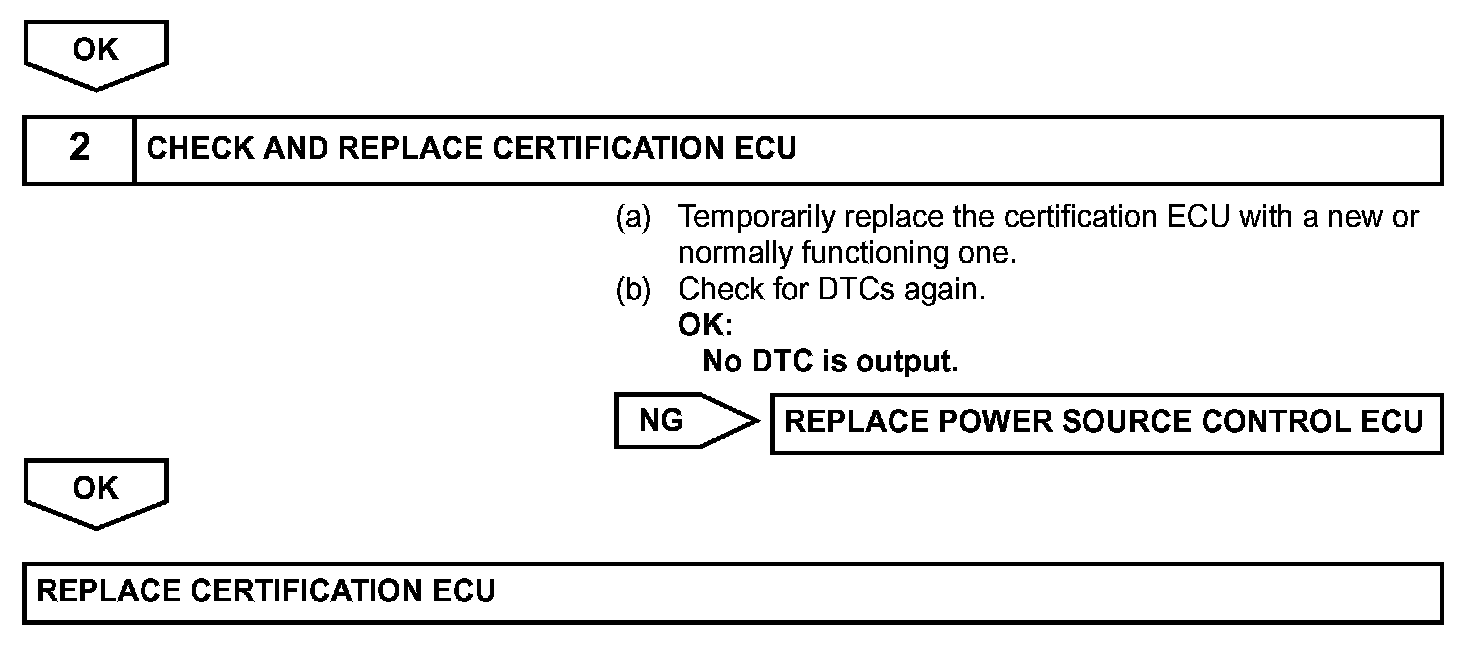

Step 1(Continued)-2:

INSPECTION PROCEDURE
