B2285

DTC B2285 Steering Lock Position Signal Circuit Malfunction
DTC B2288 Steering Lock Signal Circuit Malfunction

DESCRIPTION

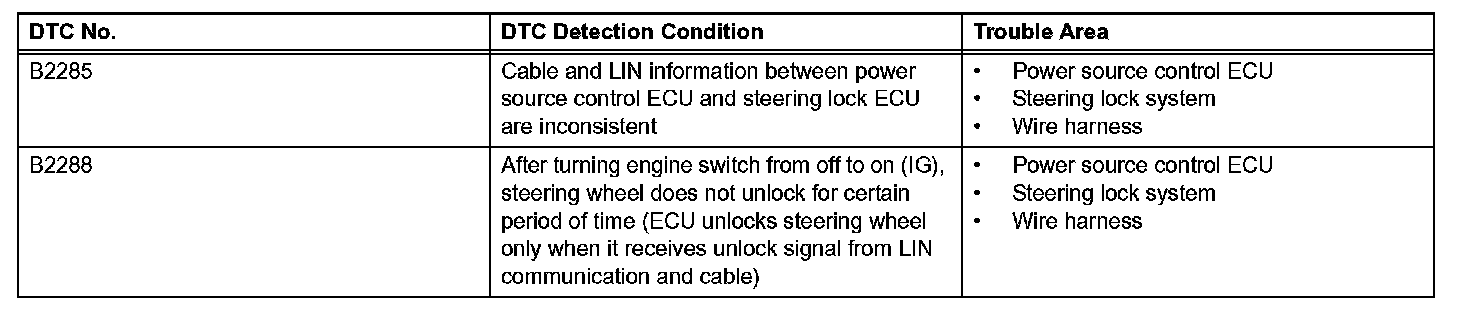

DTC Detection Condition:

The power source control ECU and the steering lock ECU are connected by a cable and the LIN. These DTCs are output when 1)the cable information and LIN information are inconsistent; and 2)a malfunction is detected between the power source control ECU and the steering lock ECU.

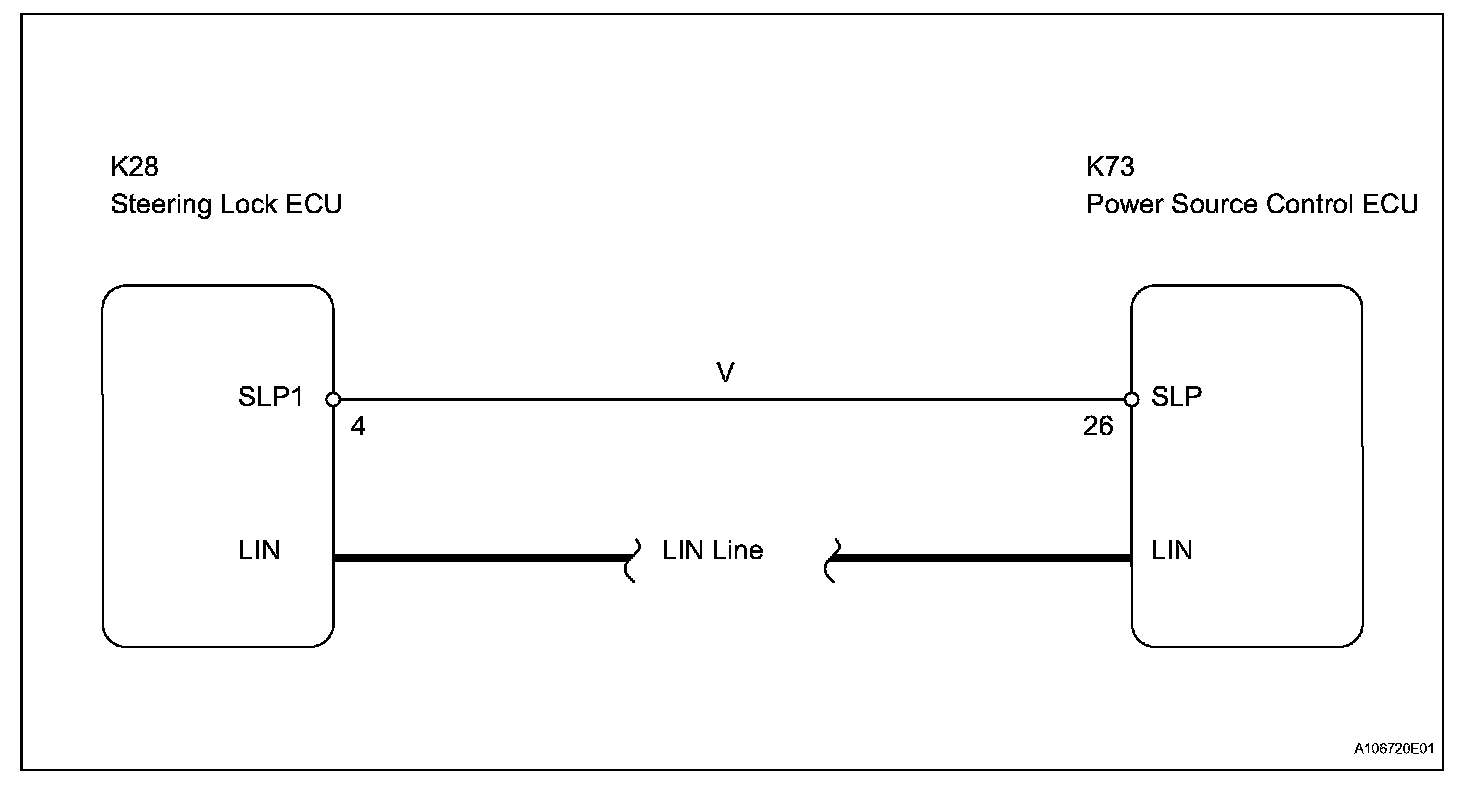

Wiring Diagram:

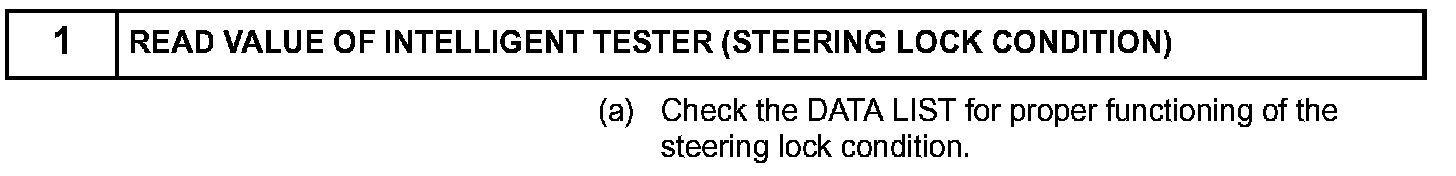

Step 1:

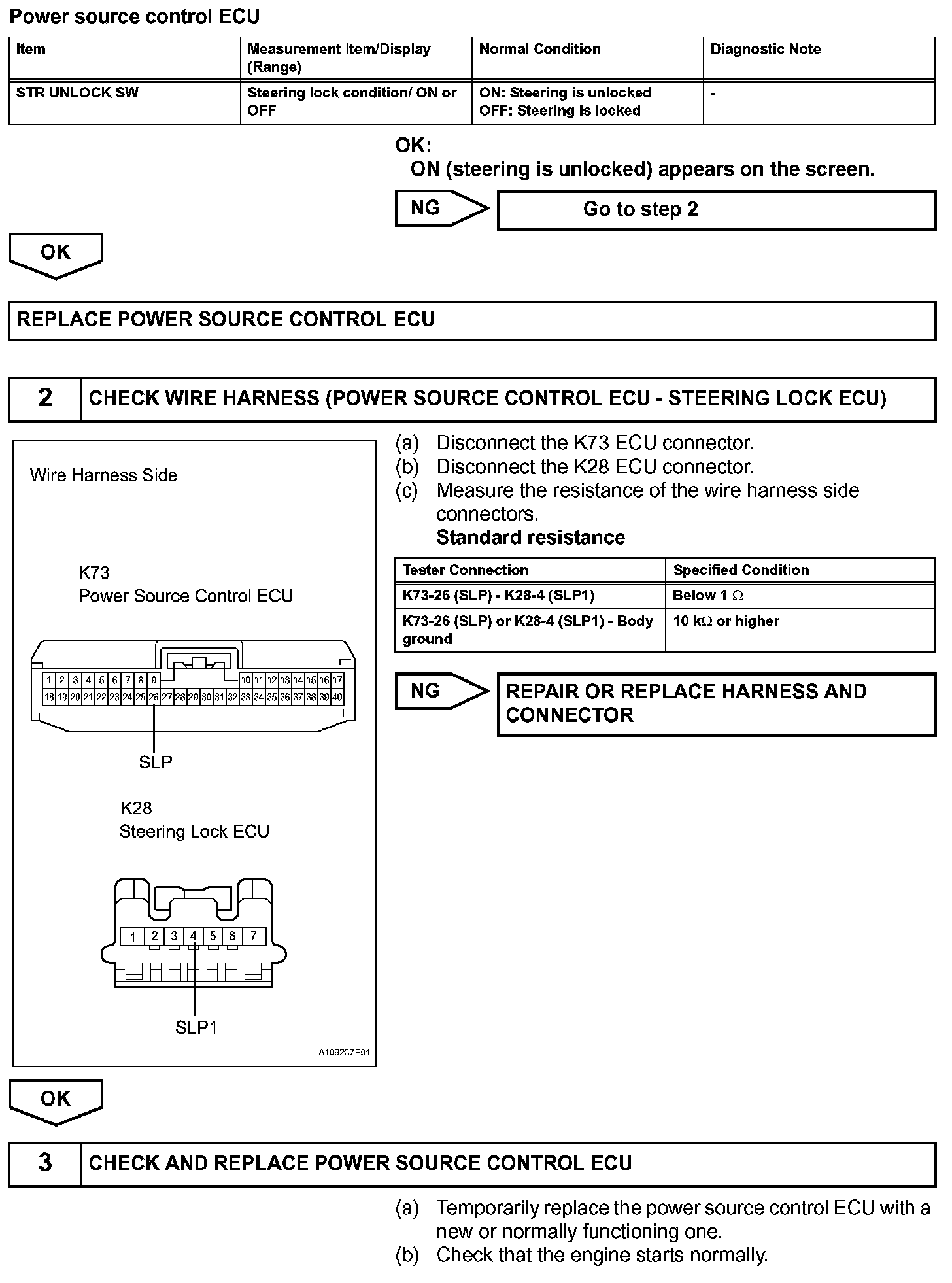

Step 1(Continued)-3:

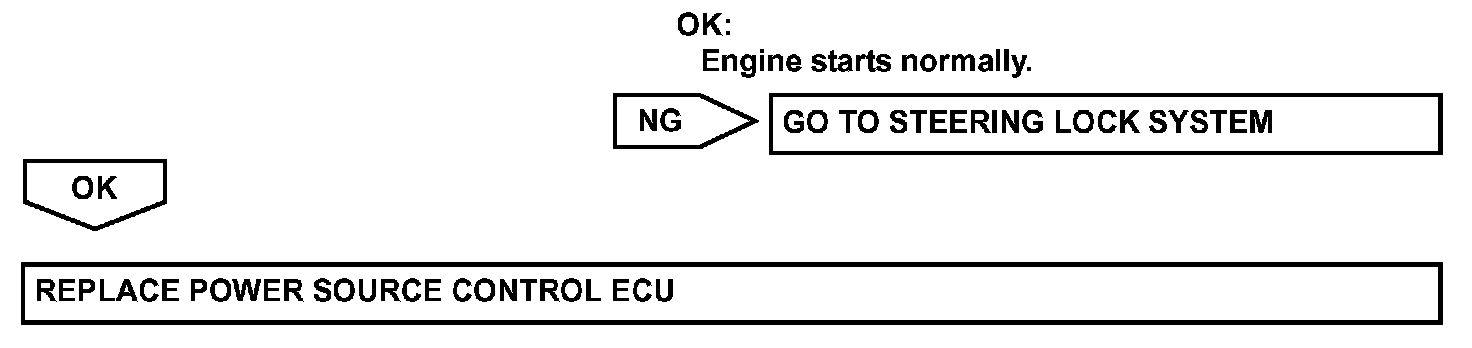

Step 3(Continued):

INSPECTION PROCEDURE
