B2284

DTC B2284 Brake Signal Malfunction (Cable-Information does not Match to Bean-Information)

DESCRIPTION

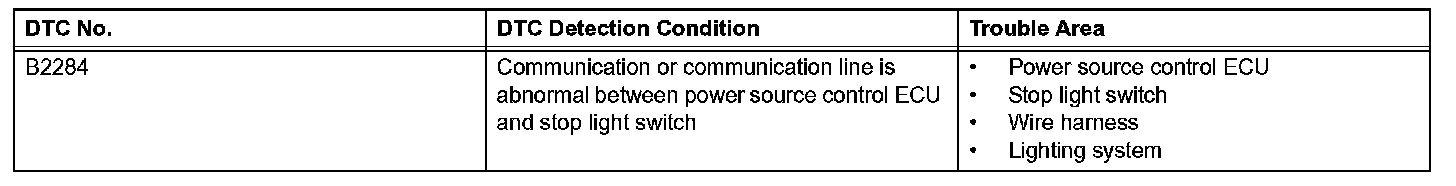

DTC Detection Condition:

This DTC is output when: 1. the brake signal circuit between the power source control ECU and the stop light switch is malfunctioning; and 2. the BEAN information is inconsistent.

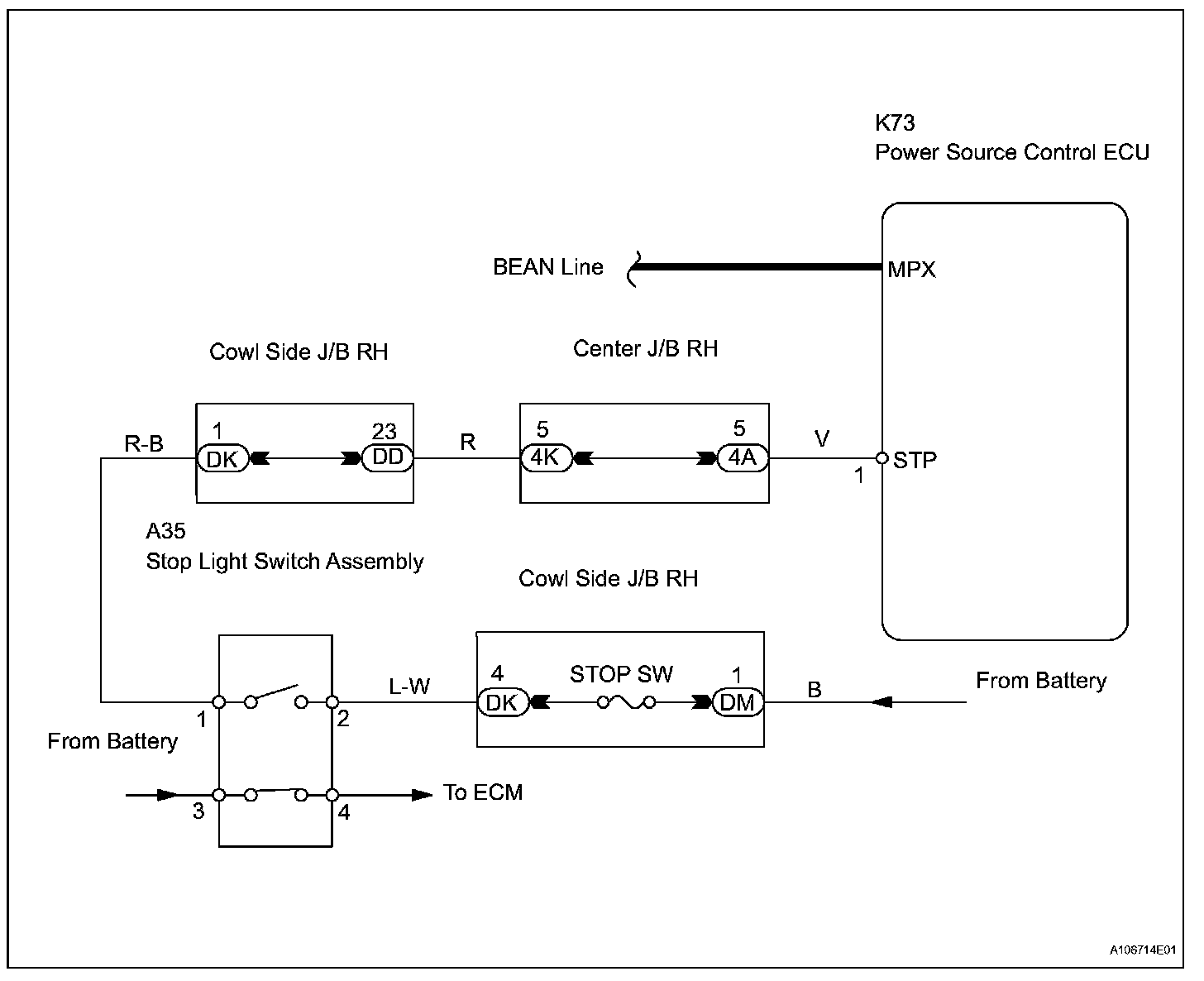

Wiring Diagram:

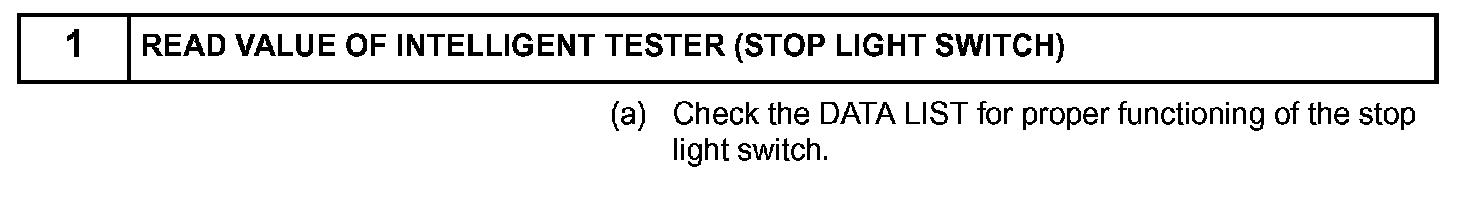

Step 1:

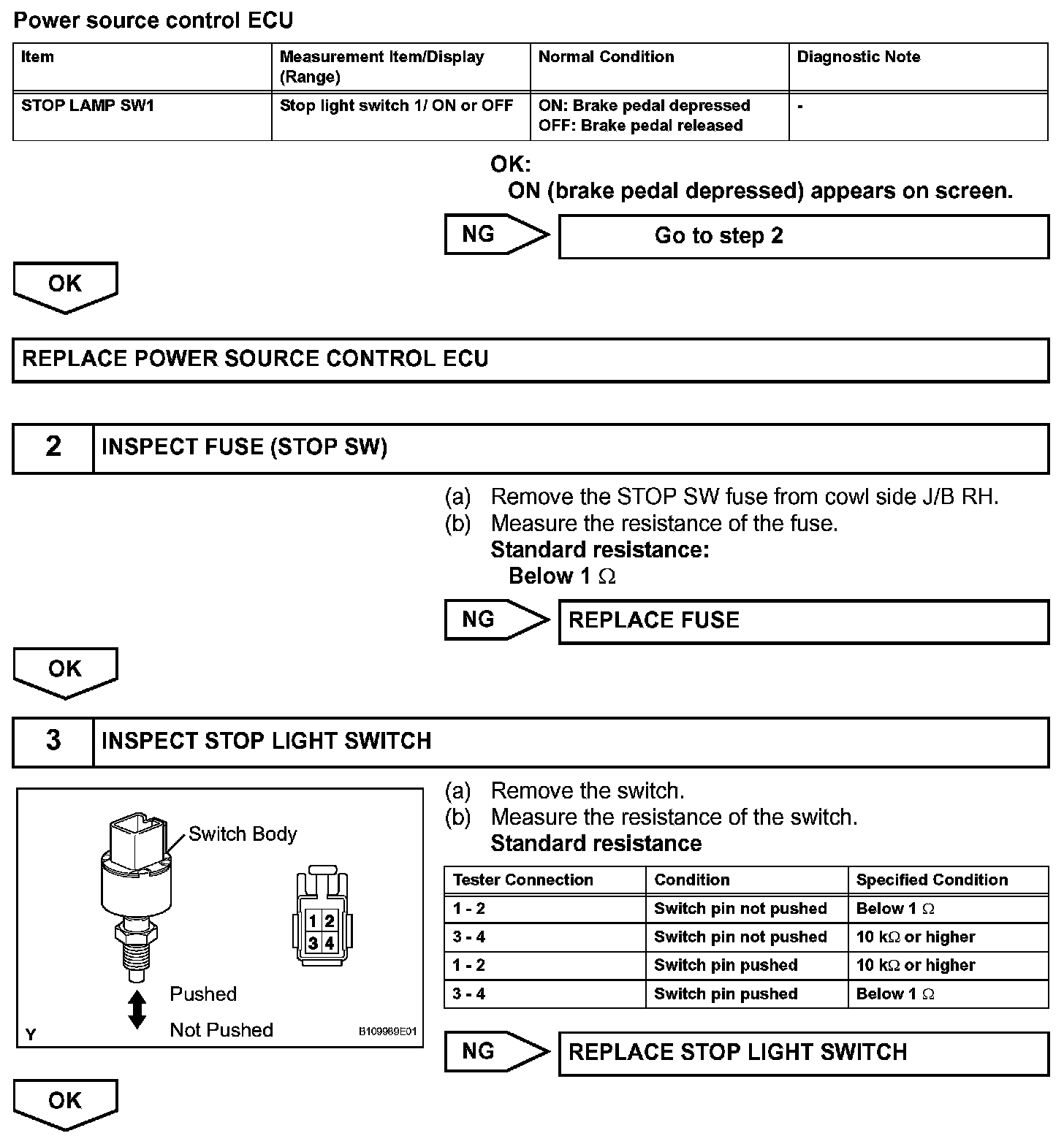

Step 1(Continued)-2:

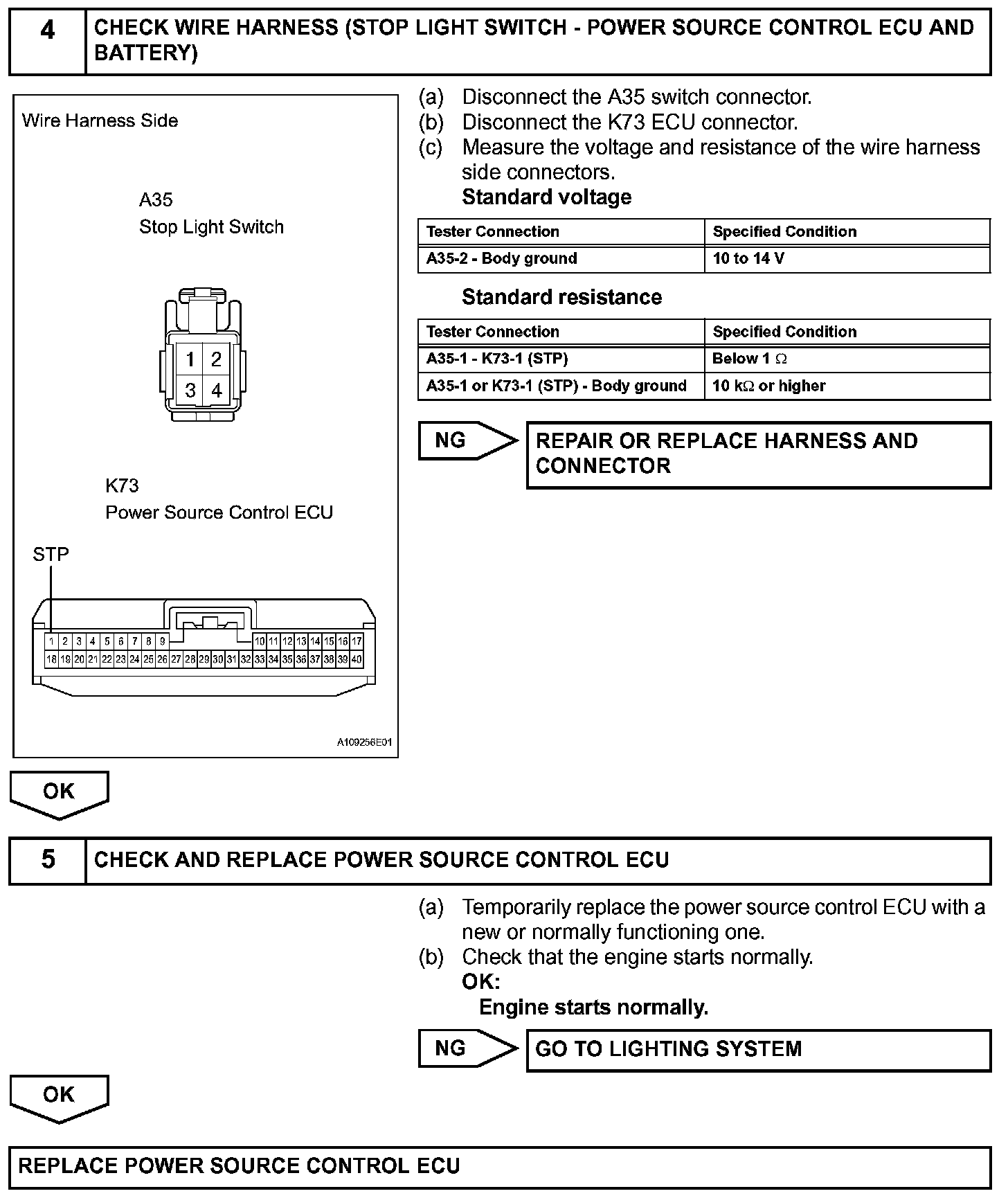

Step 4-5:

INSPECTION PROCEDURE
