B2056

DTC B2056 Axial Gap of Radar Sensor

DESCRIPTION

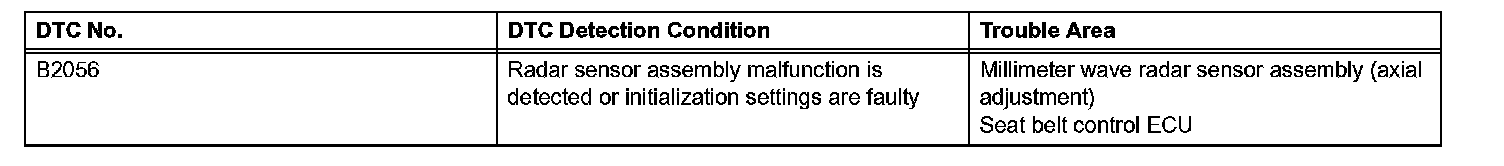

DTC Detection Condition:






NOTE: When the seat belt control ECU is replaced with a new one, Active Test must be performed.

Step 1-2:

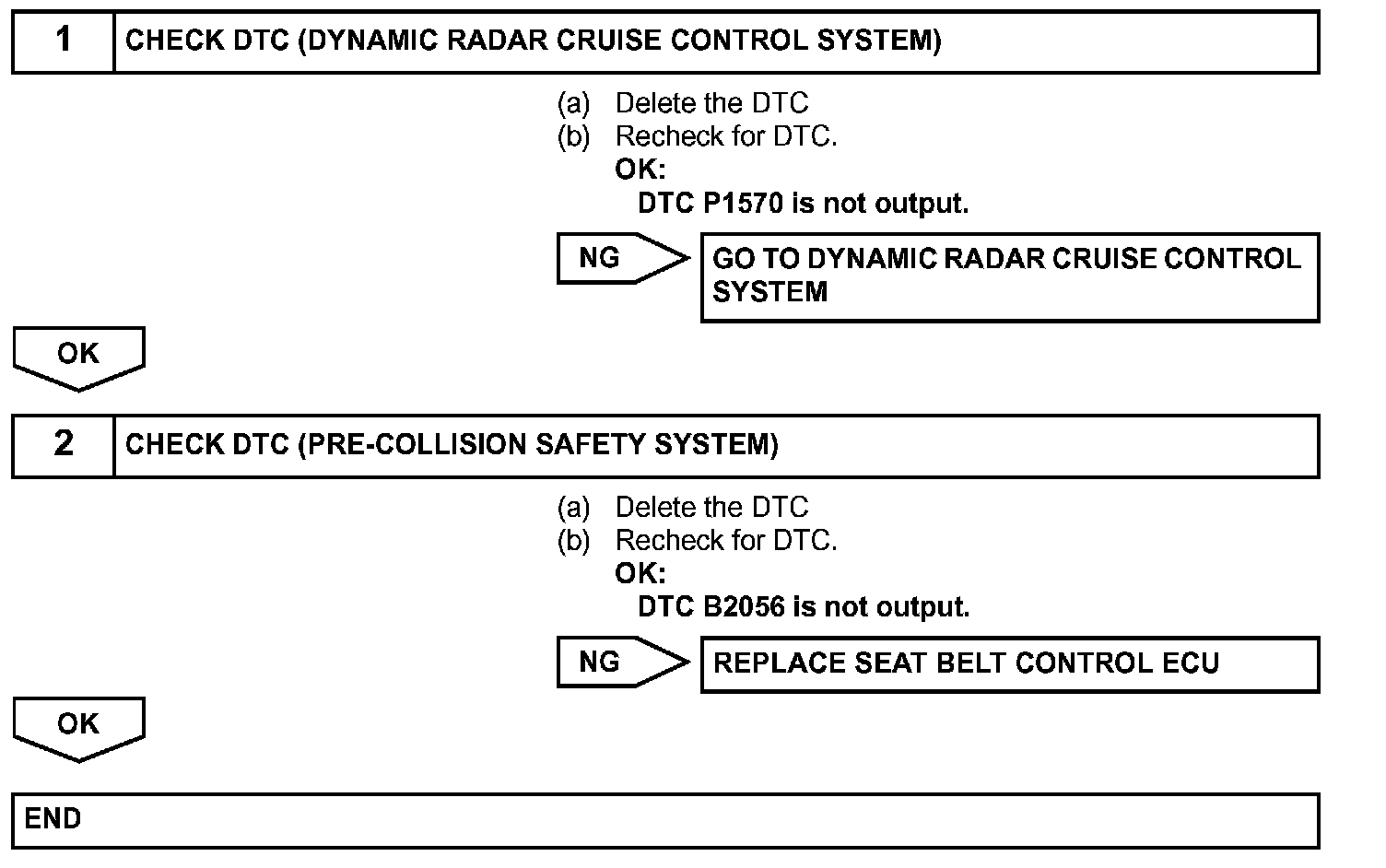

INSPECTION PROCEDURE
