B1655

DTC B1655/37 Seat Belt Buckle Switch RH Circuit Malfunction

DESCRIPTION

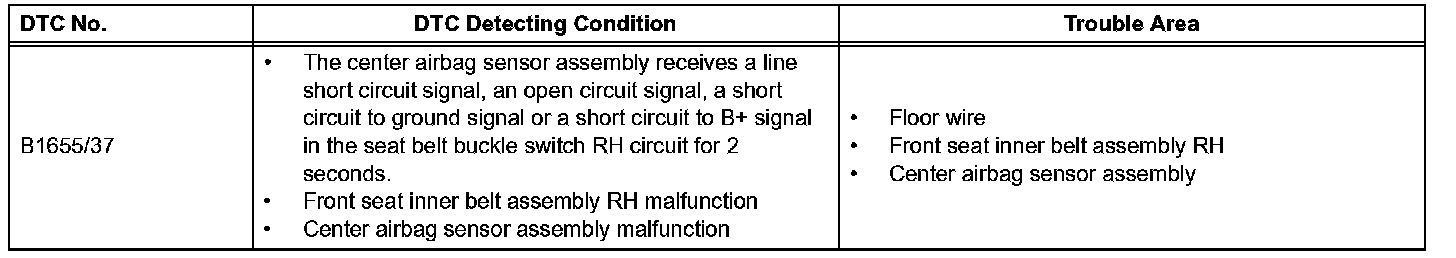

DTC Detecting Condition:

The seat belt buckle switch RH circuit consists of the center airbag sensor assembly and the front seat inner belt assembly RH.
DTC B1655/37 is recorded when a malfunction is detected in the seat belt buckle switch RH circuit.

Wiring Diagram:

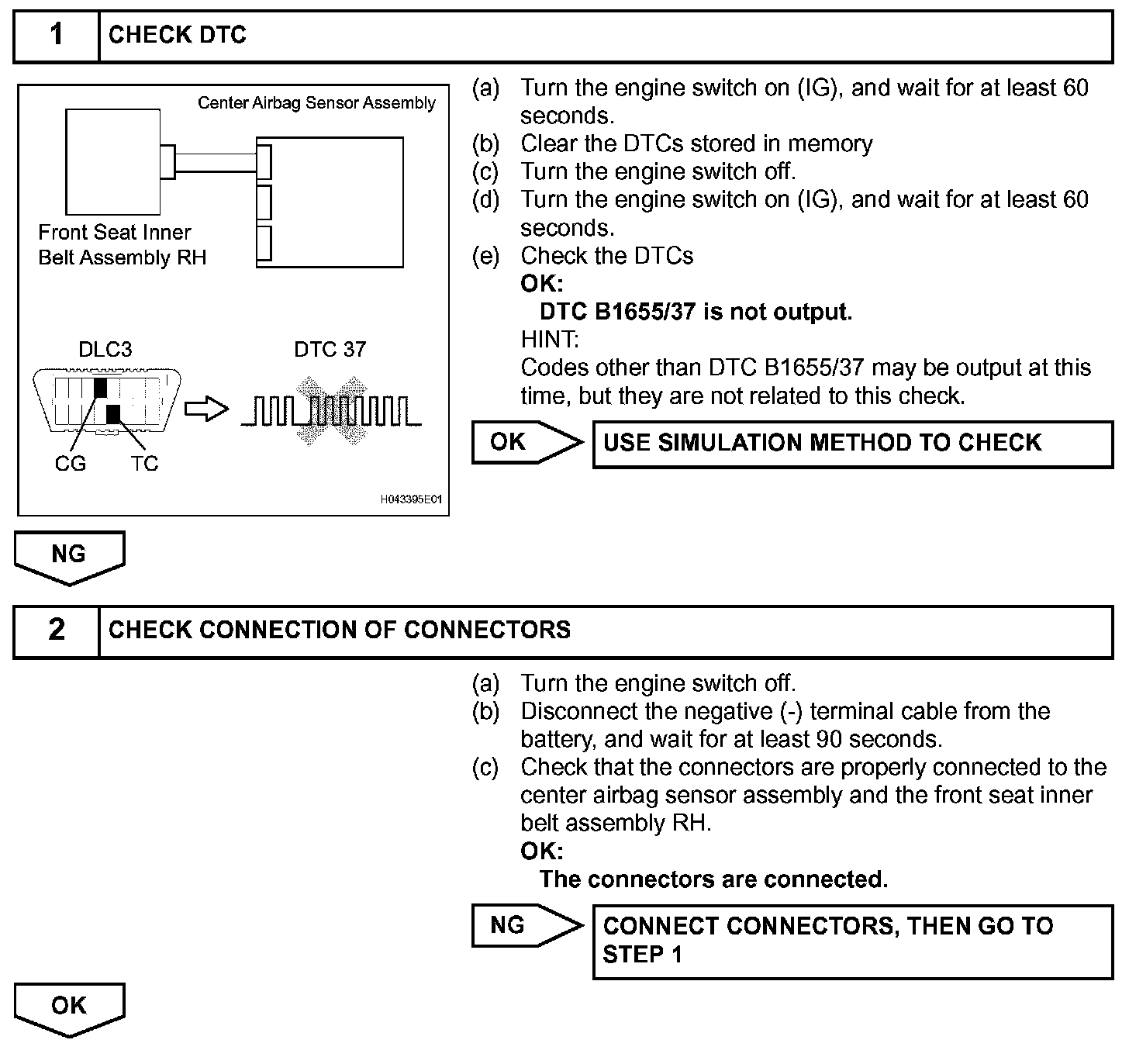

Step 1-2:

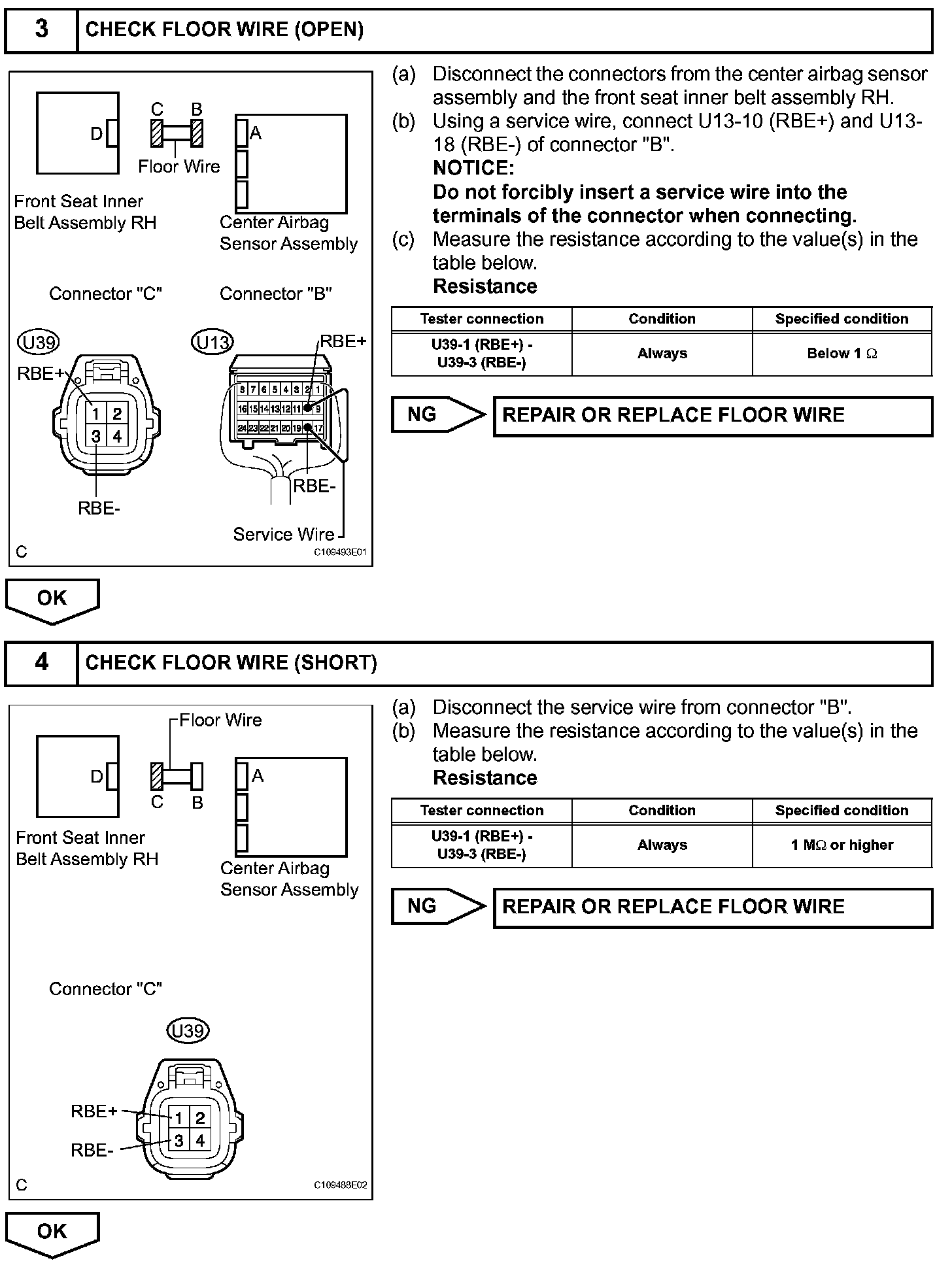

Step 3-4:

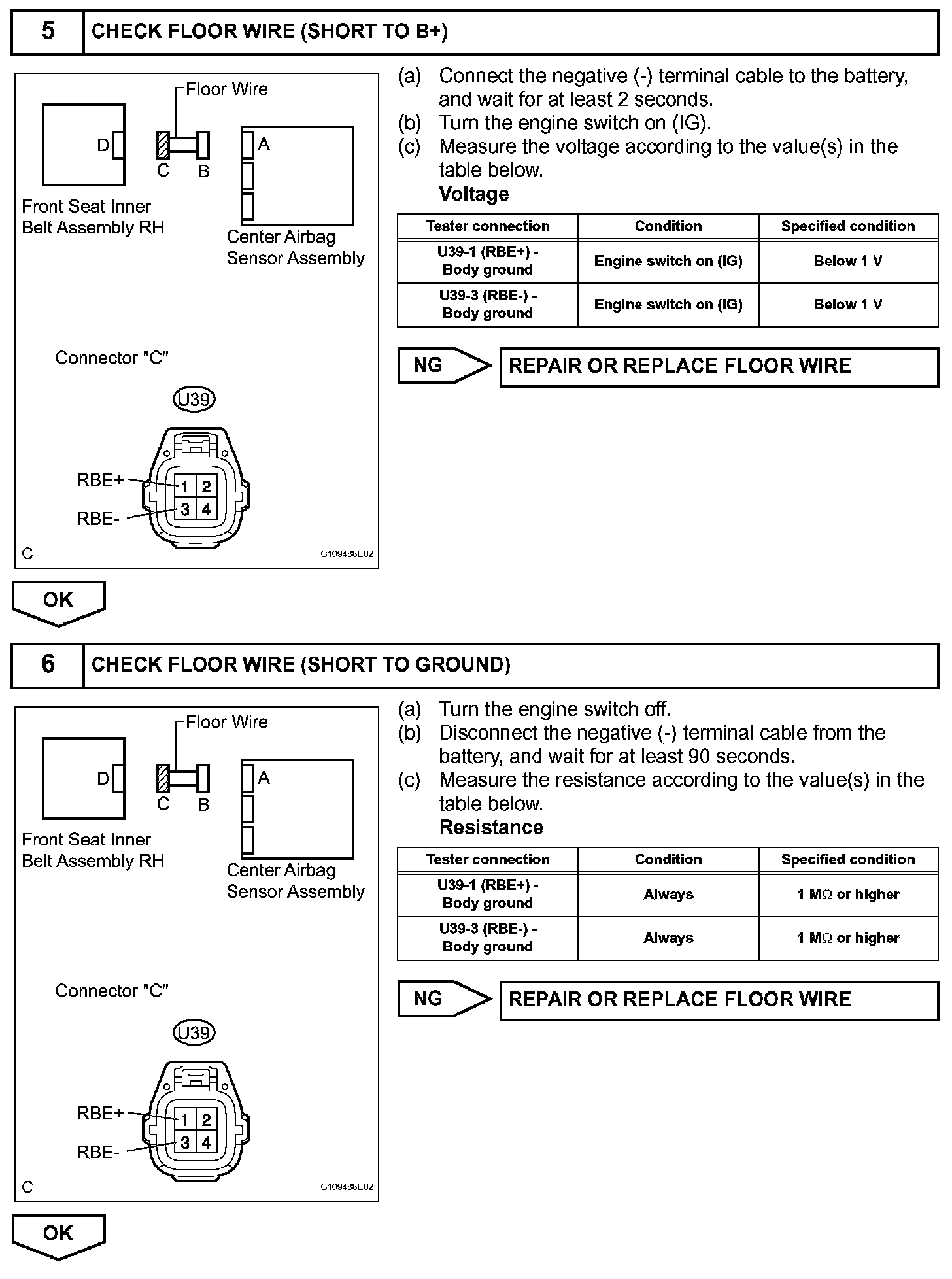

Step 5-6:

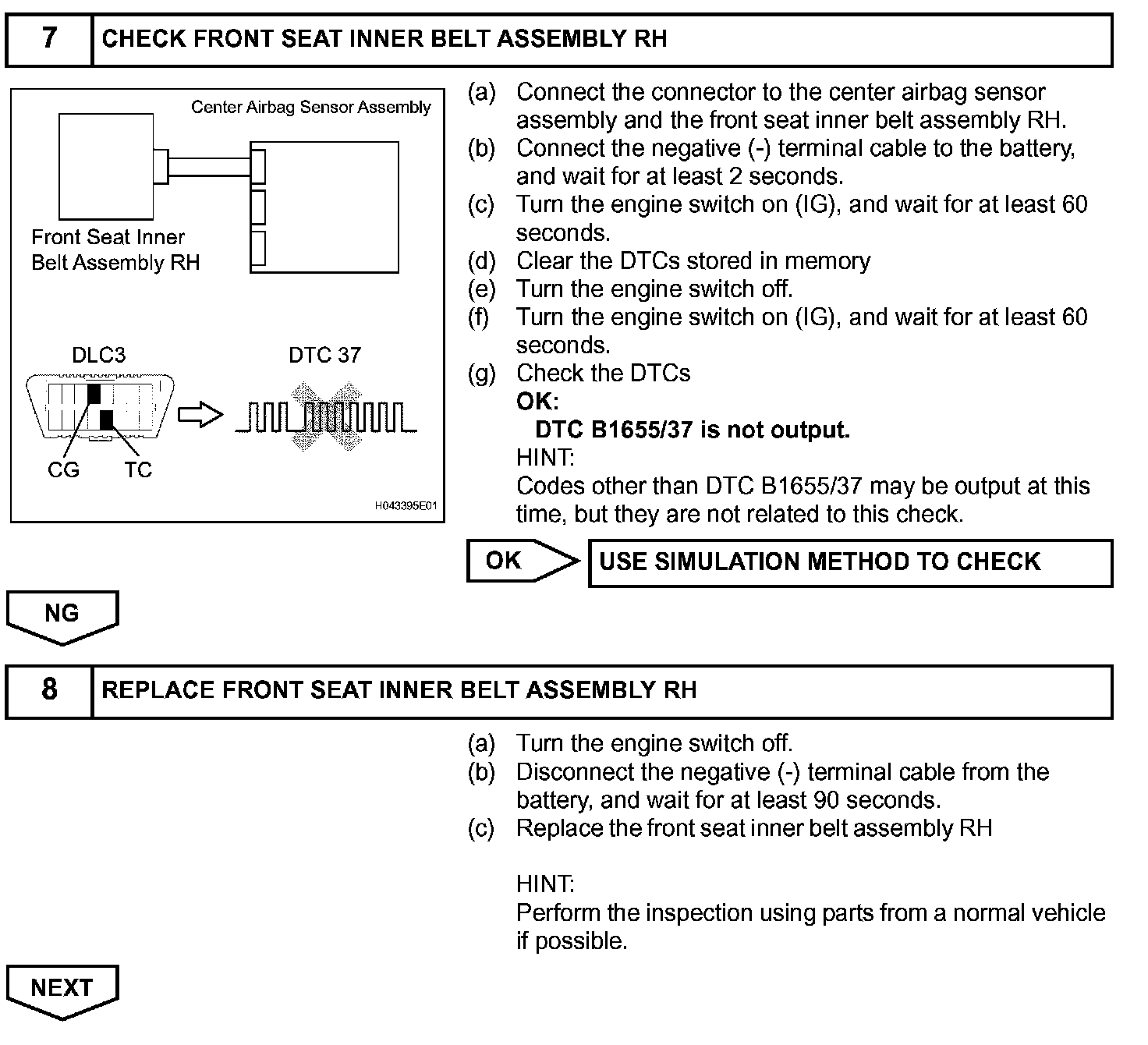

Step 7-8:

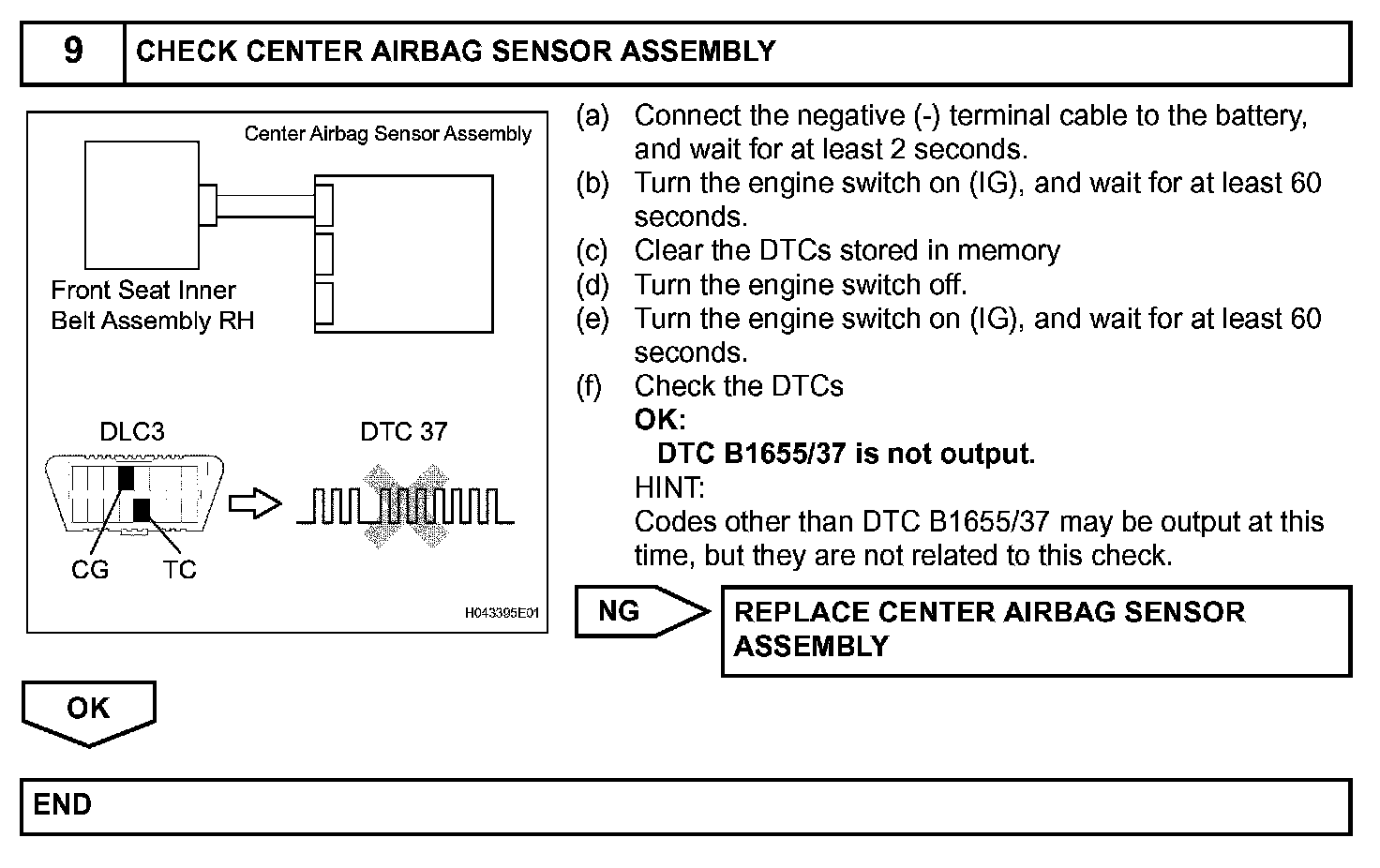

Step 9:

INSPECTION PROCEDURE
