B1650

DTC B1650/32 Occupant Detection Sensor Circuit Malfunction

DESCRIPTION

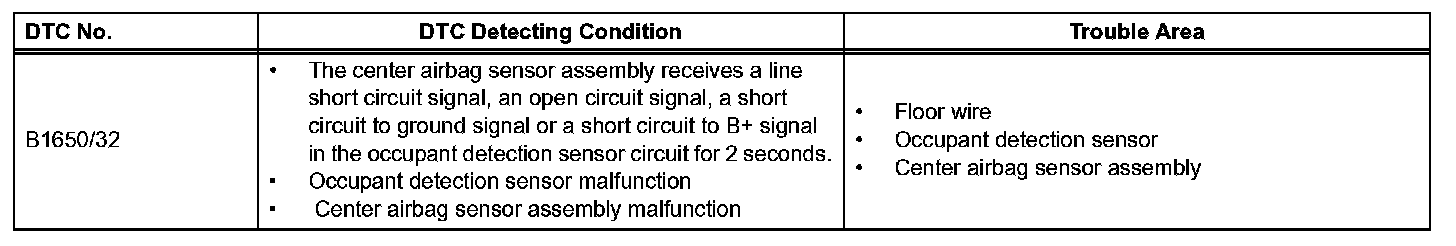

DTC Detecting Condition:

The occupant detection sensor circuit consists of the center airbag sensor assembly and the occupant detection sensor.
If the center airbag sensor assembly receives signals from the occupant detection sensor, it determines whether or not the front passenger airbag assembly and the front seat airbag assembly RH should be
operated.
DTC B1650/32 is recorded when a malfunction is detected in the occupant detection sensor circuit.

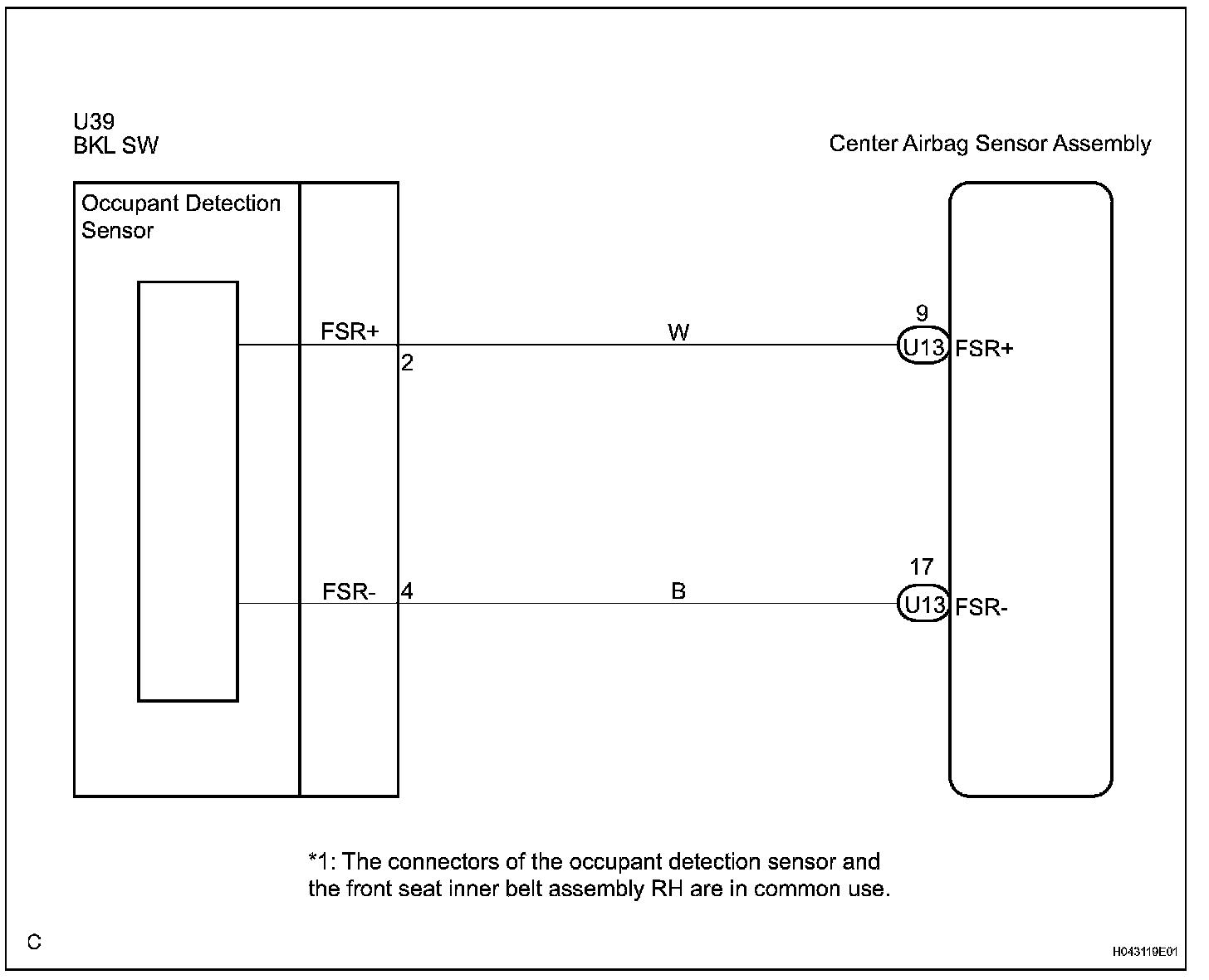

Wiring Diagram:

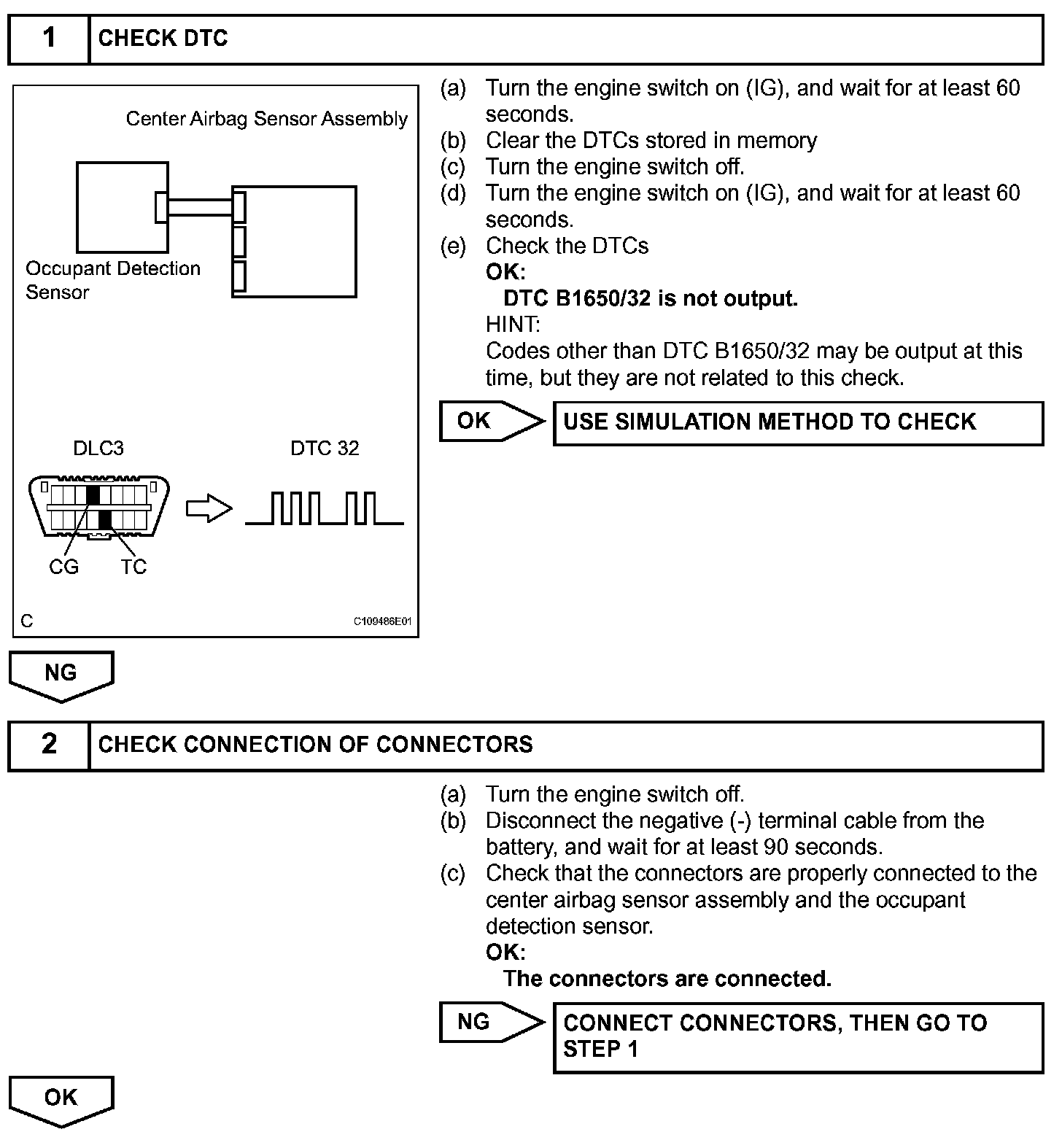

Step 1-2:

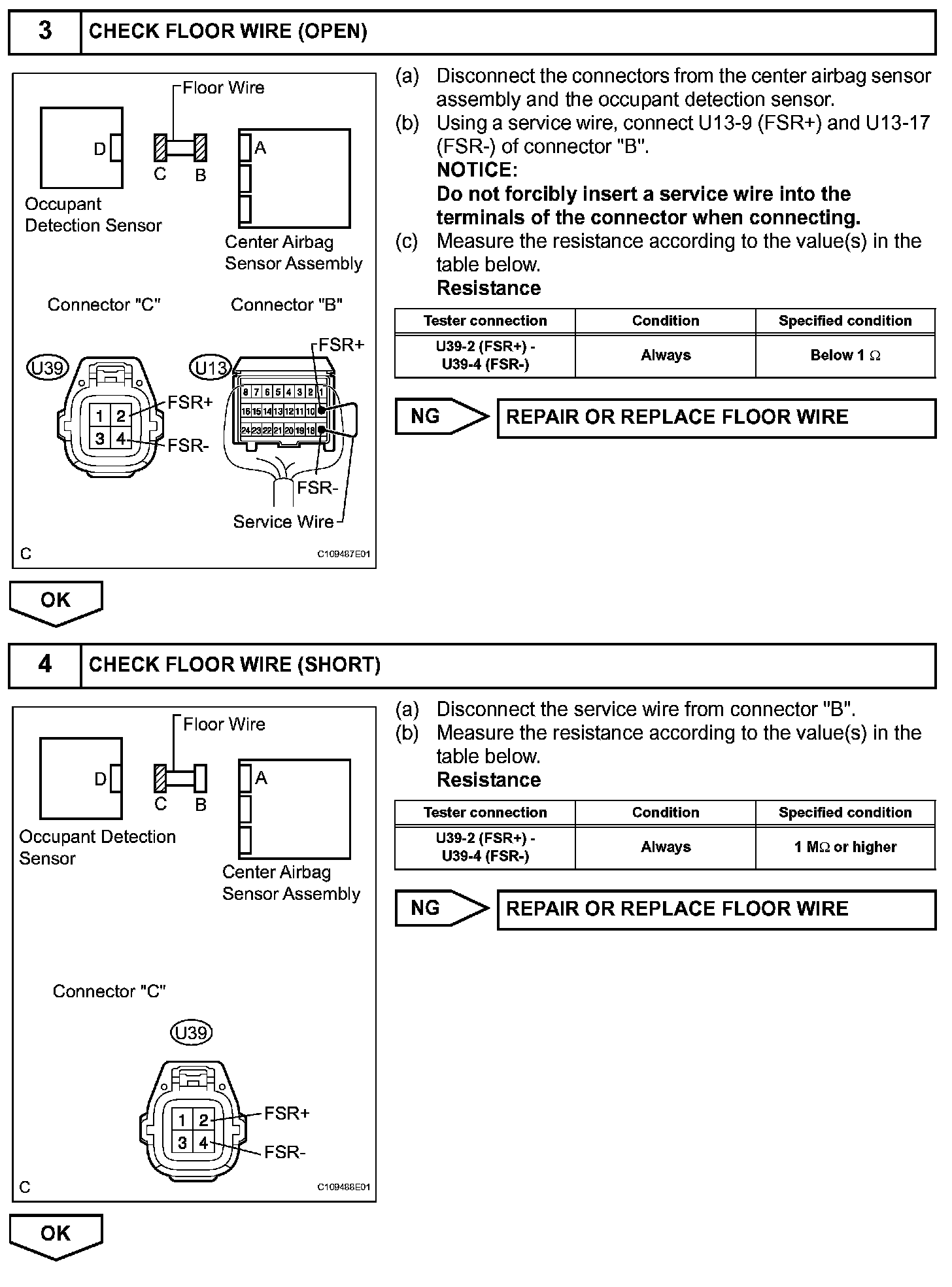

Step 3-4:

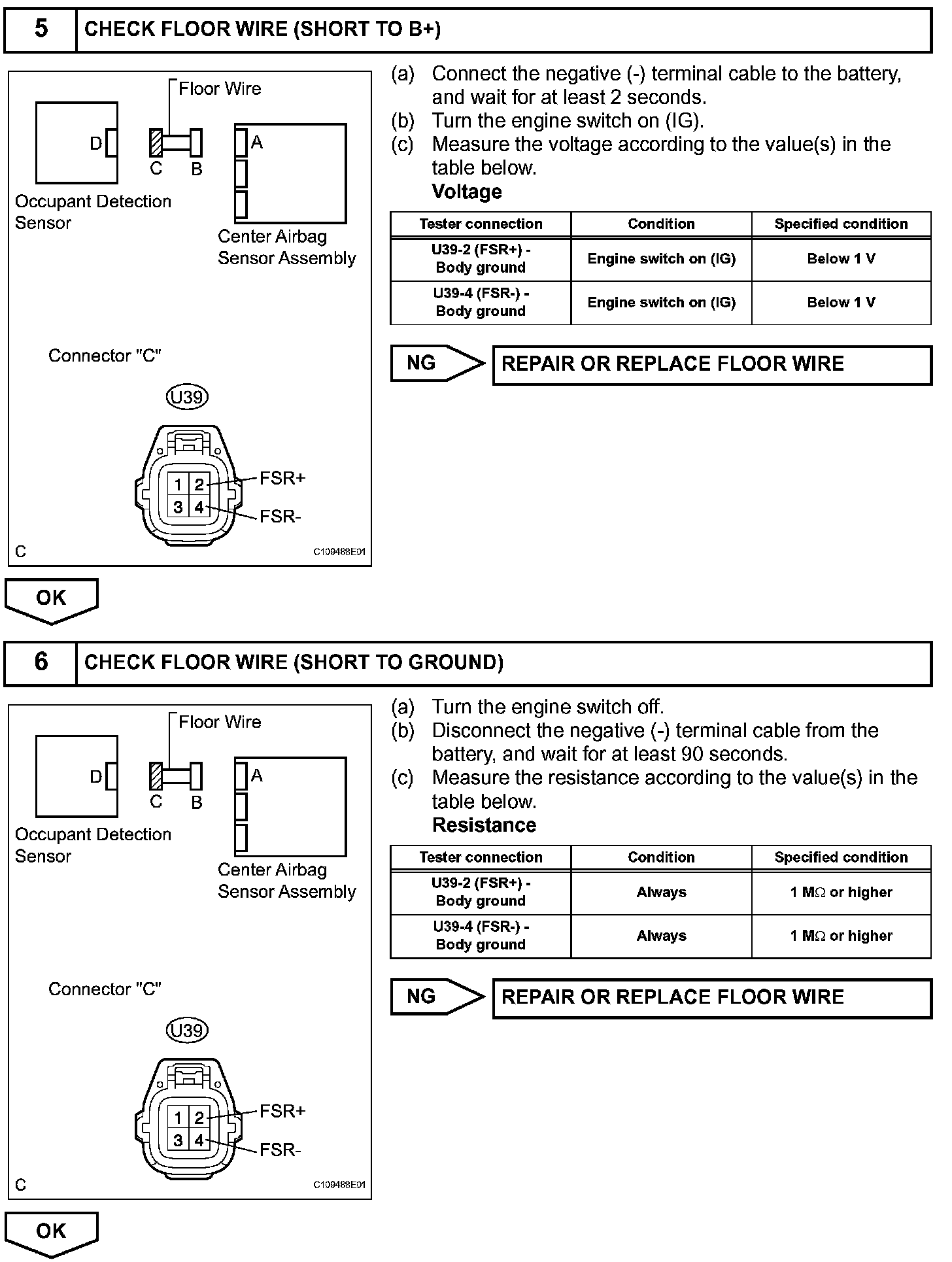

Step 5-6:

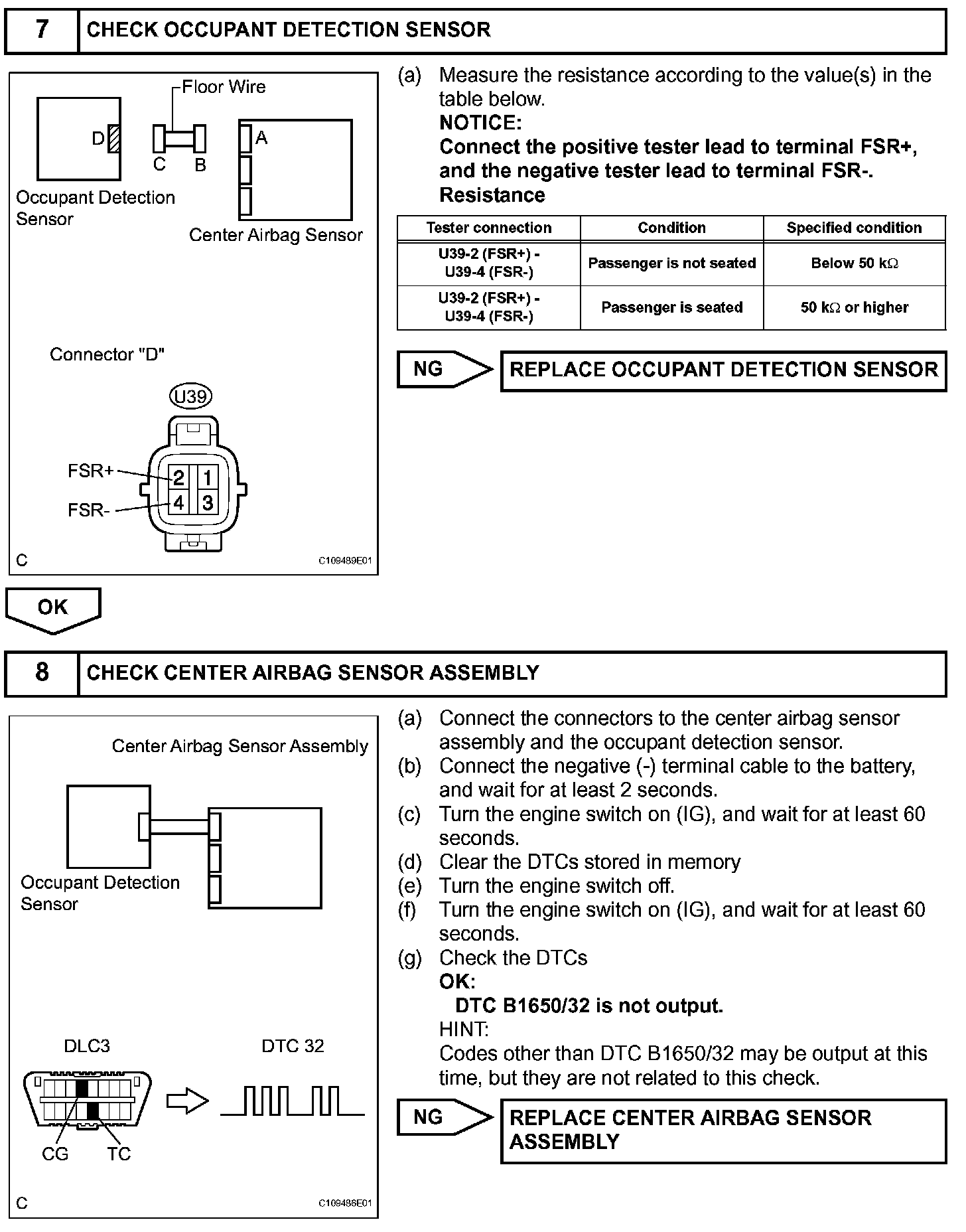

Step 7-8:

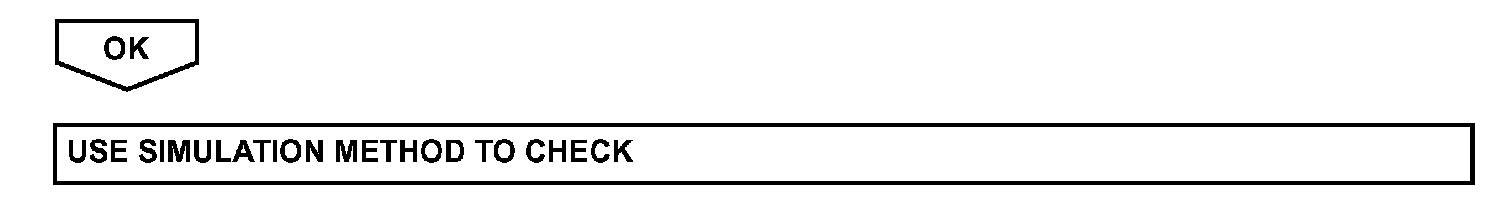

Step 8(Continued):

INSPECTION PROCEDURE
