B1297
B1297
DTC B1297 Clearance Sonar ECU Communication Stop

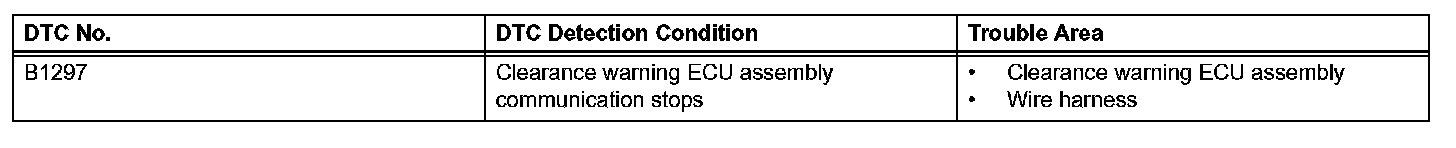

DTC Detection Condition:
DESCRIPTION

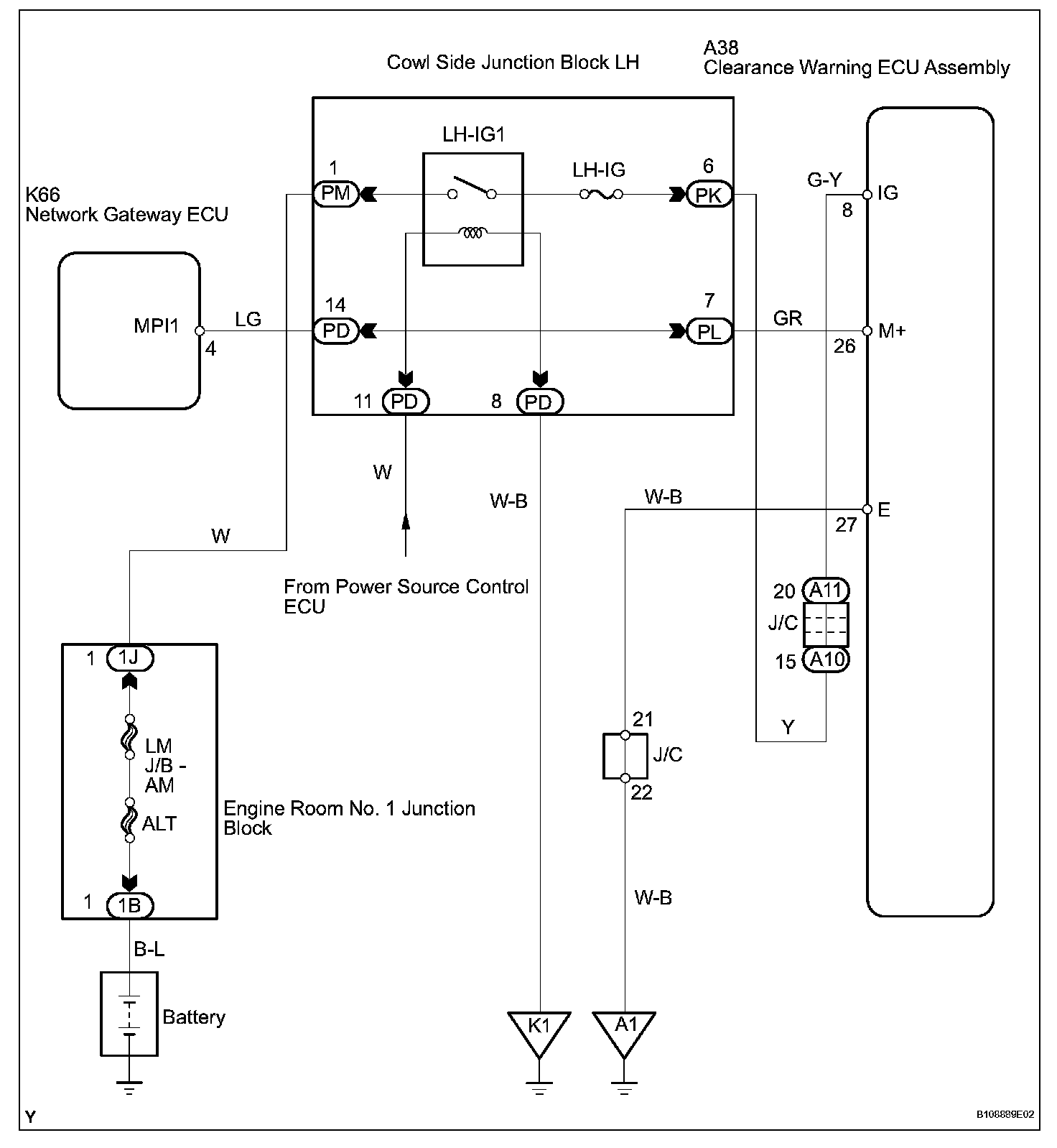

Wiring Diagram:

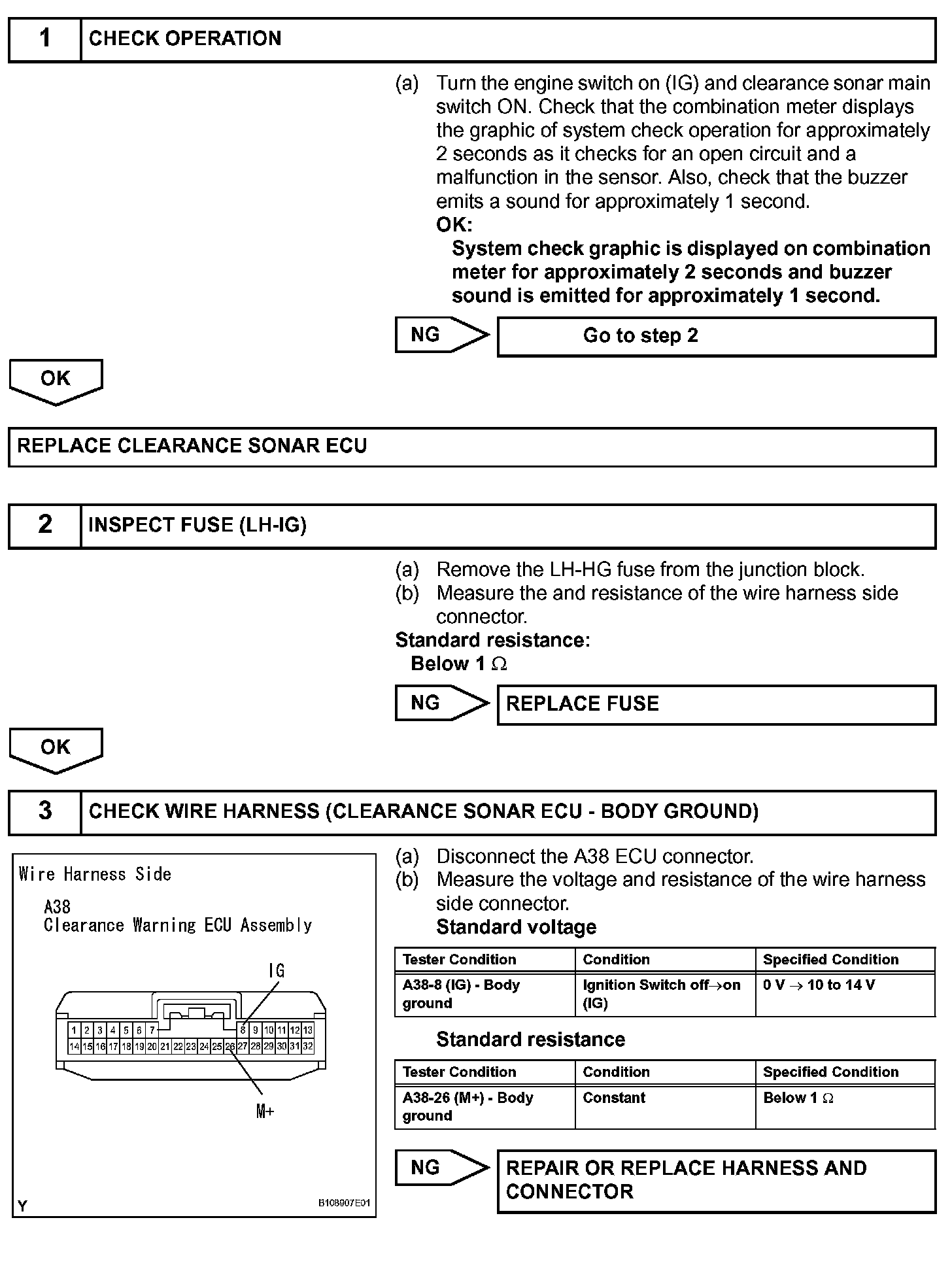

Step 1-3:

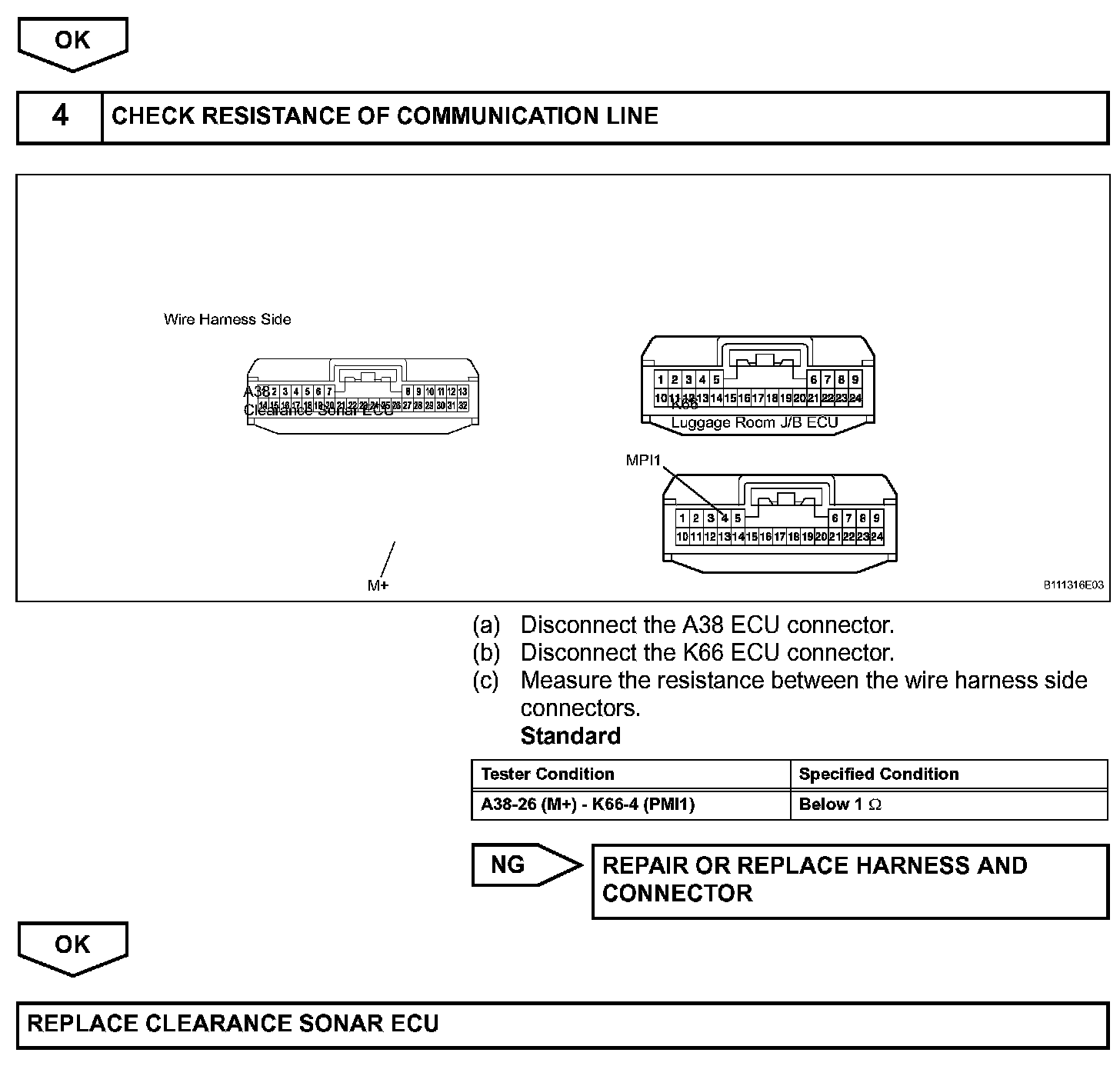

Step 3(Continued)-4:
INSPECTION PROCEDURE
