B1296

DTC B1296 Front Light ECU Communication Stop

DESCRIPTION

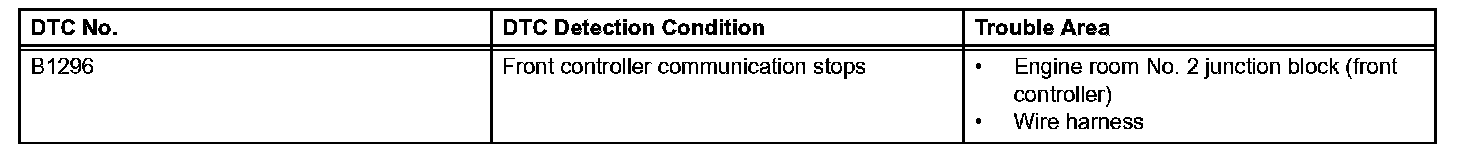

DTC Detection Condition:

This DTC is detected when communication between the engine room No. 2 junction block (front controller) and gateway ECU stops for more than 10 seconds.

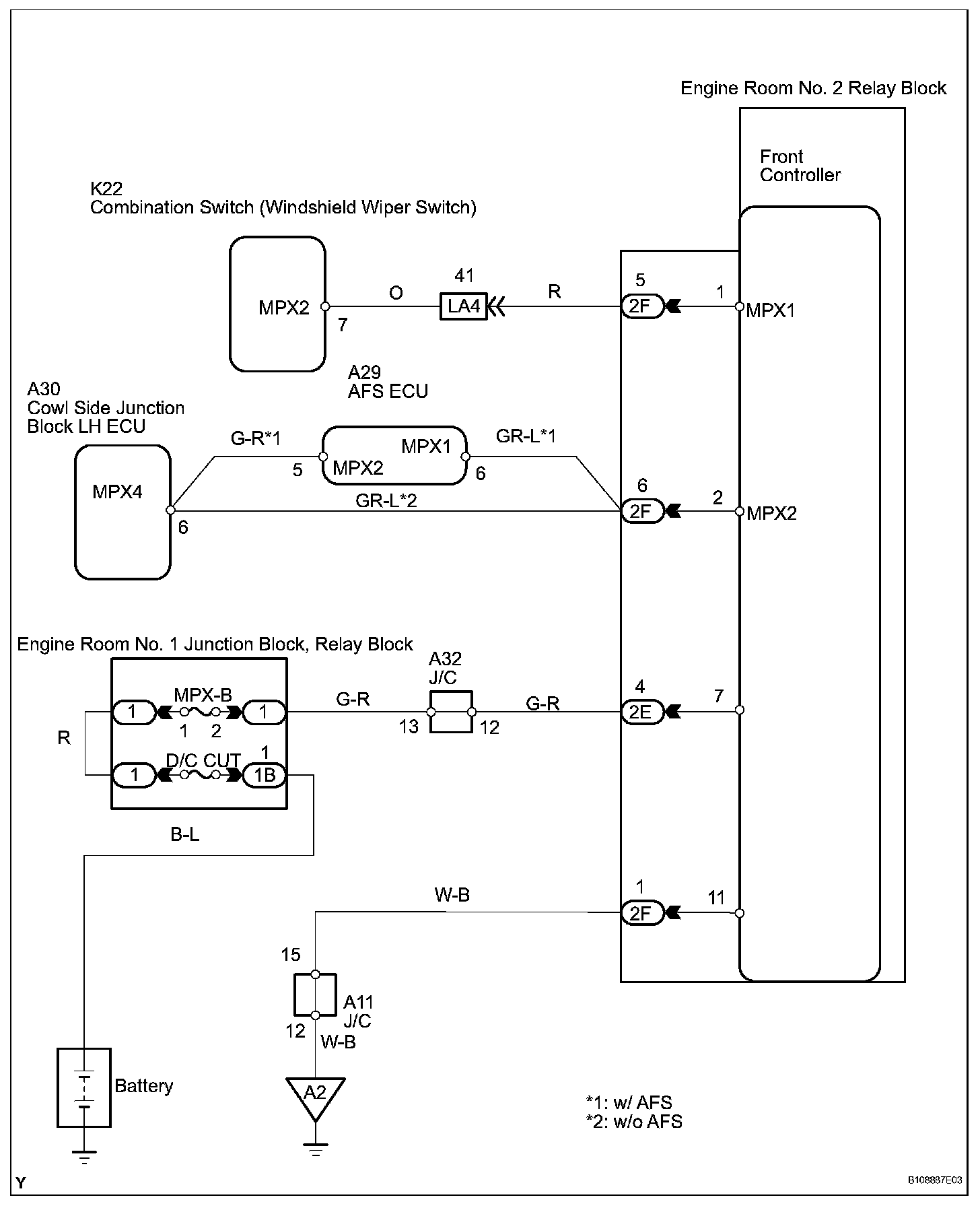

Wiring Diagram:

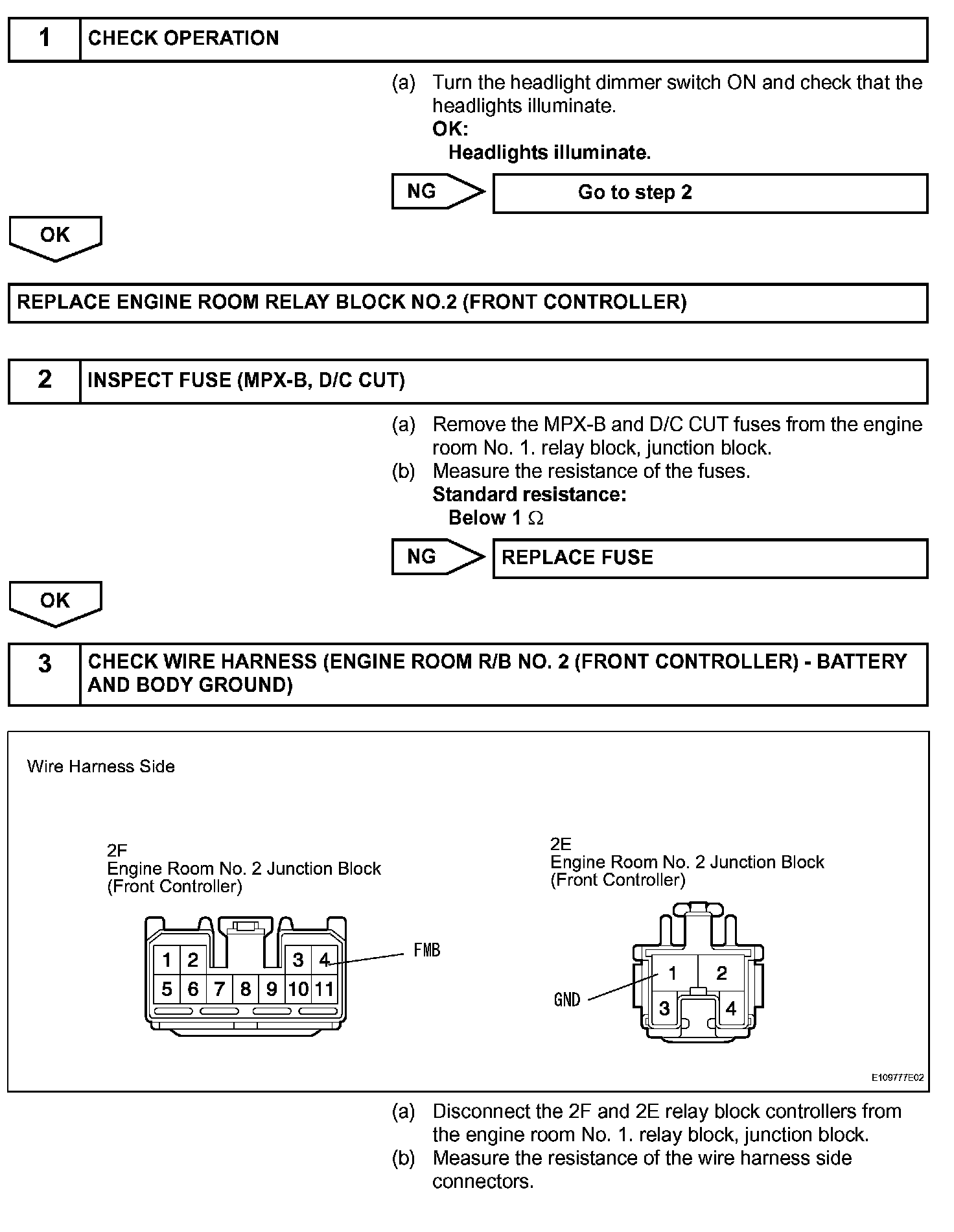

Step 1-3:

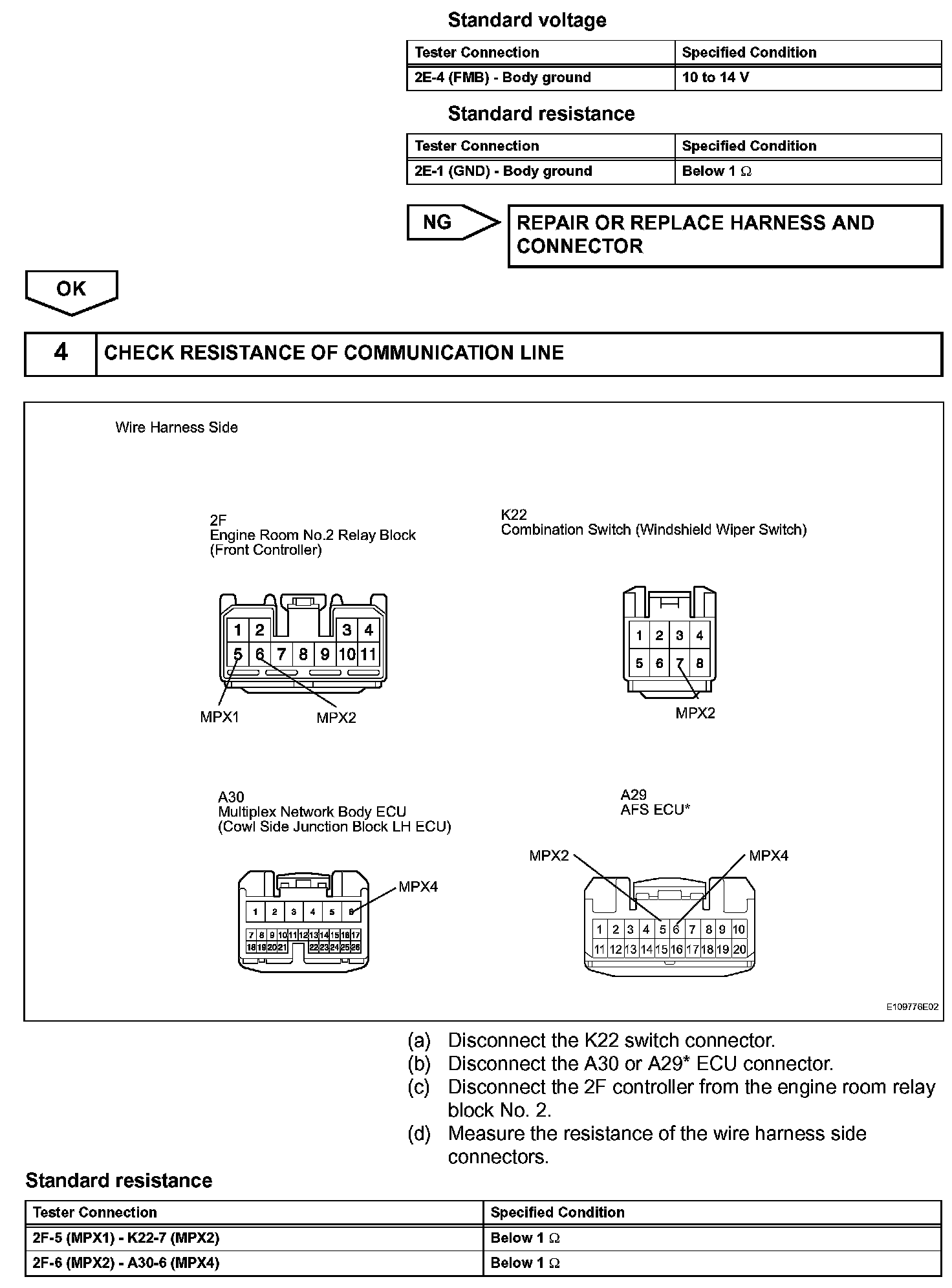

Step 3(Continued)-4:

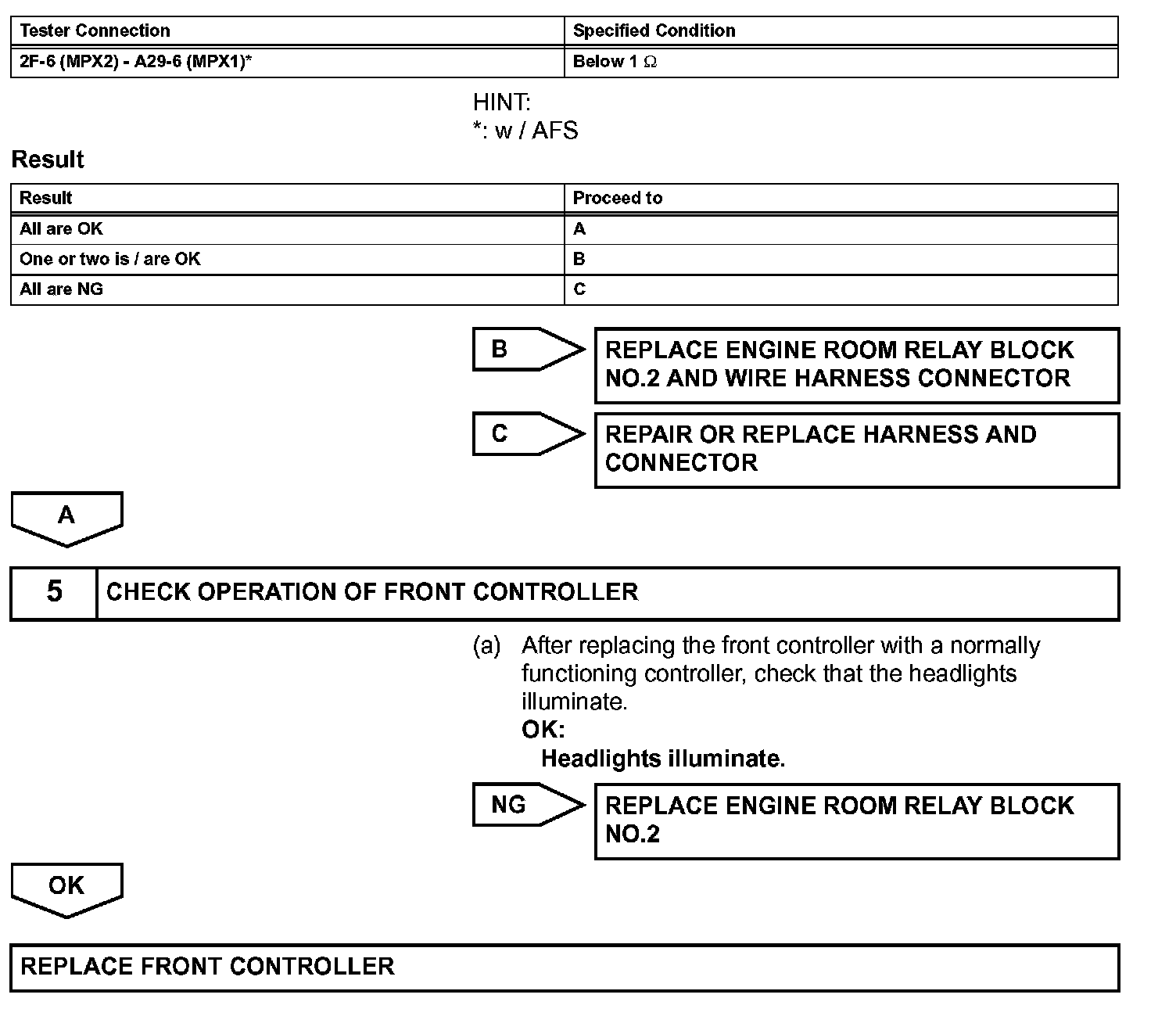

Step 4(Continued)-5:

INSPECTION PROCEDURE
