B1281

DTC B1281 Airbag ECU Communication Stop

DESCRIPTION

HINT: "Airbag ECU" refers to the airbag sensor center.

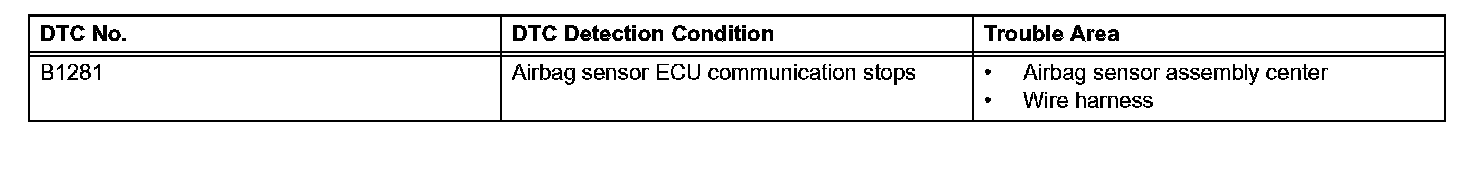

DTC Detection Condition:




This DTC is detected when communication between the airbag sensor Center and network gateway ECU stops for more than 10 seconds.

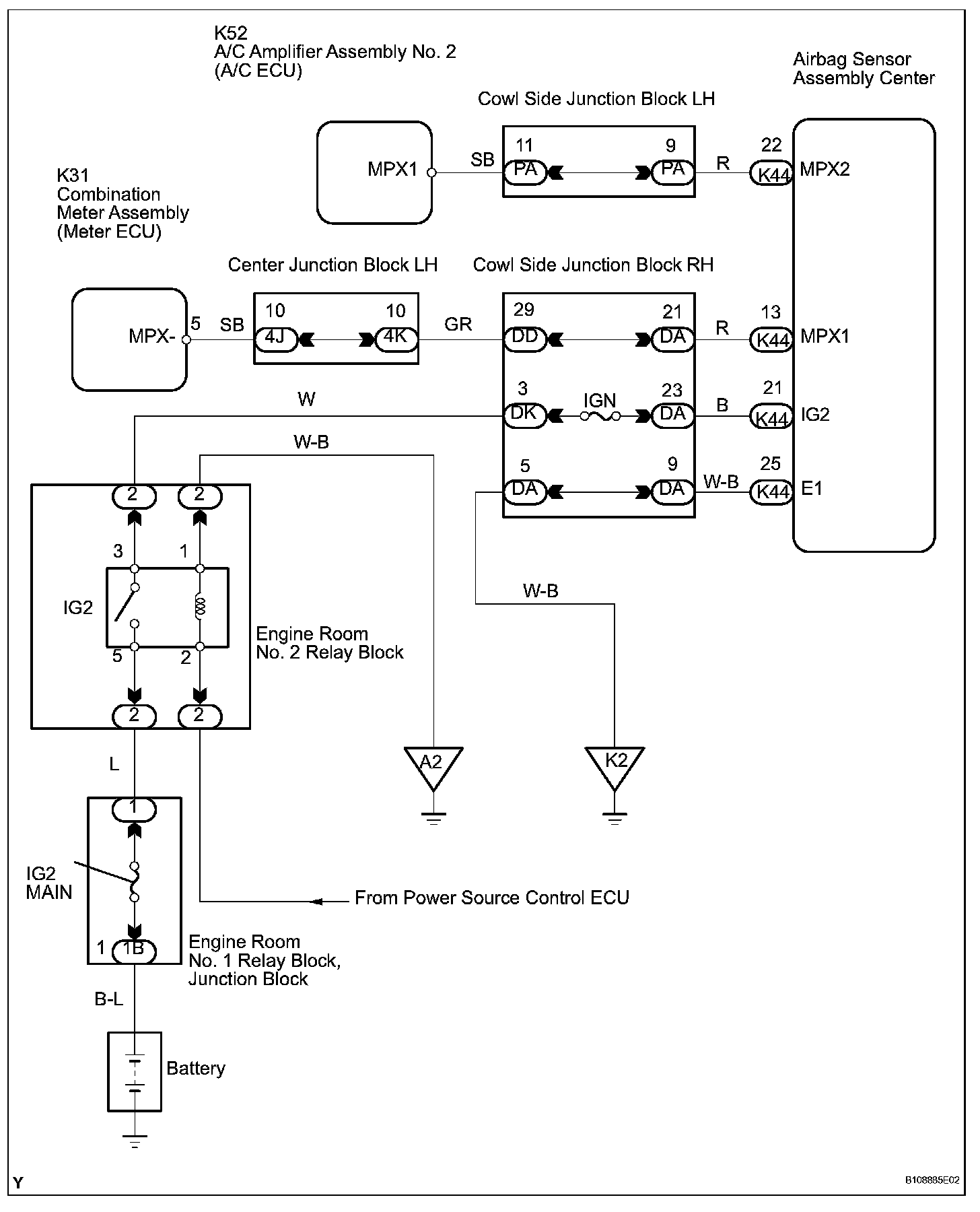

Wiring Diagram:

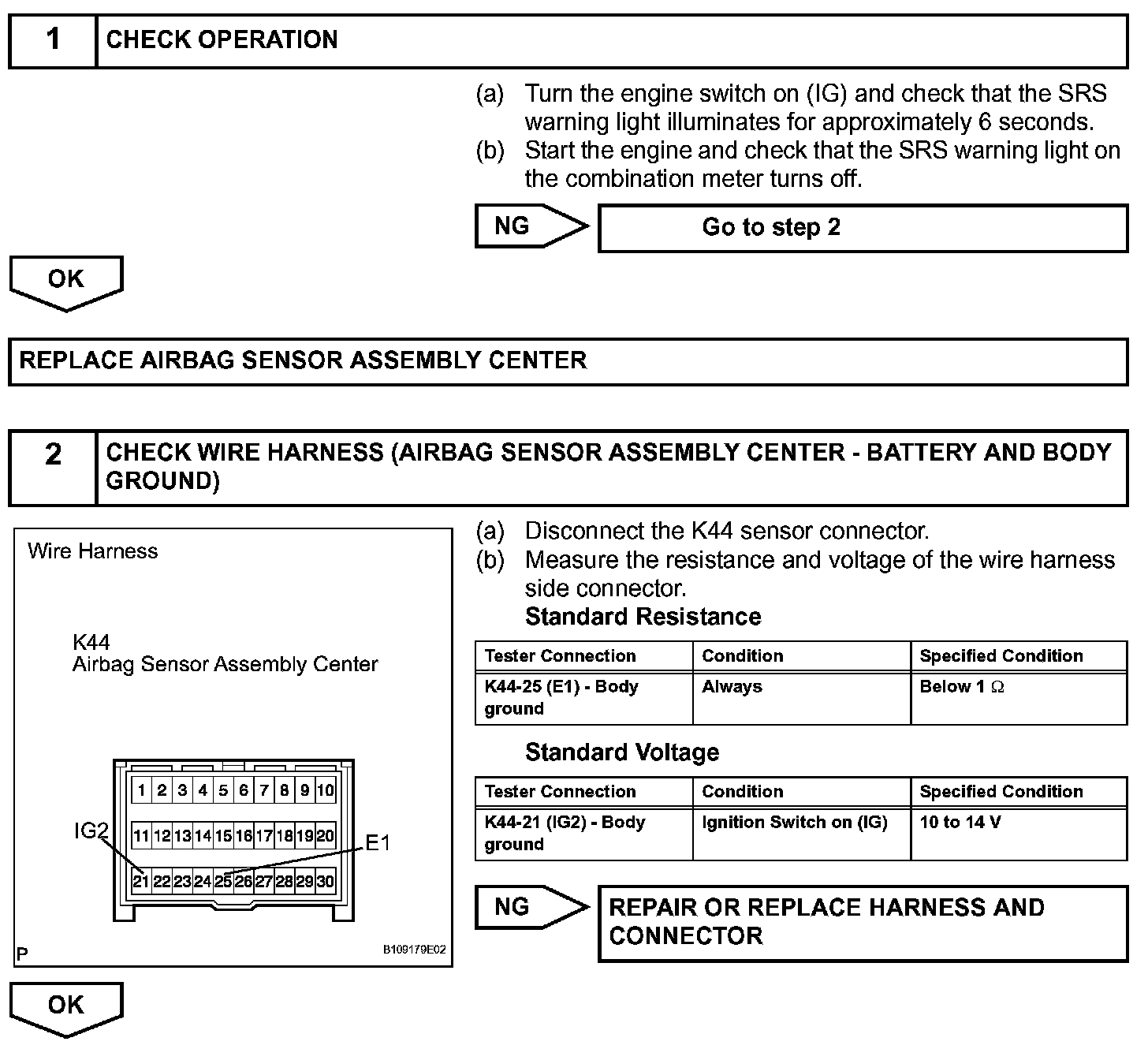

Step 1-2:




Step 3:




INSPECTION PROCEDURE
