B1280

DTC B1280 Left Side Junction Block ECU Communication Stop

DESCRIPTION

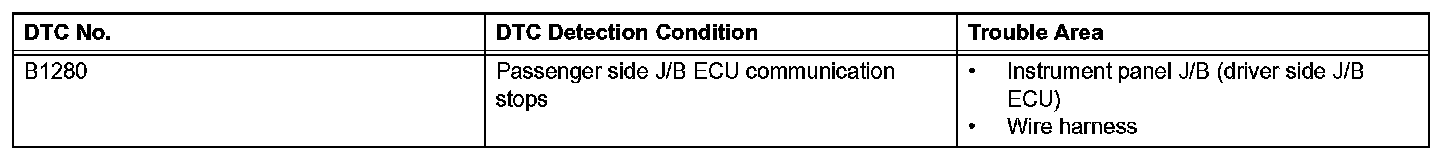

DTC Detection Condition:

This DTC is detected when communication between the instrument panel J/B (driver side J/B ECU) and network gateway ECU stops for more than 10 seconds.

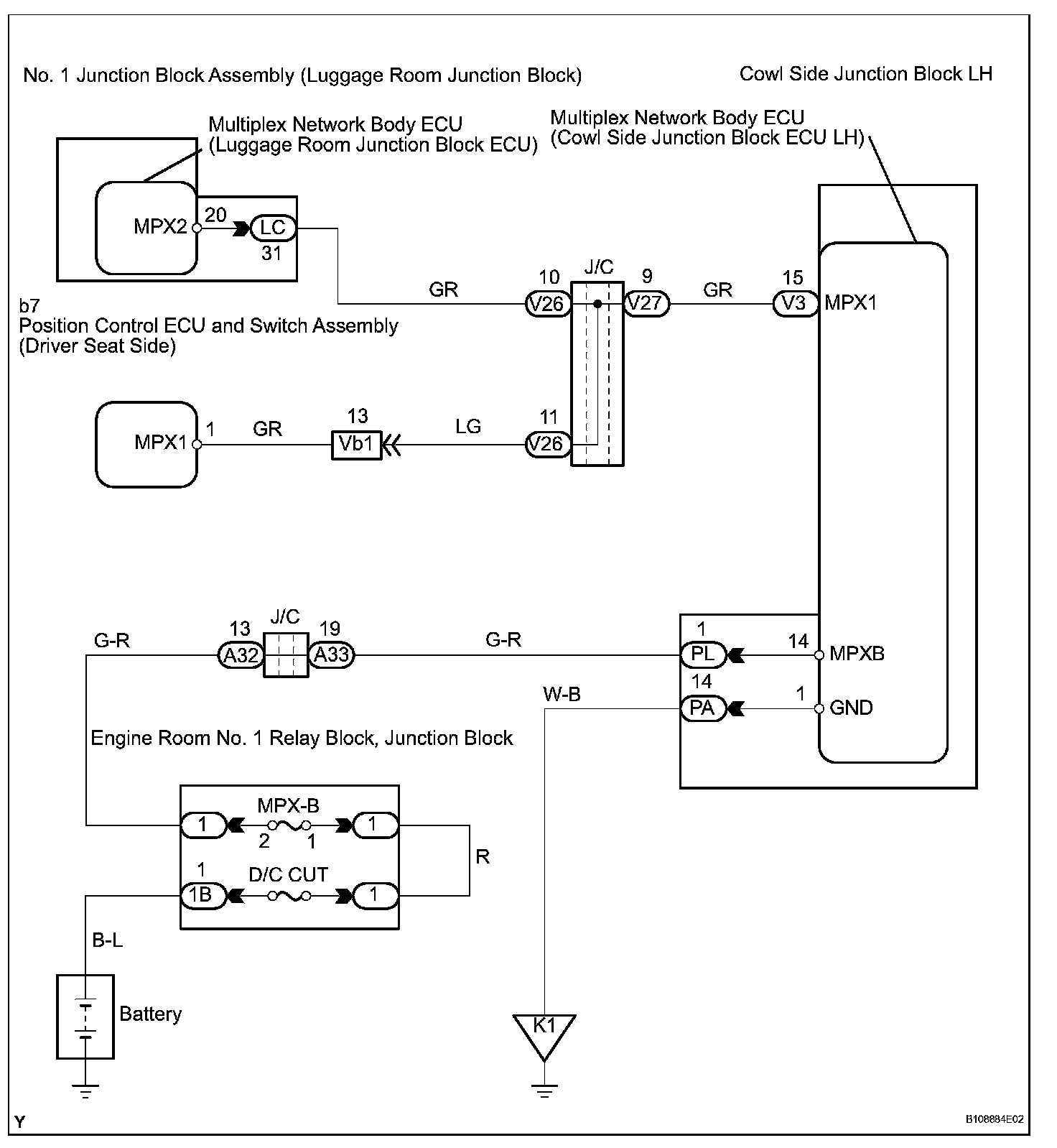

Wiring Diagram:

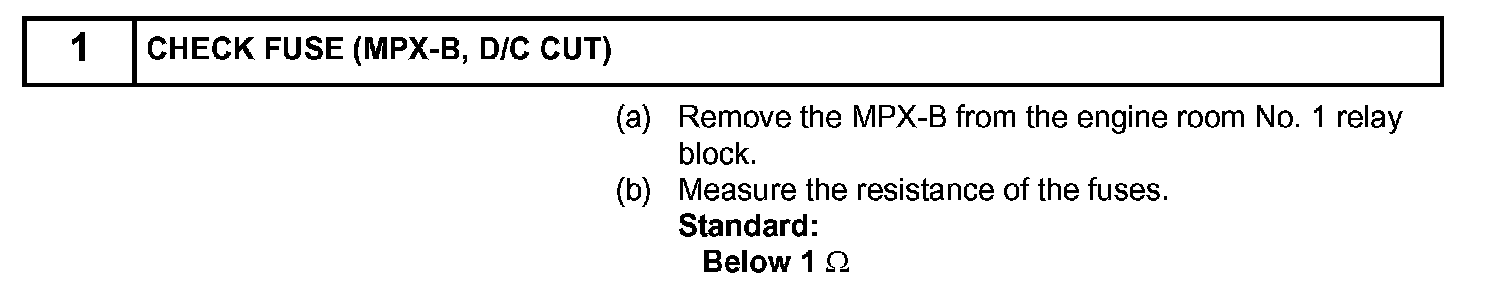

Step 1:

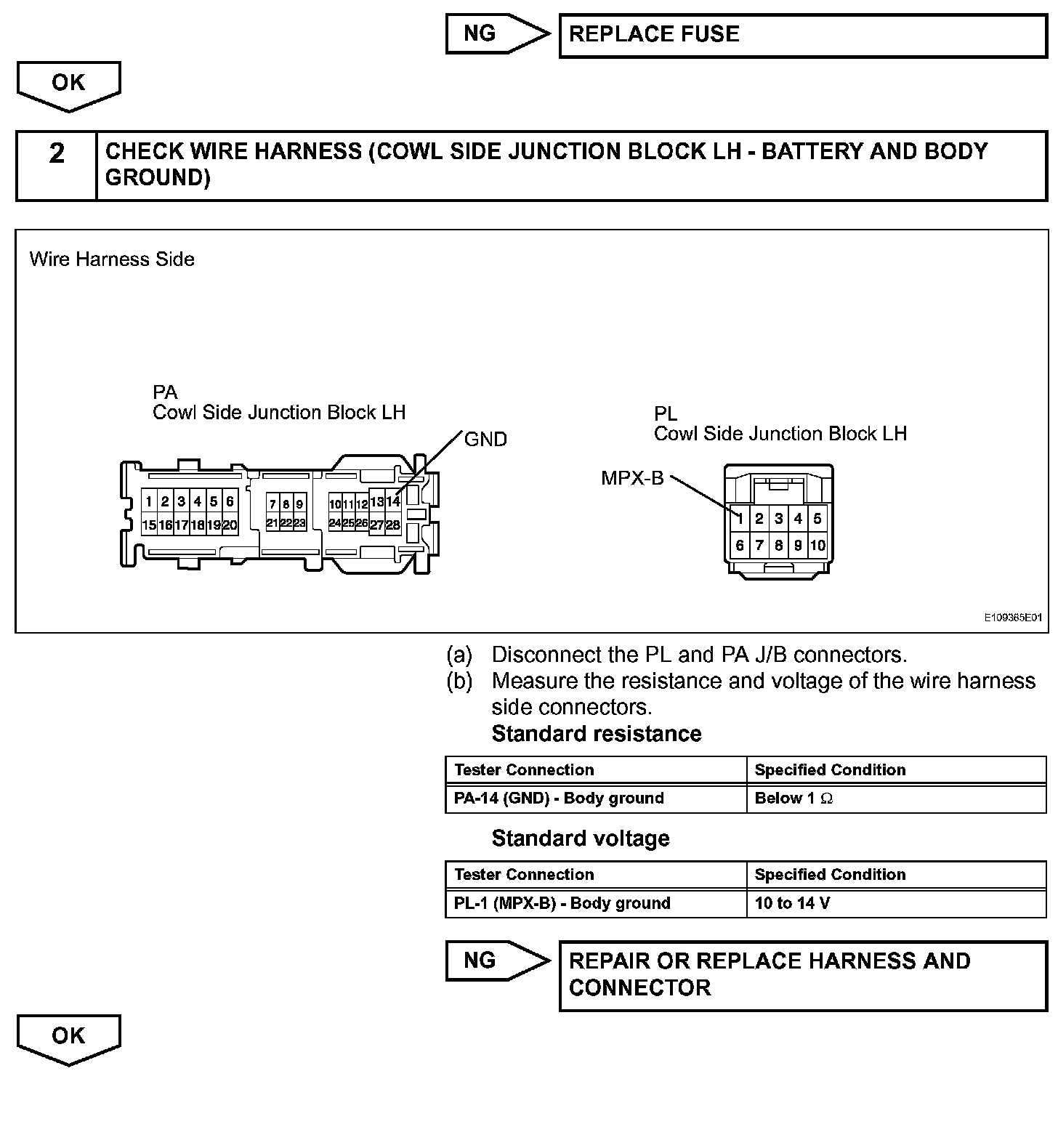

Step 1(Continued)-2:

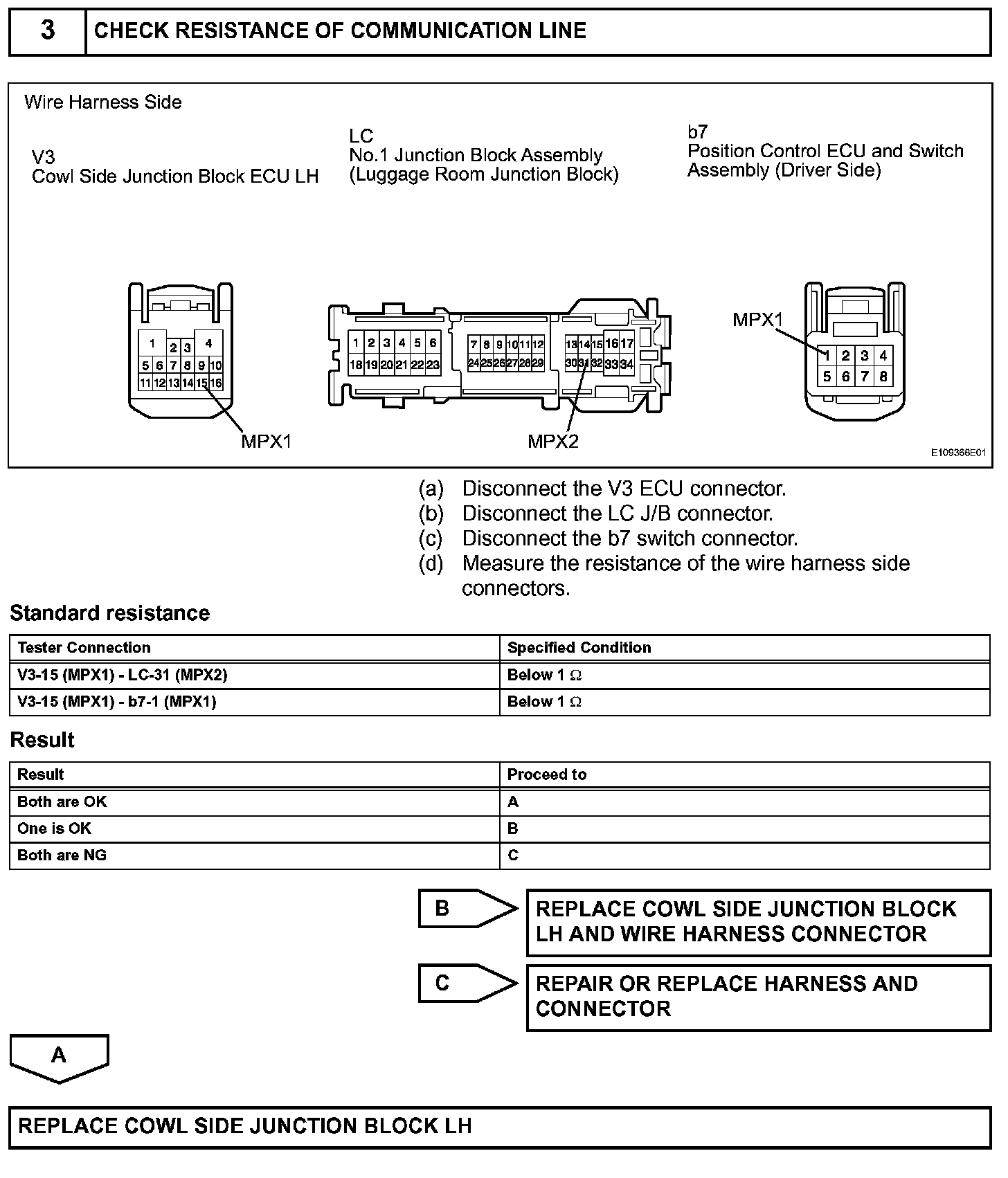

Step 3:

INSPECTION PROCEDURE
